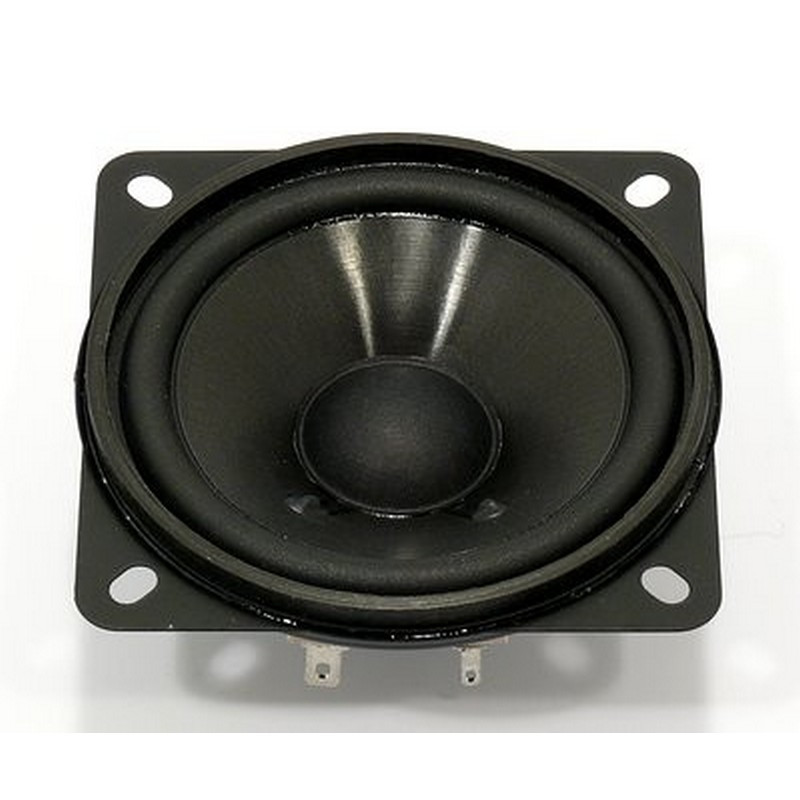

Visaton SL 87 ND - 8 Ohm broadband speakers
8.5 cm (3.4") broadband loudspeaker
Visaton SL 87 ND - 8 Ohm broadband speakers
8.5 cm (3.4") broadband loudspeaker
€40.99
Our previous price
€58.56
Save 30%
Tax included
Shipping excluded
4-0088
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
8.5 cm (3.4") broadband loudspeaker with plastic membrane and rubber bead. Low weight due to the neodymium magnet.
Very high efficiency and particularly balanced frequency response.
*) IP protection class for front side when installed in a sealed housing
Applications
- sound lines
- Small HiFi Boxes
Technical data
| Rated load capacity | 10 W |
|---|---|
| Music loading | 15 W |
| Nominal impedance Z | 8 Ohm |

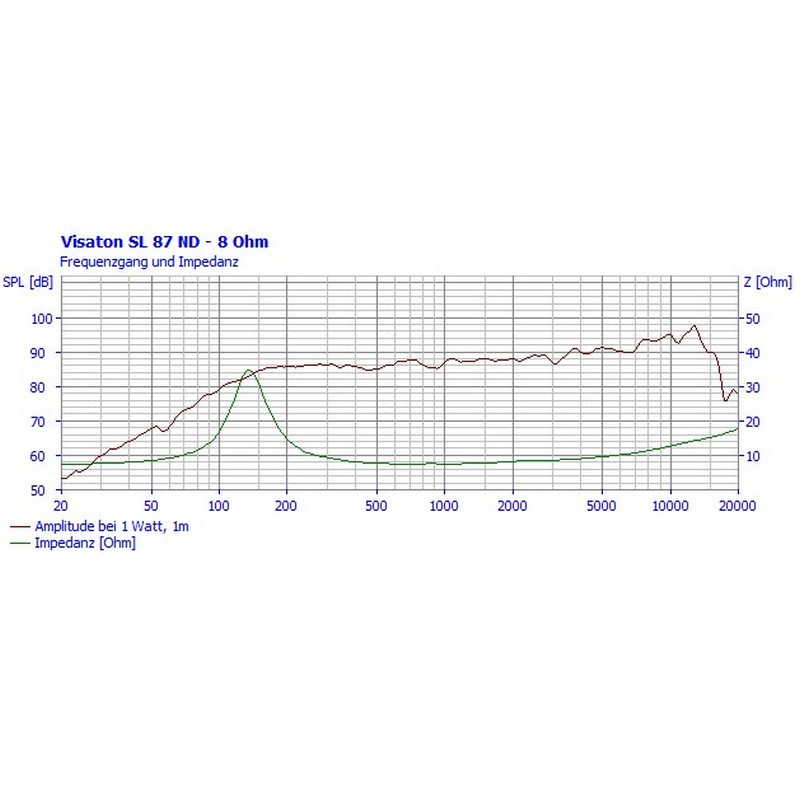

| Transmission range (-10 dB) | 88-20000 Hz |
| Medium sound pressure level | 88 dB (1 W/1 m) |

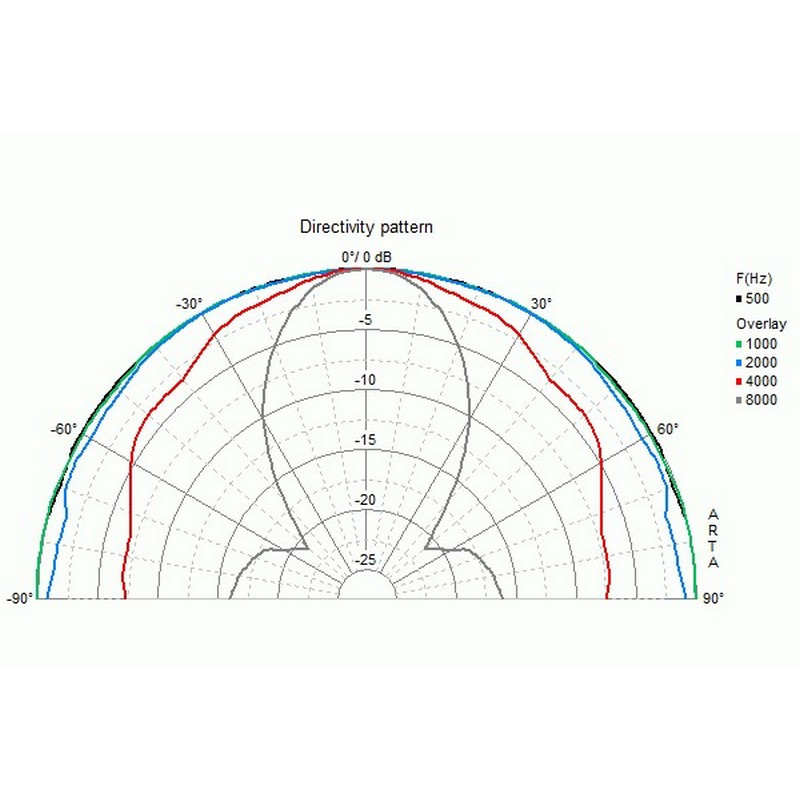

| Beam angle (-6 dB) | 132°/4000 Hz |
| Border deflection | +/− 4.3 mm |
| Reaction frequency fs | 120 Hz |
| Upper pole plate height | 3 mm |
| Oscillating coil diameter | 20 mm |
| Winding height | 5.8 mm |

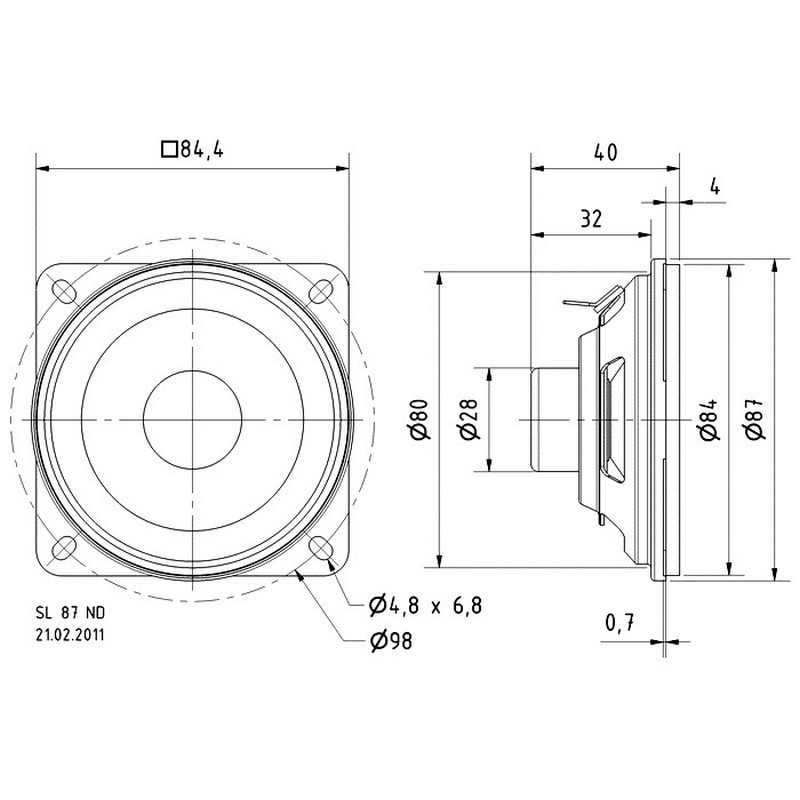

| Sound wall opening | 80 mm |
| Weight net | 0,11 kg |
| Connections | 4.8 x 0.8 mm (+) 2.8 x 0.8 mm (-) |
| Protection class | IP 64 * |
| Temperature range | −40 – 80 °C |
4-0088
New
Manufacturer information
Registered Trade Name: VISATON GmbH & Co. KG
Registered Trade mark: Visaton
Ohligser Str. 29-31
42781 Haan
Germany
42781 Haan
Germany
Email: visaton@visaton.com
Phone: +49 (0) 2129 552-0
Responsible Person:
Geschäftsführer Ralph Schukat
