Visaton DL 18/1 - 100 V (RAL 9016) ceiling speakers
17 cm (6.5") ceiling speakers
Visaton DL 18/1 - 100 V (RAL 9016) ceiling speakers
17 cm (6.5") ceiling speakers
€41.52
Our previous price
€59.31
Save 30%
Tax included
Shipping excluded
4-0186
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return

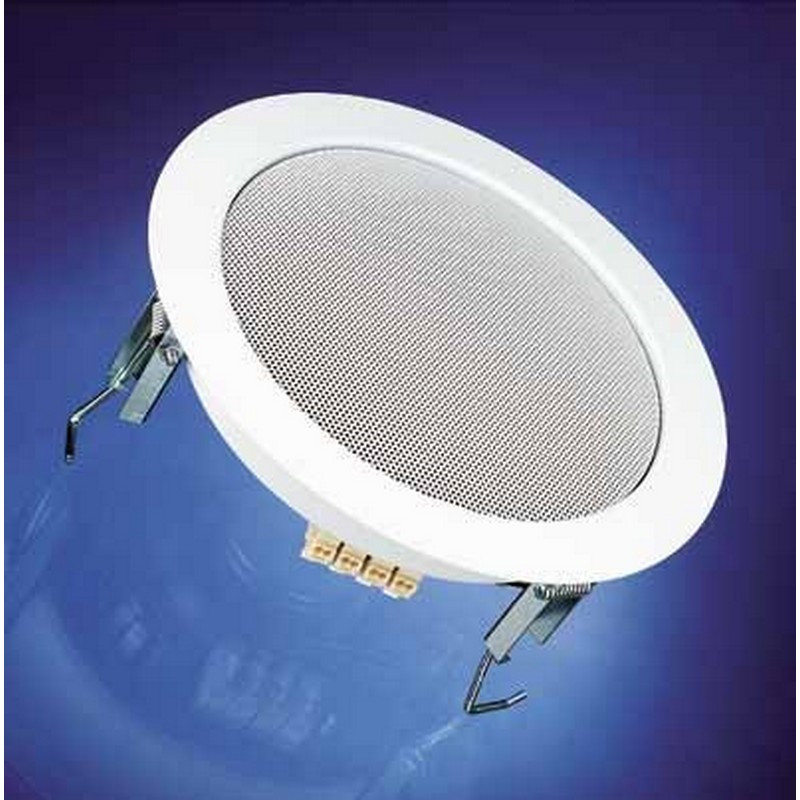

17 cm (6.5") ceiling speakers with corrosion-resistant cover grid (RAL 9016), suitable for installation in covers of all materials.
Fitted with a broadband loudspeaker. Quick mounting through a circular undercover section, in which the speaker with transformer and mounting ring is used in snap-in technology.
The connection to the 100 V network as well as the possibly necessary level adaptation is effected by a compression spring clamp which is easy to handle.
The beautiful cover grid is fastened quickly and practically with a bayonet connection.
The DL 18/1 is also available in other RAL colours on request.
Â
Applications
- Installation in suspended ceilings for voice and music sounding in shops, living rooms, hotels etc.
Characteristics
- Moisture-impregnated membrane
- UV-resistant
- Metal design, corrosion-proof
- Functional at low temperatures according to EN 60068-2-1 (-40 °C; 96 h)
- meets the requirements of Germanischer Lloyd (requirements for electrical equipment/colds)
Technical data
| Trafo matching | 6; 3; 1.5 W |
|---|---|

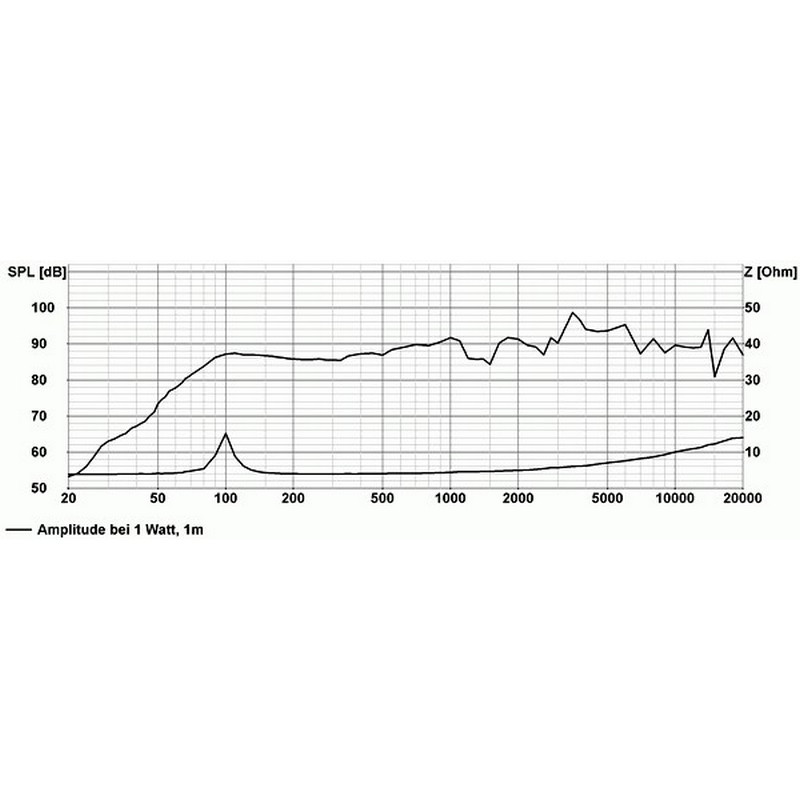

| Sound pressure level | 101 dB (1 W/1 m) @ 3260 Hz |
| Transmission range (-10 dB) | 70–20000 Hz |
| Medium sound pressure level | 93 dB (1 W/1 m) |
| Maximum sound pressure level | 101 dB (6 W/1 m) |

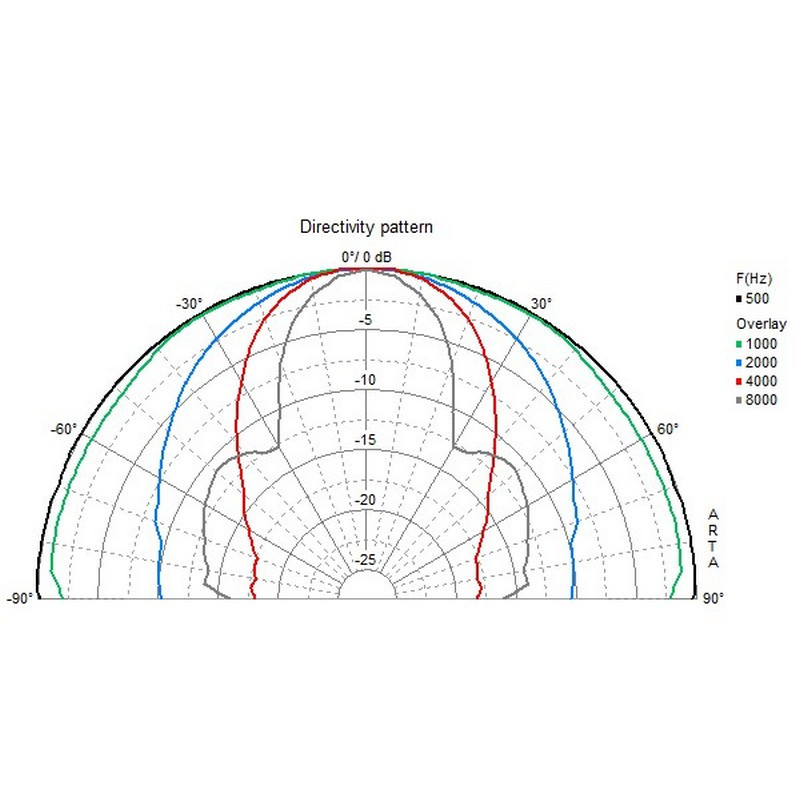

| Beam angle (-6 dB) | 57°/4000 Hz |
| Reaction frequency fs | 100 Hz |
| Oscillating coil diameter | 20 mm |

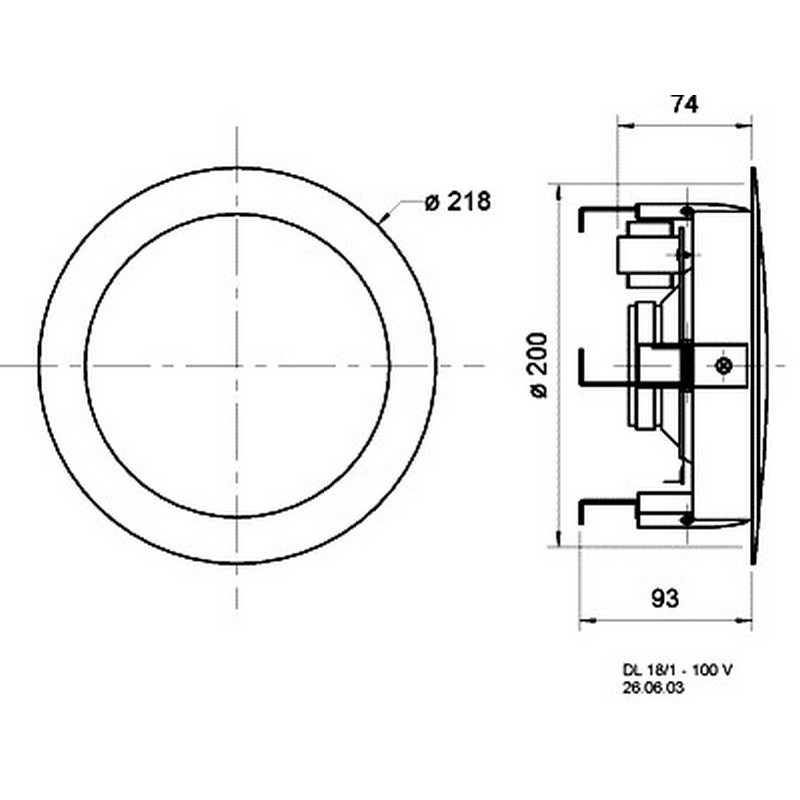

| Sound wall opening | 200 mm |
| Weight net | 1,15 kg |
| Protection class | IP X3 |
| Temperature range | −40 – 110 °C |
| Colour | RAL 9016 |
