Visaton DL 18/2 SQ - 8 Ohm/100 V Ceiling and Wall Mounting Speaker

2-way corner and wall-mounted loudspeaker

€49.48
Our previous price €70.69
Save 30%
Tax included Shipping excluded
Ceiling speakers
4-0189
Quantity
Wishlist
Compare
available at manufacturer
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

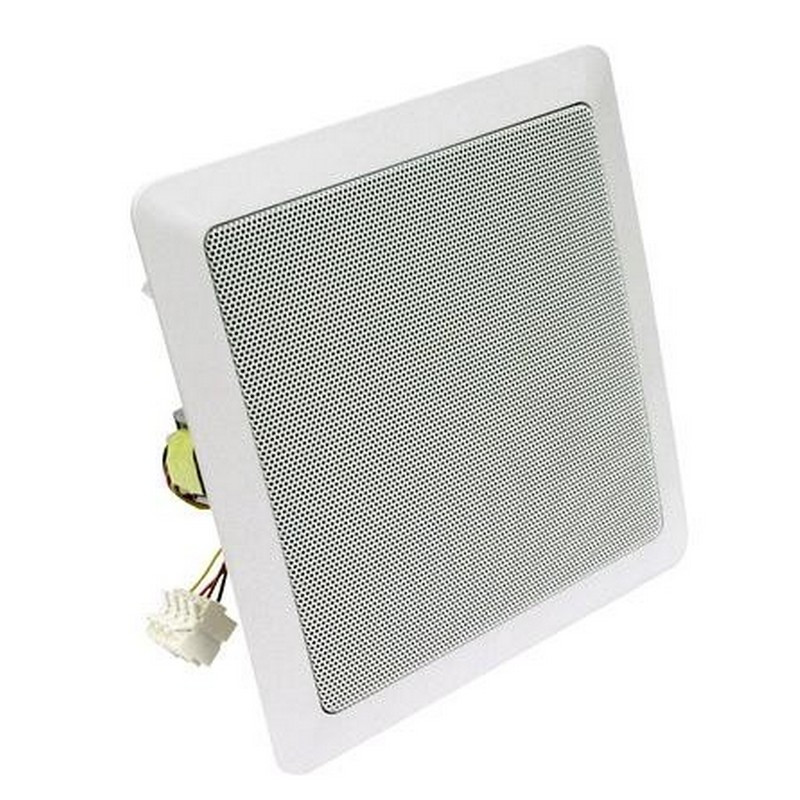

2-way corner and wall-mounted loudspeaker with white plastic frame and metal grid, equipped with a 17-cm (6.5") coaxial loudspeaker.

Suitable for installation in cavity ceilings and cavity walls.

Fast mounting by four screwable clamping devices for fastening in a square ceiling or wall section.

Spring clamps allow quick and easy connection to the 100V network or with a normal amplifier (8 Ohm).

Technical data

Rated load capacity 40 W
Music loading 60 W
Trafo matching 6; 3; 1.5 W
Nominal impedance Z 8 Ohm

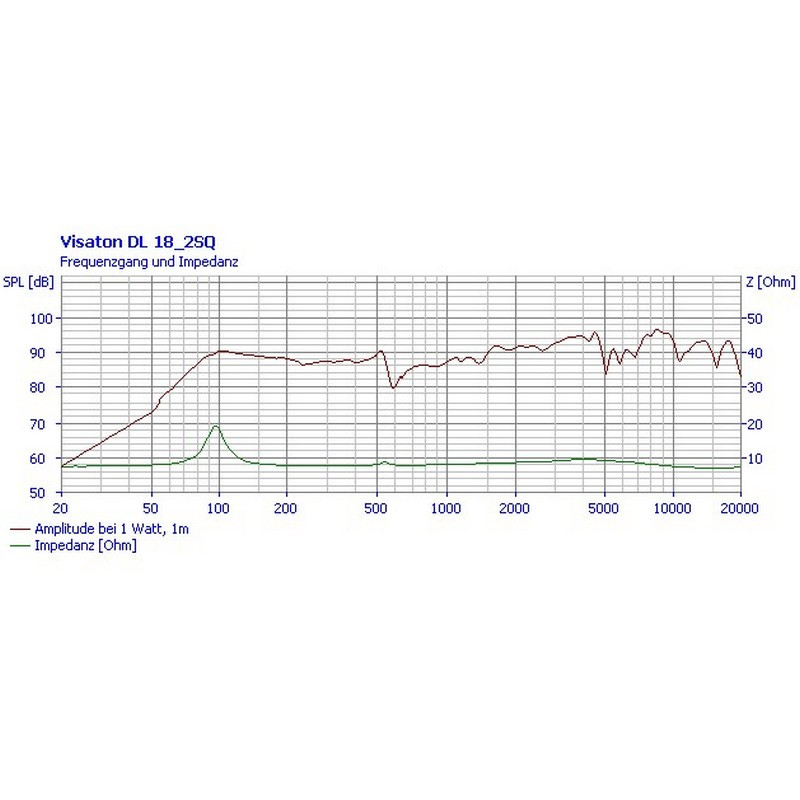

Sound pressure level 97 dB (1 W/1 m) @ 8500 Hz
Transmission range (-10 dB) 70–20000 Hz
Medium sound pressure level 90 dB (1 W/1 m)
Maximum sound pressure level 98 dB (6 W/1 m)

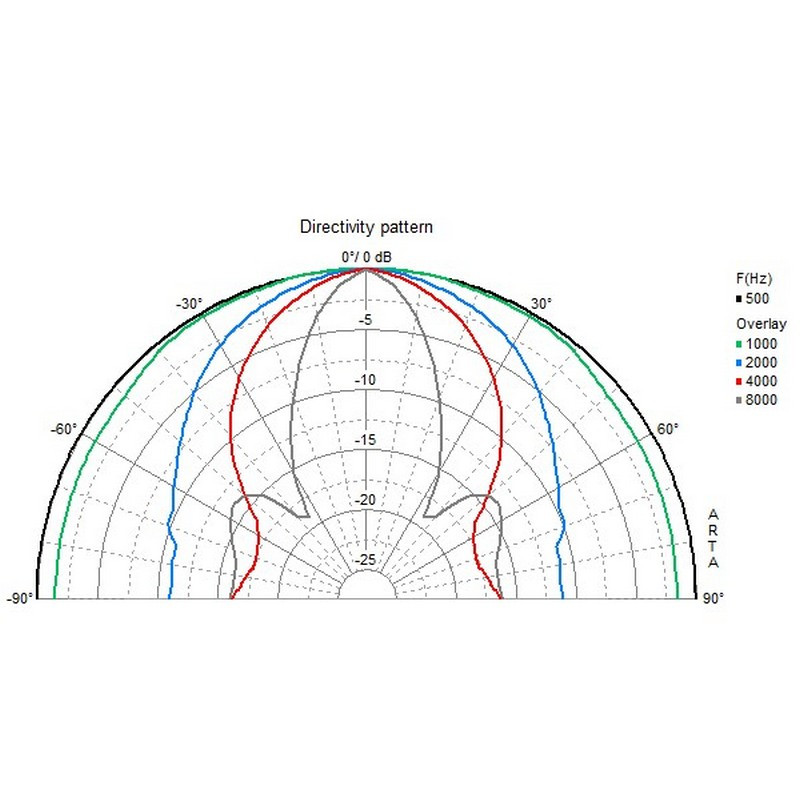

Beam angle (-6 dB) 58°/4000 Hz
Reaction frequency fs 100 Hz
Magnetic induction 0,8 T
Magnetic flux 150 μWb
Upper pole plate height 3 mm
Oscillating coil diameter 20 mm
Winding height 5 mm

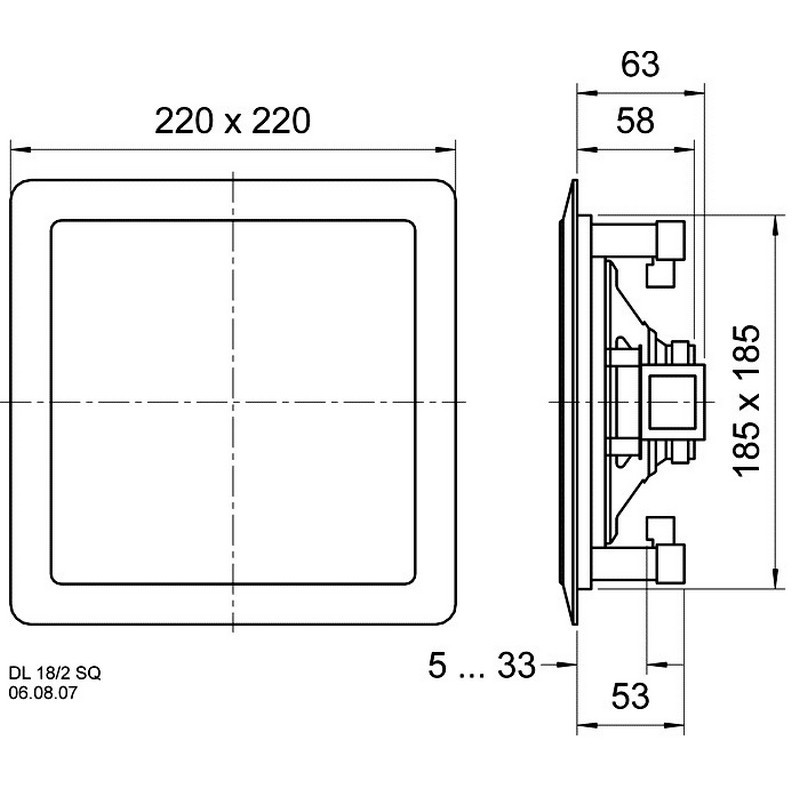

Sound wall opening 187 x 187 mm
Weight net 0,864 kg
Length of connection cable 0,1 m (8 Ohm) 0,22 m (100 V)
Protection class IP X3
Temperature range −25 ... 70 °C
