Visaton DL 18/2 T - 8 Ohm HiFi ceiling speakers
17 cm (6.5") HiFi corner speakers
Visaton DL 18/2 T - 8 Ohm HiFi ceiling speakers
17 cm (6.5") HiFi corner speakers
€59.89
Our previous price
€85.55
Save 30%
Tax included
Shipping excluded
4-0190
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return

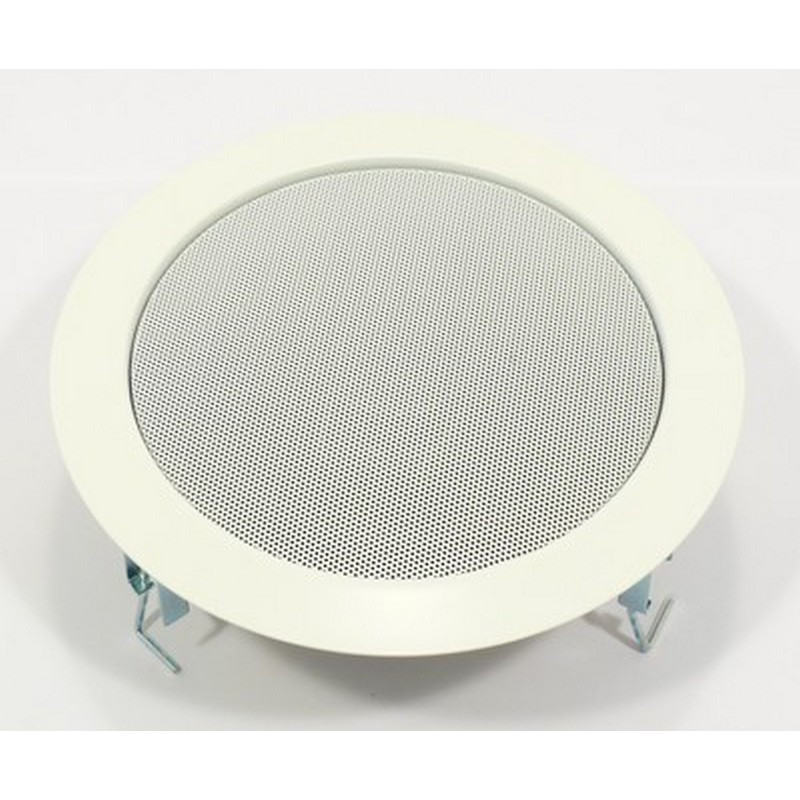

17 cm (6.5") HiFi corner speakers with corrosion-resistant cover grid, suitable for installation in covers of all materials.
Fitted with a 2-way coaxial loudspeaker.

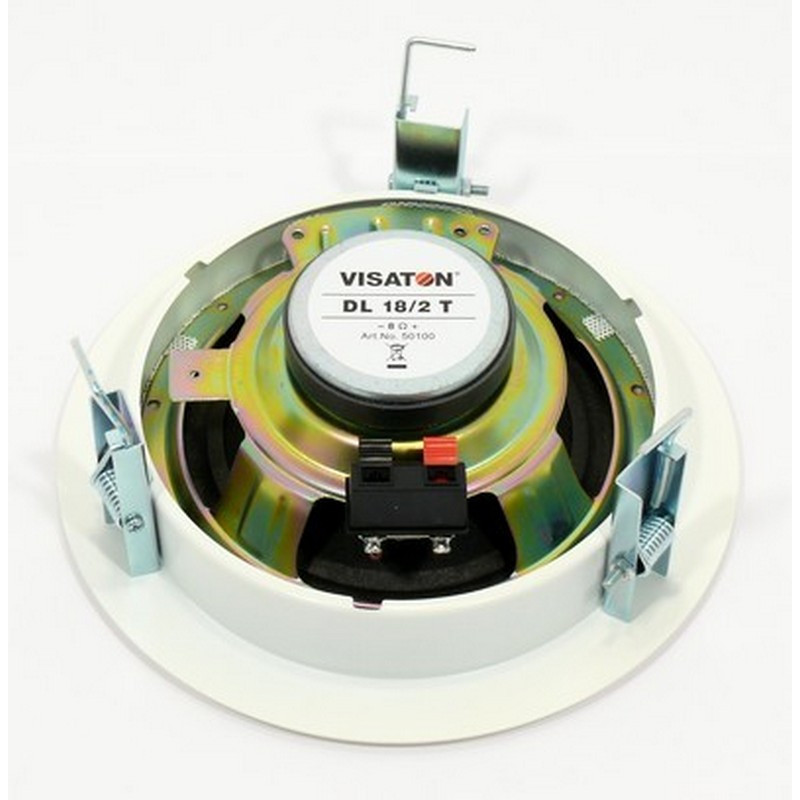

Quick mounting by a circular undercover section in which the loudspeaker with mounting ring is used in snap-in technology.
The connection is effected by a compression spring clamp which is easy to handle.
The beautiful cover grid is fastened quickly and practically with a bayonet connection.
The DL 18/2 T is also available in other RAL colours on request.
Â
Applications
- Installation in suspended ceilings for voice and music sounding in shops, living rooms, hotels etc.
Characteristics
- Moisture-impregnated membrane
- UV-resistant
- Metal design, corrosion-proof
- Functional at low temperatures according to EN 60068-2-1 (-40 °C; 96 h)
- meets the requirements of Germanischer Lloyd (requirements for electrical equipment / refrigeration)
Technical data
| Rated load capacity | 50 W |
|---|---|
| Music loading | 70 W |
| Nominal impedance Z | 8 Ohm |

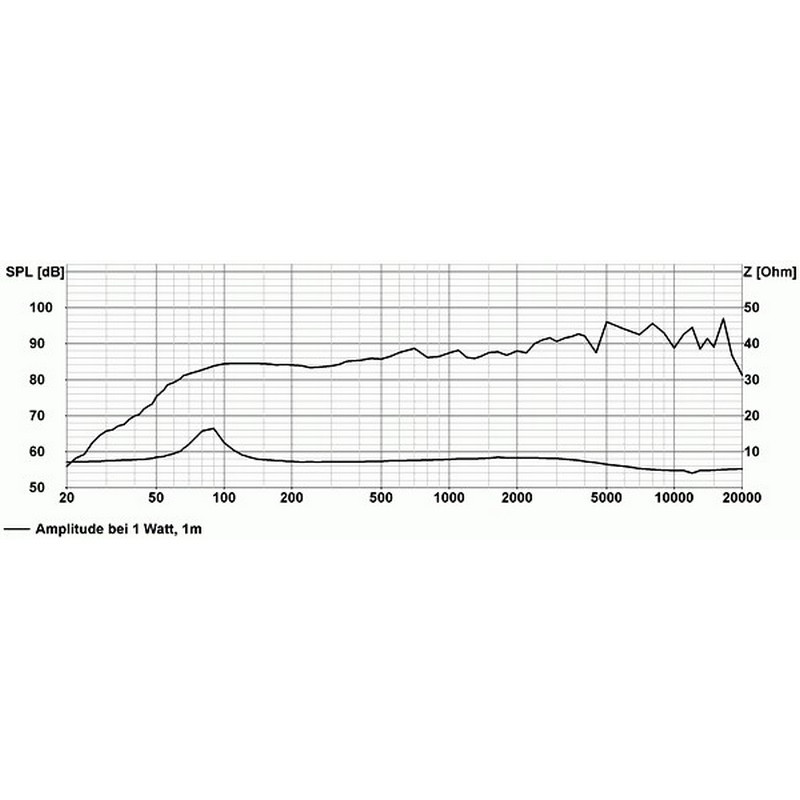

| Transmission range (-10 dB) | 50–20000 Hz |
| Medium sound pressure level | 90 dB (1 W/1 m) |
| Beam angle (-6 dB) | 64°/4000 Hz |
| Reaction frequency fs | 90 Hz |
| Magnetic induction | 0,95 |
| Magnetic flux | 310 μWb |
| Upper pole plate height | 4 mm |
| Oscillating coil diameter | 25 mm |

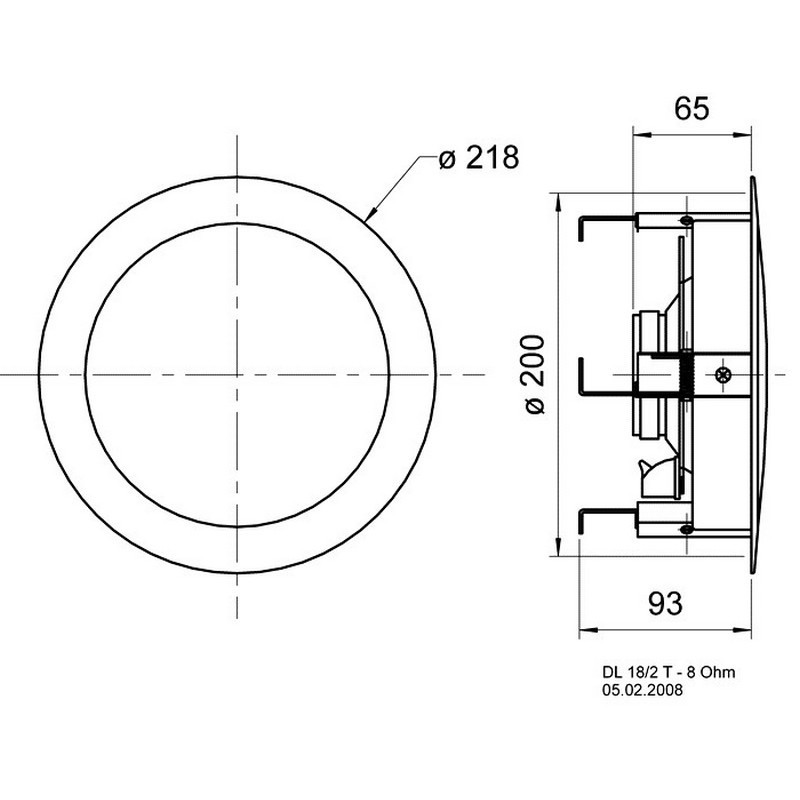

| Sound wall opening | 200 mm |
| Weight net | 1,15 kg |
| DC resistance Rdc | 6.9 Ohm |
| Mechanical Q-factor Qms | 2,68 |
| Electric Q-factor Qes | 1,68 |
| Total Q factor Qts | 1,03 |
| Equivalent air yield volume Vas | 15 l |
| Effective membrane surface Sd | 129 cm2 |
| Dynamic moving mass Mms | 7.9 g |
| Vibration coil inductance L | 0,75 mH |
| Protection class | IP X3 |
| Temperature range | −40 – 80 °C |
| Colour | RAL 9010 |
