Visaton ML 16 A - 100 V (NCS S 0500-N) ceiling speakers
Ceiling speakers

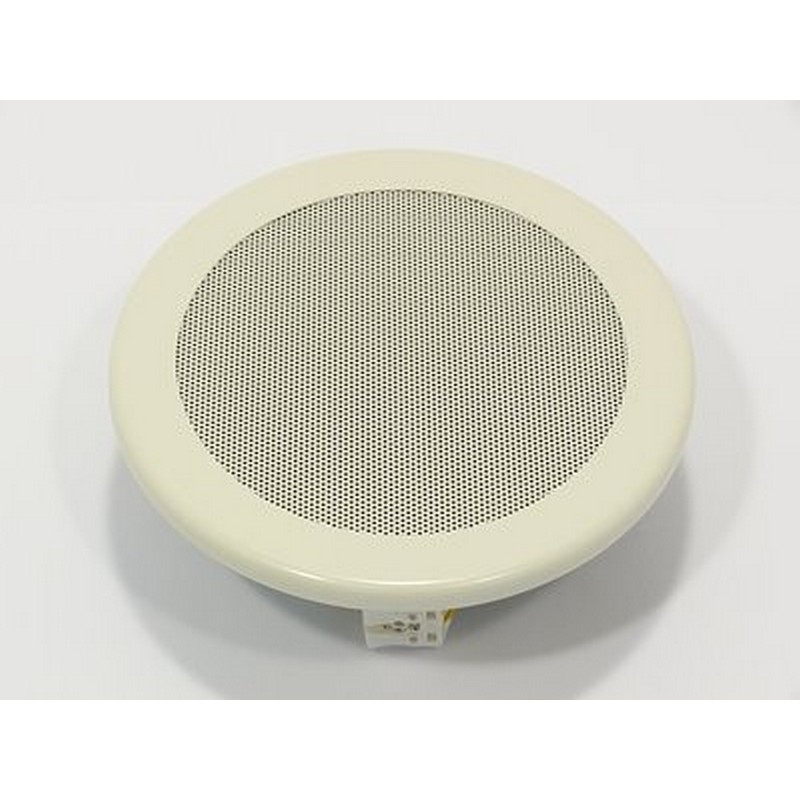

Visaton ML 16 A - 100 V (NCS S 0500-N) ceiling speakers
Ceiling speakers
€50.55
Our previous price
€72.21
Save 30%
Tax included
Shipping excluded
4-0197
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
Ceiling speakers with high efficiency and good speech.
Especially suitable for installation in metal ceilings (z.B. on ships) .
The connection to the 100-V network and the possibly required level adaptation is effected by a compression spring clamp.

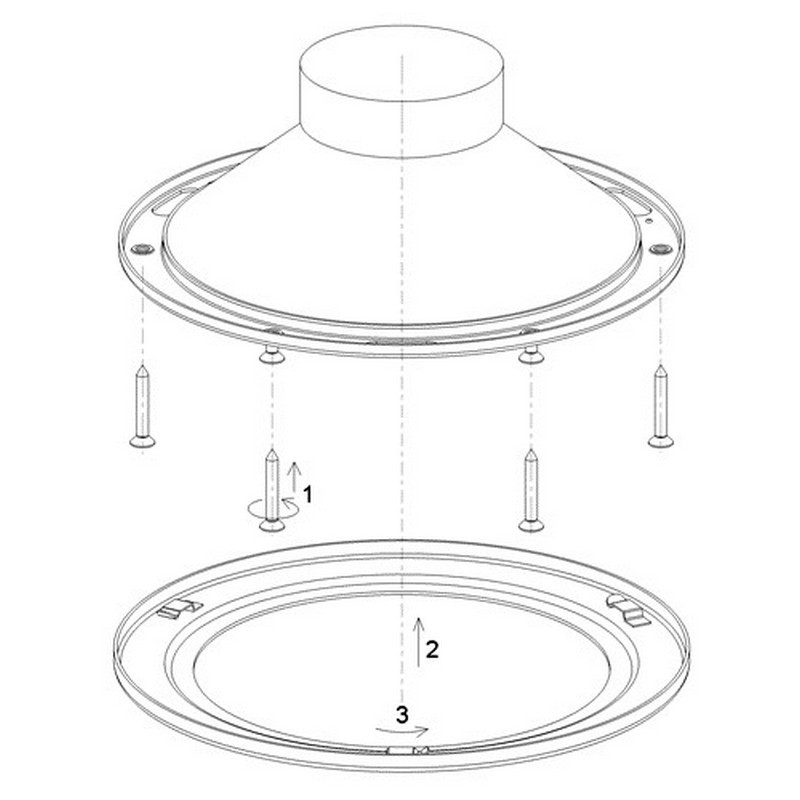

After the loudspeaker has been screwed to the ceiling, the cover grid is secured by a bayonet connection.
Applications
- Installation in metal ceilings
Characteristics
- Functional at low temperatures according to EN 60068-2-1 (-40 °C; 96 h)
- Meets the requirements of Germanischer Lloyd (requirements for electrical equipment / refrigeration)
- Moisture-impregnated membrane
- UV-resistant
- Color: NCS S 0500-N
Technical data
| Trafo matching | 2; 1; 0.5 W |
|---|---|
| Nominal impedance Z | 5; 10, 20 kOhm |

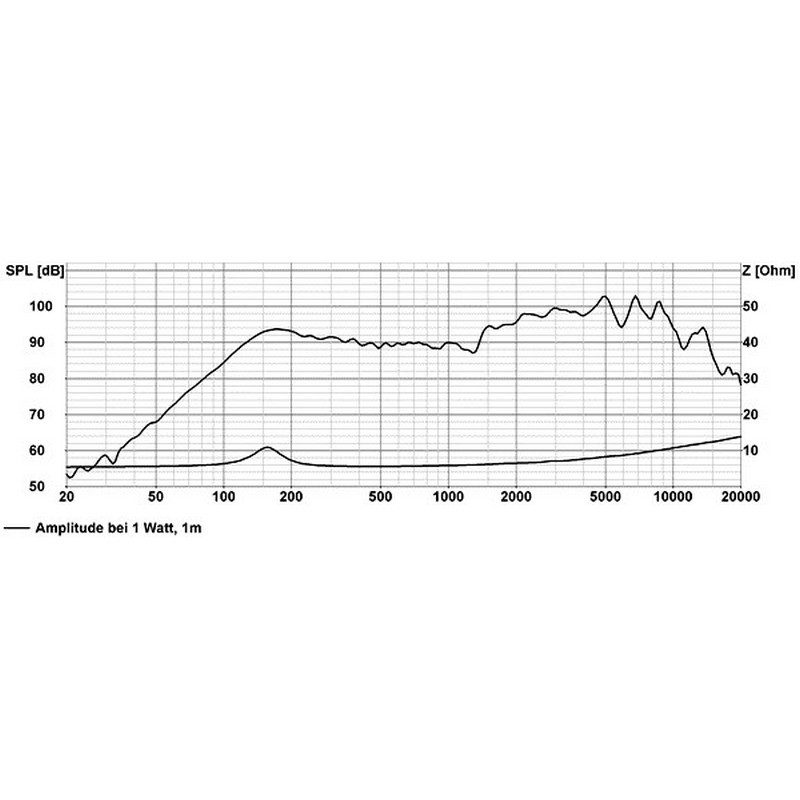

| Transmission range (-10 dB) | 100–15000 Hz |
| Medium sound pressure level | 94 dB (1 W/1 m) |
| Maximum sound pressure level | 97 dB (2 W/1 m) |

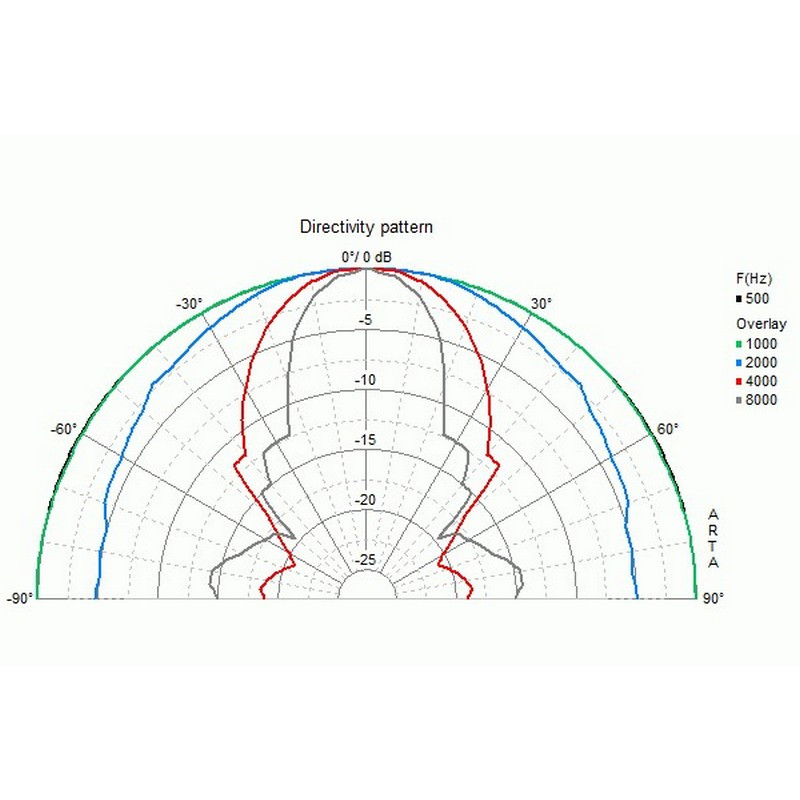

| Beam angle (-6 dB) | 54°/4000 Hz |
| Reaction frequency fs | 150 Hz |
| Oscillating coil diameter | 14 mm |

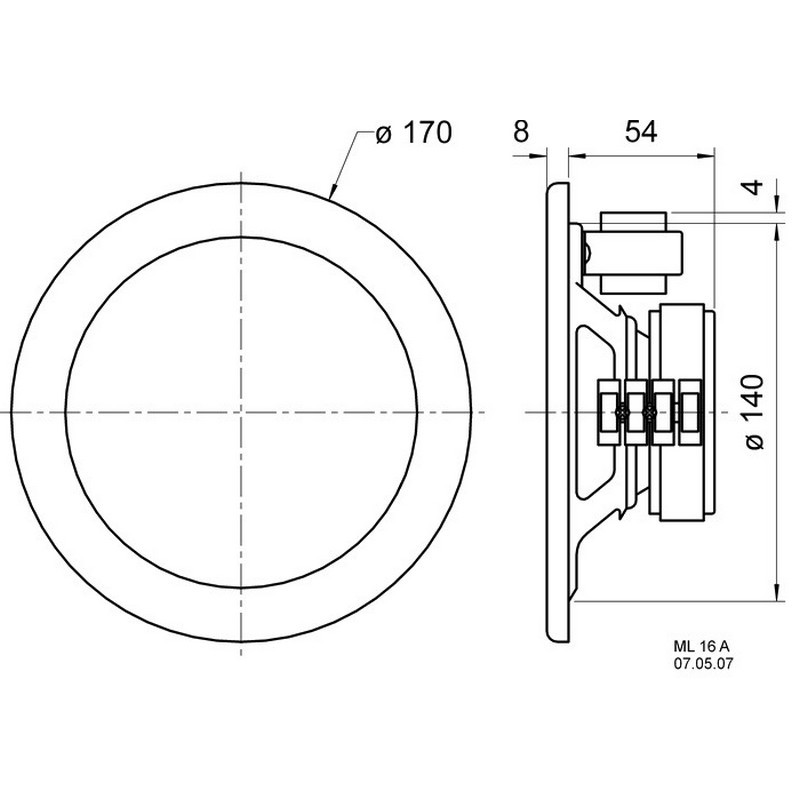

| Sound wall opening | 143 mm |
| Weight net | 1,1 kg |
| Temperature range | −40 – 110 °C |
| Colour | NCS S 0500 N |
