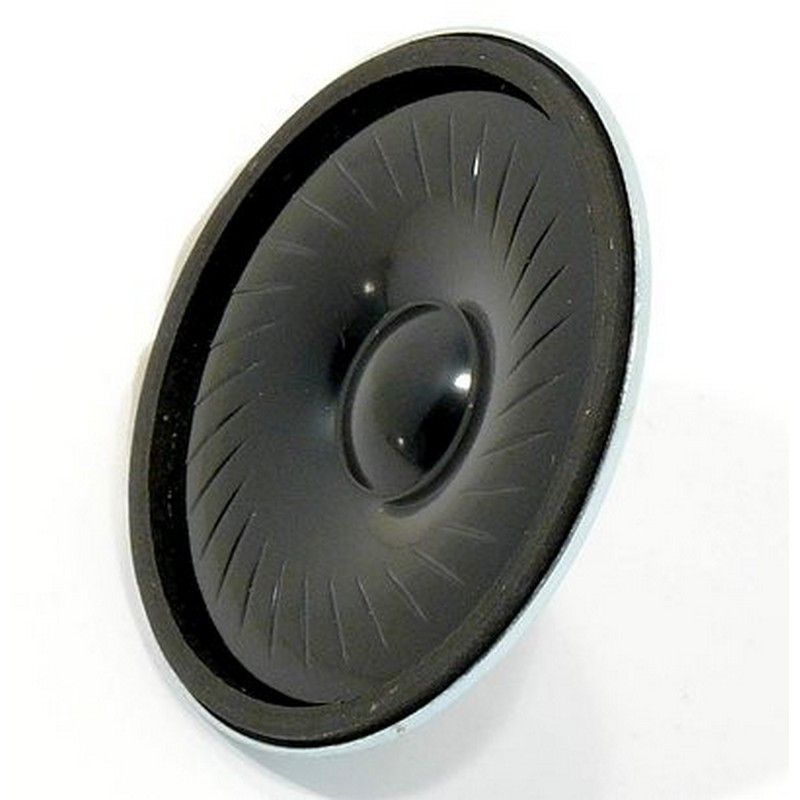

Visaton K 50 FL - 50 Ohm small speaker
5 cm (2") miniature speaker
Visaton K 50 FL - 50 Ohm small speaker
5 cm (2") miniature speaker
€5.01
Our previous price
€7.15
Save 30%
Tax included
Shipping excluded
4-0178
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
5 cm (2") small speaker with plastic membrane. Very flat construction. Good language.
Applications
- Signal output in devices and systems of all kinds where little space is available
- Good for outdoor applications and critical environmental influences
Technical data
| Rated load capacity | 1 W |
|---|---|
| Music loading | 2 W |
| Nominal impedance Z | 50 Ohm |

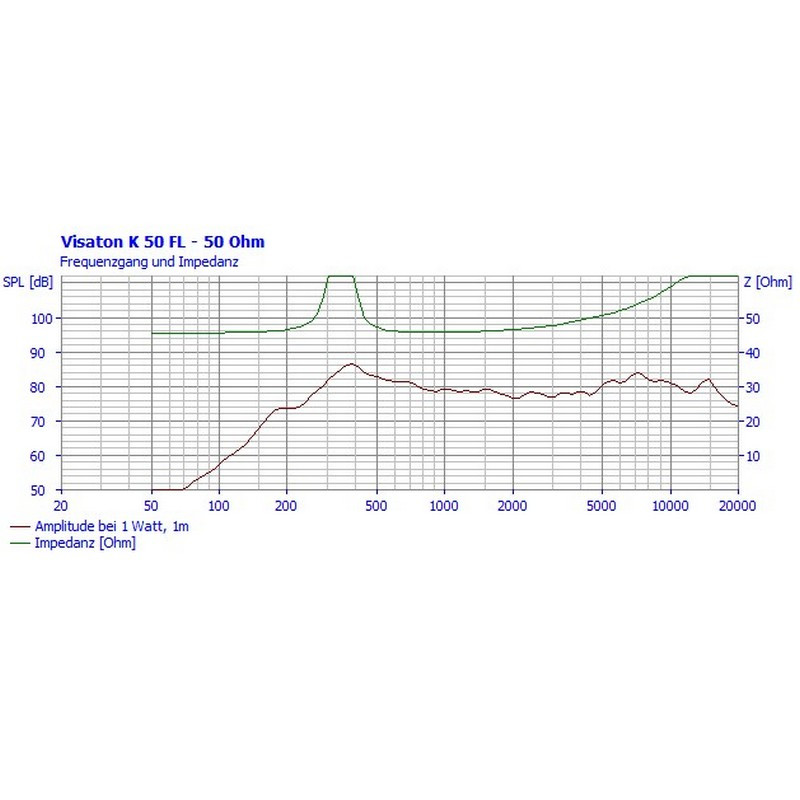

| Transmission range (-10 dB) | 150–20000 Hz |
| Medium sound pressure level | 80 dB (1 W/1 m) |
| Reaction frequency fs | 340 Hz |
| Oscillating coil diameter | 13 mm |
| Winding height | 2 mm |
| Sound wall opening | 46 mm |
| Weight net | 0,014 kg |
| Protection class | IP 65 *) |
| Temperature range | −40 – 70 °C |
4-0178
New
Manufacturer information
Registered Trade Name: VISATON GmbH & Co. KG
Registered Trade mark: Visaton
Ohligser Str. 29-31
42781 Haan
Germany
42781 Haan
Germany
Email: visaton@visaton.com
Phone: +49 (0) 2129 552-0
Responsible Person:
Geschäftsführer Ralph Schukat
