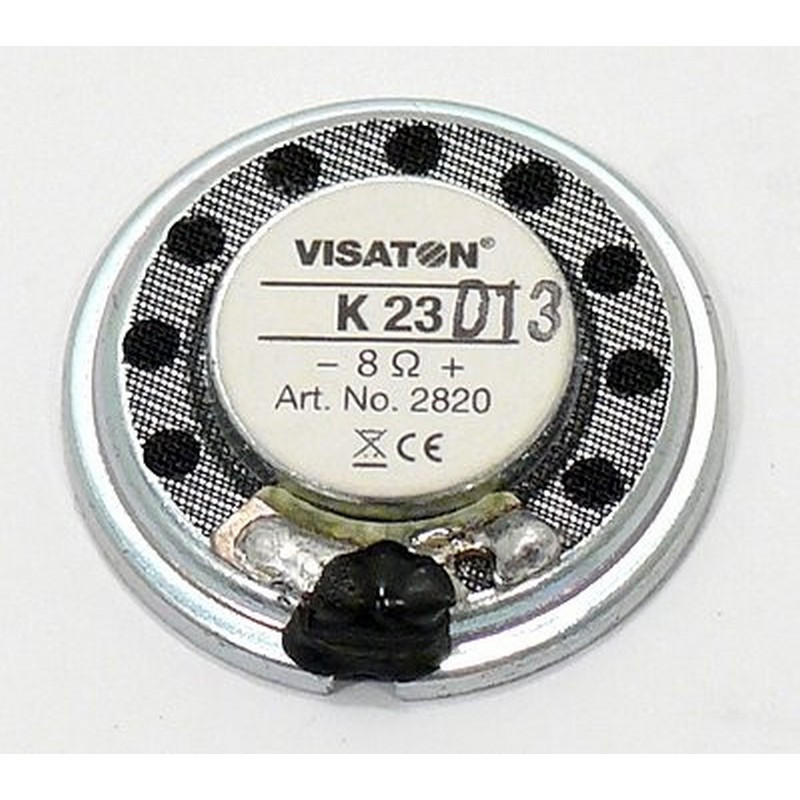

Visaton K 23 - 8 Ohm small speaker
2,3 cm (0.9") small speaker
Visaton K 23 - 8 Ohm small speaker
2,3 cm (0.9") small speaker
€3.63
Our previous price
€5.19
Save 30%
Tax included
Shipping excluded
4-0162
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return

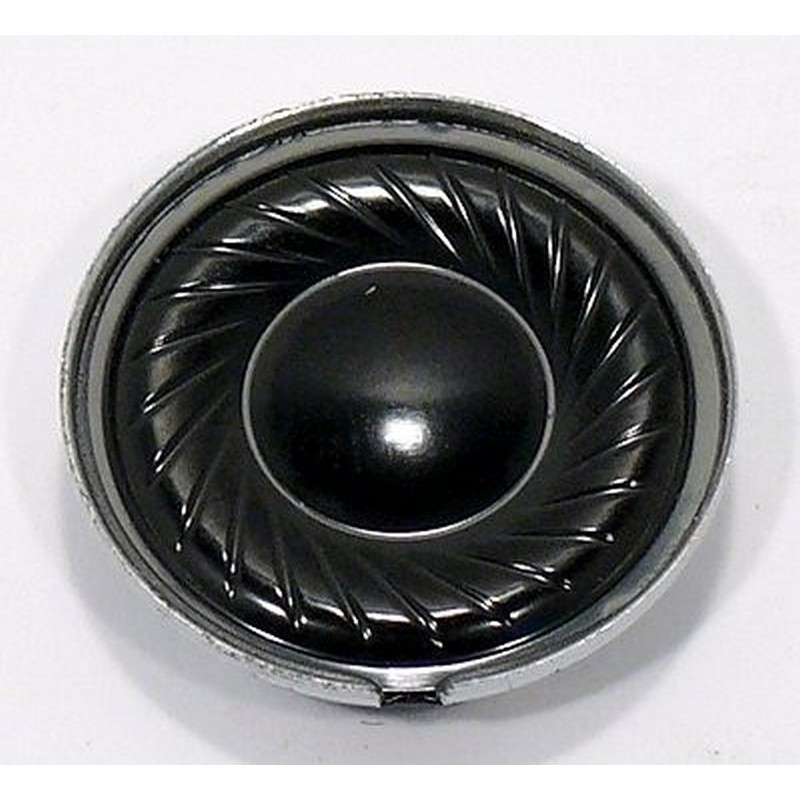

2,3 cm (0.9") small speaker with mylar membrane and round metal basket.
Low size, therefore suitable for signal output in devices where little space is available.
The connection takes place via solder joints mounted on the rear.

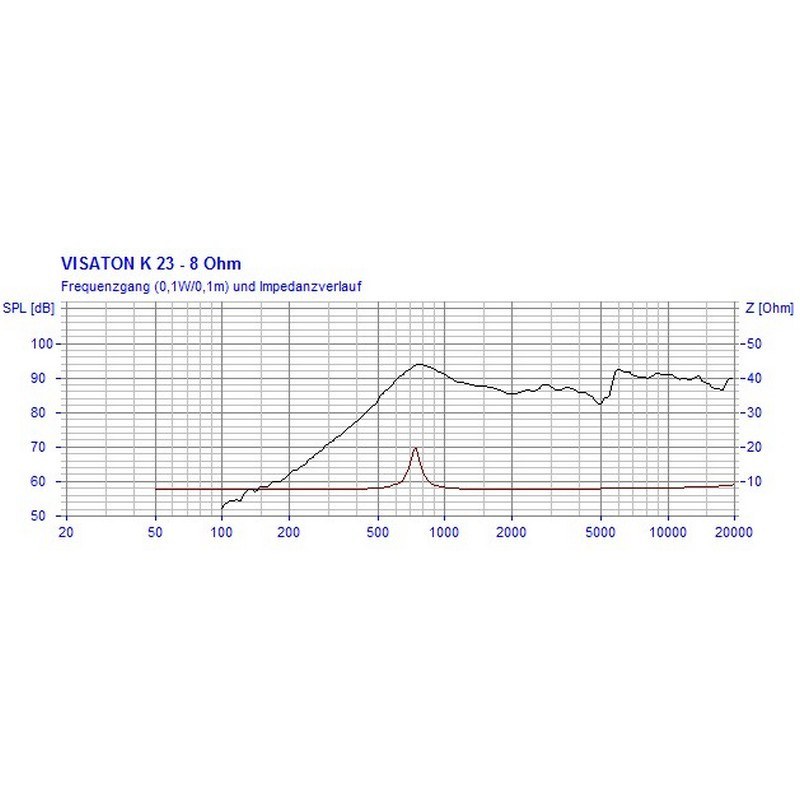

*) IP protection class for front side when installed in a sealed housingTechnical data
| Rated load capacity | 0,3 W |
|---|---|
| Music loading | 0,5 W |
| Nominal impedance Z | 8 Ohm |
| Transmission range (-10 dB) | 420000 Hz |
| Medium sound pressure level | 79 dB (1 W/1 m) |
| Reaction frequency fs | 750 Hz |
| Oscillating coil diameter | 10.4 mm |
| Winding height | 1.5 mm |
| Sound wall opening | 21 mm |
| Weight net | 0,004 kg |
| Protection class | IP 64 * |
| Temperature range | −25 ... 70 °C |
