Visaton K 14.25 - 8 Ohm small speaker
1.4 x 2.5 cm (0.5" x 1") Small speaker
Visaton K 14.25 - 8 Ohm small speaker
1.4 x 2.5 cm (0.5" x 1") Small speaker
€4.51
Our previous price
€6.44
Save 30%
Tax included
Shipping excluded
4-0158
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return

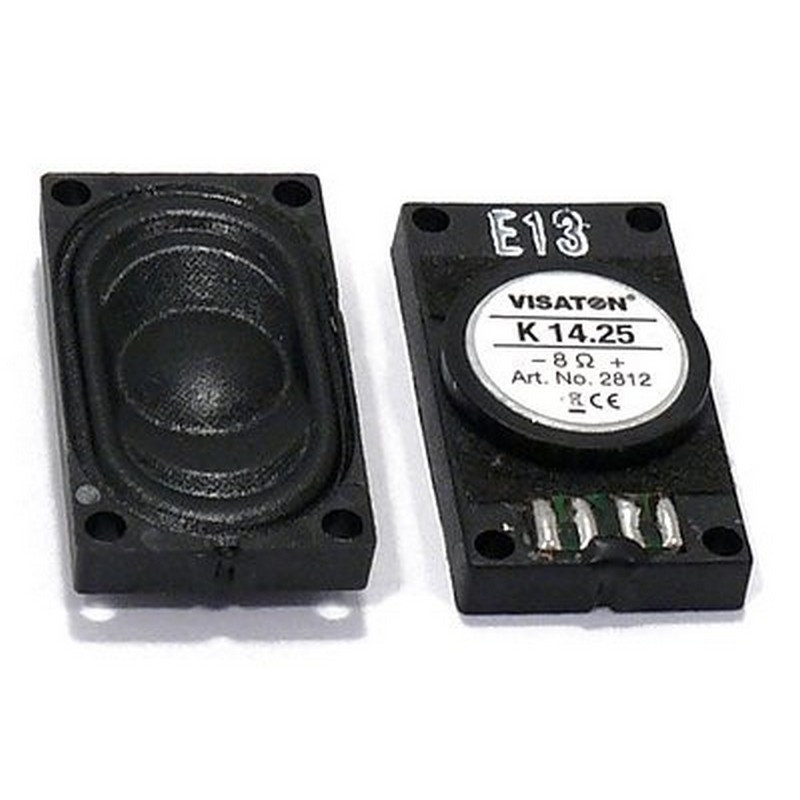

1.4 x 2.5 cm (0.5" x 1") Small speaker with plastic membrane and rectangular plastic basket.
Low size, therefore suitable for signal output in devices where little space is available.
The connection takes place via solder joints mounted on the rear.
Technical data
| Rated load capacity | 1 W |
|---|---|
| Music loading | 1.5 W |
| Nominal impedance Z | 8 Ohm |

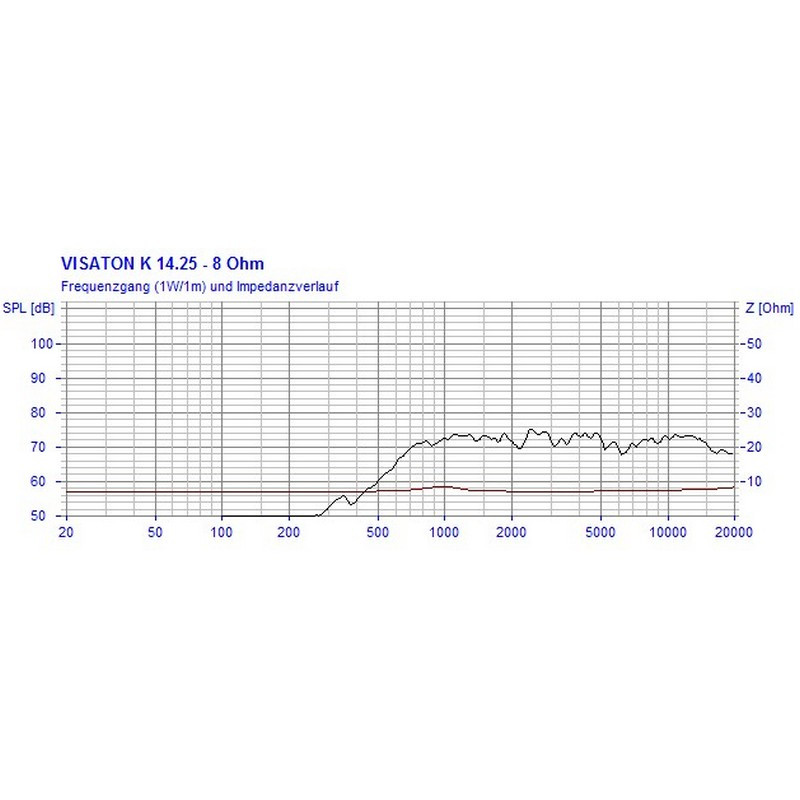

| Transmission range (-10 dB) | 500–20000 Hz |
| Medium sound pressure level | 72 dB (1 W/1 m) |
| Reaction frequency fs | 950 Hz |
| Oscillating coil diameter | 8,7 mm |
| Winding height | 2 mm |

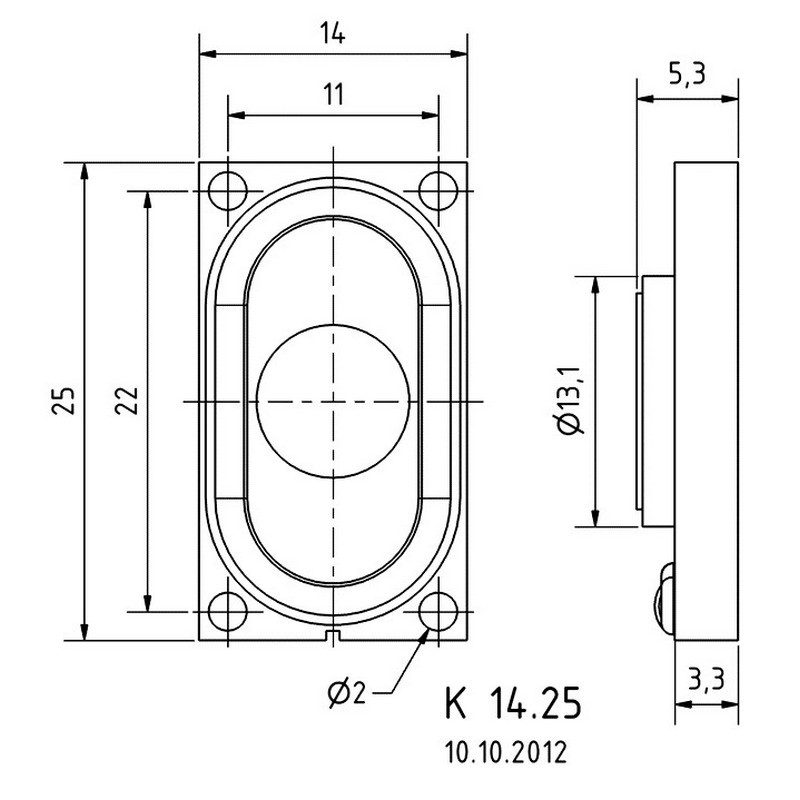

| Sound wall opening | 13 x 23 mm |
| Weight net | 0,0025 kg |
| Protection class | IP 64 |
| Temperature range | −25 ... 70 °C |
