Visaton DL 5 - 8 ohm ceiling speakers
5 cm (2") ceiling speakers
Visaton DL 5 - 8 ohm ceiling speakers
5 cm (2") ceiling speakers
€20.78
Our previous price
€29.69
Save 30%
Tax included
Shipping excluded
4-0191
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return

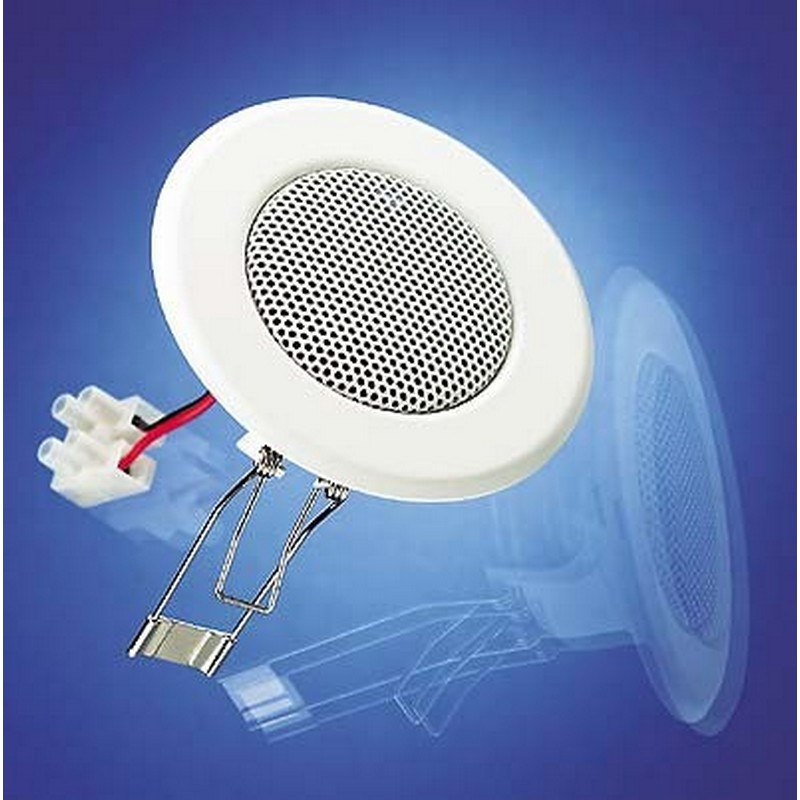

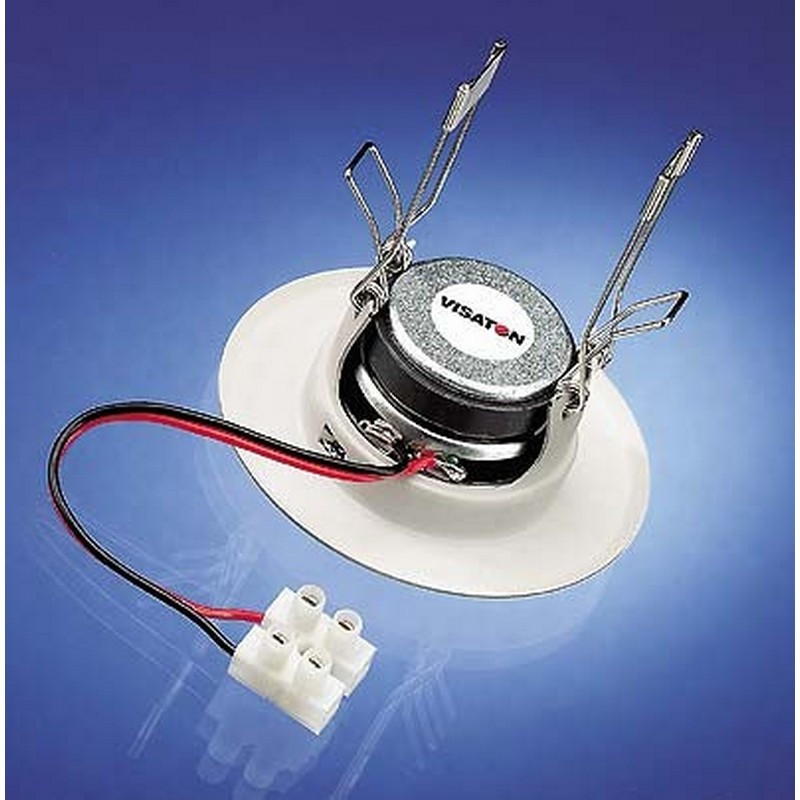

5 cm (2") ceiling speakers with white frame (RAL 9010).
Rational assembly.
Ideal combination options with halogen light technology through the special design.
It can be used wherever professional, sounding and space-saving, built-in loudspeakers are required.
With additional transformer also suitable for 100 V networks.
The DL 5 is also available on request in other RAL colours.
*) IP protection class for front side when installed in a sealed housing
Applications
- background sounding in shops, hotel foyers etc.
- high-quality music sound combined with subwoofer
Characteristics
- Functional at low temperatures according to EN 60068-2-1 (-40 °C; 96 h)
- meets the requirements of Germanischer Lloyd (requirements for electrical equipment / refrigeration)
- ball throw-proof
- moisture-impregnated membrane
- UV-resistant
- Metal design, corrosion-proof
Technical data
| Rated load capacity | 4 W |
|---|---|
| Music loading | 10 W |
| Nominal impedance Z | 8 Ohm |
| Sound pressure level | 89 dB (1 W/1 m) @ 4018 Hz |

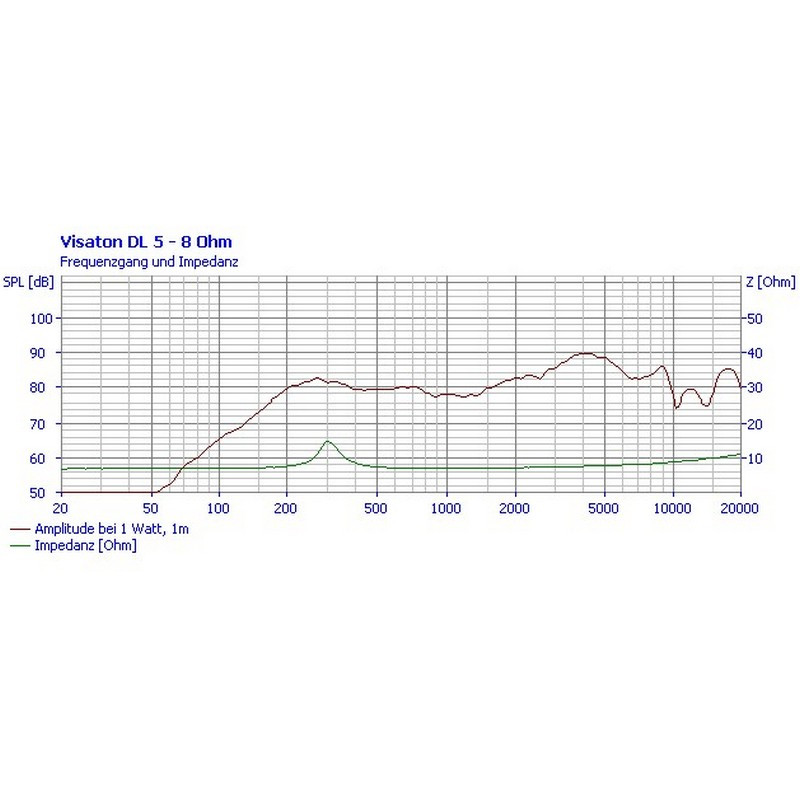

| Transmission range (-10 dB) | 150–20000 Hz |
| Medium sound pressure level | 84 dB (1 W/1 m) |

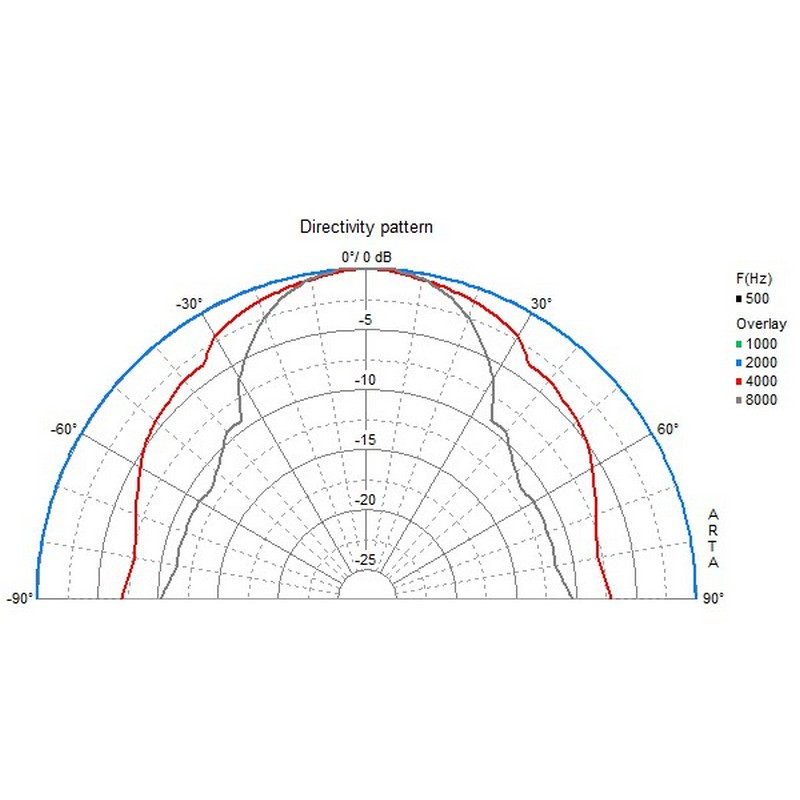

| Beam angle (-6 dB) | 123°/4000 Hz |
| Reaction frequency fs | 280 Hz |
| Magnetic induction | 0,69 |
| Magnetic flux | 91 μWb |
| Oscillating coil diameter | 14 mm |
| Winding height | 3,5 mm |

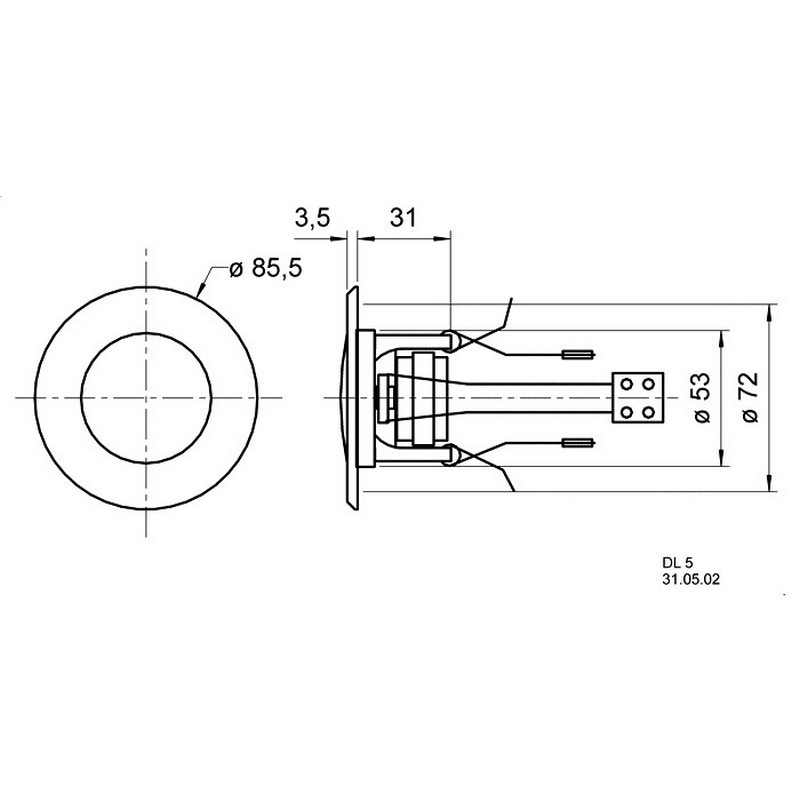

| Sound wall opening | 72 mm |
| Weight net | 0,16 kg |
| Length of connection cable | 0,14 m |
| Protection class | IP 54 *) |
| Temperature range | −40 – 110 °C |
| Colour | RAL 9010 |
