Visaton TI 100 - 8 Ohm High-End Tin Toner
10 cm (4") High-end bass driver
Visaton TI 100 - 8 Ohm High-End Tin Toner
10 cm (4") High-end bass driver
€187.84
Our previous price
€268.34
Save 30%
Tax included
Shipping excluded
4-0121
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return

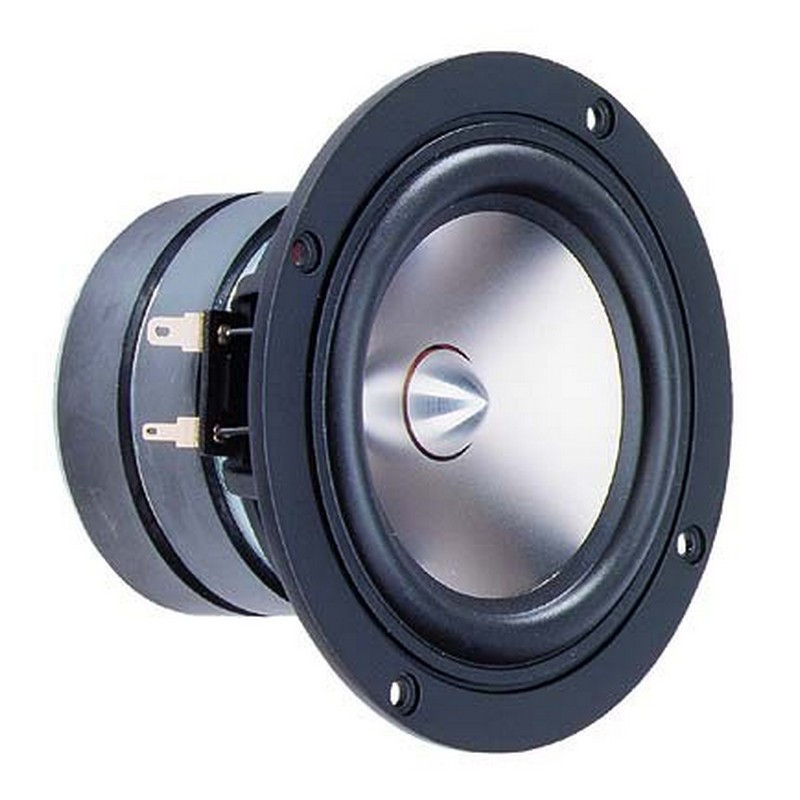

10 cm (4") High-end bass driver with a unique membrane cone made of pure titanium.
Membrane resonances are avoided by perfect interaction of membrane shape, bead shape and bead material as well as the adhesives.
The shape of the cage with a large opening surface and a rear-ventilated centering as well as the open oscillating coil with phase plug lead to minimal mechanical losses and thus to a high mechanical quality.
Due to the construction with double magnets, the TI 100 - 8 ohm is simultaneously magnetically compensated.
The TI 100 - 8 Ohm is ideally usable as a bass driver in small high-end shelf boxes or as a medium tone in high-end multi-way boxes.
Case recommendations
| Volume/principle | BR-tube | fb | fc)/QTC |
| 3 l | - | - | 111 Hz/0.68 |
| 5 l/closed | - | - | 95 Hz/0.58 |
| 5 l/Bass reflex | FOR THE PURPOSES OF THIS REGULATION: | 60 Hz | - |
| 10 l/bass reflex | FOR THE PURPOSES OF THIS REGULATION: | 54 Hz | - |
Technical data
| Rated load capacity | 40 W |
|---|---|
| Music loading | 60 W |
| Nominal impedance Z | 8 Ohm |

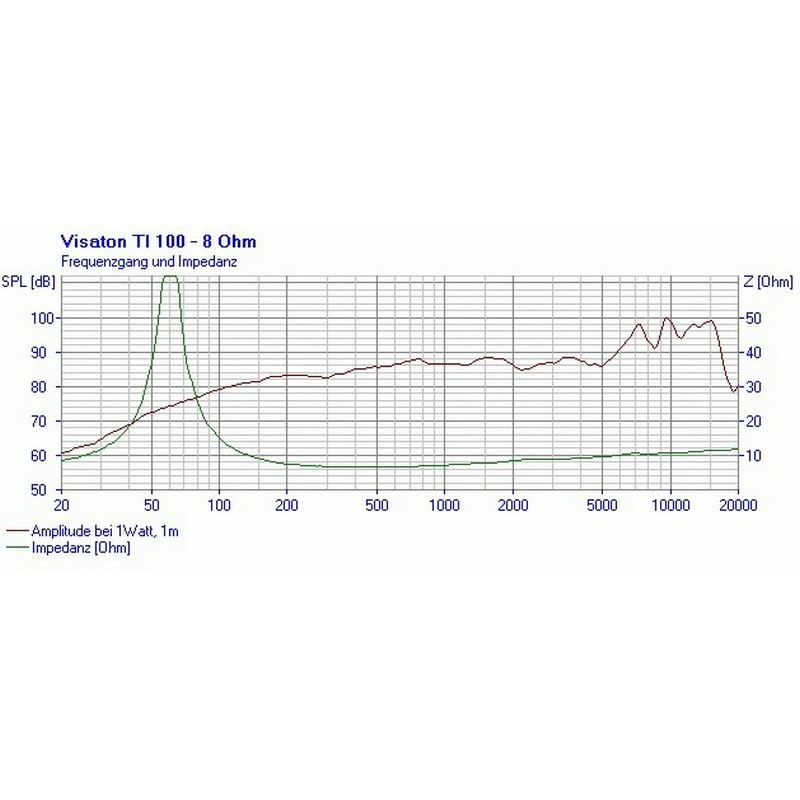

| Transmission range (-10 dB) | fu–20000 Hz |
| (fu: lower limit frequency depending on the housing) | . |
| Medium sound pressure level | 86 dB (1 W/1 m) |

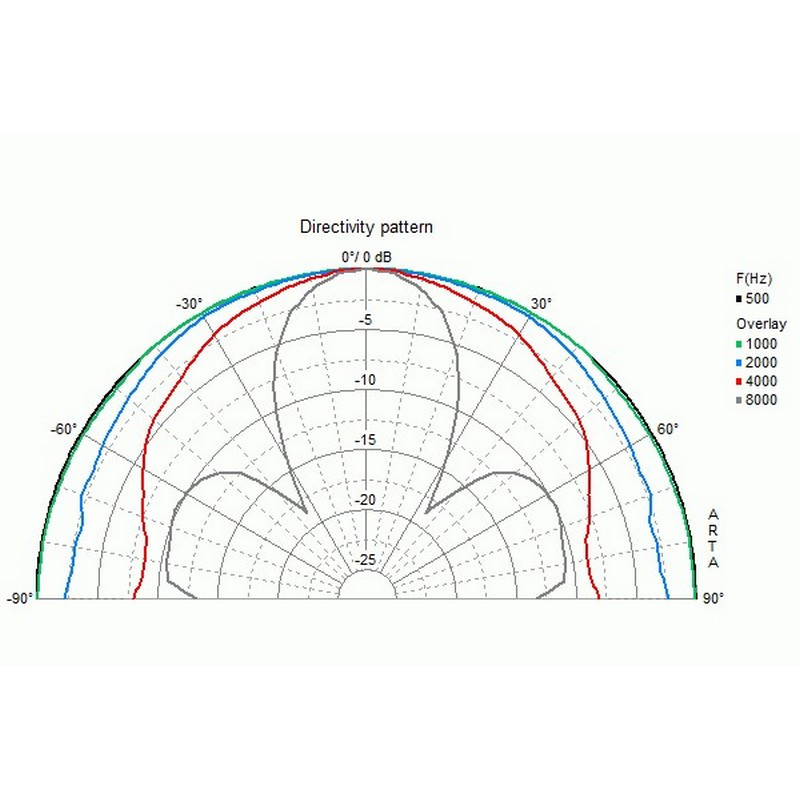

| Beam angle (-6 dB) | 120°/4000 Hz |
| Border deflection | +/-4 mm |
| Reaction frequency fs | 62 Hz |
| Magnetic induction | 1,2 T |
| Magnetic flux | 300 μWb |
| Upper pole plate height | 4 mm |
| Oscillating coil diameter | 20 mm |
| Winding height | 8.5 mm |

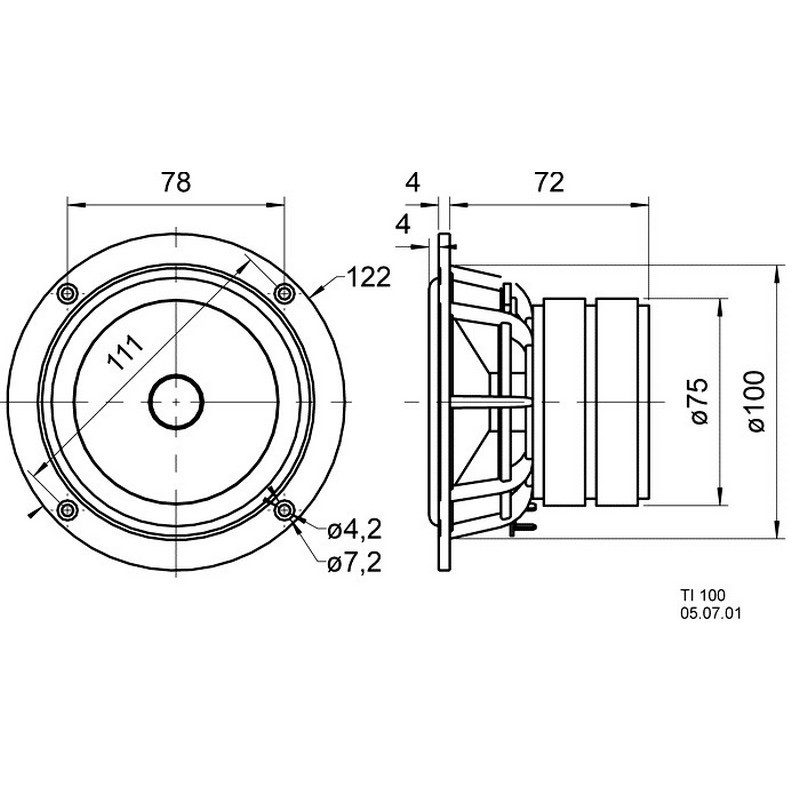

| Sound wall opening | 101 mm |
| Weight net | 1,05 kg |
| DC resistance Rdc | 6.0 Ohm |
| Mechanical Q-factor Qms | 7,05 |
| Electric Q-factor Qes | 0,40 |
| Total Q factor Qts | 0,38 |
| Equivalent air yield volume Vas | 6.9 l |
| Effective membrane surface Sd | 54 cm2 |
| Dynamic moving mass Mms | 4 g |
| Drive factor Bxl | 4.8 Tm |
| Vibration coil inductance L | 0,7 mH |
