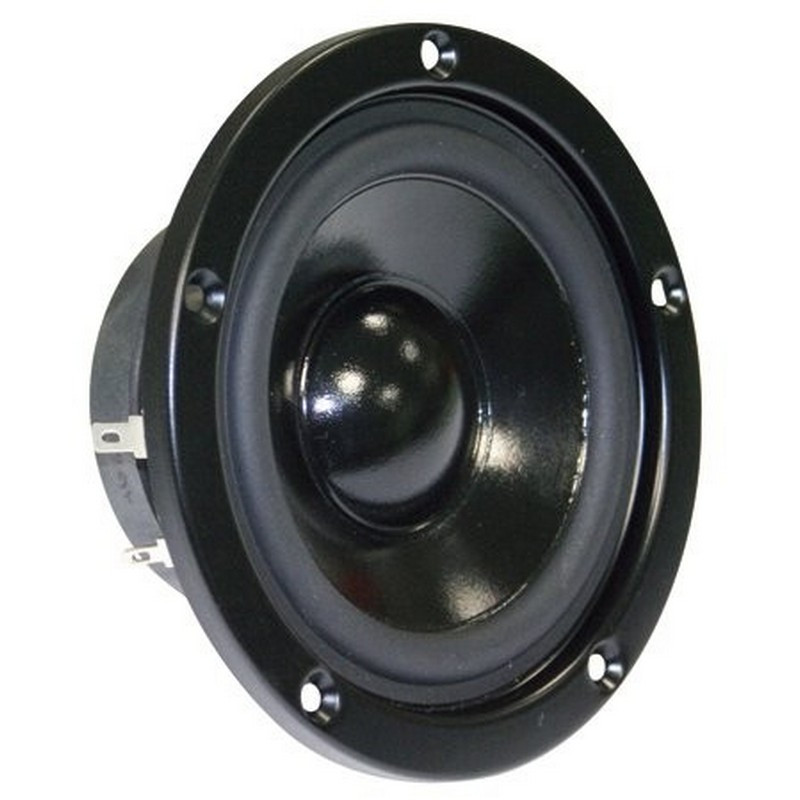

Visaton W 100 S - 8 Ohm HiFi bass driver
10 cm (4") HiFi bass driver
Visaton W 100 S - 8 Ohm HiFi bass driver
10 cm (4") HiFi bass driver
€31.21
Our previous price
€44.59
Save 30%
Tax included
Shipping excluded
4-0123
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
10 cm (4") HiFi bass driver with coated paper membrane, elastic rubber bead and temperature-stable 20 mm coil.
Suitable for use as a tweeter in miniboxes and by very balanced frequency response, especially as a tweeter in 3-way boxes and satellite systems for subwoofer systems.
Case recommendations
| Volume/principle | BR-tube | fb | fc)/QTC |
| 4 l/closed | - | - | 96 Hz/0.82 |
| 5 l/Bass reflex | BR 6.8 (6 cm long) | 70 Hz | - |
| 10 l/bass reflex | BR 6.8 (5 cm long) | 56 Hz | - |
Technical data
| Rated load capacity | 30 W |
|---|---|
| Music loading | 50 W |
| Nominal impedance Z | 8 Ohm |

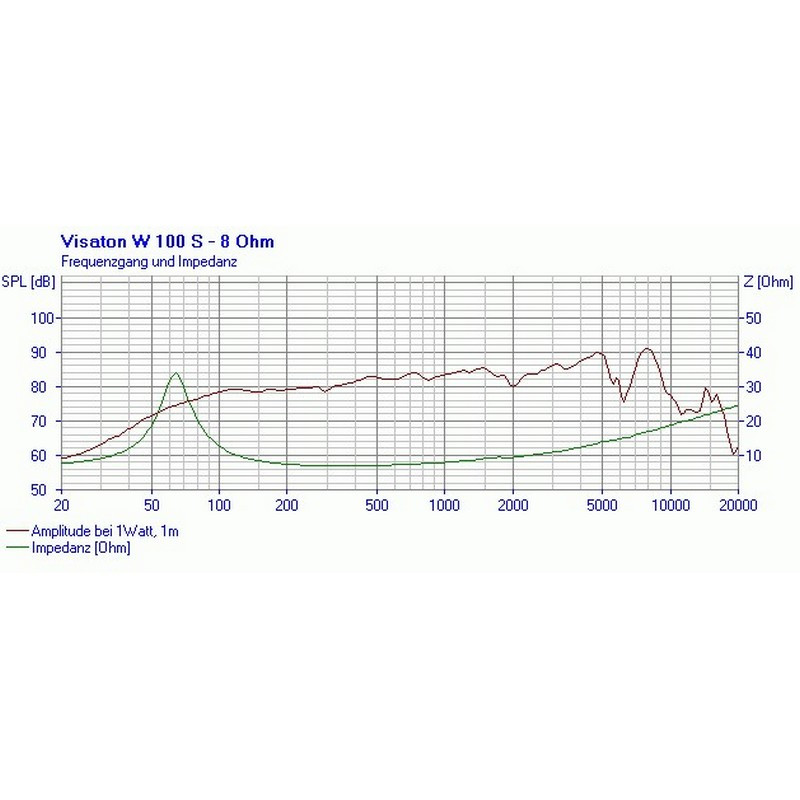

| Transmission range (-10 dB) | fu–15000 Hz |
| (fu: lower limit frequency depending on the housing) | . |
| Medium sound pressure level | 86 dB (1 W/1 m) |

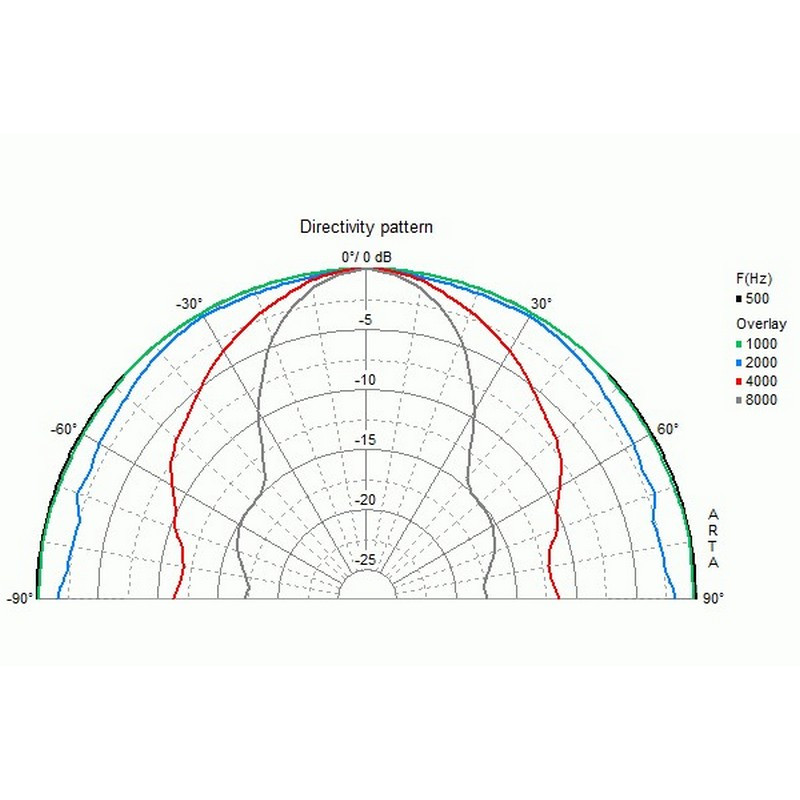

| Beam angle (-6 dB) | 86°/4000 Hz |
| Border deflection | +/-4 mm |
| Reaction frequency fs | 63 Hz |
| Magnetic induction | 1 T |
| Magnetic flux | 250 μWb |
| Upper pole plate height | 4 mm |
| Oscillating coil diameter | 20 mm |
| Winding height | 8 mm |

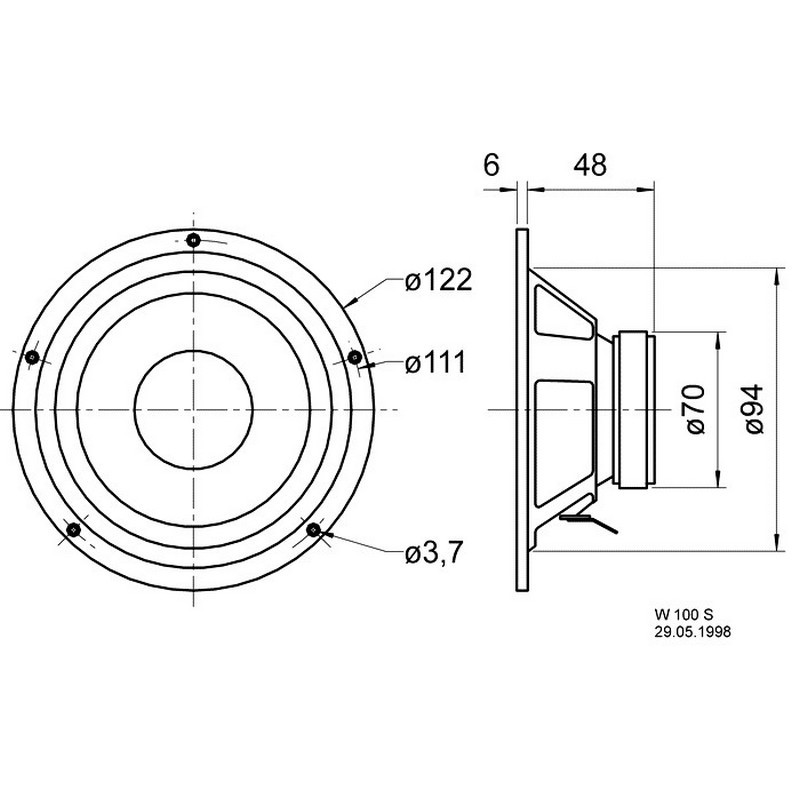

| Sound wall opening | 94 mm |
| Weight net | 0.4 kg |
| DC resistance Rdc | 6,7 Ohm |
| Mechanical Q-factor Qms | 2,74 |
| Electric Q-factor Qes | 0,67 |
| Total Q factor Qts | 0,54 |
| Equivalent air yield volume Vas | 5.41 l |
| Effective membrane surface Sd | 53 cm2 |
| Dynamic moving mass Mms | 4.7 g |
| Drive factor Bxl | 4,29 Tm |
| Vibration coil inductance L | 0,9 mH |
