Visaton K 50 SQ - 8 Ohm small speaker
5 cm (2") small speaker
Visaton K 50 SQ - 8 Ohm small speaker
5 cm (2") small speaker
€6.65
Our previous price
€9.50
Save 30%
Tax included
Shipping excluded
4-0061
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return

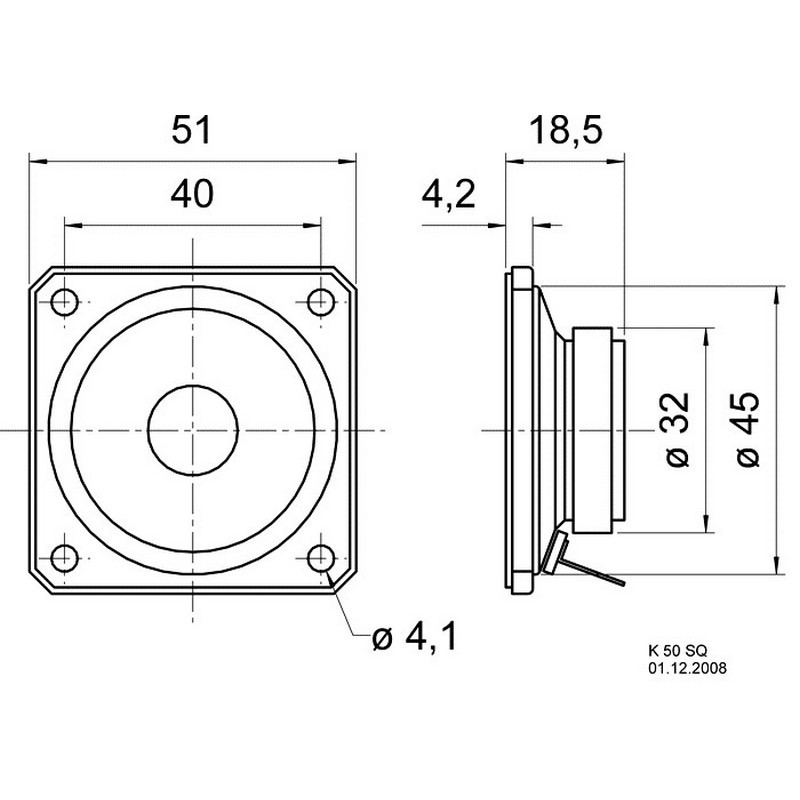

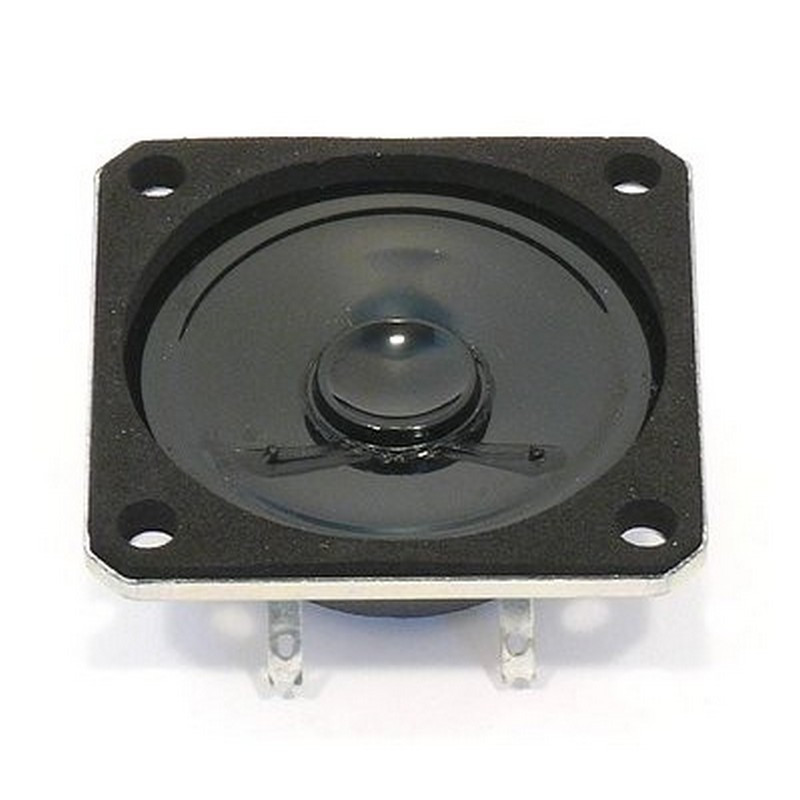

5 cm (2") small speaker with plastic membrane, square metal basket with 4 mounting holes and foam seal.
Flat plug (2,8 x 0,5 mm.
Low size, therefore suitable for signal output in devices or installations where little space is available.
*) IP protection class for front side when installed in a sealed housing
Applications
- voice and signal output in internal and external devices
Characteristics
- Metal basket
- Plastic membrane (Mylar)
- Functional in cold according to EN 60068-2-1/EN 50155
Technical data
| Rated load capacity | 2 W |
|---|---|
| Music loading | 3 W |
| Nominal impedance Z | 8 Ohm |

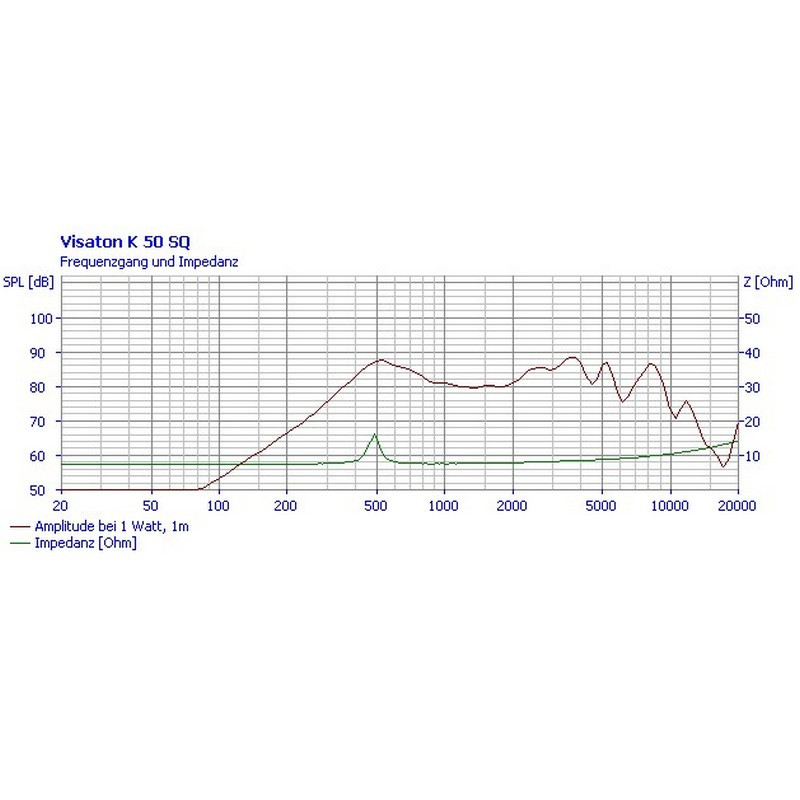

| Transmission range (-10 dB) | 250–10000 Hz |
| Medium sound pressure level | 83 dB (1 W/1 m) |

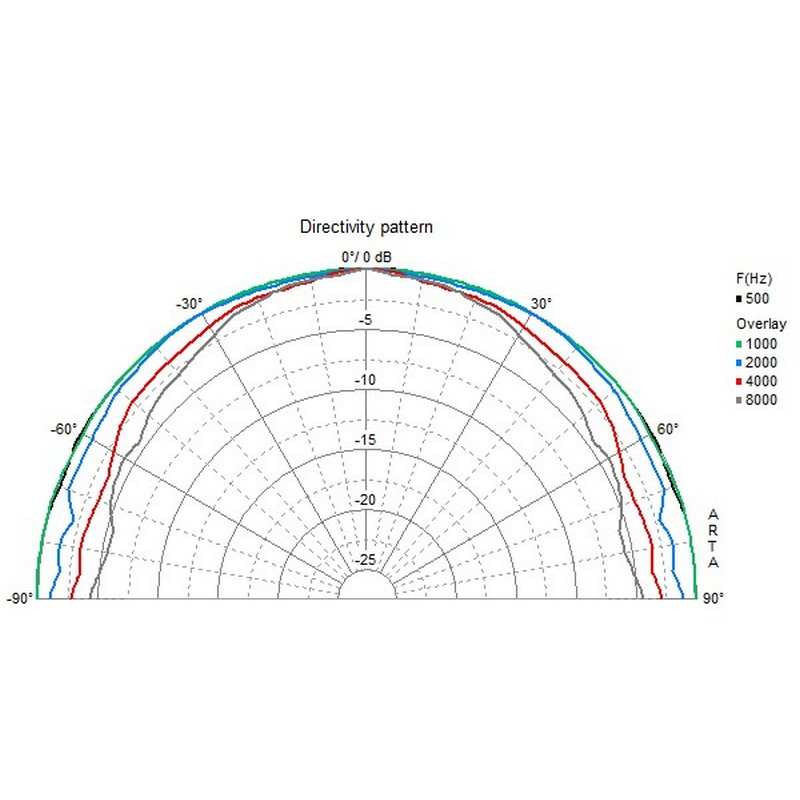

| Beam angle (-6 dB) | 180°/4000 Hz |
| Border deflection | +/-1 mm |
| Reaction frequency fs | 480 Hz |
| Upper pole plate height | 2 mm |
| Oscillating coil diameter | 14 mm |
| Winding height | 3 mm |
| Sound wall opening | 45 mm |
| Weight net | 0,05 kg |
| DC resistance Rdc | 7,3 Ohm |
| Mechanical Q-factor Qms | 6,42 |
| Electric Q-factor Qes | 7,32 |
| Total Q factor Qts | 3,42 |
| Equivalent air yield volume Vas | 0,06 l |
| Effective membrane surface Sd | 12.5 cm2 |
| Dynamic moving mass Mms | 0.4 g |
| Drive factor Bxl | 1,12 T m |
| Connections | 2,8 x 0.5 mm (+) 2,8 x 0.5 mm (−) |
| Protection class | IP 65 / 67 *) |
| Temperature range | −40 – 80 °C |
