Visaton K 64 WP - 8 ohm full range speaker

6.4 cm (2.5") full-range speaker

€6.70
Our previous price €9.57
Save 30%
Tax included Shipping excluded
Breeding bands
4-0068
Quantity
Wishlist
Compare
available at manufacturer
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

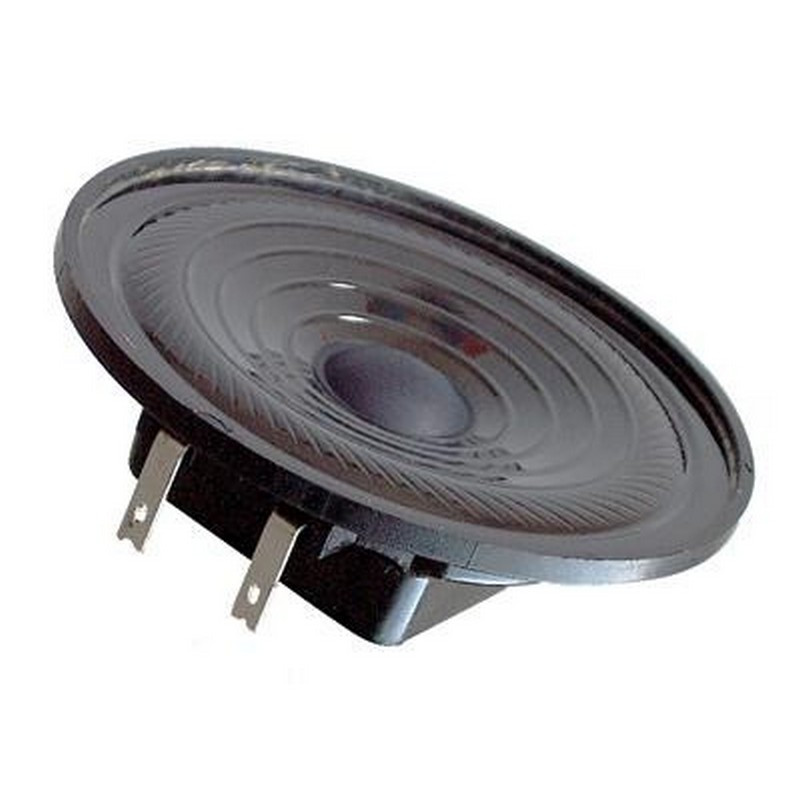

6.4 cm (2.5") broadband loudspeaker with plastic basket and plastic membrane.
Wide range of transmission and good speech.
Particularly suitable for outdoor applications and under critical environmental influences (z.B. Moisture).

- Version with other orientation of the connecting lugs: see K 64 WPT - 8 Ohm

*) IP protection class for front side when installed in a sealed housing

Applications

- Control loudspeaker for electronic devices

- external control speakers



Characteristics

- weatherproof

- UV-resistant

- Plastic: ABS (basket; UL 94: HB), Mylar (membrane)

- Functional in cold according to EN 60068-2-1/EN 50155

- Storage up to -40 °C according to EN 60068-2-1/EN 50155

- Functional with moist heat (cyclic) according to EN 60068-2-3/EN 50155

- Functional in dry heat according to EN 60068-2-2/ EN 50155



Technical data

Rated load capacity 2 W
Music loading 3 W
Nominal impedance Z 8 Ohm

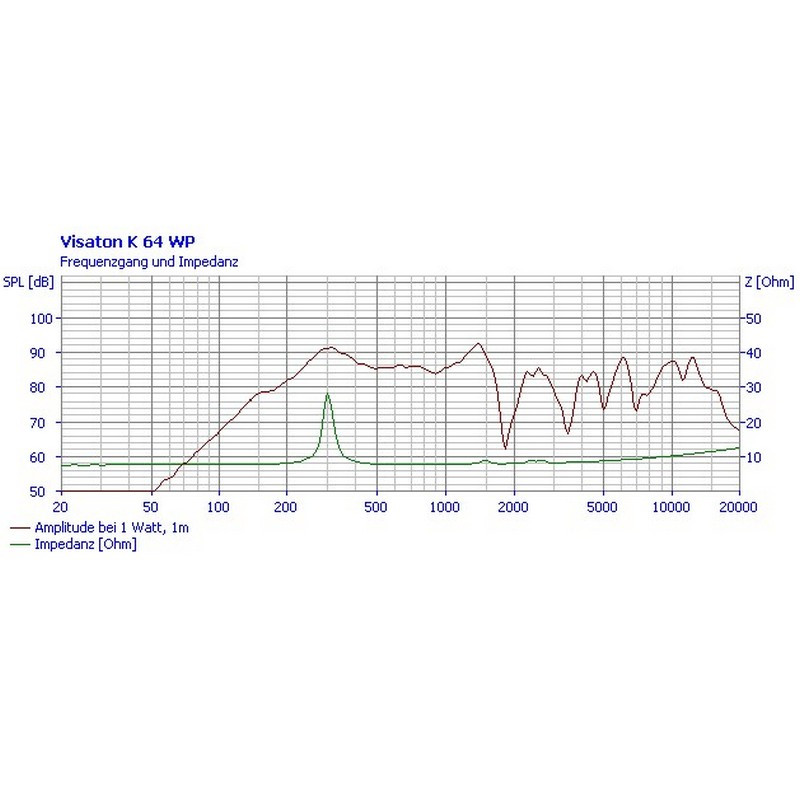

Transmission range (-10 dB) 200–15000 Hz
Medium sound pressure level 86 dB (1 W/1 m)

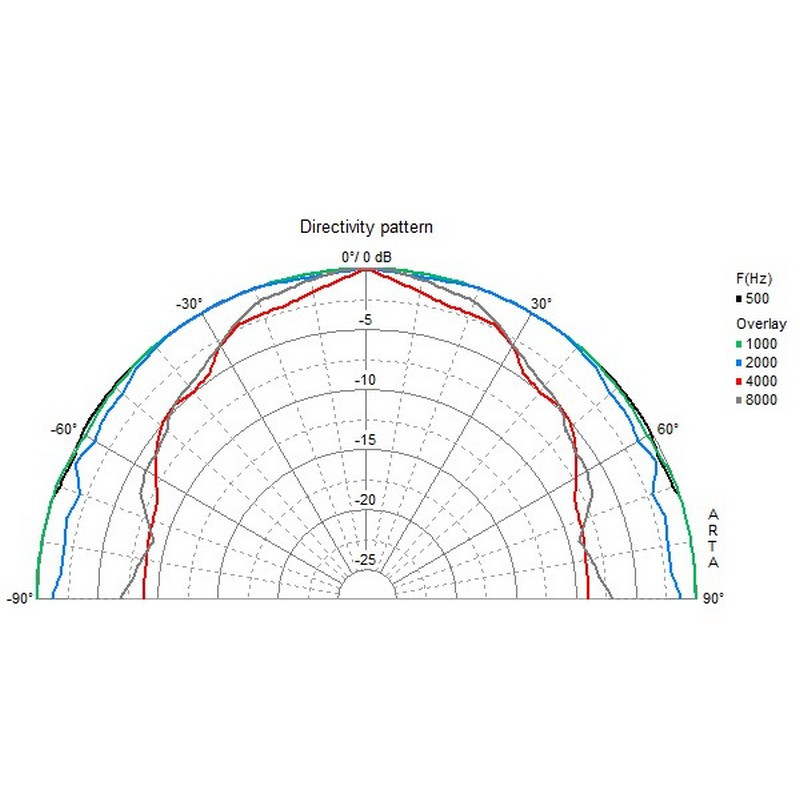

Beam angle (-6 dB) 109°/4000 Hz
Border deflection +/-1.5 mm
Reaction frequency fs 300 Hz
Magnetic induction 0,7
Magnetic flux 45 μWb
Upper pole plate height 2 mm
Oscillating coil diameter 10 mm
Winding height 2,5 mm

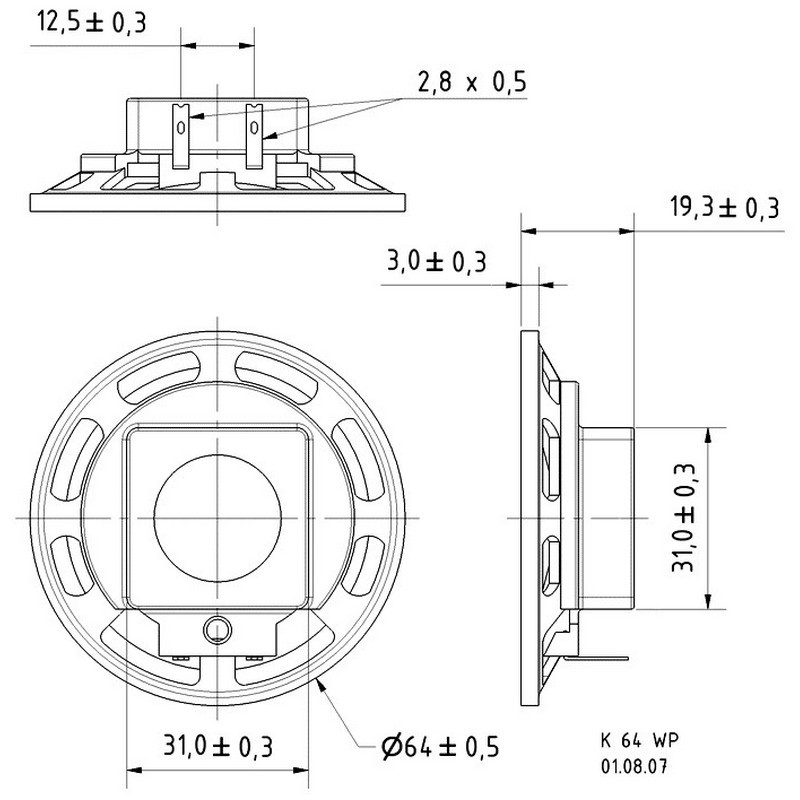

Sound wall opening 60 mm
Weight net 0,05 kg
Connections 2.8 x 0.5 mm (+)
2.8 x 0.5 mm (−)
Protection class IP 65 *)
Temperature range −40 – 80 °C
