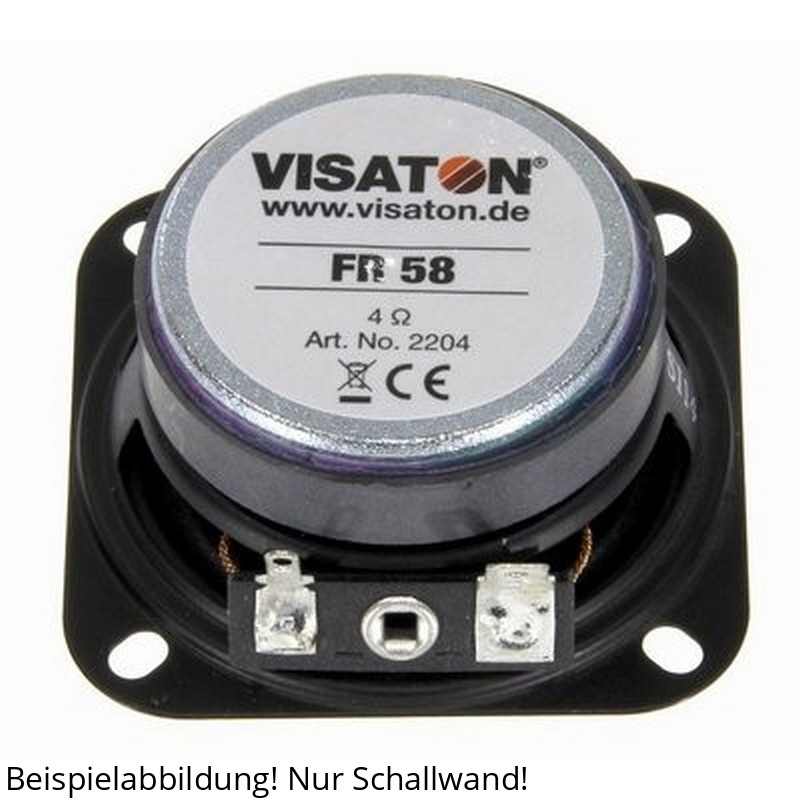

Visaton FR 58 - 4 Ohm broadband speakers
5.8 cm (2.3") broadband loudspeaker
Visaton FR 58 - 4 Ohm broadband speakers
5.8 cm (2.3") broadband loudspeaker
€8.34
Our previous price
€11.92
Save 30%
Tax included
Shipping excluded
4-0026
2 Items
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return

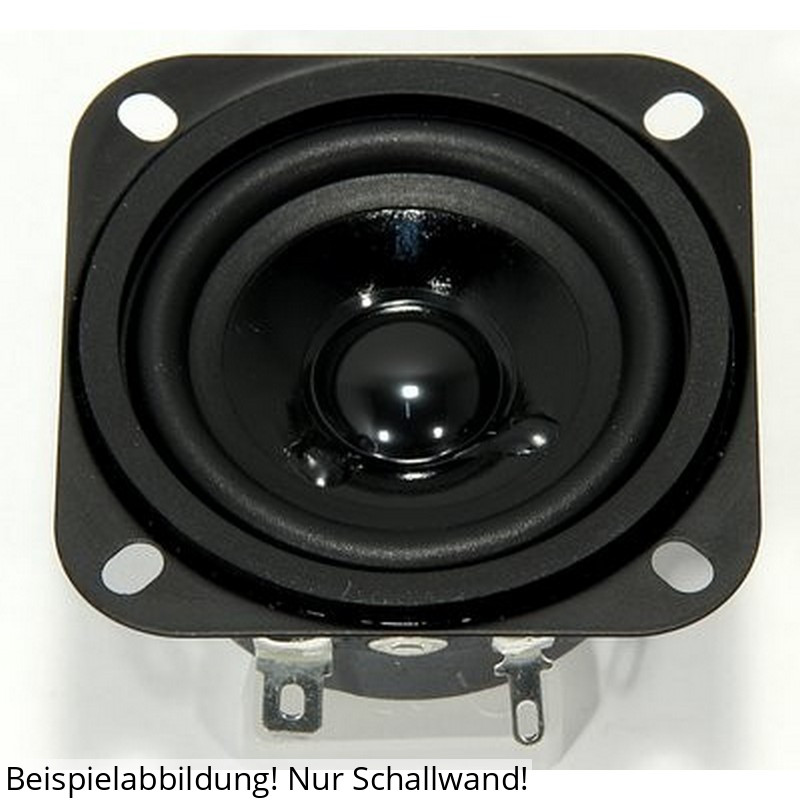

5.8 cm (2.3") broadband loudspeaker with membrane of coated paper, rubber bead, square metal basket with 4 mounting holes and rubber seal.
Flat plug with 4.8 x 0.5 mm (+) and 2.8 x 0.5 mm (-).
Very linear and further frequency response at low resonant frequency allows universal use, even for hi-fi applications.
*) IP protection class for front side when installed in a sealed housingTechnical data
| Rated load capacity | 10 W |
|---|---|
| Music loading | 12 W |
| Nominal impedance Z | 4 Ohms |

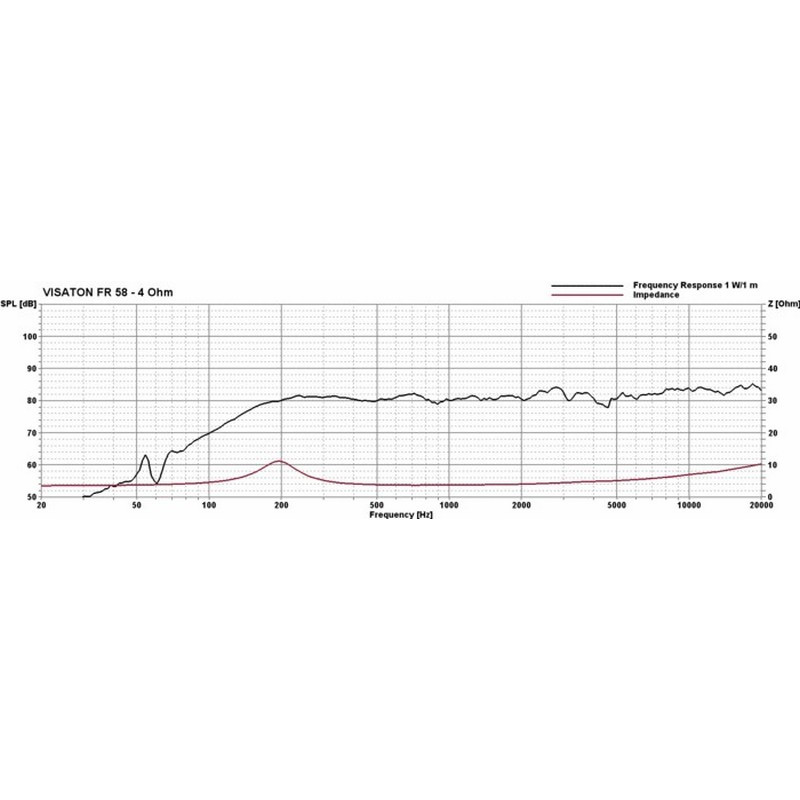

| Transmission range (-10 dB) | 120–20000 Hz |
| Medium sound pressure level | 81 dB (1 W/1 m) |
| Maximum linear stroke | +/- 0.55 mm (= 1.1 mm) |
| Border deflection | 5.5 mm |
| Reaction frequency fs | 190 Hz |
| Upper pole plate height | 2.4 mm |
| Oscillating coil diameter | 14 mm |
| Winding height | 3,5 mm |
| Sound wall opening | 57 mm |
| Weight net | 0,13 kg |
| Connections | 5,2 x 0.5 mm (+) 2,8 x 0.5 mm (−) |
| Protection class | IP 64 * |
| Temperature range | −40 ... +100 °C |
