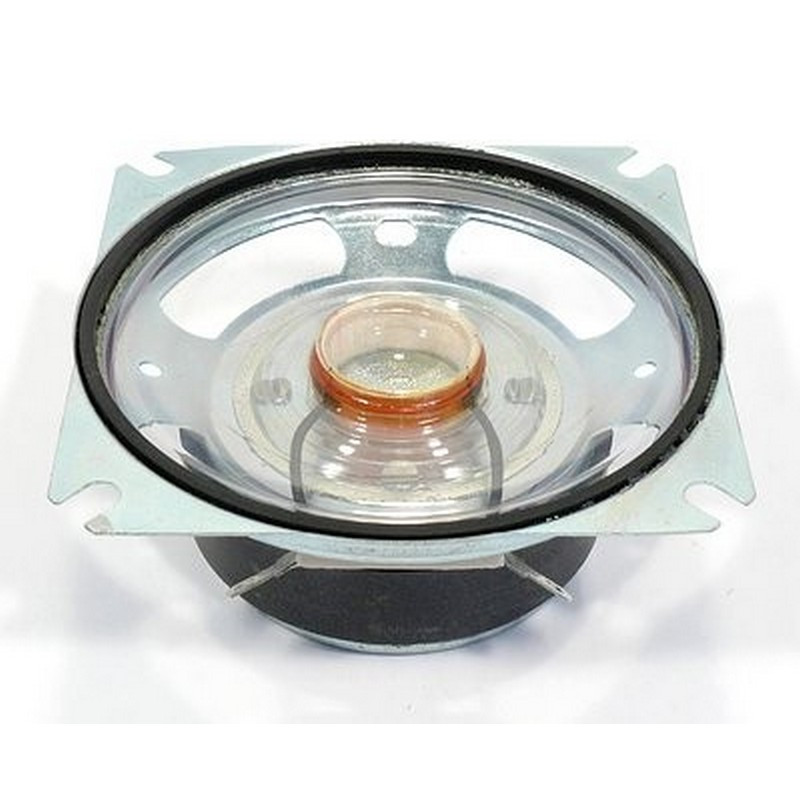

Visaton SL 87 XA - 8 Ohm broadband speakers
Waterproof 8 cm (3.3") broadband loudspeaker
Visaton SL 87 XA - 8 Ohm broadband speakers
Waterproof 8 cm (3.3") broadband loudspeaker
€11.80
Our previous price
€16.86
Save 30%
Tax included
Shipping excluded
4-0091
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
Waterproof 8 cm (3.3") broadband loudspeaker with transparent plastic membrane and rubber sealing ring.
Very high characteristic sound pressure level. Optimized for voice and signal playback.
*) IP protection class for front side when installed in a sealed housing
**) 1 m water level, 16 h
Applications
- Control loudspeaker for electronic devices
- External sound
- alarm systems
Characteristics
- UV-resistant
- weatherproof
Technical data
| Rated load capacity | 20 W |
|---|---|
| Music loading | 30 W |
| Nominal impedance Z | 8 Ohm |

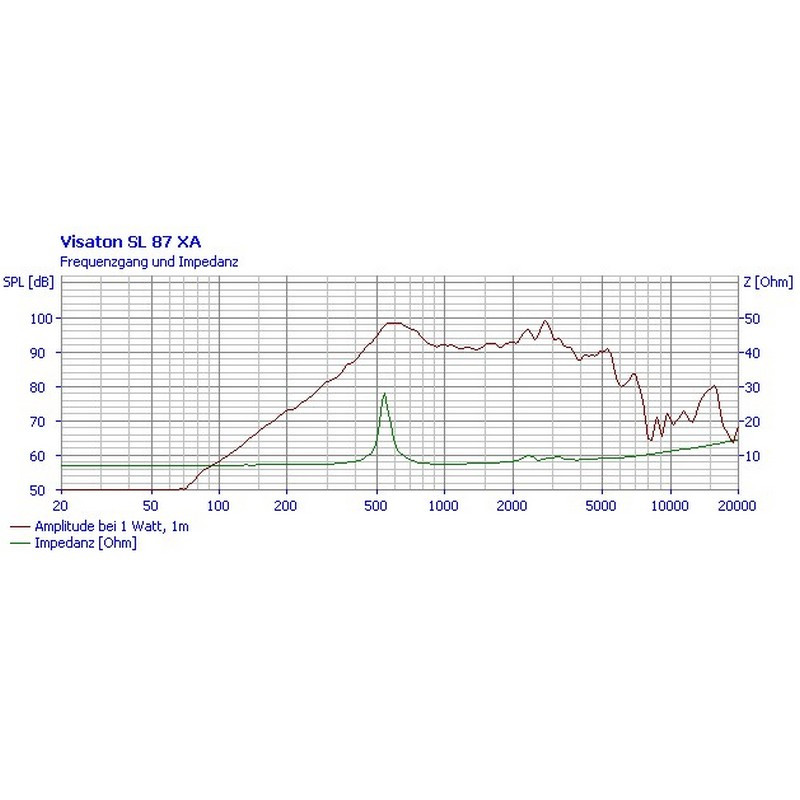

| Transmission range (-10 dB) | 350–5800 Hz |
| Medium sound pressure level | 94 dB (1 W/1 m) |

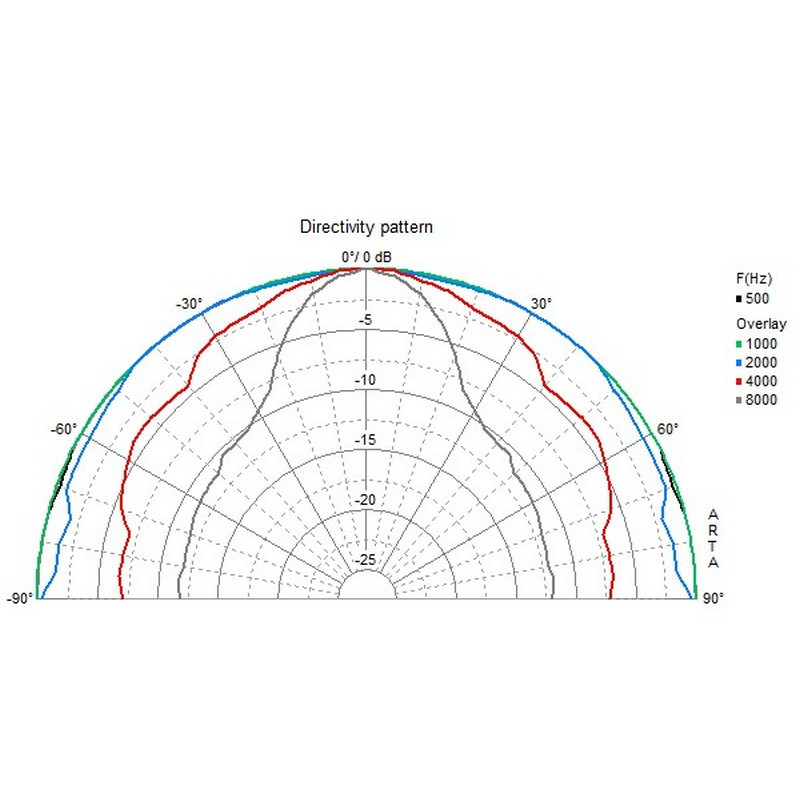

| Beam angle (-6 dB) | 142°/4000 Hz |
| Reaction frequency fs | 550 Hz |
| Upper pole plate height | 3 mm |
| Oscillating coil diameter | 20 mm |
| Winding height | 4 mm |
| Sound wall opening | 80 mm |
| Weight net | 0,38 % |
| Connections | 2,8 x 0.5 mm (+) 2,8 x 0.5 mm (−) |
| Protection class | IP 65 *) IP x8 *) ** |
| Temperature range | −40 – 70 °C |
