Visaton DL 8 - 8 ohm ceiling speakers
8 cm (3,3") ceiling speakers
Visaton DL 8 - 8 ohm ceiling speakers
8 cm (3,3") ceiling speakers
€27.48
Our previous price
€39.25
Save 30%
Tax included
Shipping excluded
4-0193
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return

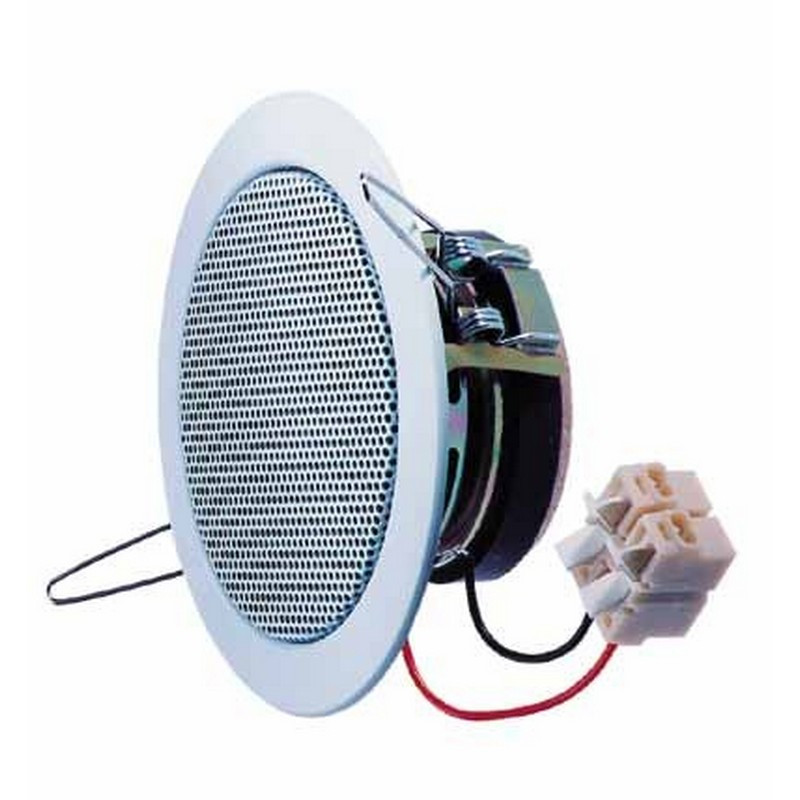

8 cm (3,3") ceiling speakers with white lacquered metal cover (RAL 9010).
Suitable for installation in covers of all materials.
Rational mounting in circular hole with spring clips, electrical connection with compression spring clamp.
Space-saving and sounding solution for the professional and the home area.
The DL 8 is also available in other RAL colours on request.
*) IP protection class for front side when installed in a sealed housing
Applications
- Installation in suspended ceilings for voice and music sounding in shops, living rooms, hotels etc.
Characteristics
- Moisture-impregnated membrane
- UV-resistant
- Metal design, corrosion-proof
- Functional at low temperatures according to EN 60068-2-1 (-40 °C; 96 h)
- meets the requirements of Germanischer Lloyd (requirements for electrical equipment / refrigeration)
- ball throw-proof
Technical data
| Rated load capacity | 10 W |
|---|---|
| Music loading | 30 W |
| Nominal impedance Z | 8 Ohm |

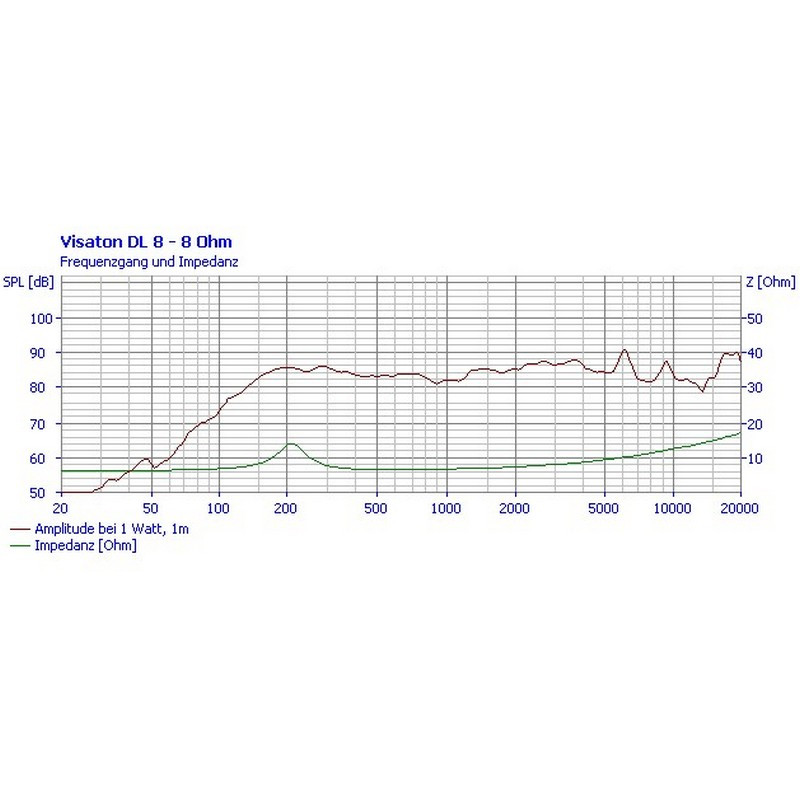

| Sound pressure level | 90 dB (1 W/1 m) @ 6100 Hz |
| Transmission range (-10 dB) | 90–18000 Hz |
| Medium sound pressure level | 84 dB (1 W/1 m) |

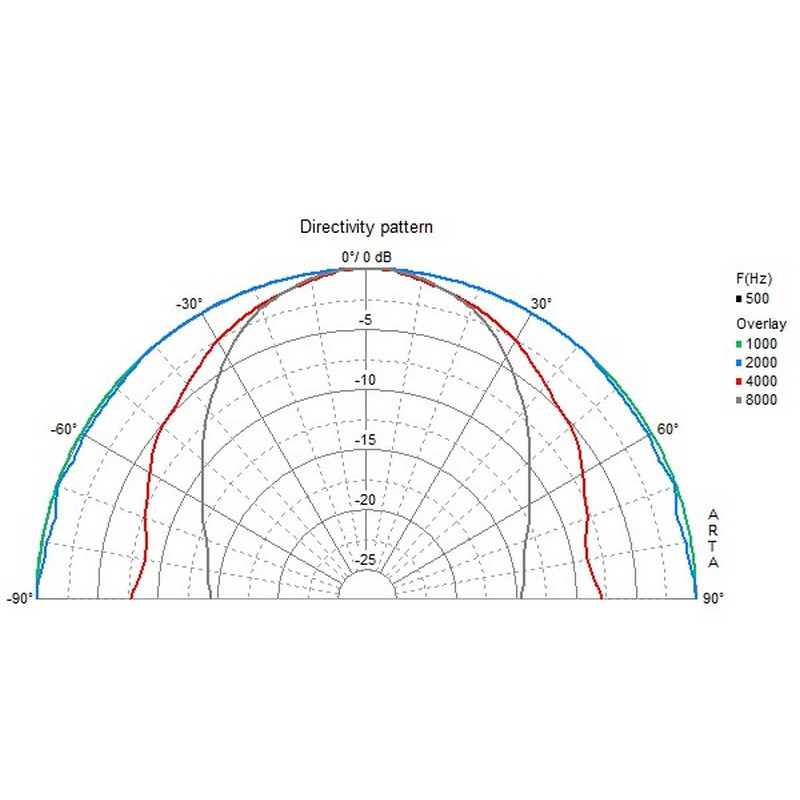

| Beam angle (-6 dB) | 112°/4000 Hz |
| Reaction frequency fs | 190 Hz |
| Magnetic induction | 0,7 |
| Magnetic flux | 130 μWb |
| Upper pole plate height | 3 mm |
| Oscillating coil diameter | 20 mm |
| Winding height | 4 mm |

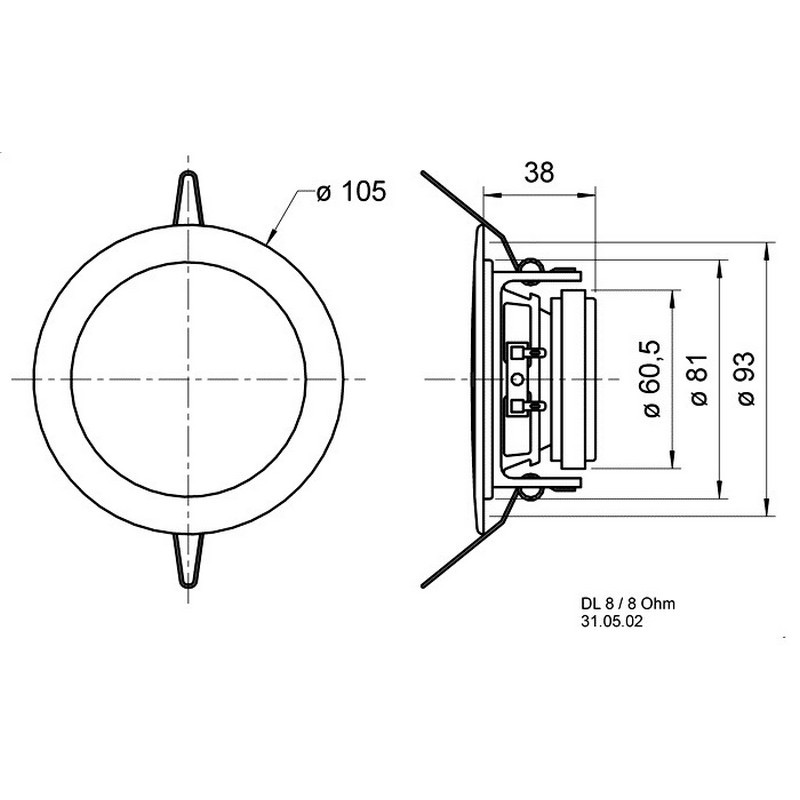

| Sound wall opening | 93 mm |
| Weight net | 0,33 % |
| DC resistance Rdc | 6,7 Ohm |
| Mechanical Q-factor Qms | 2,72 |
| Electric Q-factor Qes | 1,43 |
| Total Q factor Qts | 0,94 |
| Effective membrane surface Sd | 31 cm2 |
| Vibration coil inductance L | 0.48 mH |
| Length of connection cable | 0,1 m |
| Protection class | IP 54 *) |
| Temperature range | −40 – 110 °C |
| Colour | RAL 9010 |
