Visaton K 45 - 8 Ohm small speaker

4.5 cm (1.8") small speaker

€4.25
Our previous price €6.07
Save 30%
Tax included Shipping excluded
Small speaker
4-0176
Quantity
Wishlist
Compare
available at manufacturer
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

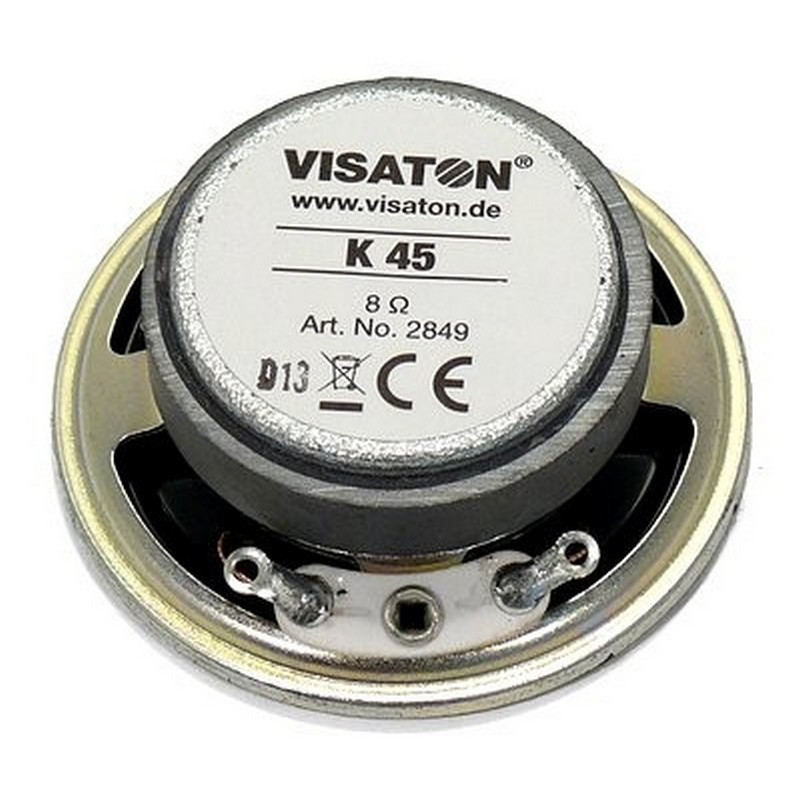

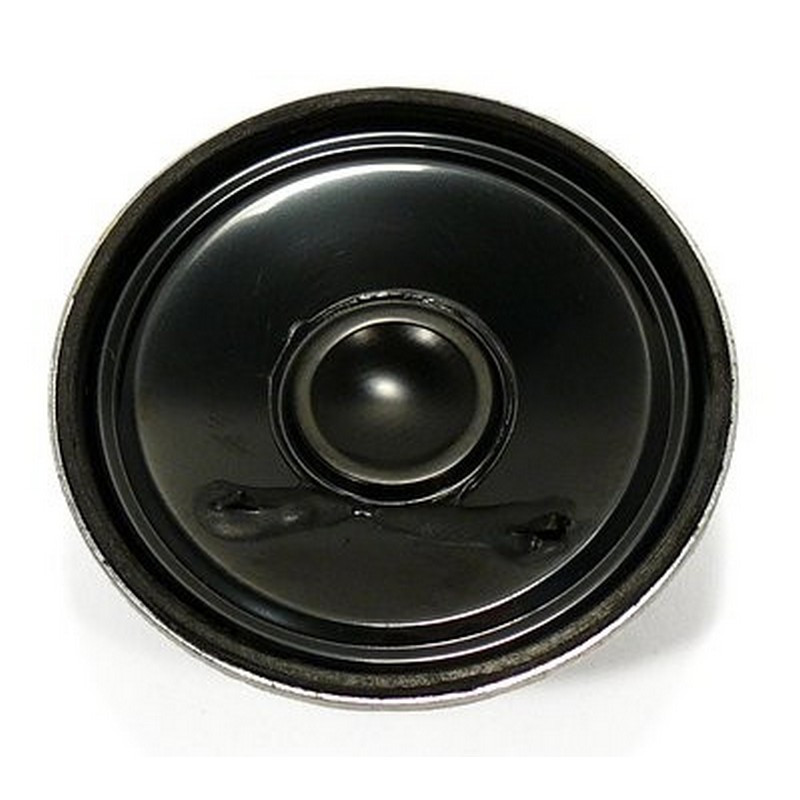

4.5 cm (1.8") small speaker with plastic membrane (Mylar) and metal basket.

Low size, therefore suitable for signal output in devices and installations where little space is available.

Technical data

Rated load capacity 1 W
Music loading 2 W
Nominal impedance Z 8 Ohm

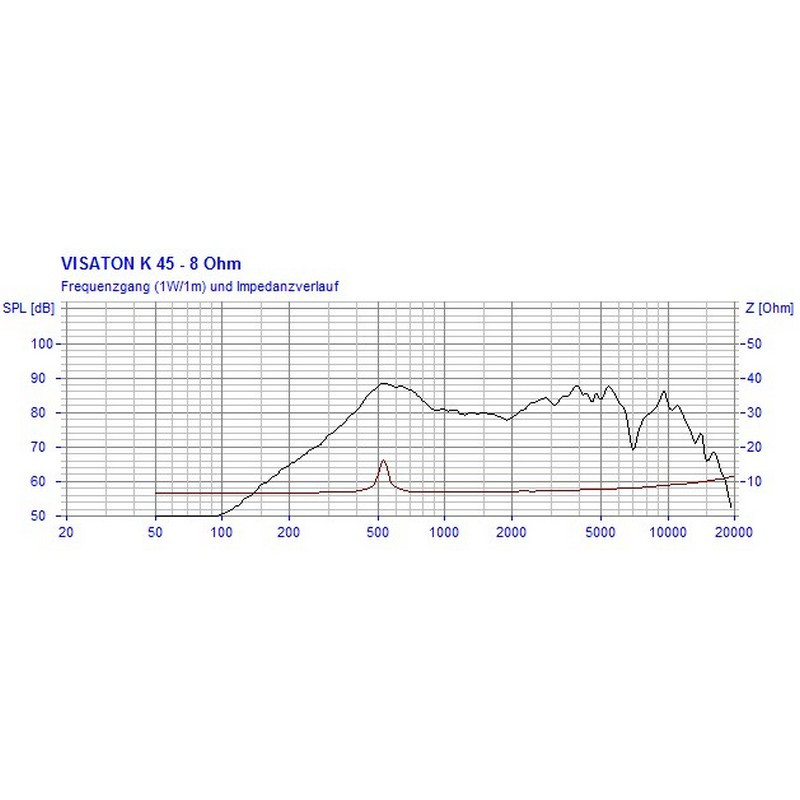

Transmission range (-10 dB) 300–14000 Hz
Medium sound pressure level 83 dB (1 W/1 m)
Reaction frequency fs 520 Hz
Upper pole plate height 1.5 mm
Oscillating coil diameter 14 mm
Winding height 2,5 mm

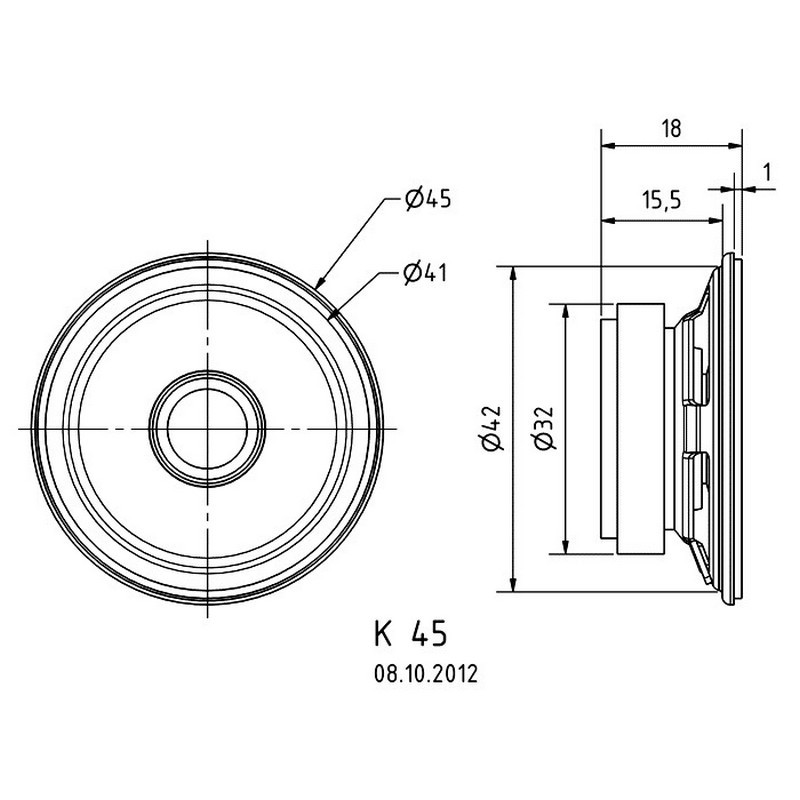

Sound wall opening 41.5 mm
Weight net 0,046 kg
Temperature range −25 ... 70 °C
