Visaton K 23 SQ - 8 Ohm small speaker
2,3 cm (0.9") small speaker
Visaton K 23 SQ - 8 Ohm small speaker
2,3 cm (0.9") small speaker
€6.66
Our previous price
€9.51
Save 30%
Tax included
Shipping excluded
4-0164
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return

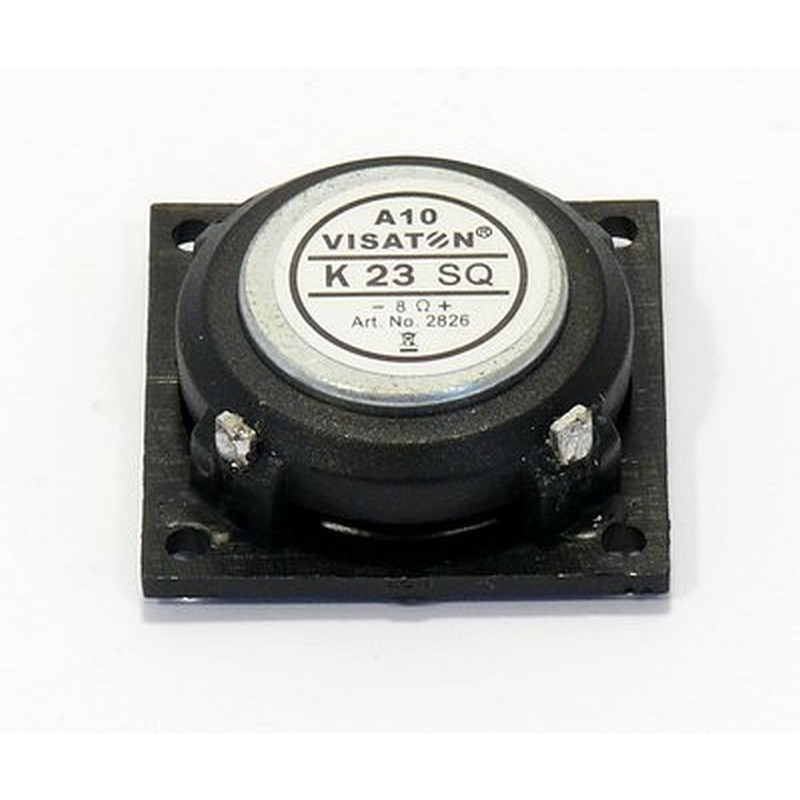

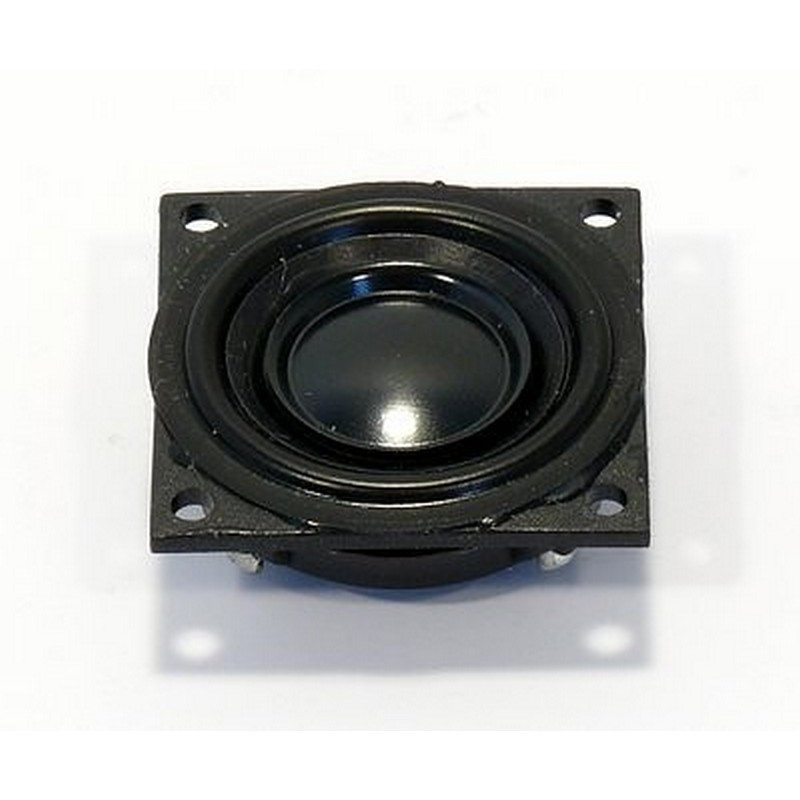

2,3 cm (0.9") small speaker with plastic membrane and square plastic basket with 4 mounting holes.
*) IP protection class for front side when installed in a sealed housing
Applications
- voice and signal output in internal and external devices
- Model construction
Characteristics
Plastic basket
Technical data
| Rated load capacity | 0,5 W |
|---|---|
| Music loading | 1 W |
| Nominal impedance Z | 8 Ohm |

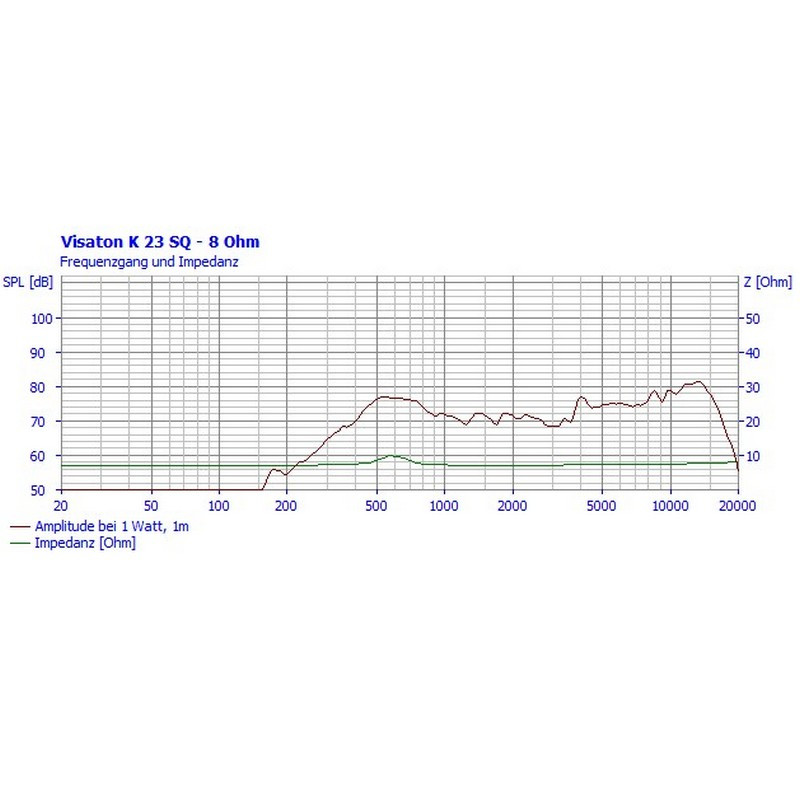

| Transmission range (-10 dB) | 300–19000 Hz |
| Medium sound pressure level | 74 dB (1 W/1 m) |
| Reaction frequency fs | 530 Hz |
| Oscillating coil diameter | 12 mm |
| Winding height | 1.5 mm |

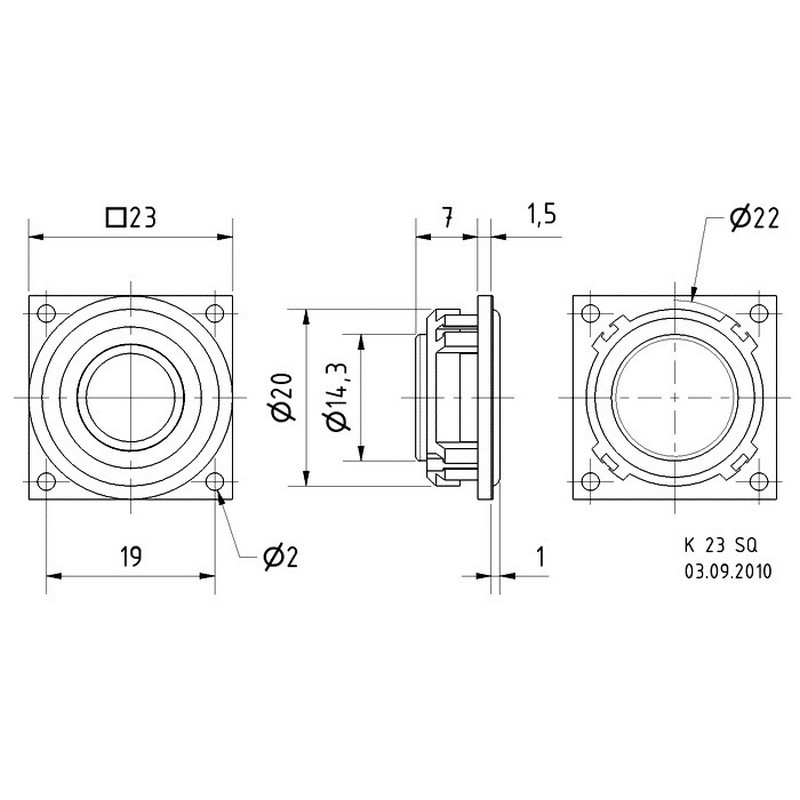

| Sound wall opening | 22.5 mm |
| Weight net | 0,005 kg |
| Protection class | IP 64 * |
| Temperature range | –20 ... 65 °C |
4-0164
New
Manufacturer information
Registered Trade Name: VISATON GmbH & Co. KG
Registered Trade mark: Visaton
Ohligser Str. 29-31
42781 Haan
Germany
42781 Haan
Germany
Email: visaton@visaton.com
Phone: +49 (0) 2129 552-0
Responsible Person:
Geschäftsführer Ralph Schukat
