Visaton TW 6 NG - 8 Ohm Visaton TW 6 NG - 8 Ohm Visaton TW 6 NG - 8 Ohm Visaton TW 6 NG - 8 Ohm
Visaton TW 6 NG - 8 Ohm
Visaton TW 6 NG - 8 Ohm
Visaton TW 6 NG - 8 Ohm
Visaton TW 6 NG - 8 Ohm

Visaton TW 6 NG - 8 Ohm tweeter

Cone tones

€13.69
Our previous price €19.55
Save 30%
Tax included Shipping excluded
Tweeters
4-0145
Quantity
Wishlist
Compare
available at manufacturer
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

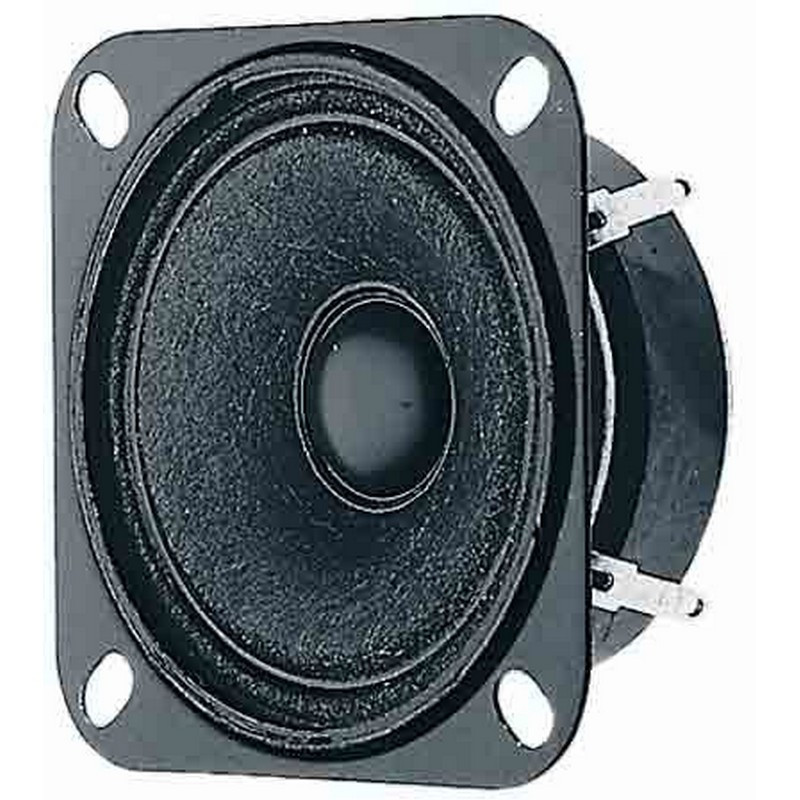

Cone tones with square basket shape for the high tone range from 5000 Hz.

Balanced frequency response with sprayy high-tone range and high load capacity.

A separate high-tone housing is dispensed with by the rear closed construction.

Very well suited as replacement fitting for many HiFi front boxes.

Technical data

Nominal load capacity with high-pass filter 60 W (12 dB/oct; 5000 Hz
Music loadability with high-pass filter 100 W (12 dB/oct.; 5000 Hz
Nominal impedance Z 8 Ohm

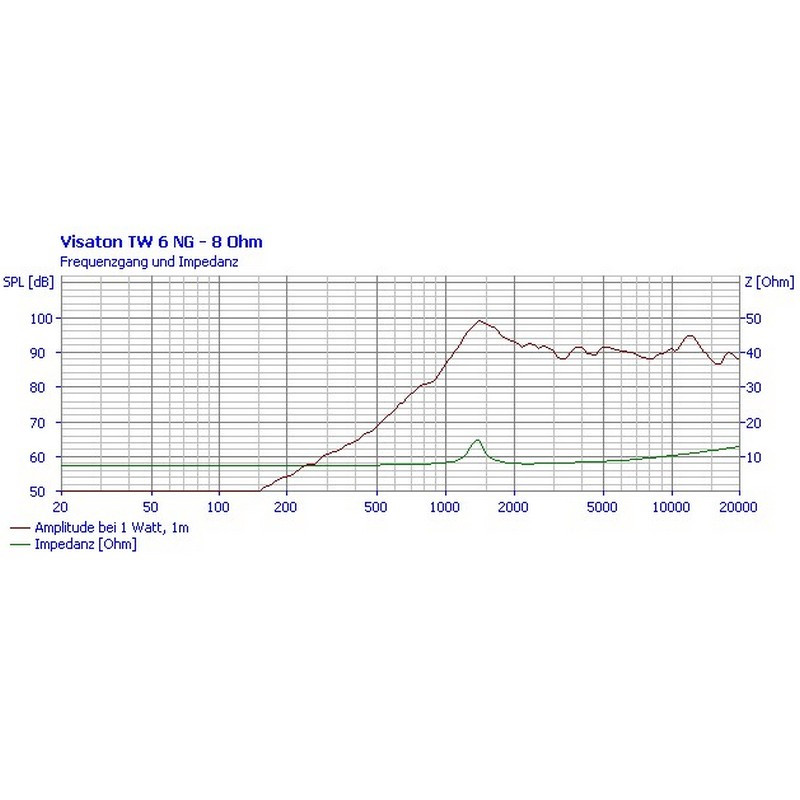

Transmission range (-10 dB) 1000–30000 Hz
Medium sound pressure level 91 dB (1 W/1 m)

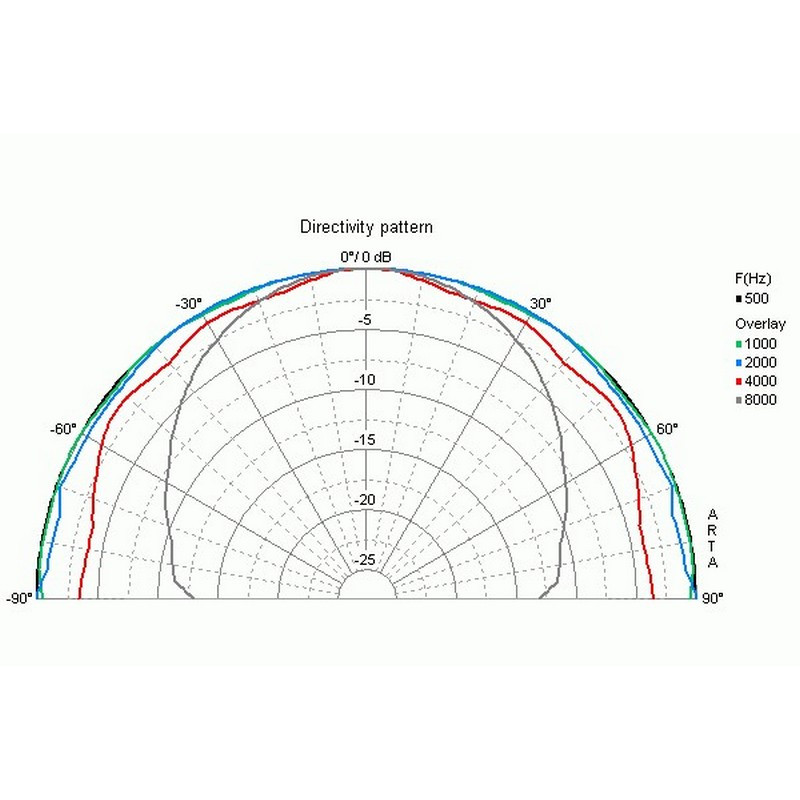

Beam angle (-6 dB) 97°/8000 Hz
Border deflection +/-0.5 mm
Reaction frequency fs 1500 Hz
Magnetic induction 0,8 T
Magnetic flux 70 μWb
Upper pole plate height 2,5 mm
Oscillating coil diameter 14 mm
Winding height 2,5 mm

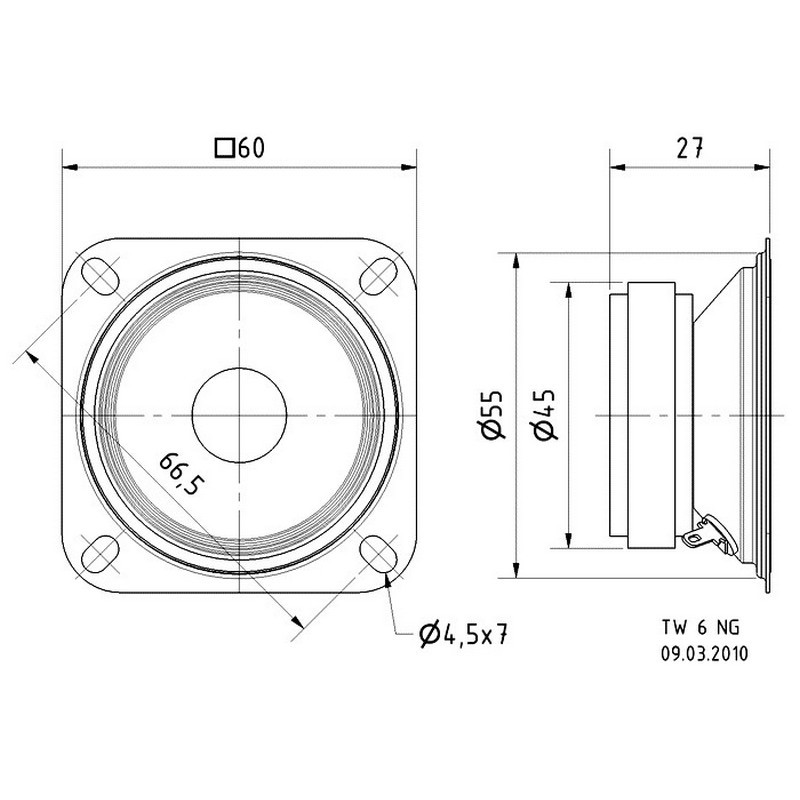

Sound wall opening 56 mm
Weight net 0,14 kg
DC resistance Rdc 6.5 Ohm
Effective membrane surface Sd 17 cm2
Vibration coil inductance L 0,17 mH
Connections 2.8 x 0.5 mm (+)
2.8 x 0.5 mm (−)
