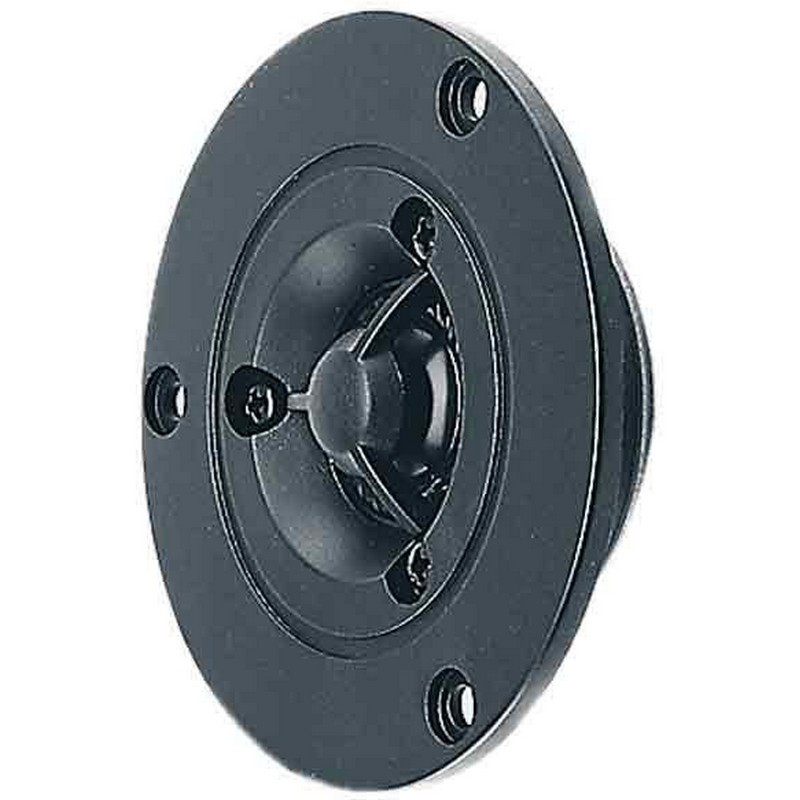

Visaton DT 94 - 4 Ohm tweeter
20 mm (0.8") HiFi polycarbonate dome
Visaton DT 94 - 4 Ohm tweeter
20 mm (0.8") HiFi polycarbonate dome
€28.83
Our previous price
€41.19
Save 30%
Tax included
Shipping excluded
4-0135
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
20 mm (0.8") HiFi Polycarbonatkalotte with round front plate for the high tone range from 3000 Hz.

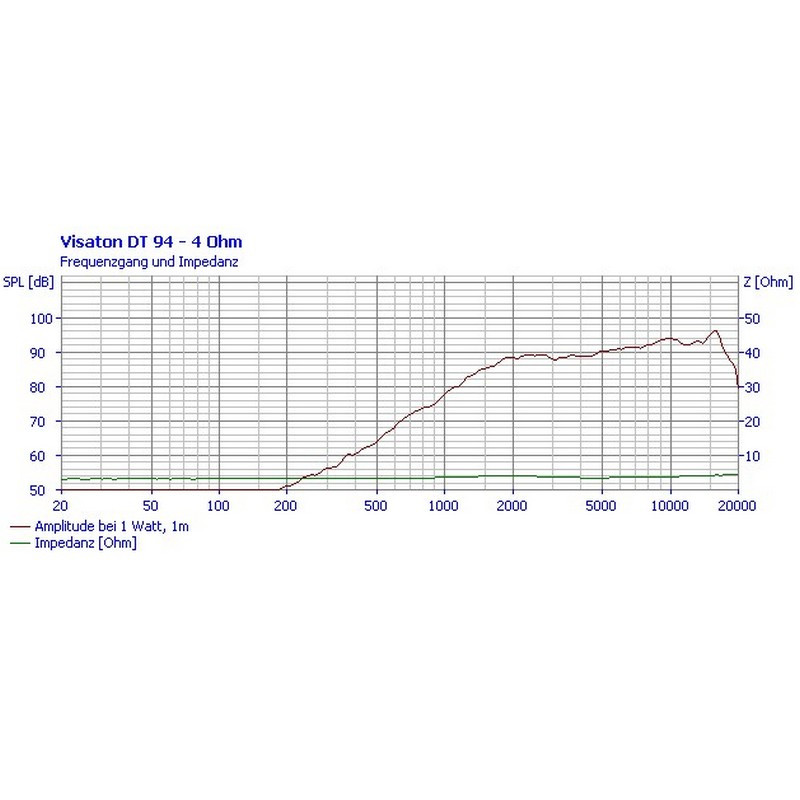

Balanced frequency response with high-tone brilliance and good round beam behavior.
High loadability due to ferrofluid-cooled oscillating coil.
Technical data
| Nominal load capacity with high-pass filter | 70 W (12 dB/oct; 4000 Hz 50 W (12 dB/oct; 2000 Hz |
|---|---|
| Music loadability with high-pass filter | 100 W (12 dB/oct.; 4000 Hz 80 W (12 dB/oct; 2000 Hz |
| Nominal impedance Z | 4 Ohms |
| Transmission range (-10 dB) | 1200–22000 Hz |
| Medium sound pressure level | 90 dB (1 W/1 m) |

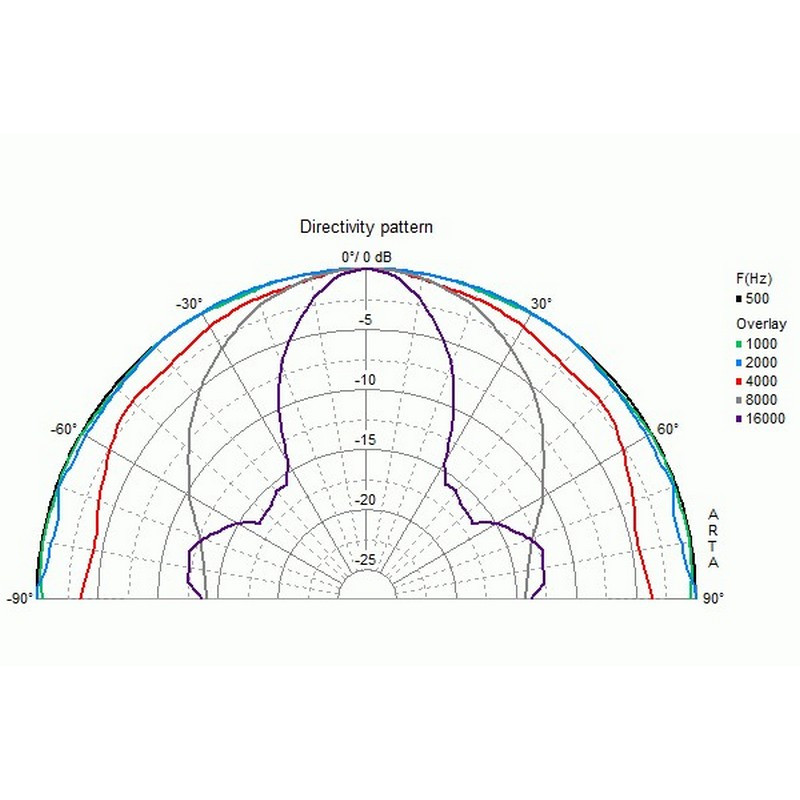

| Beam angle (-6 dB) | 84°/8000 Hz |
| Reaction frequency fs | 1900 Hz |
| Magnetic induction | 1,2 T |
| Magnetic flux | 185 μWb |
| Upper pole plate height | 2,5 mm |
| Oscillating coil diameter | 20 mm |
| Winding height | 2 mm |
| Sound wall opening | 64 mm |
| Weight net | 0,24 |
| DC resistance Rdc | 3,1 Ohm |
| Mechanical Q-factor Qms | 3 |
| Electric Q-factor Qes | 0,6 |
| Total Q factor Qts | 0,5 |
| Effective membrane surface Sd | 3 cm2 |
| Dynamic moving mass Mms | 0,2 g |
| Vibration coil inductance L | 0,09 mH |
