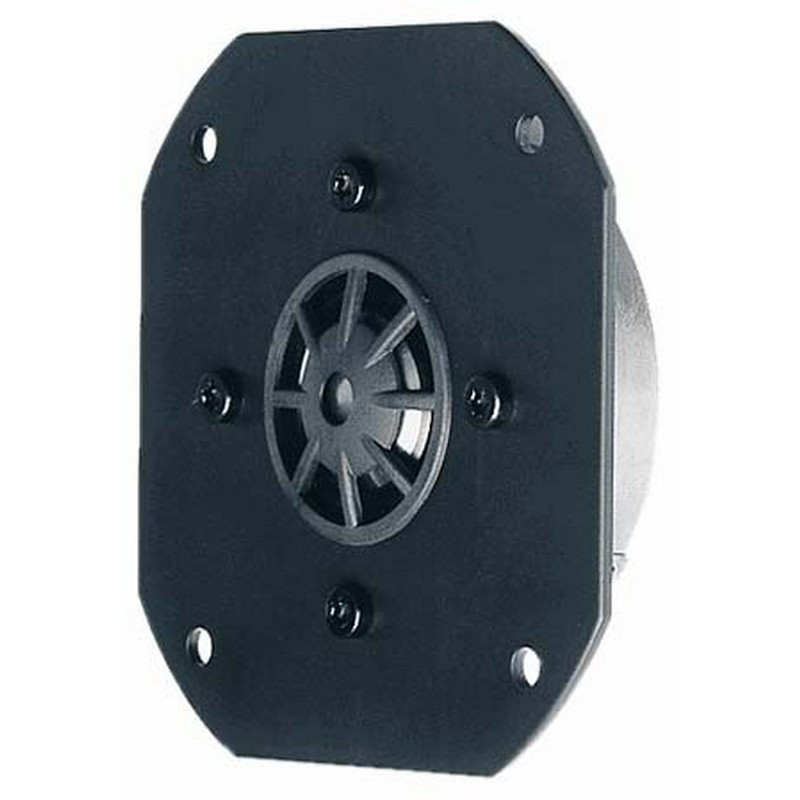

Visaton DSM 25 FFL - 8 Ohm tweeter
25 mm (1") High-end titrate
Visaton DSM 25 FFL - 8 Ohm tweeter
25 mm (1") High-end titrate
€74.12
Our previous price
€105.89
Save 30%
Tax included
Shipping excluded
4-0134
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
25 mm (1") High-end titrate for the high tone range from 2000 Hz.
By means of a specially developed process technology, the enormously hard titanium foil can be shaped into ultra-light calottes which, together with the strongly damped supranyl queue, allow a linear and partial oscillation-free frequency response.
Due to the enormous magnetic induction in the air gap filled with ferrofluid, a high efficiency and a high load capacity can be achieved simultaneously.
Technical data
| Nominal load capacity with high-pass filter | 80 W (12 dB/oct; 2000 Hz |
|---|---|
| Music loadability with high-pass filter | 140 W (12 dB/oct; 2000 Hz |
| Nominal impedance Z | 8 Ohm |

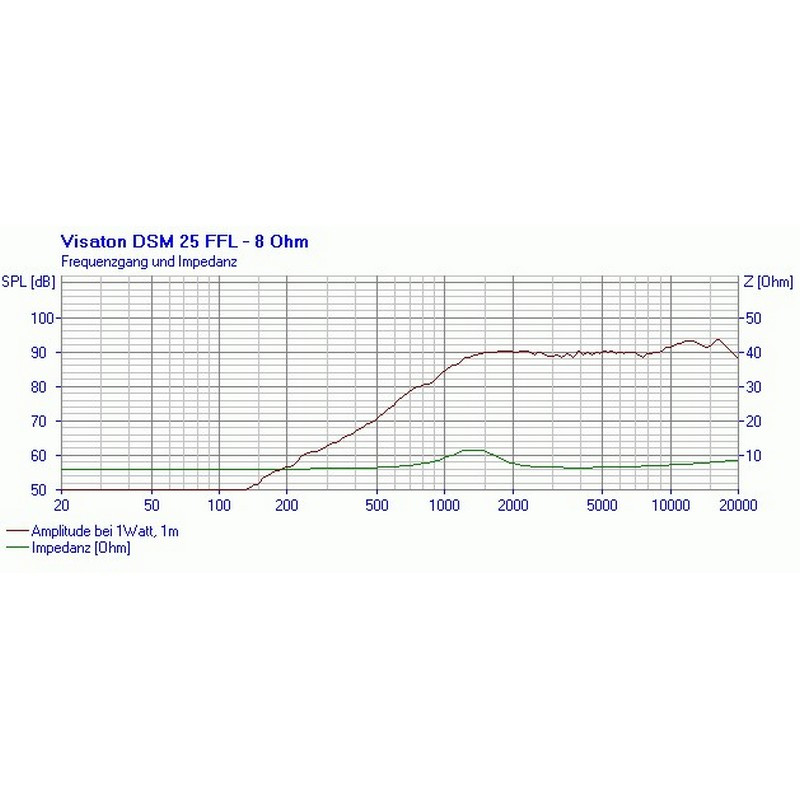

| Transmission range (-10 dB) | 1000–30000 Hz |
| Medium sound pressure level | 90 dB (1 W/1 m) |

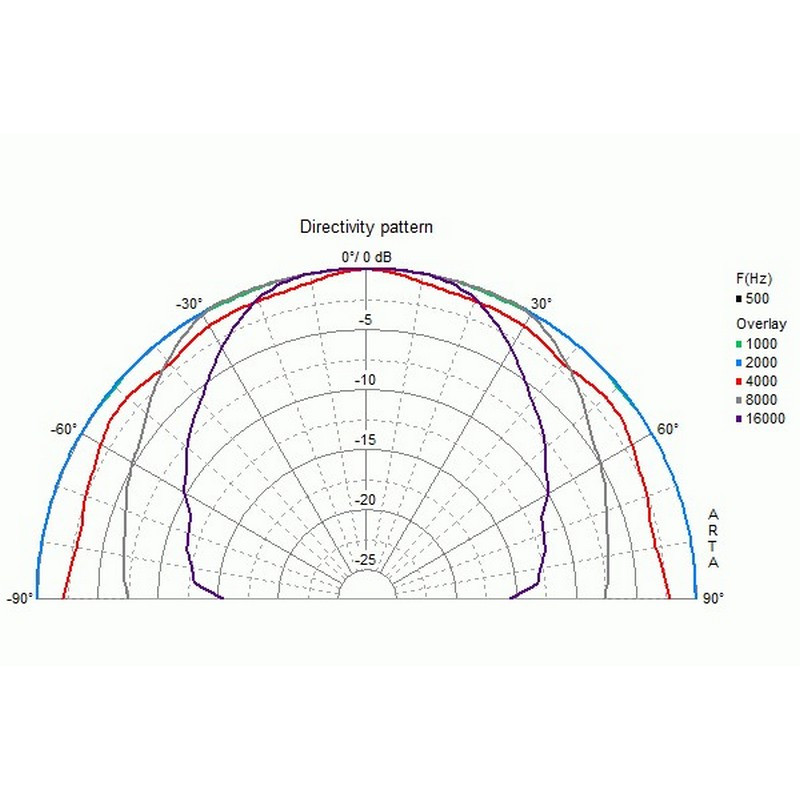

| Beam angle (-6 dB) | 138°/8000 Hz |
| Reaction frequency fs | 1600 Hz |
| Magnetic induction | 1.7 T |
| Magnetic flux | 425 μWb |
| Upper pole plate height | 2,5 mm |
| Oscillating coil diameter | 25 mm |
| Winding height | 2 mm |
| Sound wall opening | 80 mm |
| Weight net | 0,53 % |
| DC resistance Rdc | 5,9 Ohm |
| Mechanical Q-factor Qms | 1,83 |
| Electric Q-factor Qes | 1,87 |
| Total Q factor Qts | 0,92 |
| Effective membrane surface Sd | 4.9 cm2 |
