Visaton HTH 8.7 - 8 Ohm Professional CD Horn

Professional CD horn

€65.53
Our previous price €93.62
Save 30%
Tax included Shipping excluded
Tweeters
4-0143
Quantity
Wishlist
Compare
available at manufacturer
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

Professional CD horn (constant directivity) for the high tone range from 3000 Hz.

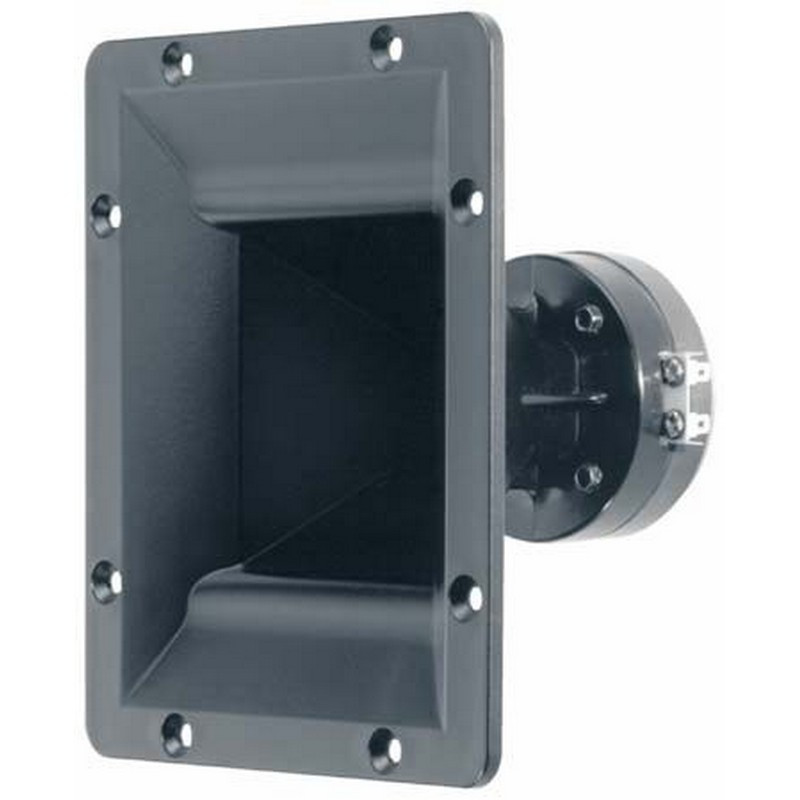

Rectangular horn made of black impact resistant plastic with a highly loadable 25mm coil.

The acoustically favorable horn function makes it possible to use 3 kHz to 20 kHz.

This makes the horn an ideal component for compact 2- and 3-way boxes, for stage monitors as well as vocal and instrumental boxes.

Technical data

Nominal load capacity with high-pass filter 200 W (12 dB/oct; 5000 Hz
Music loadability with high-pass filter 300 W (12 dB/oct; 5000 Hz
Nominal impedance Z 8 Ohm

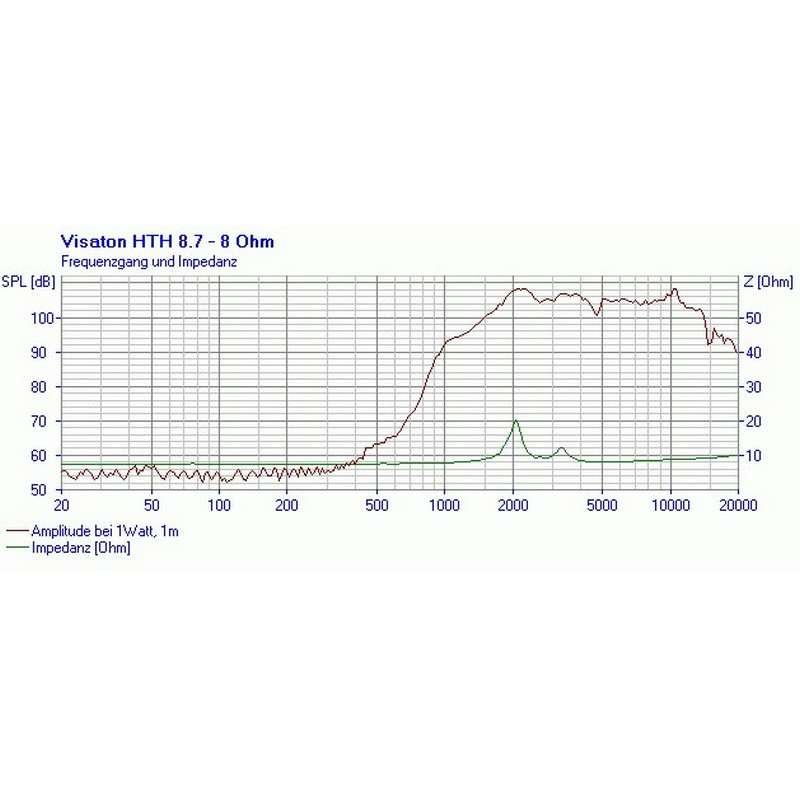

Transmission range (-10 dB) 1200–16000 Hz
Medium sound pressure level 106 dB (1 W/1 m)

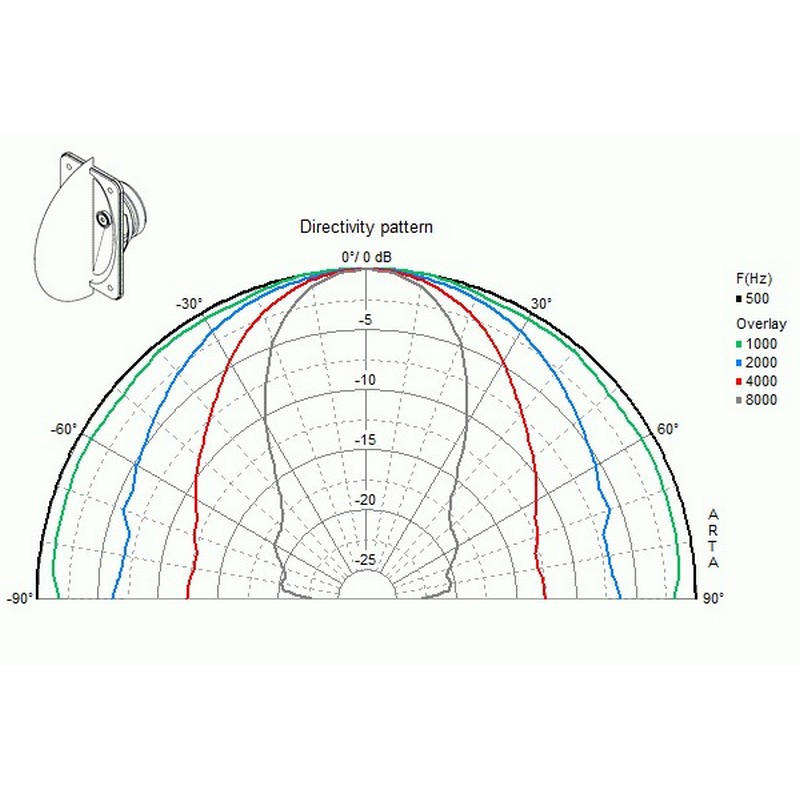

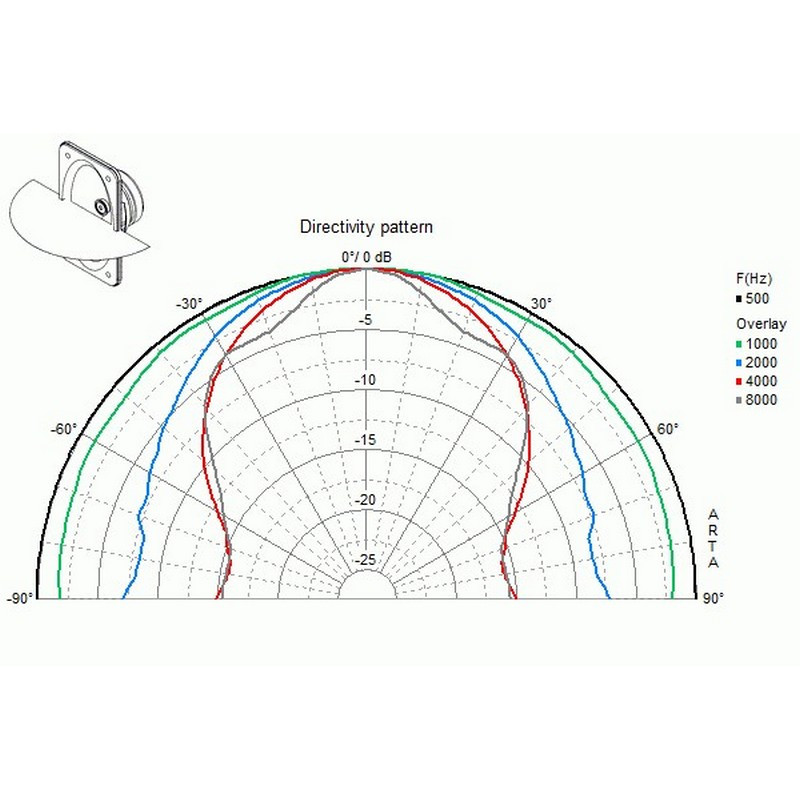

Beam angle (-6 dB) 75°/4000 Hz. 69°/4000 Hz.
Reaction frequency fs 1900 Hz
Magnetic induction 1.5 TONNES
Oscillating coil diameter 25 mm

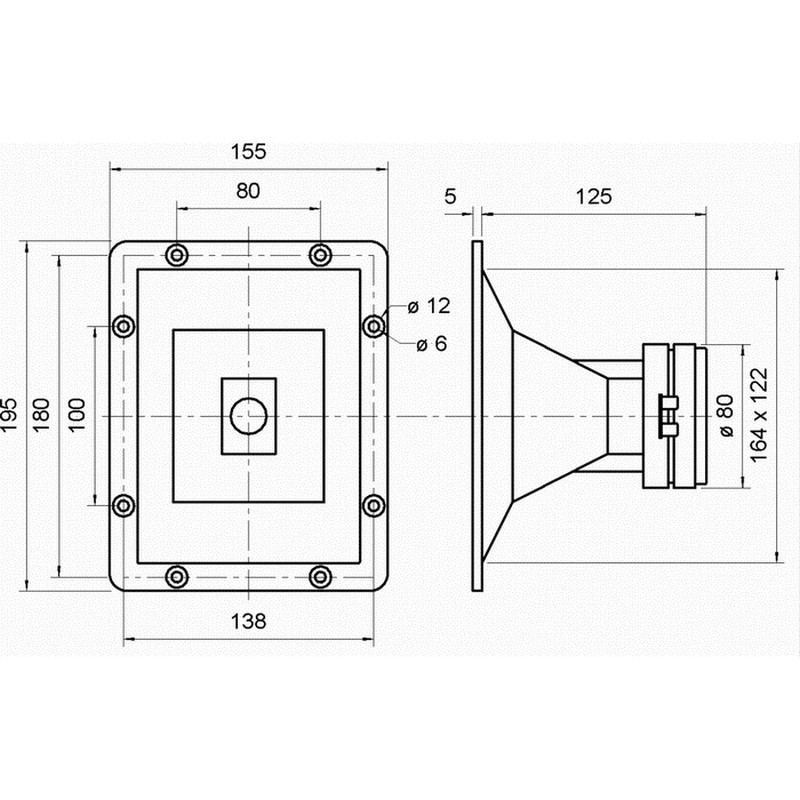

Sound wall opening 123 x 165 mm
Weight net 0,95 kg
