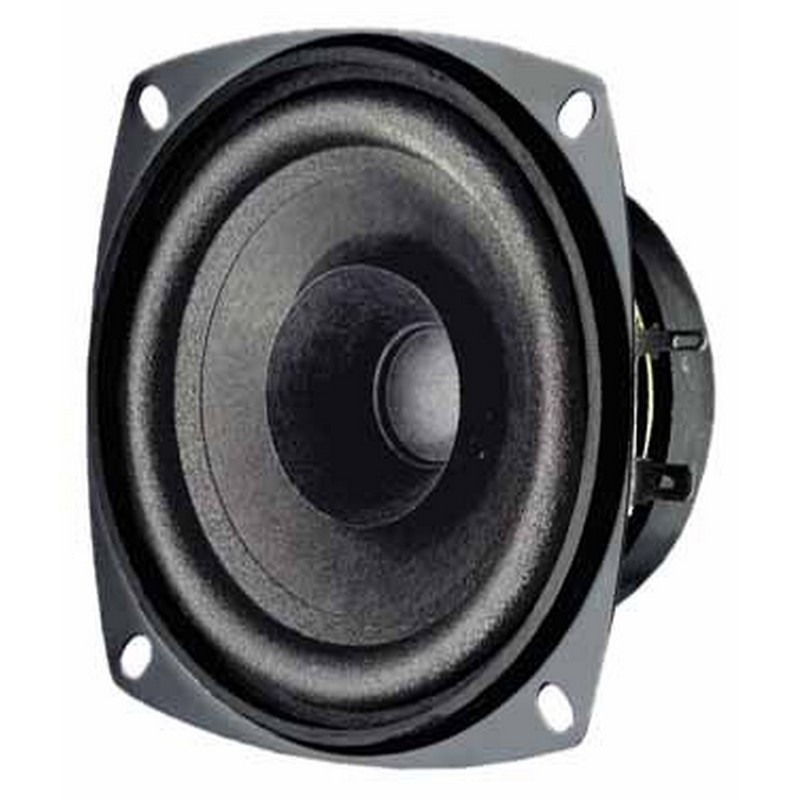

Visaton FR 10 - 8 Ohm broadband speakers
10 cm (4") broadband loudspeaker
Visaton FR 10 - 8 Ohm broadband speakers
10 cm (4") broadband loudspeaker
€13.65
Our previous price
€19.50
Save 30%
Tax included
Shipping excluded
4-0010
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
10 cm (4") broadband loudspeaker with good low-tone properties, balanced frequency response and high efficiency.
Particularly suitable as a built-in loudspeaker for music reproduction and for equipping ELA lines.
Applications
- ELA lines
- Ceiling loudspeakers in rail vehicles and buses
- Car-HiFi built-in speakers
- Electronic musical instruments
Â
Technical data
| Rated load capacity | 30 W |
|---|---|
| Music loading | 50 W |
| Nominal impedance Z | 8 Ohm |

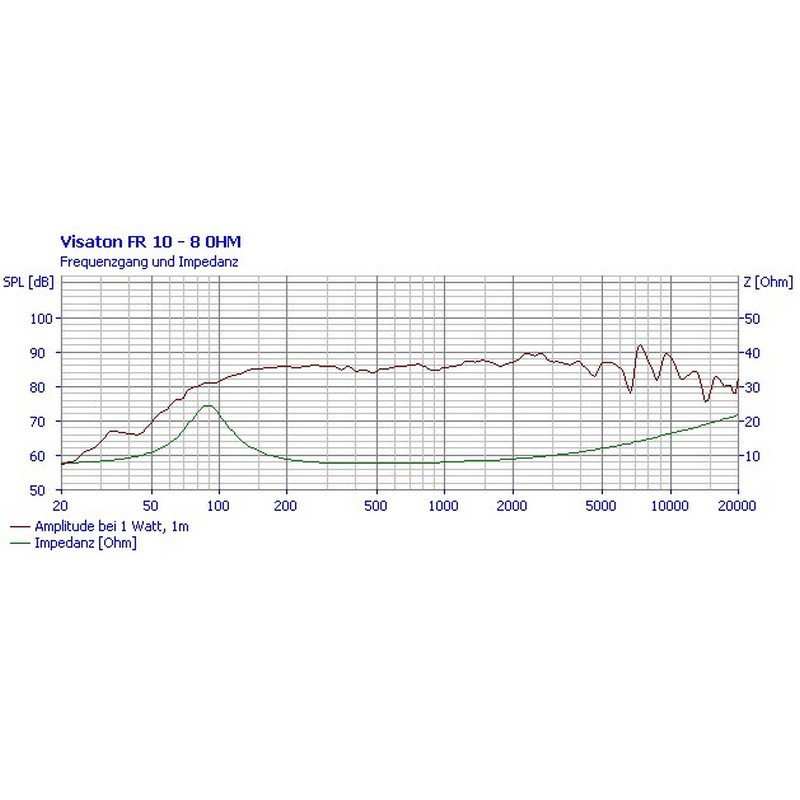

| Transmission range (-10 dB) | 80–20000 Hz |
| Medium sound pressure level | 86 dB (1 W/1 m) |

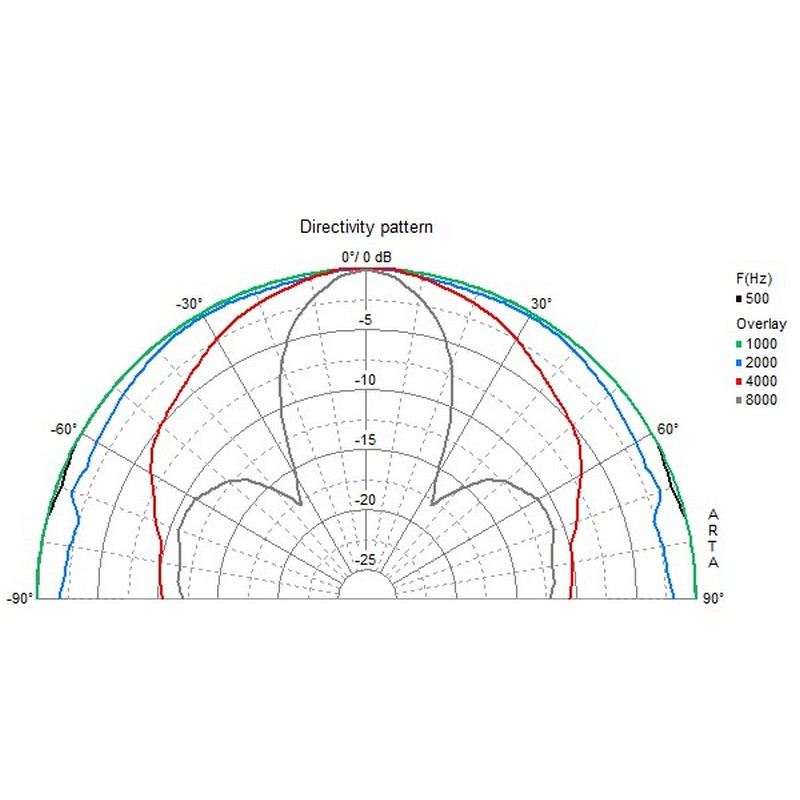

| Beam angle (-6 dB) | 113°/4000 Hz |
| Border deflection | +/-4 mm |
| Reaction frequency fs | 90 Hz |
| Magnetic induction | 0,95 |
| Magnetic flux | 180 μWb |
| Upper pole plate height | 3 mm |
| Oscillating coil diameter | 20 mm |
| Winding height | 6 mm |

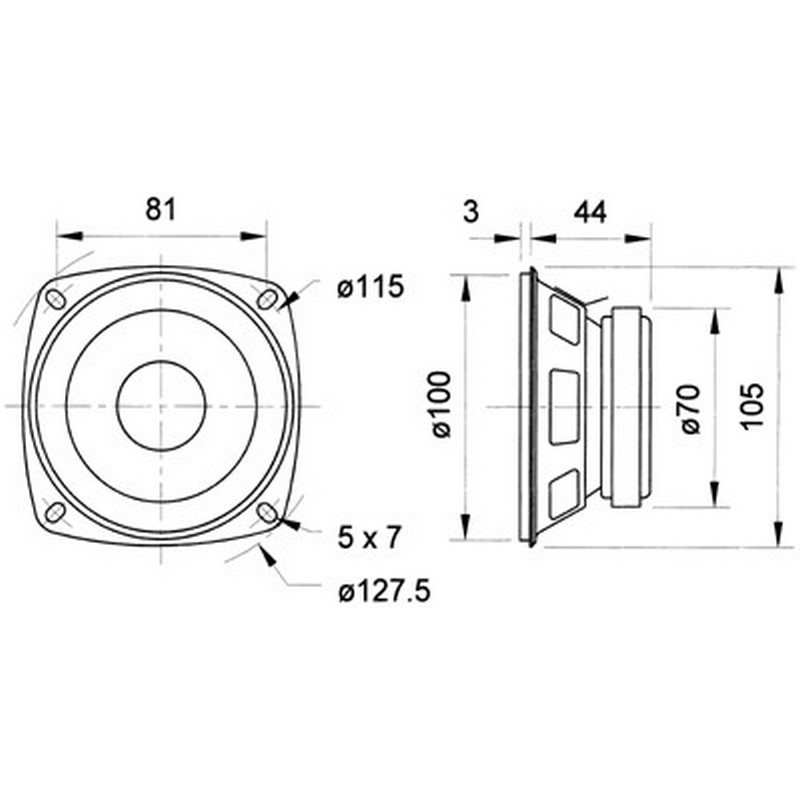

| Sound wall opening | 100 mm |
| Weight net | 0,38 % |
| DC resistance Rdc | 7.2 Ohm |
| Mechanical Q-factor Qms | 2,29 |
| Electric Q-factor Qes | 0,95 |
| Total Q factor Qts | 0,67 |
| Equivalent air yield volume Vas | 2.3 l |
| Effective membrane surface Sd | 50 cm2 |
| Dynamic moving mass Mms | 5.7 g |
| Drive factor Bxl | 4,6 T m |
| Vibration coil inductance L | 0,2 m |
| Connections | 5.2 x 0.5 mm (+) 2.8 x 0.5 mm (−) |
| Temperature range | −25 ... 70 °C |
