Visaton K 50 WP - 8 Ohm small speaker

5 cm (2") miniature speaker

€5.74
Our previous price €8.20
Save 30%
Tax included Shipping excluded
Small speaker
4-0064
Quantity
Wishlist
Compare
available at manufacturer
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

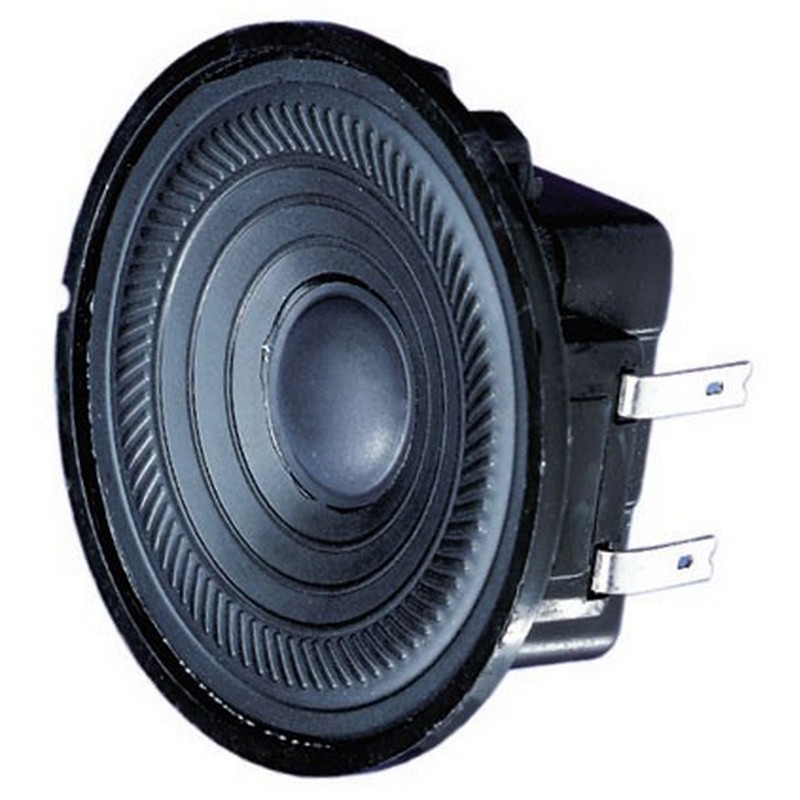

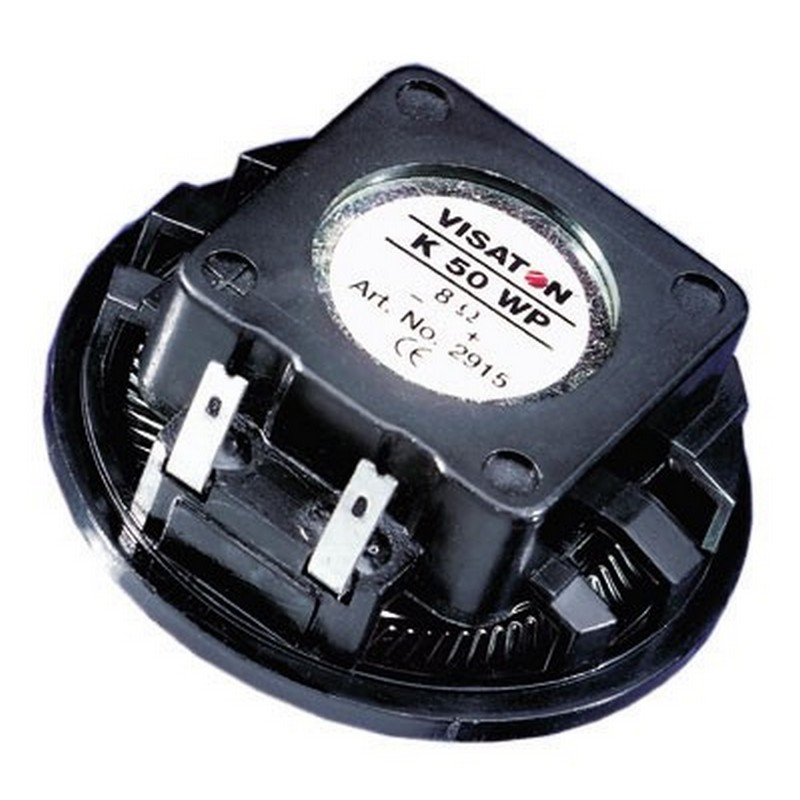

5 cm (2") small speaker with plastic basket and plastic membrane.

Wide range of transmission and good speech.

Particularly suitable for outdoor applications and under critical environmental influences (z.B. Moisture).

*) IP protection class for front side when installed in a sealed housing

Applications

- Control loudspeaker for electronic devices

- external control speakers



Characteristics

- weatherproof

- UV-resistant

- Plastic: ABS (basket; UL 94: HB), Mylar (membrane)

- working in cold according to EN 60068-2-1/EN 50155



Technical data

Rated load capacity 2 W
Music loading 3 W
Nominal impedance Z 8 Ohm

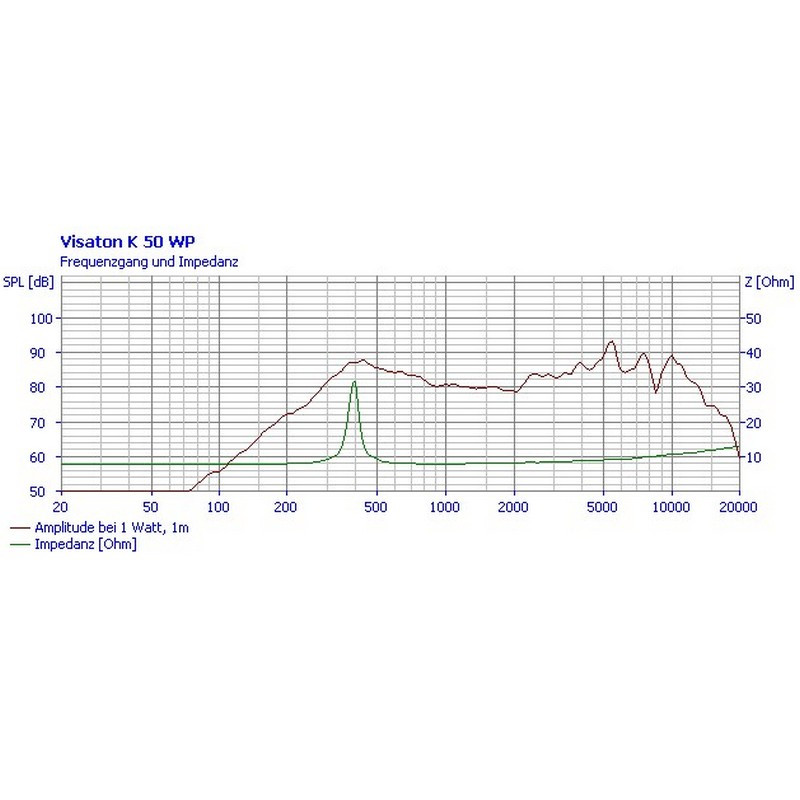

Transmission range (-10 dB) 180–17000 Hz
Medium sound pressure level 84 dB (1 W/1 m)

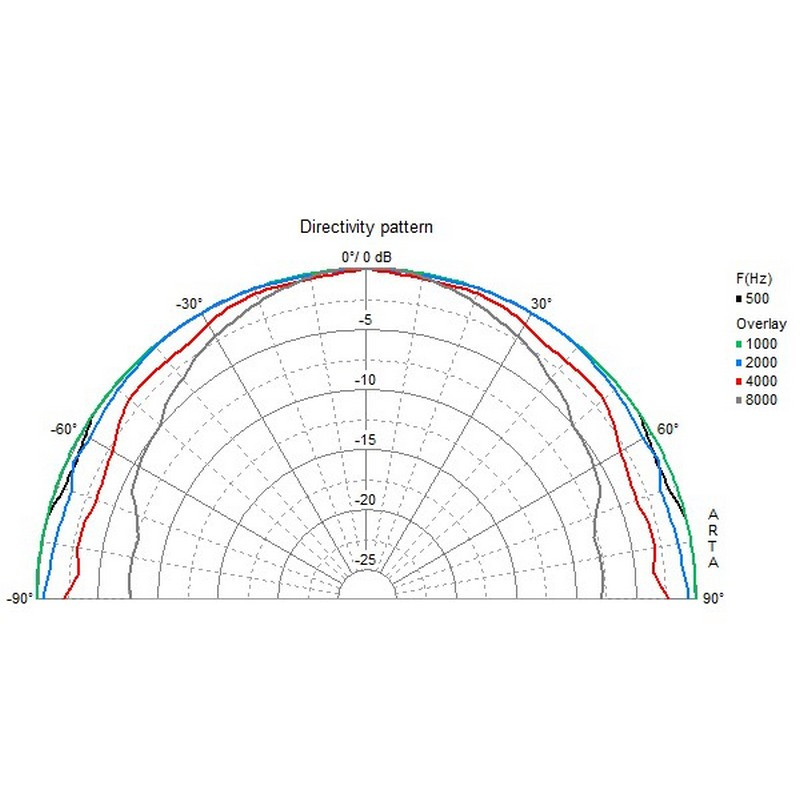

Beam angle (-6 dB) 180°/4000 Hz
Border deflection +/-1 mm
Reaction frequency fs 300 Hz
Upper pole plate height 2 mm
Oscillating coil diameter 10 mm
Winding height 2,5 mm

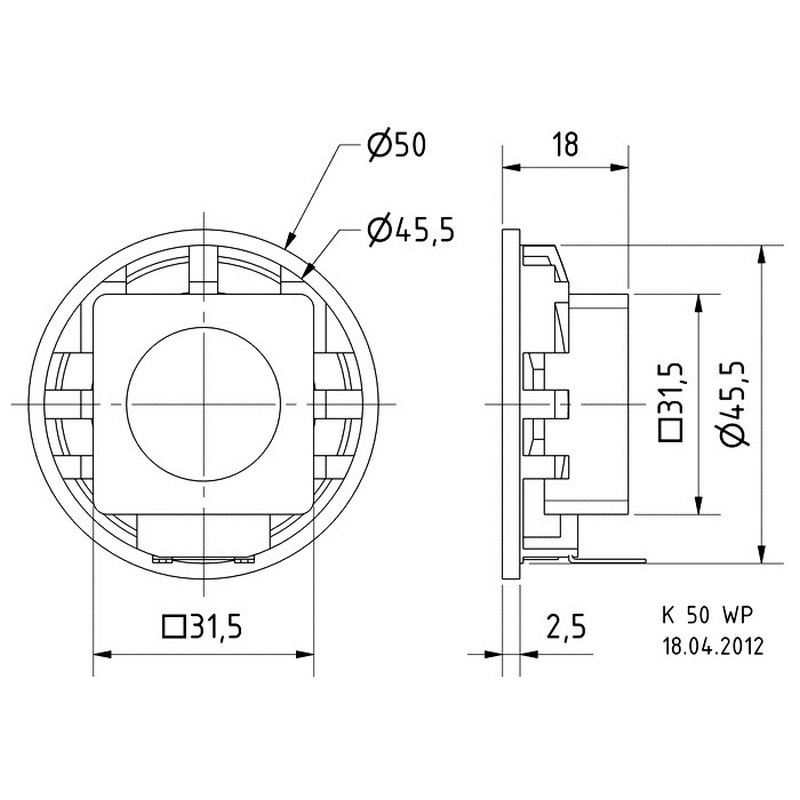

Sound wall opening 46 mm
Weight net 0,048 kg
Protection class IP 65 *)
Temperature range −40 – 80 °C
