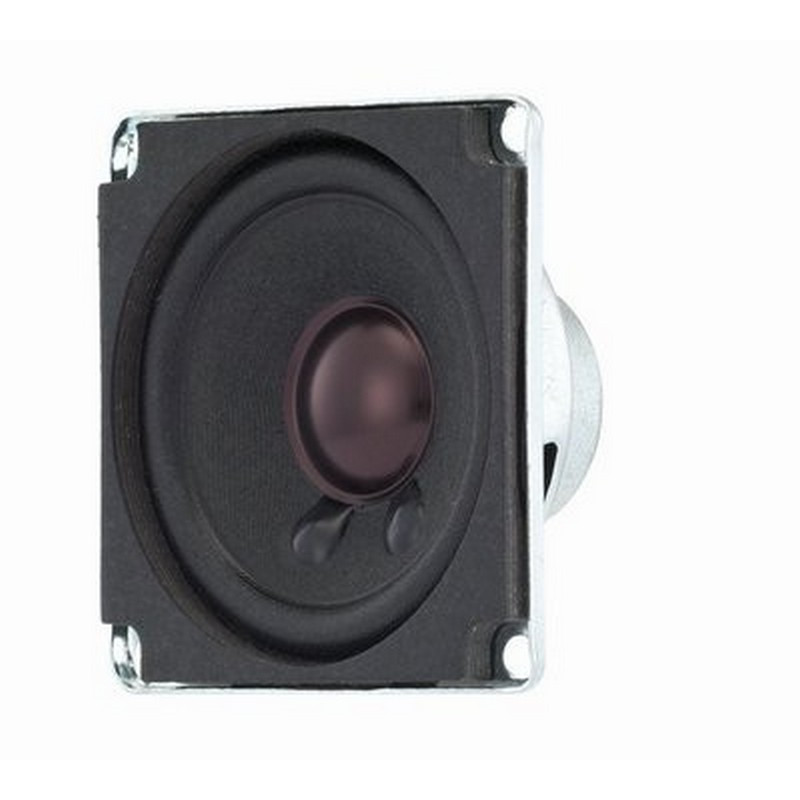

Visaton FRWS 5 SC - 8 Ohm broadband speakers
Magnetically shielded 5 cm (2") broadband loudspeaker
Visaton FRWS 5 SC - 8 Ohm broadband speakers
Magnetically shielded 5 cm (2") broadband loudspeaker
€13.65
Our previous price
€19.50
Save 30%
Tax included
Shipping excluded
4-0058
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
Magnetically shielded 5 cm (2") broadband loudspeaker with minimal dimensions due to light Alnico magnet.

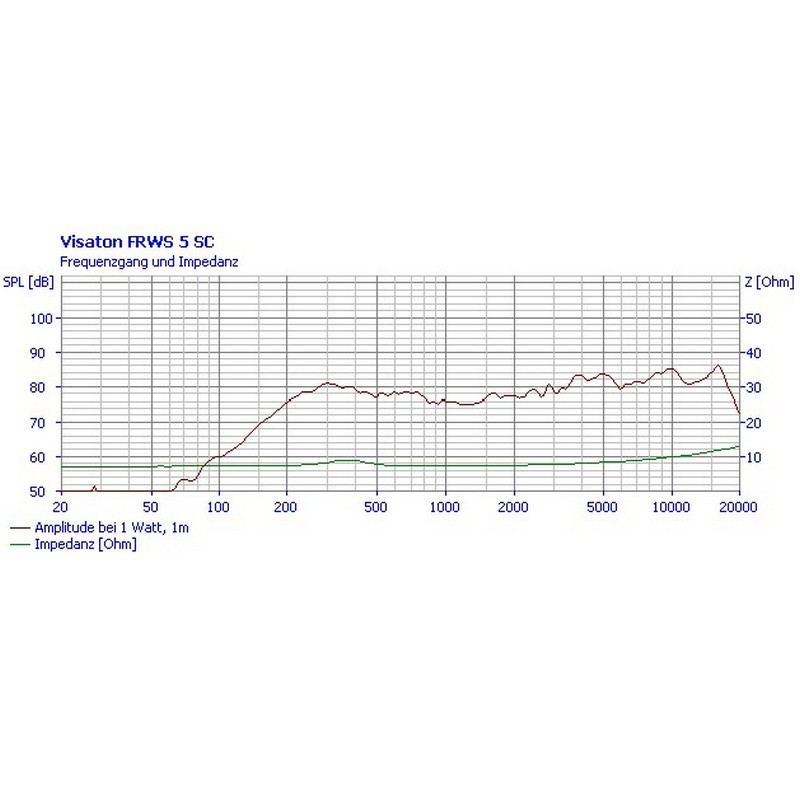

Balanced frequency response from 350 Hz and good round beam behavior.
Particularly suitable for music and speech playback in the multimedia sector (TVs, PCs, etc.).
Applications
- Video monitors
- TV sets
- Control loudspeaker for electronic devices
- Model construction
Characteristics
- Moisture-impregnated membrane
- Metal design
- Magnetic shielding
Technical data
| Rated load capacity | 4 W |
|---|---|
| Music loading | 8 W |
| Nominal impedance Z | 8 Ohm |
| Transmission range (-10 dB) | 200–20000 Hz |
| Medium sound pressure level | 80 dB (1 W/1 m) |

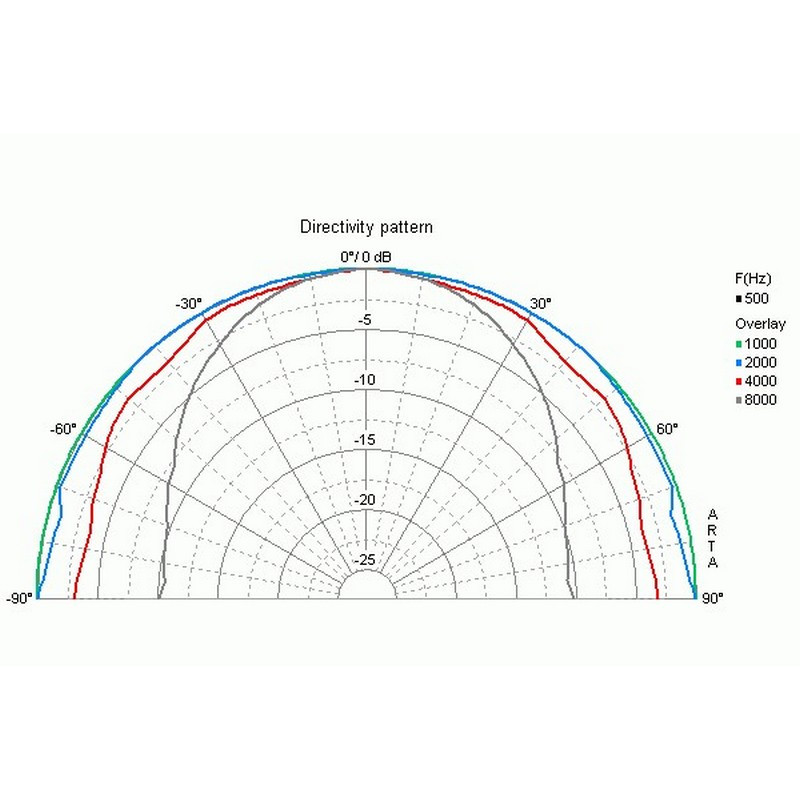

| Beam angle (-6 dB) | 180°/4000 Hz |
| Border deflection | +/-2 mm |
| Reaction frequency fs | 350 Hz |
| Oscillating coil diameter | 14 mm |
| Winding height | 3,5 mm |
| Sound wall opening | 45 mm |
| Weight net | 0,052 kg |
| DC resistance Rdc | 7.2 Ohm |
| Mechanical Q-factor Qms | 4,1 |
| Electric Q-factor Qes | 9,35 |
| Total Q factor Qts | 2,85 |
| Equivalent air yield volume Vas | 0,2 l |
| Effective membrane surface Sd | 12 cm2 |
| Dynamic moving mass Mms | 0,5 g |
| Drive factor Bxl | 1 Tm |
| Vibration coil inductance L | 0,1 mH |
| Temperature range | −25 ... 70 °C |
