Visaton FR 10 HMP - 4 Ohm broadband speakers
10 cm (4") broadband loudspeaker
Visaton FR 10 HMP - 4 Ohm broadband speakers
10 cm (4") broadband loudspeaker
€8.04
Our previous price
€11.48
Save 30%
Tax included
Shipping excluded
4-0014
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return

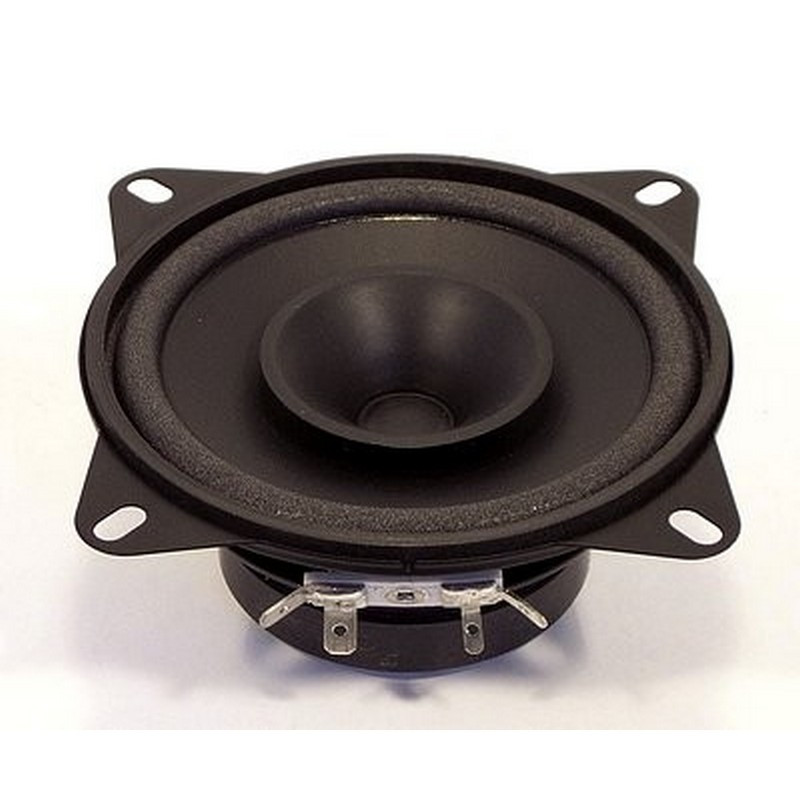

10 cm (4") broadband loudspeaker with polypropylene membrane, high-tone cone and Euro standard basket.
Easy installation in vehicles with installation locations for 10-cm speakers.
*) IP protection class for front side when installed in a sealed housing
Applications
- Vehicles
- motorhome
Â
Characteristics
- Waterproof membrane
- Metal basket
Â
Technical data
| Rated load capacity | 20 W |
|---|---|
| Music loading | 30 W |
| Nominal impedance Z | 4 Ohms |

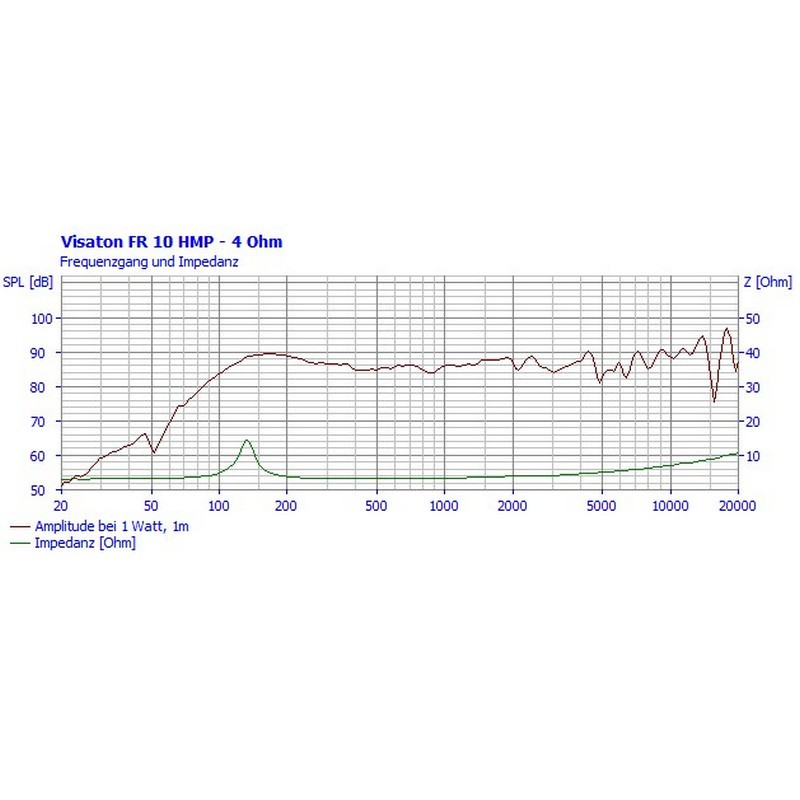

| Transmission range (-10 dB) | 90–20000 Hz |
| Medium sound pressure level | 86 dB (1 W/1 m) |

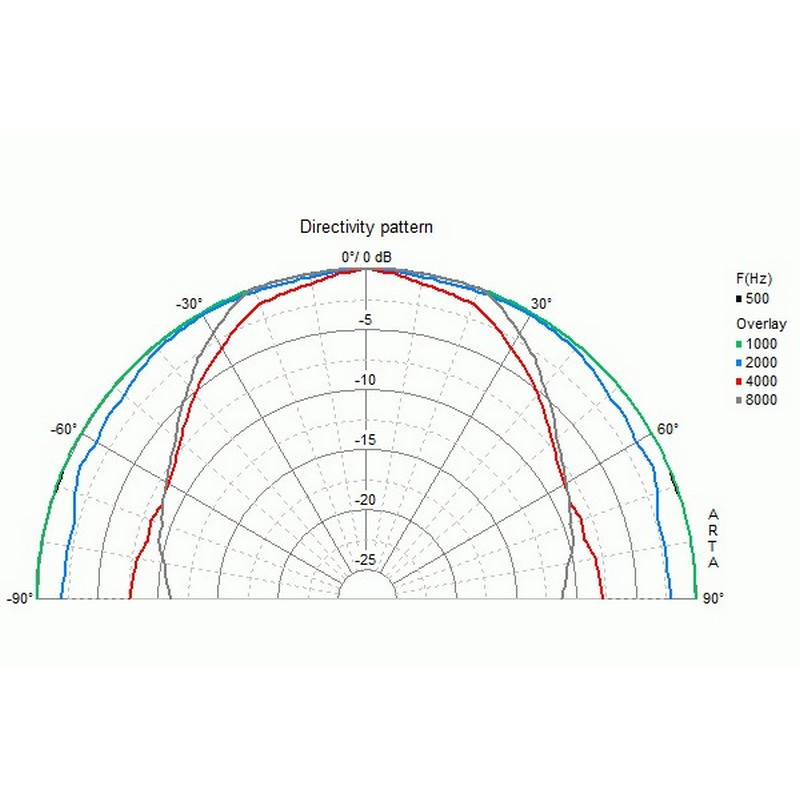

| Beam angle (-6 dB) | 87°/4000 Hz |
| Border deflection | +/-2 mm |
| Reaction frequency fs | 120 Hz |
| Upper pole plate height | 2 mm |
| Oscillating coil diameter | 14 mm |
| Winding height | 5 mm |

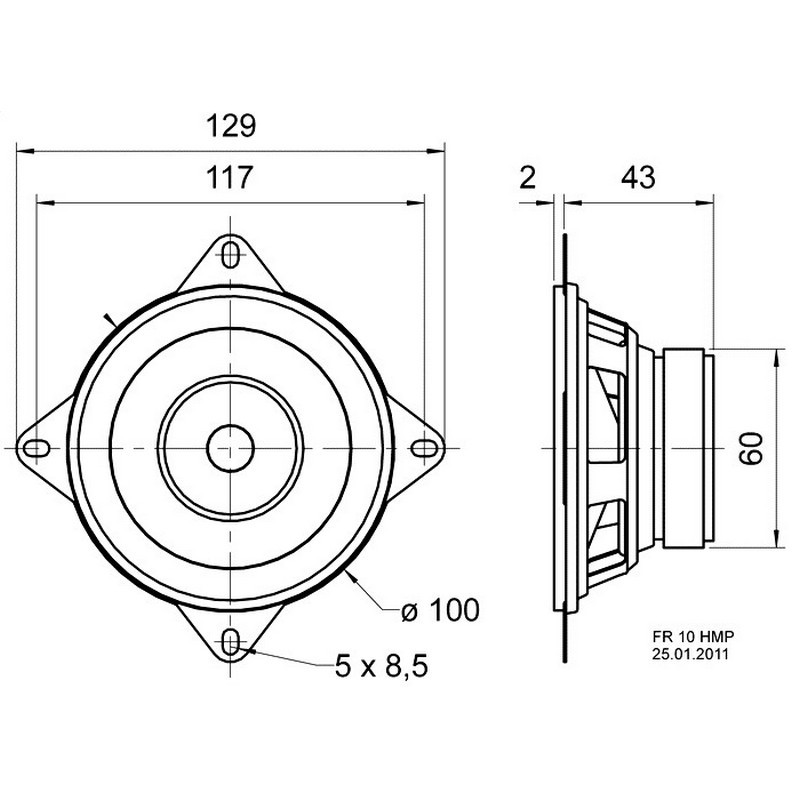

| Sound wall opening | 94 mm |
| Weight net | 0,268 kg |
| Protection class | IP 64 * |
| Temperature range | −25 ... 70 °C |
