Visaton SC 4.9 FL - 8 Ohm broadband speakers
4 x 9 cm (1.6" x 3.5 ") broadband loudspeaker
Visaton SC 4.9 FL - 8 Ohm broadband speakers
4 x 9 cm (1.6" x 3.5 ") broadband loudspeaker
€11.14
Our previous price
€15.92
Save 30%
Tax included
Shipping excluded
4-0079
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return

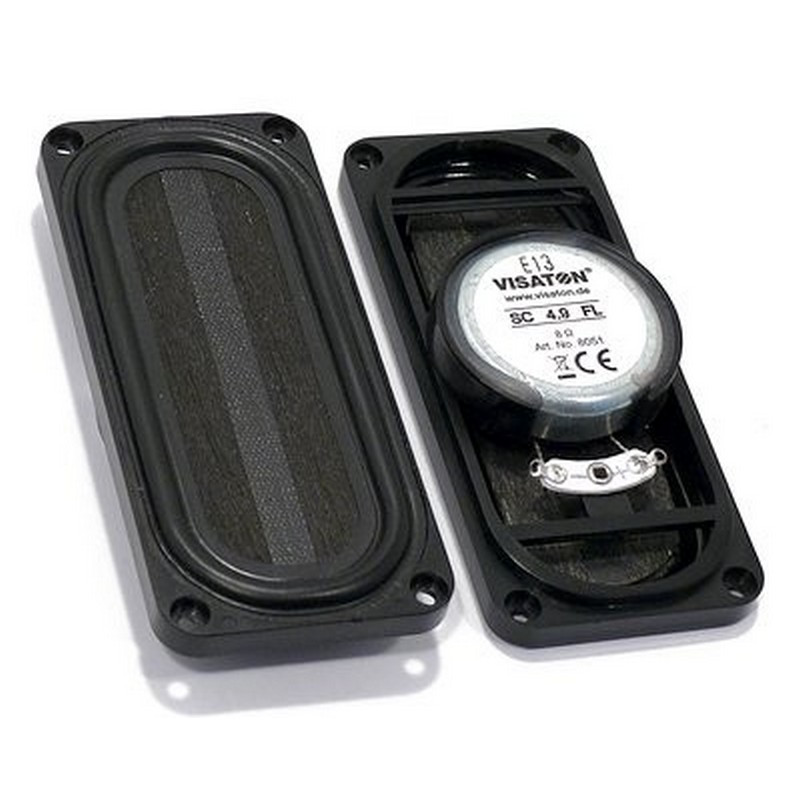

4 x 9 cm (1.6" x 3.5 ") broadband loudspeaker with wood membrane and stable plastic basket.
Flat and light construction thanks to Neodymium.

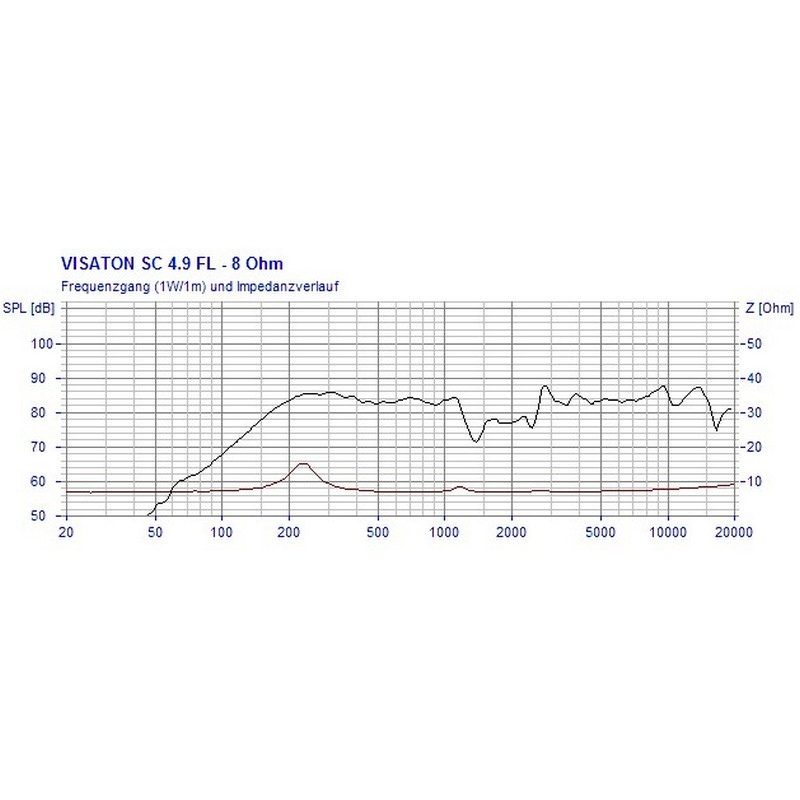

The interaction of the individual components ensures an extremely linear transmission curve down to comparatively very low frequencies, so that the applications of the loudspeaker can also be extended to miniature Hi-Fi boxes.
*) IP protection class for front side when installed in a sealed housingTechnical data
| Rated load capacity | 4 W |
|---|---|
| Music loading | 5 W |
| Nominal impedance Z | 8 Ohm |
| Transmission range (-10 dB) | 120–20000 Hz |
| Medium sound pressure level | 83 dB (1 W/1 m) |
| Border deflection | +/ 1 mm |
| Reaction frequency fs | 220 Hz |
| Magnetic induction | 1,15 T |
| Magnetic flux | 184 μWb |
| Upper pole plate height | 2 mm |
| Oscillating coil diameter | 25,5 mm |
| Winding height | 2 mm |

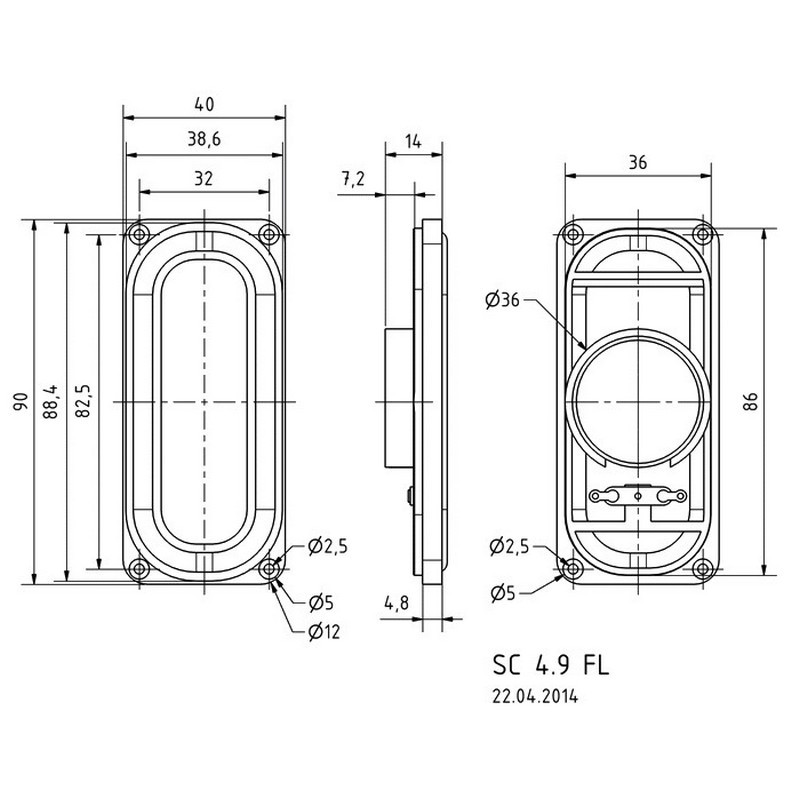

| Sound wall opening | 36 x 86 mm |
| Weight net | 0,054 kg |
| DC resistance Rdc | 6.9 Ohm |
| Mechanical Q-factor Qms | 3,06 |
| Electric Q-factor Qes | 2,29 |
| Total Q factor Qts | 1,31 |
| Equivalent air yield volume Vas | 0.4 l |
| Effective membrane surface Sd | 23.5 cm2 |
| Dynamic moving mass Mms | 0,9 g |
| Drive factor Bxl | 1,98 Tm |
| Vibration coil inductance L | 0,13 mH |
| Protection class | IP 63 *) |
| Temperature range | −25 ... +70 °C |
