Visaton FR 58 - 8 Ohm 5,8 cm (2,3") broadband loudspeaker

5.8 cm (2.3") broadband loudspeaker

€8.34
Our previous price €11.92
Save 30%
Tax included Shipping excluded
Breeding bands
4-0027
Quantity
Wishlist
Compare
available at manufacturer
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

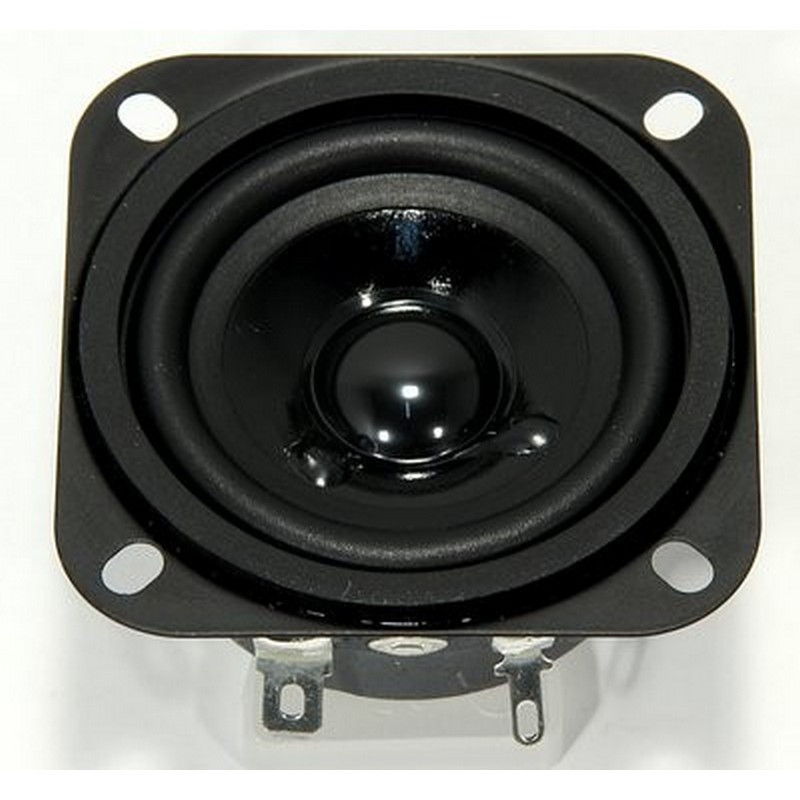

5.8 cm (2.3") broadband loudspeaker with membrane of coated paper, rubber bead, square metal basket with 4 mounting holes and rubber seal.

Flat plug with 4.8 x 0.5 mm (+) and 2.8 x 0.5 mm (-).

Very linear and further frequency response at low resonant frequency allows universal use, even for hi-fi applications.

*) IP protection class for front side when installed in a sealed housing

Technical data

Rated load capacity 10 W
Music loading 12 W
Nominal impedance Z 8 Ohm

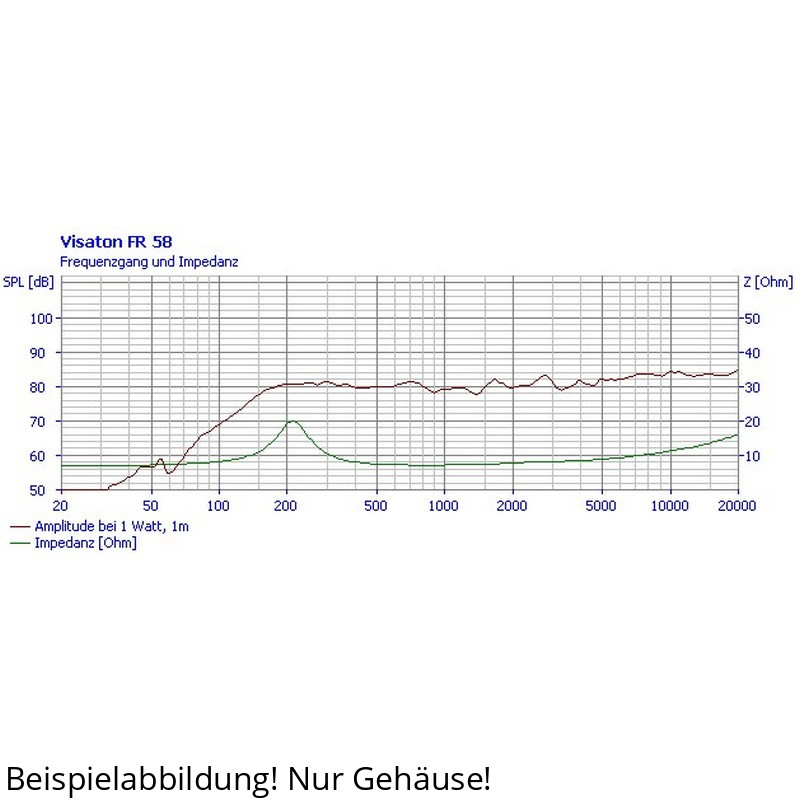

Transmission range (-10 dB) 120–20000 Hz
Medium sound pressure level 81 dB (1 W/1 m)
Maximum linear stroke +/- 0,55 mm
(= 1.1 mm)
Border deflection 5.5 mm
Reaction frequency fs 190 Hz
Upper pole plate height 2.4 mm
Oscillating coil diameter 14 mm
Winding height 3,5 mm
Sound wall opening 57 mm
Weight net 0,13 kg
DC resistance Rdc 7,3 Ohm
Mechanical Q-factor Qms 2,41
Electric Q-factor Qes 1,64
Total Q factor Qts 0,98
Equivalent air yield volume Vas 0,18
Effective membrane surface Sd 13,2 cm2
Dynamic moving mass Mms 0,97 g
Drive factor Bxl 2,27 Tm
Vibration coil inductance L 0,15 mH
Connections 5.2 x 0.5 mm (+)
2.8 x 0.5 mm (−)
Protection class IP 64 *
Temperature range −40 ... +100 °C
