Visaton DL 10 - 8 Ohm ceiling speakers
10 cm (4") ceiling speakers
Visaton DL 10 - 8 Ohm ceiling speakers
10 cm (4") ceiling speakers
€33.25
Our previous price
€47.50
Save 30%
Tax included
Shipping excluded
4-0183
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return

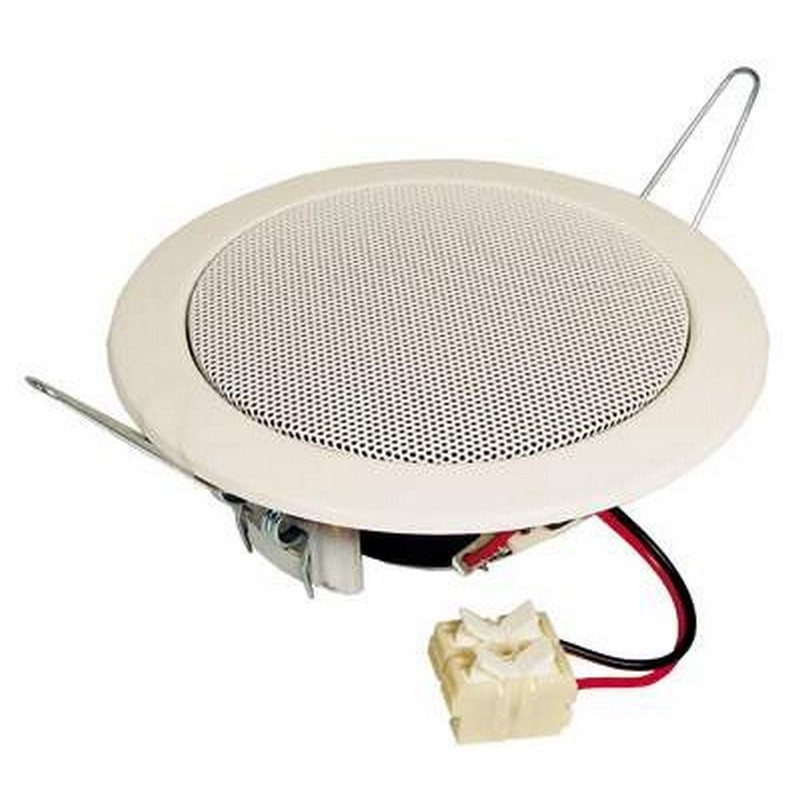

10 cm (4") ceiling speakers with white lacquered metal cover (RAL 9010).
Suitable for installation in covers of all materials.
Rational mounting in circular hole with spring clips.
The connection is effected by a compression spring clamp which is easy to handle.
Space-saving and sounding solution for the professional and the home area.
The DL 10 is also available in other RAL colours on request.
Applications
- Installation in suspended ceilings for voice and music sounding in shops, living rooms, hotels etc.
Characteristics
- moisture-impregnated membrane
- UV-resistant
- Metal design, corrosion-proof
- Functional at low temperatures according to EN 60068-2-1 (-40 °C; 96 h)
- meets the requirements of Germanischer Lloyd (requirements for electrical equipment/colds)
- ball throw-proof

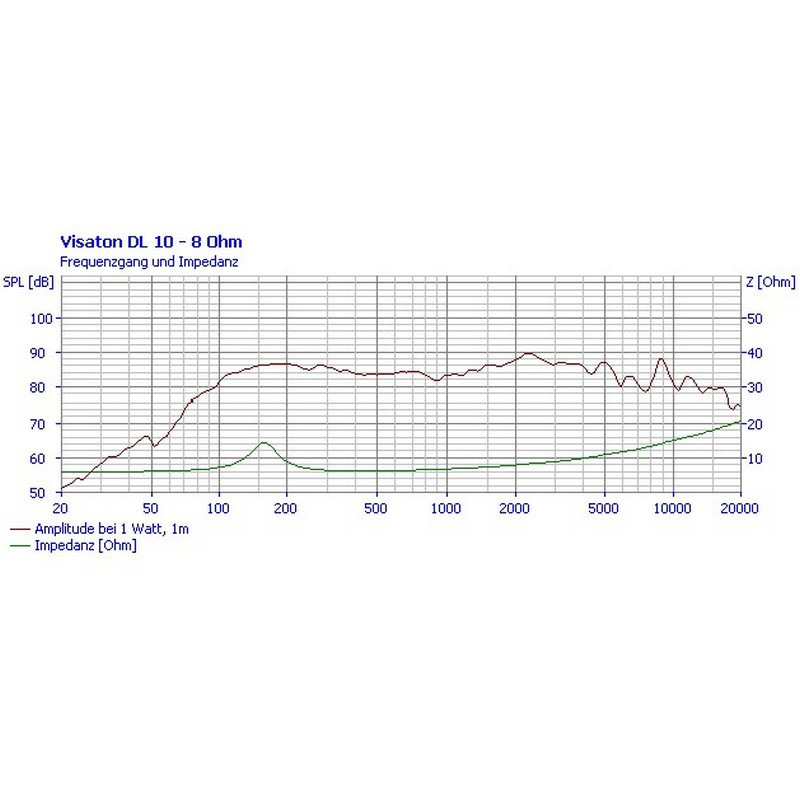

Technical data
| Rated load capacity | 20 W |
|---|---|
| Music loading | 30 W |
| Nominal impedance Z | 8 Ohm |
| Sound pressure level | 90 dB (1 W/1 m) @ 2100 Hz |
| Transmission range (-10 dB) | 75–20000 Hz |
| Medium sound pressure level | 86 dB (1 W/1 m) |

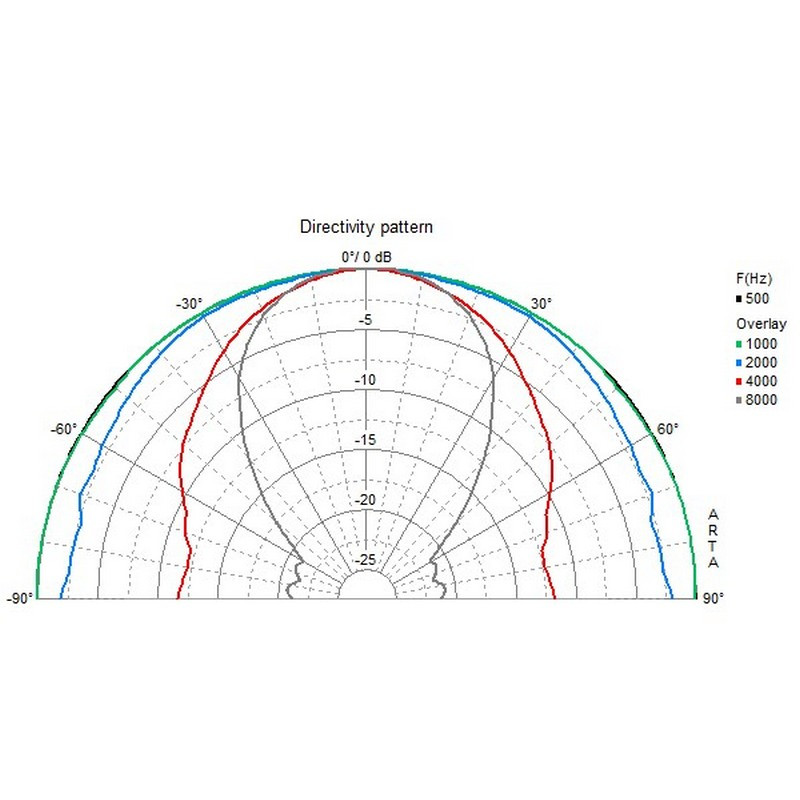

| Beam angle (-6 dB) | 82°/4000 Hz |
| Border deflection | +/-2.5 mm |
| Reaction frequency fs | 140 Hz |
| Magnetic induction | 0,7 |
| Magnetic flux | 130 μWb |
| Upper pole plate height | 4 mm |
| Oscillating coil diameter | 20 mm |
| Winding height | 6 mm |

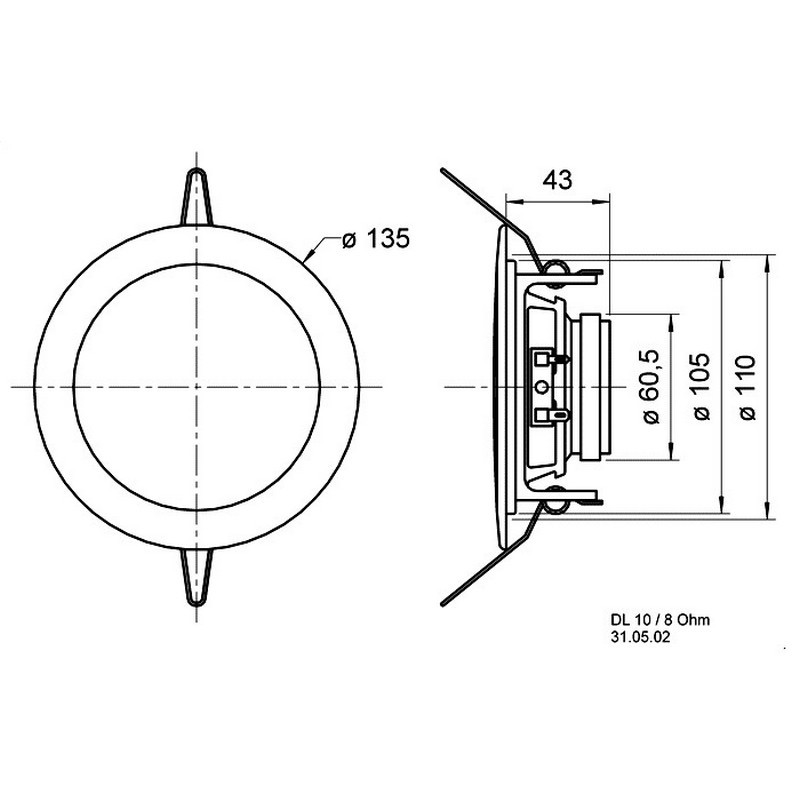

| Sound wall opening | 110 mm |
| Weight net | 0.4 kg |
| Length of connection cable | 0,1 m |
| Protection class | IP 54 *) |
| Temperature range | −40 – 110 °C |
| Colour | RAL 9010 |
