Visaton K 36 WP - 8 Ohm small speaker

3.6 cm (1.4") small speaker

€4.52
Our previous price €6.45
Save 30%
Tax included Shipping excluded
Small speaker
4-0171
Quantity
Wishlist
Compare
available at manufacturer
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

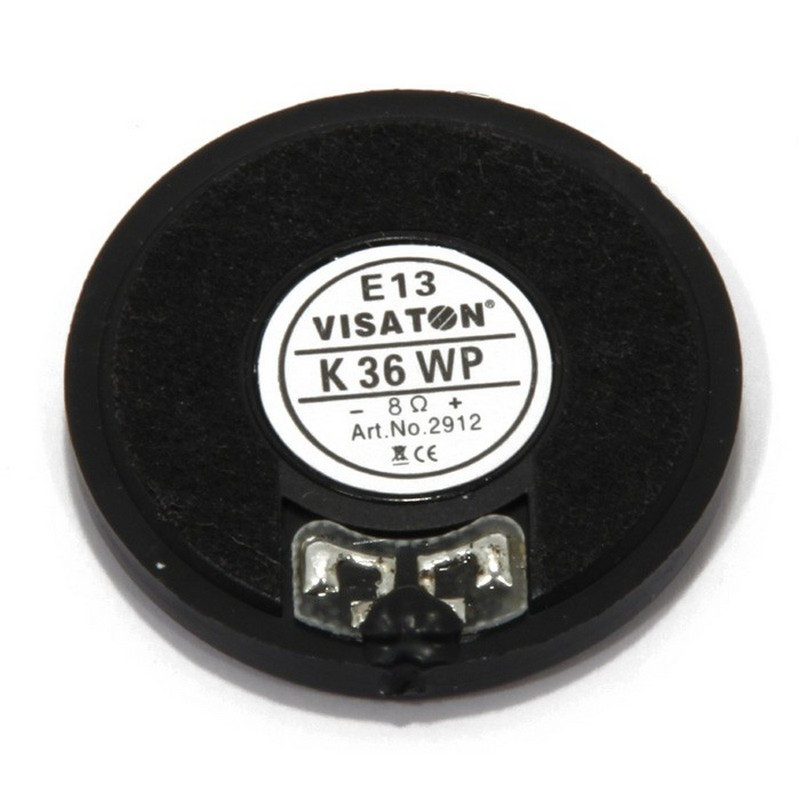

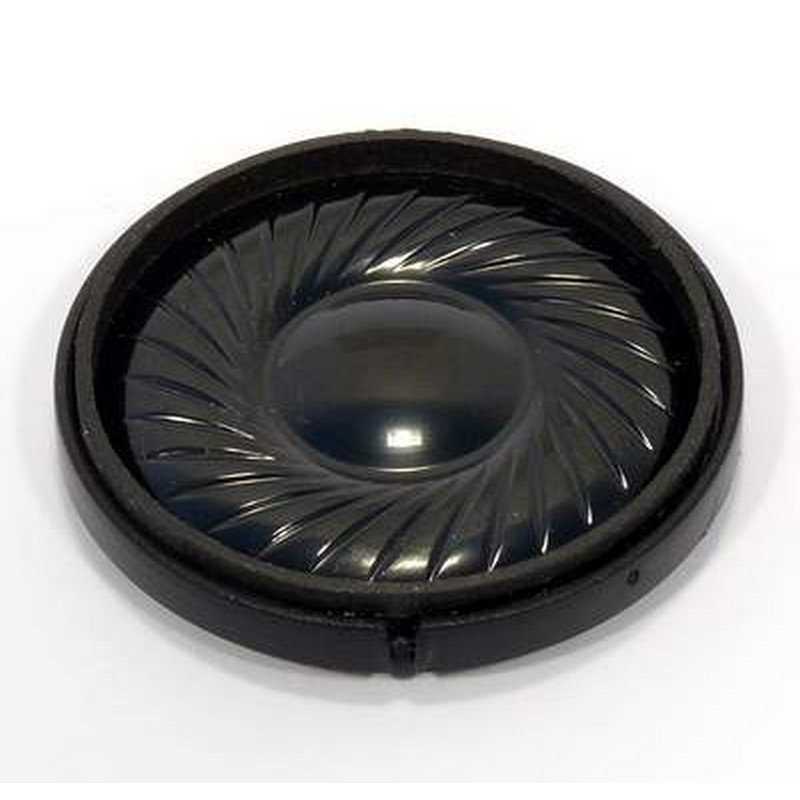

3.6 cm (1.4") small speaker with plastic basket and plastic membrane.

Uniform frequency response and good speech comprehensibility.

Particularly suitable for outdoor applications and under critical environmental influences (z.B. Moisture).

Applications

- Control loudspeaker for electronic devices

- outdoor control loudspeaker

Characteristics

- Plastic: ABS (basket; UL 94:HB), Mylar (membrane)

- Functional in cold according to EN 60068-2-1/EN 50155

Technical data

Rated load capacity 1 W
Music loading 2 W
Nominal impedance Z 8 Ohm

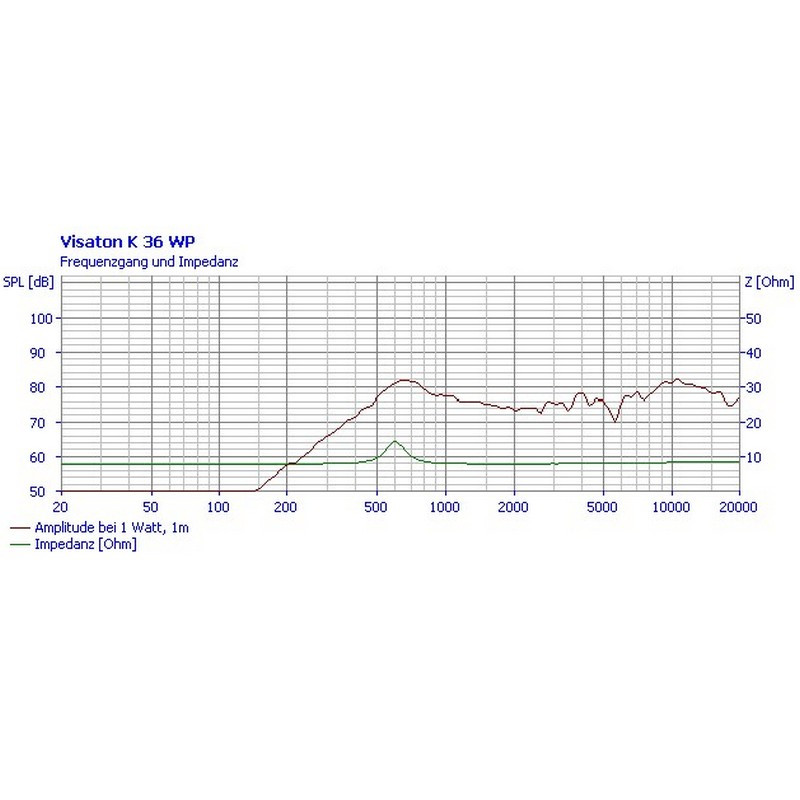

Transmission range (-10 dB) 300-20000 Hz
Medium sound pressure level 77 dB (1 W/1 m)

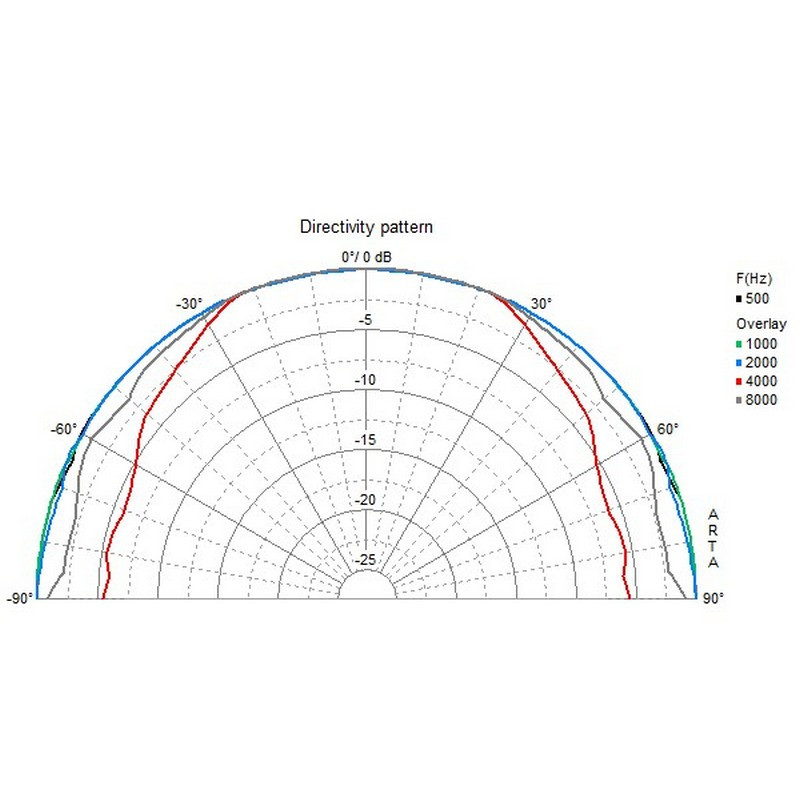

Beam angle (-6 dB) 180°/4000 Hz
Border deflection +/-0.5 mm
Reaction frequency fs 550 Hz
Upper pole plate height 2 mm
Oscillating coil diameter 10 mm
Winding height 2 mm

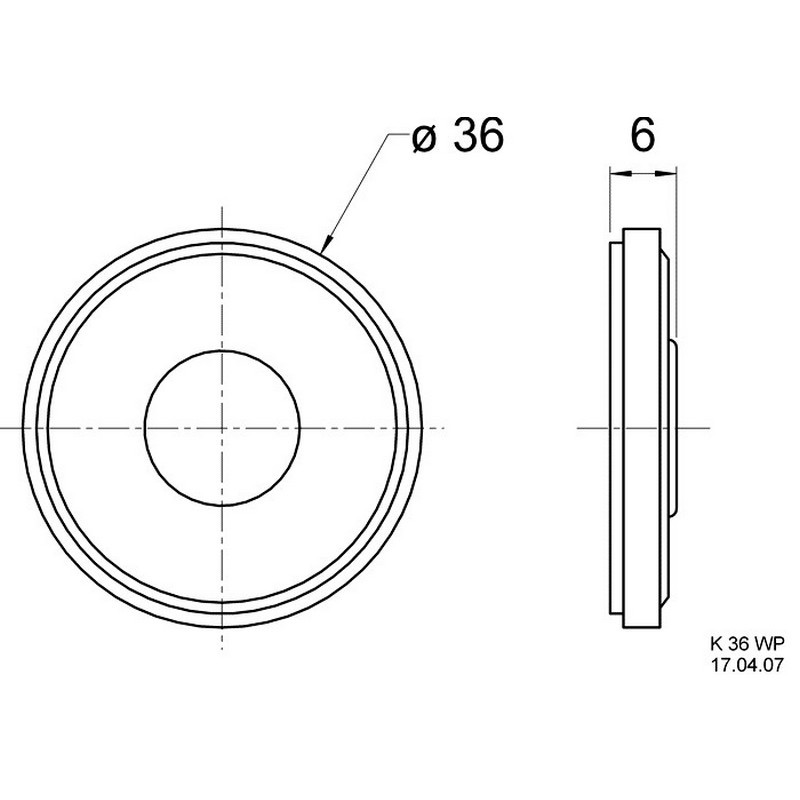

Sound wall opening 31 mm
Weight net 0,006 kg
Protection class IP 65 *)
Temperature range −40 – 70 °C
