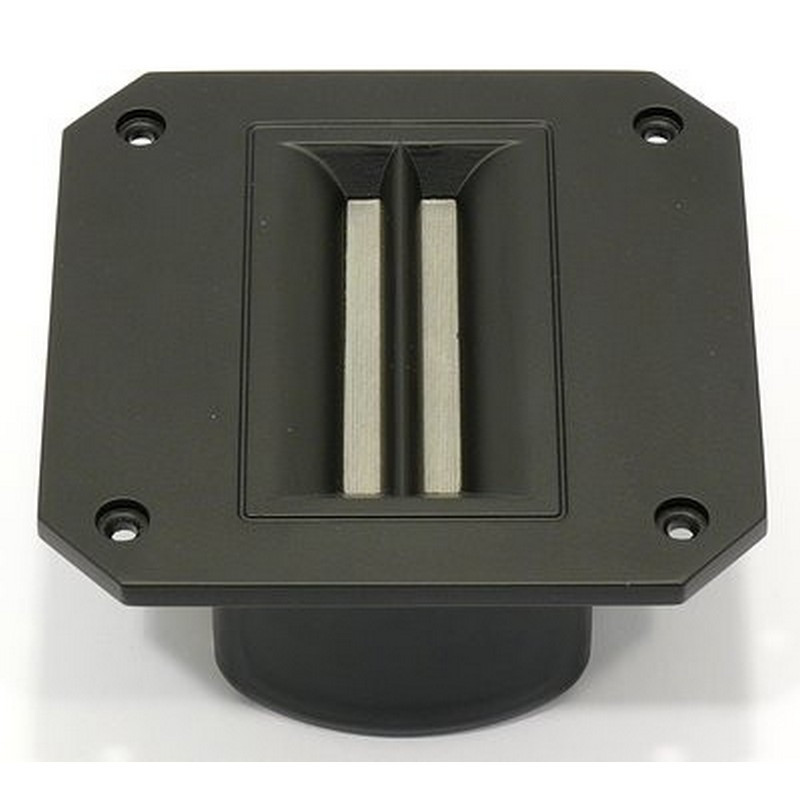

Visaton MHT 12 - 8 Ohm bands
High-end magnetostat
Visaton MHT 12 - 8 Ohm bands
High-end magnetostat
€248.09
Our previous price
€354.41
Save 30%
Tax included
Shipping excluded
4-0132
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
High-end magnetostat for the high tone area. Stable aluminum die casting front plate.
Using large membrane surface and deep natural resonance, it can be used from 4000 Hz.
The very thin carrier layer of the membrane and thus minimal moving mass guarantees absolute pulse fidelity and a very wide transmission range.
High efficiency due to highly effective neodymium-boron magnets.
Low creep factor, high load capacity, the very linear impedance and amplitude frequency response and the large transmission range make the MHT 12 - 8 ohm a versatile tweeter of the extra class.
Magnetically shielded.
Technical data
| Rated load capacity | 100 W (12 dB/oct.; 4000 Hz |
|---|---|
| Music loading | 150 W (12 dB/oct; 4000 Hz |
| Nominal impedance Z | 8 Ohm |

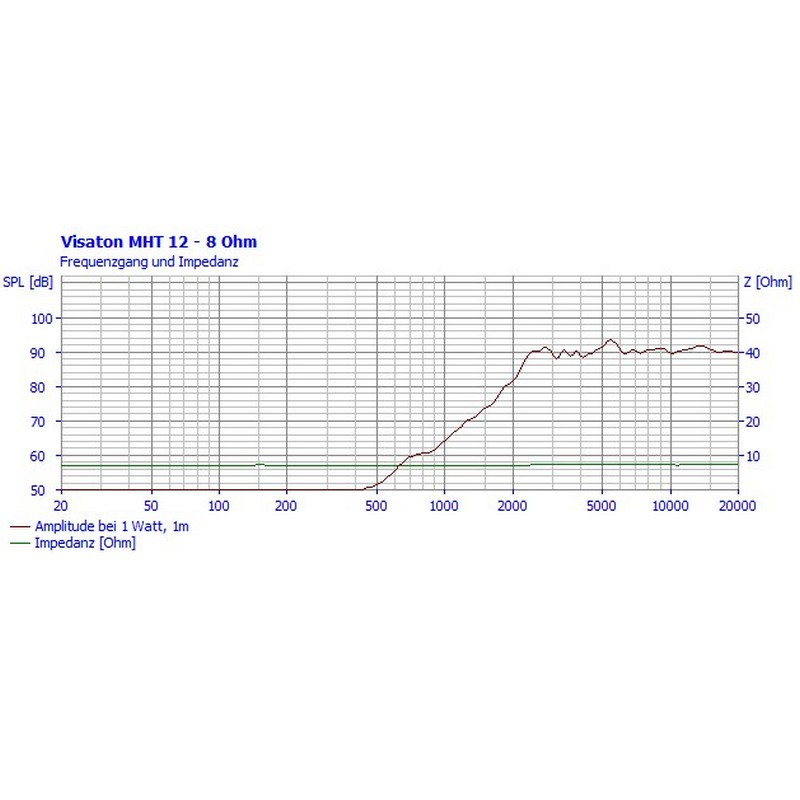

| Transmission range (-10 dB) | 2000–40000 Hz |
| Medium sound pressure level | 91 dB (1 W/1 m) |

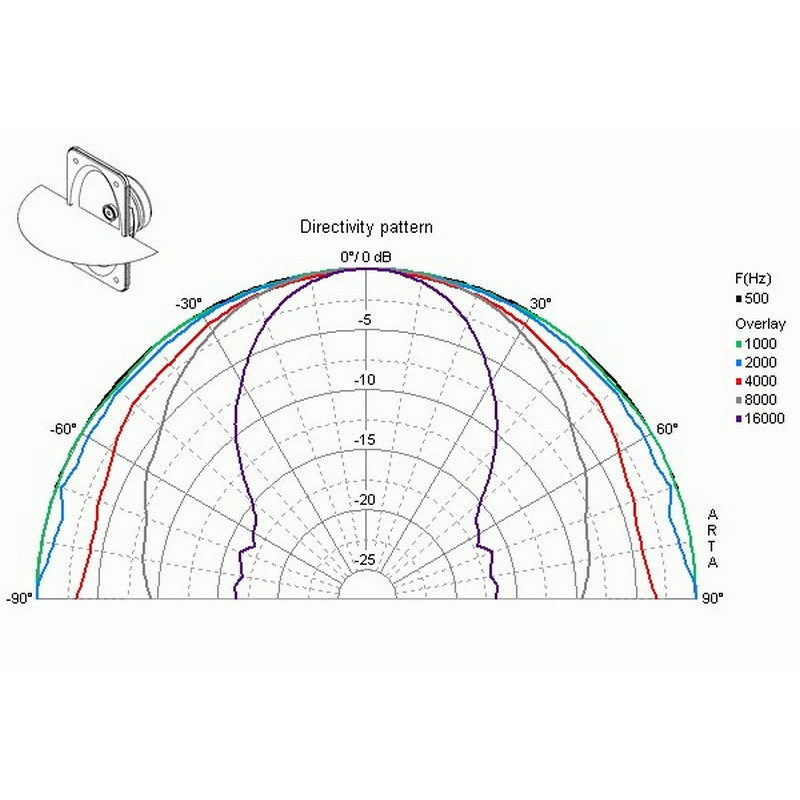

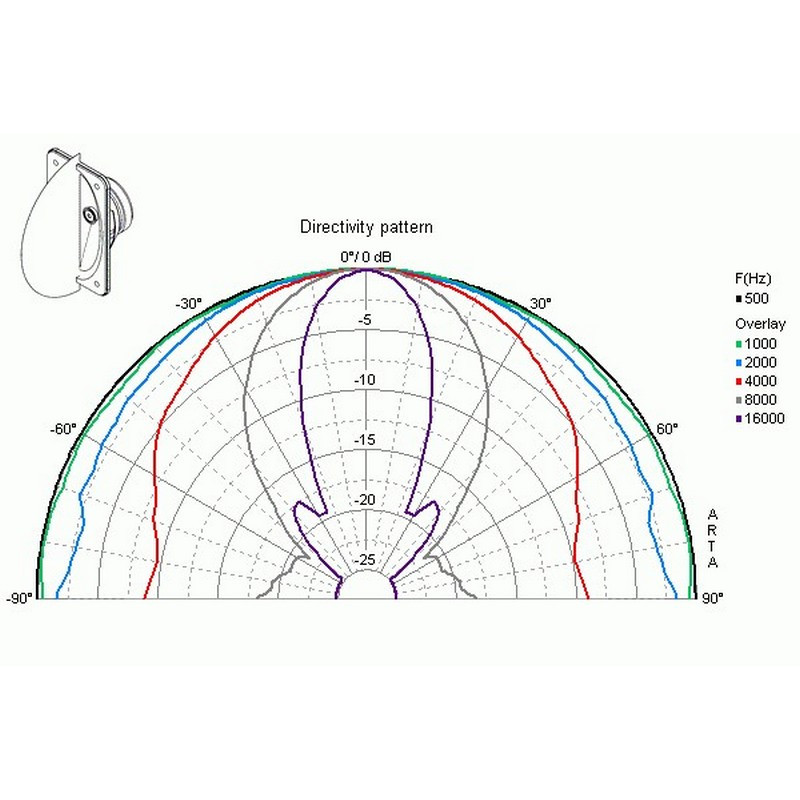

| Beam angle (-6 dB) | 180°/4000 Hz. 110°/4000 Hz. |

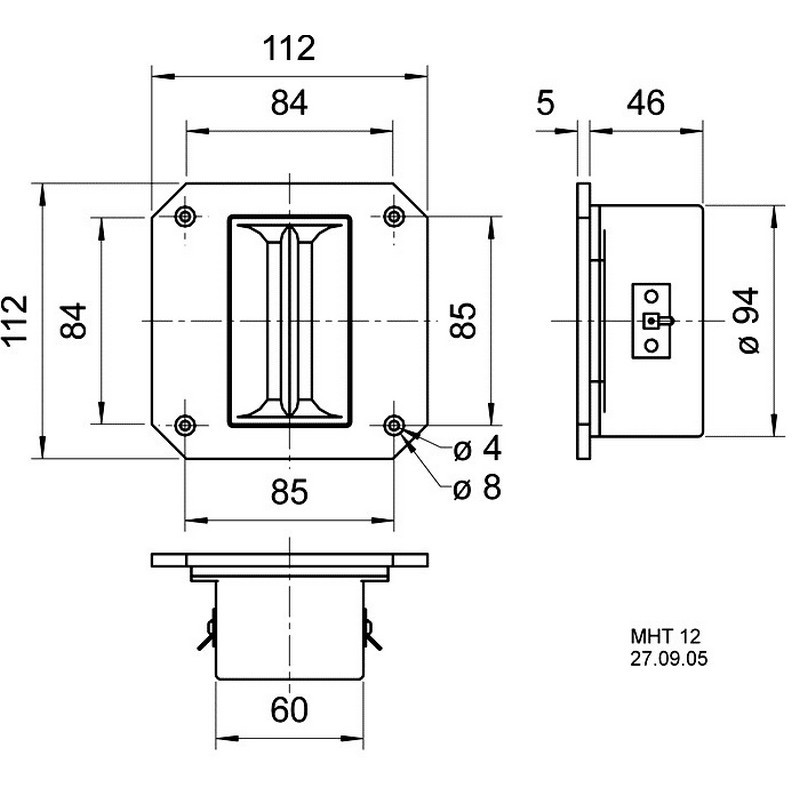

| Sound wall opening | Ø 95 mm |
| Weight net | 0,56 kg |
| DC resistance Rdc | 6.9 Ohm |
| Connections | 4.8 x 0.8 mm (+) 2.8 x 0.8 mm (-) |
