Visaton TABULA speaker kit 1 piece
Price!
(quantity 1 = 1 piece, quantity 2 = 1 pair)
Visaton TABULA speaker kit 1 piece
Price!
(quantity 1 = 1 piece, quantity 2 = 1 pair)
€154.11
Our previous price
€220.15
Save 30%
€154.11 pro Stück
Tax included
Shipping excluded
3-0040
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
Features and sound

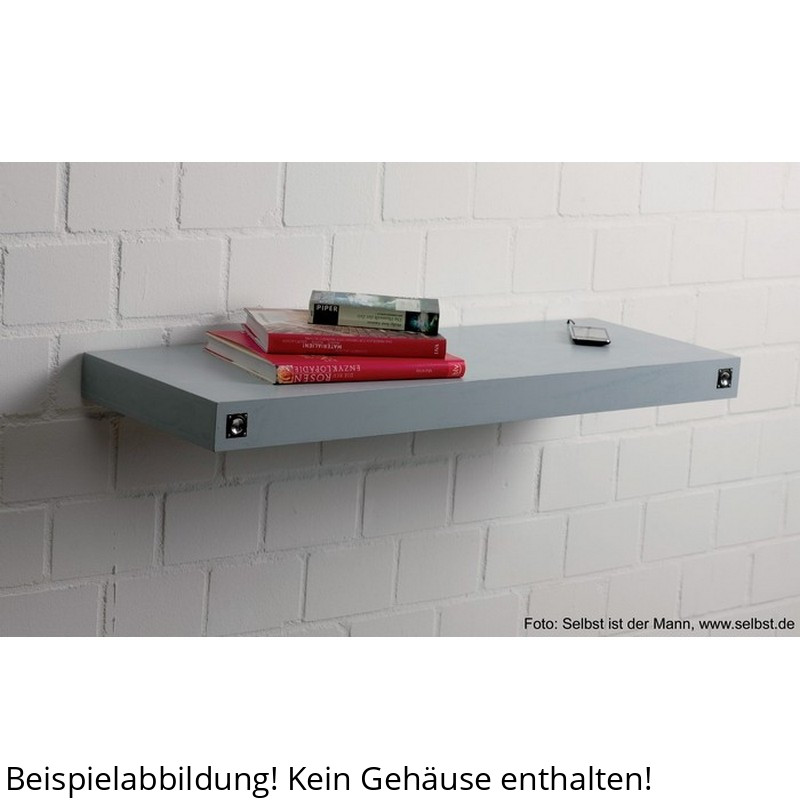

The TABULA is a stereo loudspeaker with extremely versatile applications. It can be used individually as a bookcase, a TV subframe, a work pad or a pure audio system and integrated in the room as a speaker invisibly.
The miniature broadband loudspeakers BF 32 - 8 Ohm take over the main part of the playback, which sound surprisingly adult despite low dimensions and shine with technical details such as aluminum membrane and neodymium magnet.The bass foundation of the TABULA takes over a loudspeaker that has been available for many decades and is appreciated due to its excellent price-performance ratio, the W 100 S - 8 Ohm.
In the matching bass reflex housing, this ensures very good depth, which is comparatively level-resistant despite its small size.
The combination of the three components, coupled with a whistling switch and the well-thought-out details result in a sound-strong stereo system that can be integrated hidden in the room.
With a miniature amplifier (z.B. VISATON AMP 2.2) and an MP3 player can upgrade the TABULA to a fully-fledged hi-fi system.
Technical data
| Rated load capacity | 20 W |
|---|---|
| Music loading | 30 W |
| Nominal impedance Z | 4 Ohms |
| Transmission range (-10 dB) | 50–20000 Hz |
| Medium sound pressure level | 80 dB (1 W/1 m) |
| Frequency | 410 Hz |
| Housing principle | Bass reflex |
| Net volume | 2 x 0,23 l + 10,5 l |

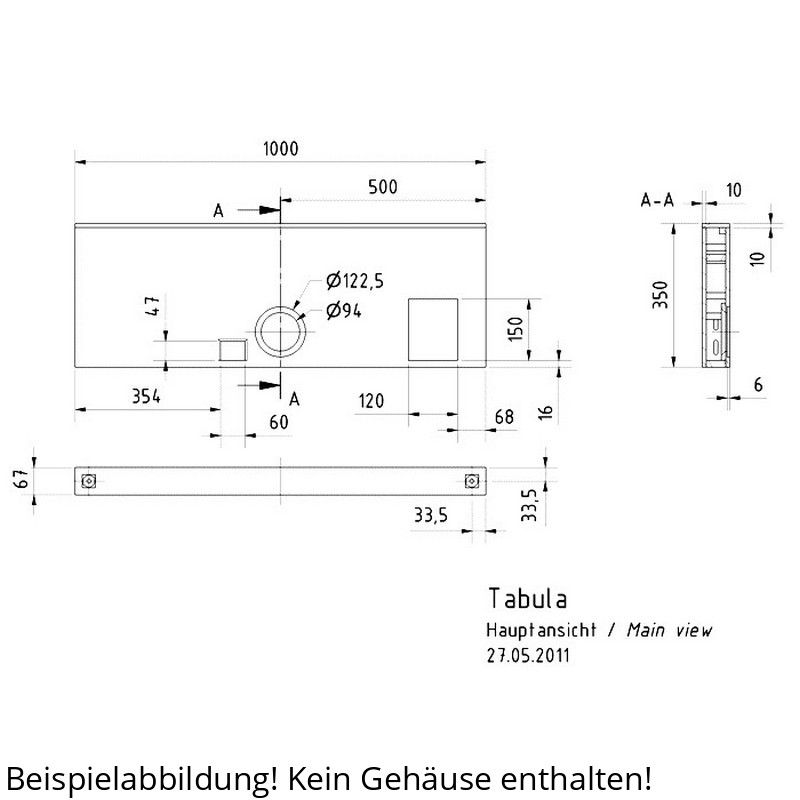

| Exterior height | 67 mm |
| External dimension width | 1000 mm |
| Exterior depth | 350 mm |
Scope

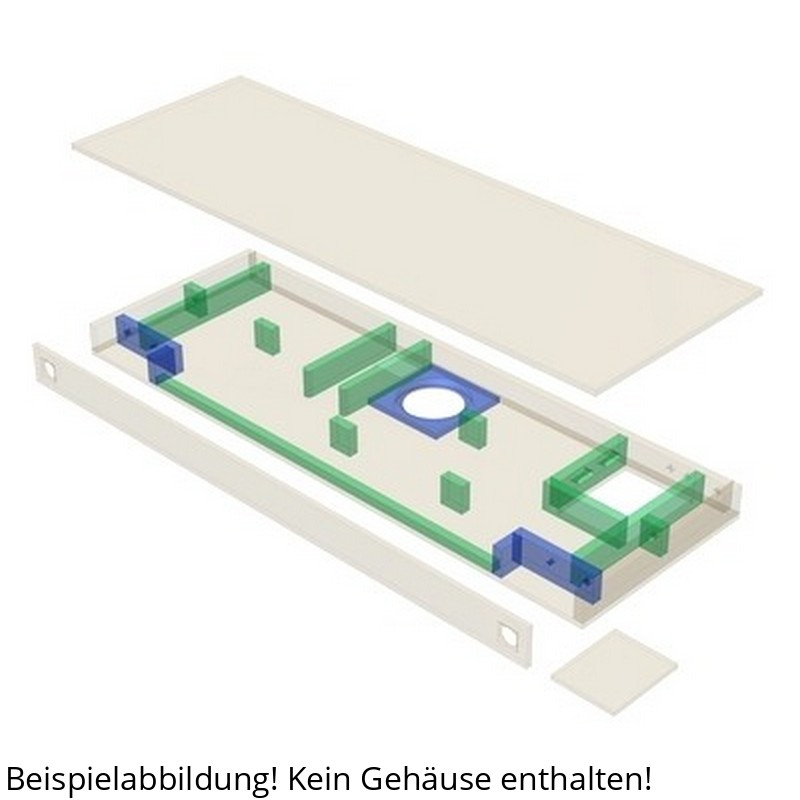

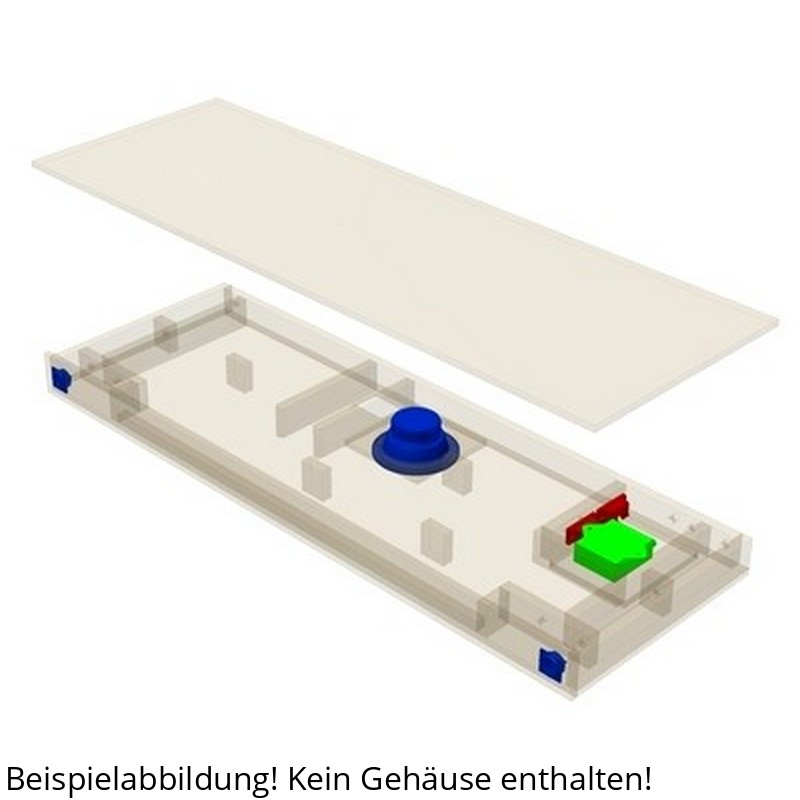

The kit contains all components listed in this list of fittings, but no housing.
Housing kits or CNC-freed sound walls are also available here in the shop.
| Breeding bands | BF 32 - 8 Ohm | 2 pcs. |
| Low-medium tones | W 100 S - 8 Ohm | 1 pc. |

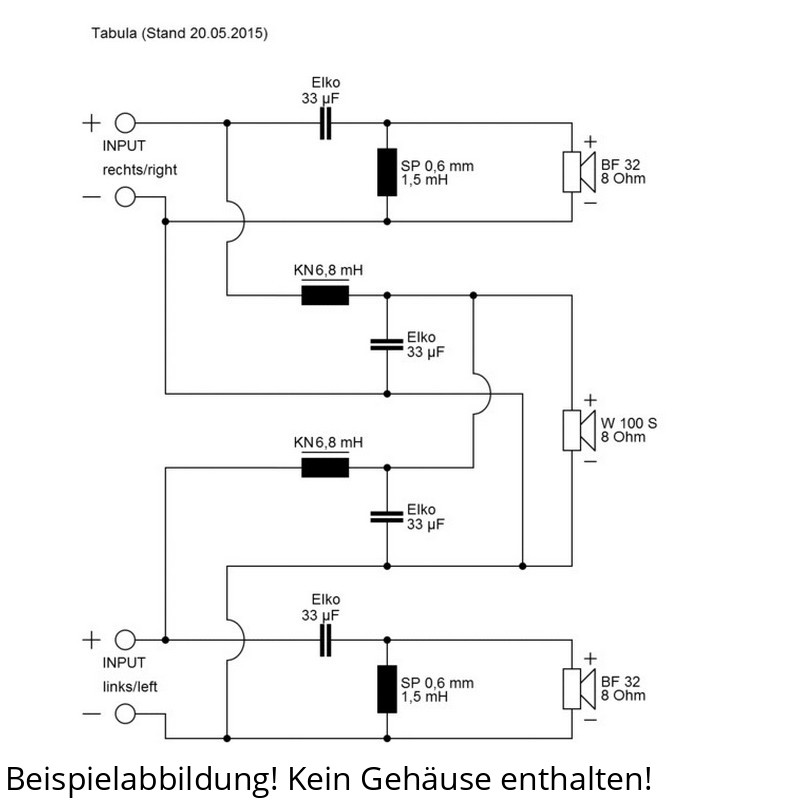

| Frequency switch | TABULA | 1 pc. |
| Terminal | LK 2 NG | 2 pcs. |
| Damping material | Polyester wool | 0,5 %. |
| Lower head screws | 3,5 x 25 mm | 9 pcs. |
| Cable | 2 x 1,5 mm2 | 3 m |
Furthermore, the following components (not included in the delivery):
| M10 threaded rod (L=100 cm) as holder | 1 pc. |
| M10 butter | 2 pcs. |
| Dowel for M10 threaded rod | 2 pcs. |
| Wooden screws for BF 32 (2 mm diameter) | 8 pcs. |
| Hinge for cover of the amplifier housing | 1 pc. |
| Lock for cover of the amplifier housing (z.B. Sliding seal) | 1 pc. |
| Miniature amplifier* | 1 pc. |
*So far as the VISATON AMP 2.2 and. AMP 2.2 LN is to be used, further components are necessary: adapter cable Stereo Klinke - Stereo Klinke (1 pcs); Adapter cable Stereo pawl - 4 open cable ends (1 pcs); Power supply for AMP 2.2 (1 pc).
The following shall be considered: The miniature amplifier AMP 2.2 is limited in the power output.
Normal volume can be reproduced undistorted.
At higher sound pressure levels, a larger amplifier unit is recommended which, due to the special frequency switch, must not be designed as bridge amplifiers.
