Visaton TOPAS speaker kit 1 piece

Price!

(quantity 1 = 1 piece, quantity 2 = 1 pair)

€1,290.32
Our previous price €1,843.31
Save 30%

€1,290.32 pro Stück

Tax included Shipping excluded
Visaton
3-0041
Quantity
available at manufacturer
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

Features and sound

TI 100 - 8 Ohm and MHT 12 - 8 Ohm are probably two of the best chassis from the VISATON program.

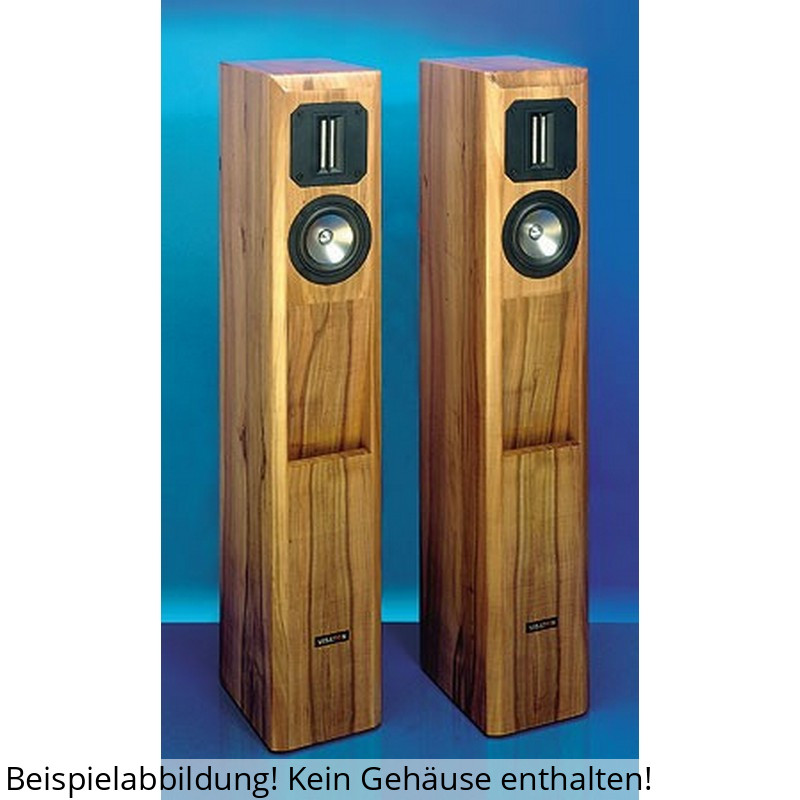

The editorial team HiFi developed the TOPAS, which unites both chassis in a petty, extraordinary box and shows that they perfectly harmonize with each other.
Compared to the original proposal of the Hobby HiFi, we have slightly modified the switch to achieve a slightly warmer sound and to ensure fatigue-free listening pleasure.
The housing can also be simplified by changing damping and the suppression of the resonances can be improved.

Not only the spatial effect and the imaging accuracy are excellent, but also the transmission range is exceptionally large.
The upper limit frequency is 40 kHz and thus far outside the audible range.
The lower limit of 35 Hz is amazingly deep for a 10 cm bass driver.

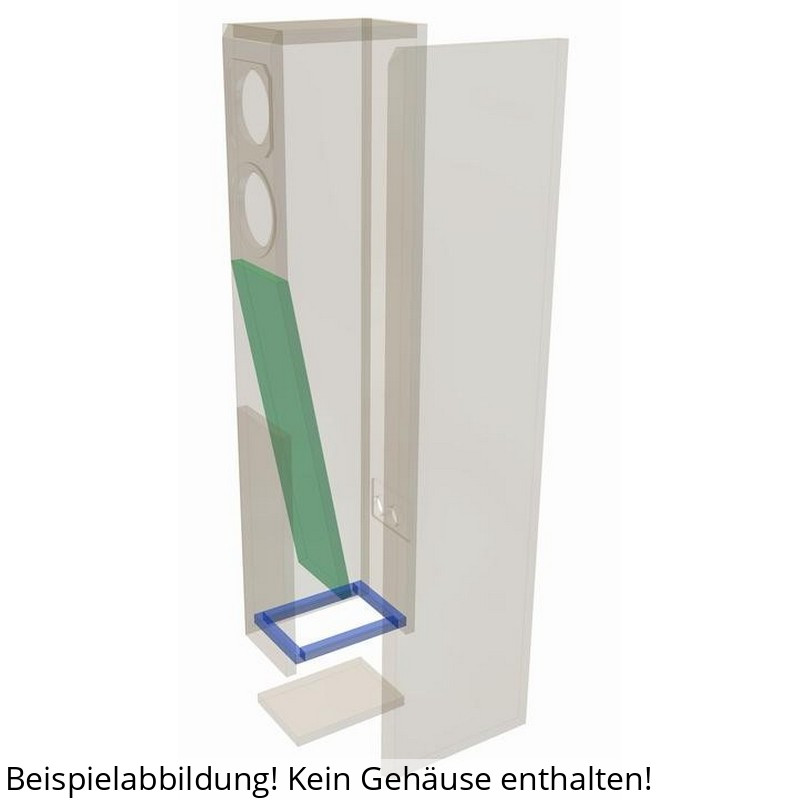

This is made possible by a housing adjustment in the boundary region between bass reflex and transmission line.
Such low frequencies can of course only be reproduced with limited volume by the small TI 100 - 8 Ohm.
Membrane surface and stroke determine the physical limits.
The TOPAS is not a loudspeaker for loud rock music or action films.
But how often do we listen to performances of larger boxes of guests: "Is very impressive, but at home I can't almost turn up so far..
The TOPAS is made for these people.
Small and crisp yet a deep bass that lets critical listeners first look for a hidden subwoofer.
The load capacity of the TOPAS is 40 / 60 watts according to the standard measuring method.
This does not mean, however, that the amplifier must not have a higher output power.
Amplifiers with multiple power are also possible if you handle the volume control responsibly and only hear so loud that the sound is still clean.
The TOPAS should be safe from small children and cheerful party guests.

Technical data

Rated load capacity 40 W
Music loading 60 W
Nominal impedance Z 8 Ohm
Transmission range (-10 dB) 35-40000 Hz
Medium sound pressure level 80 dB (1 W/1 m)
Frequency 3500 Hz

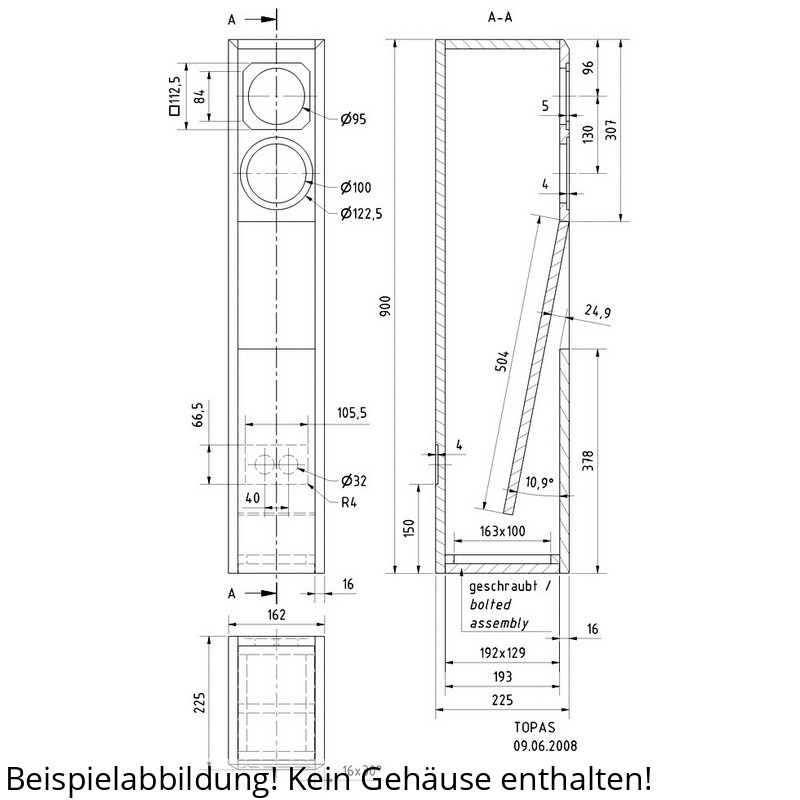

Housing principle Transmission line / bass reflex
Net volume 20 l
Exterior height 900 mm
External dimension width 162 mm
Exterior depth 225 mm

Scope

The kit contains all components listed in this list of fittings, but no housing.
Housing kits or CNC-freed sound walls are also available here in the shop.

Tweeters MHT 12 - 8 Ohm 2 pcs.
Low-medium tones TI 100 - 8 Ohm 2 pcs.

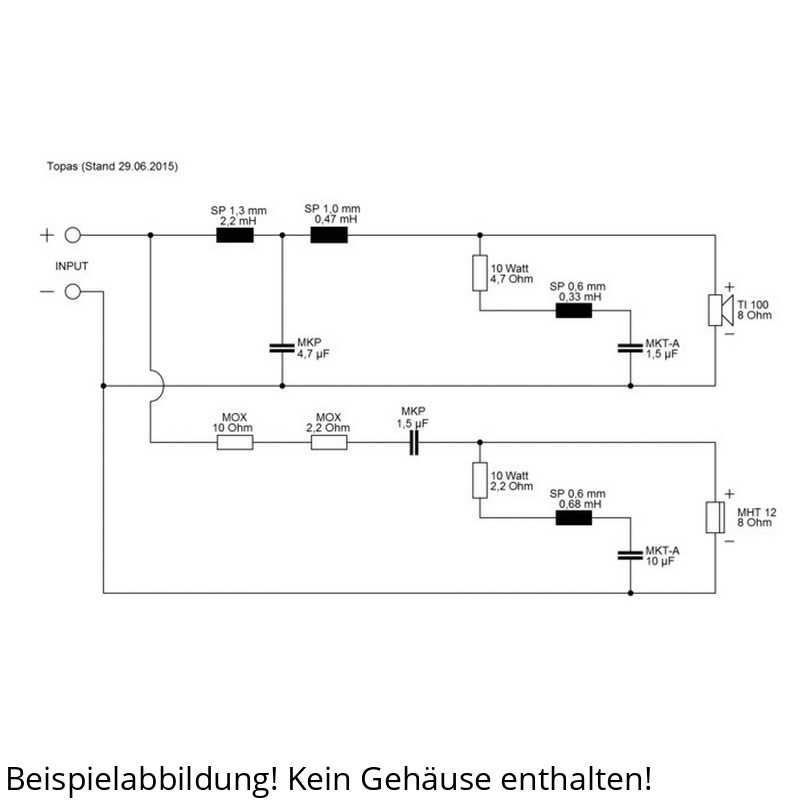

Frequency switch Soft topas 2 pcs.
Connection terminal High-end terminal 2 pcs.
Damping material Sheep wool 2 btl.
Wooden screws 3,5 x 19 mm 16 pcs.
Cable 2 x 1,5 mm2 5 m
