Visaton VIB 170 AL Speaker Kit Visaton VIB 170 AL Speaker Kit Visaton VIB 170 AL Speaker Kit Visaton VIB 170 AL Speaker Kit
Visaton VIB 170 AL Speaker Kit
Visaton VIB 170 AL Speaker Kit
Visaton VIB 170 AL Speaker Kit
Visaton VIB 170 AL Speaker Kit

Visaton VIB 170 AL speaker kit pair

Couple price!

(quantity 1 = 2 pieces)

€701.39
Our previous price €1,001.98
Save 30%

€350.69 pro Stück

Tax included Shipping excluded
Visaton
3-0044
Quantity
Wishlist
Compare
available at manufacturer
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

Features and sound

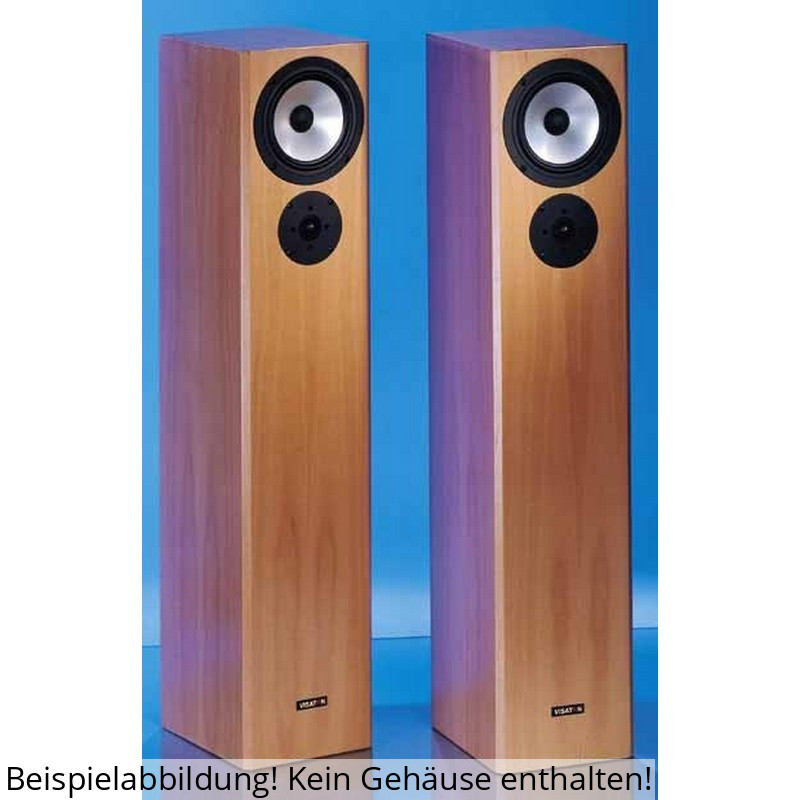

The VIB 170 AL is a slim 2-way stand box in which a bass driver AL 170 - 8 ohm and the 25 mm high-tone fabric calotte G 25 FFL - 8 ohm are used.
The 34-liter bass reflex housing delivers an amazingly deep lower limit frequency of 25 Hz without giving up a powerful, precise bass reproduction.
The cause of this is the bass driver AL 170 - 8 Ohm with its back-ventilated centering and the very large linear stroke.

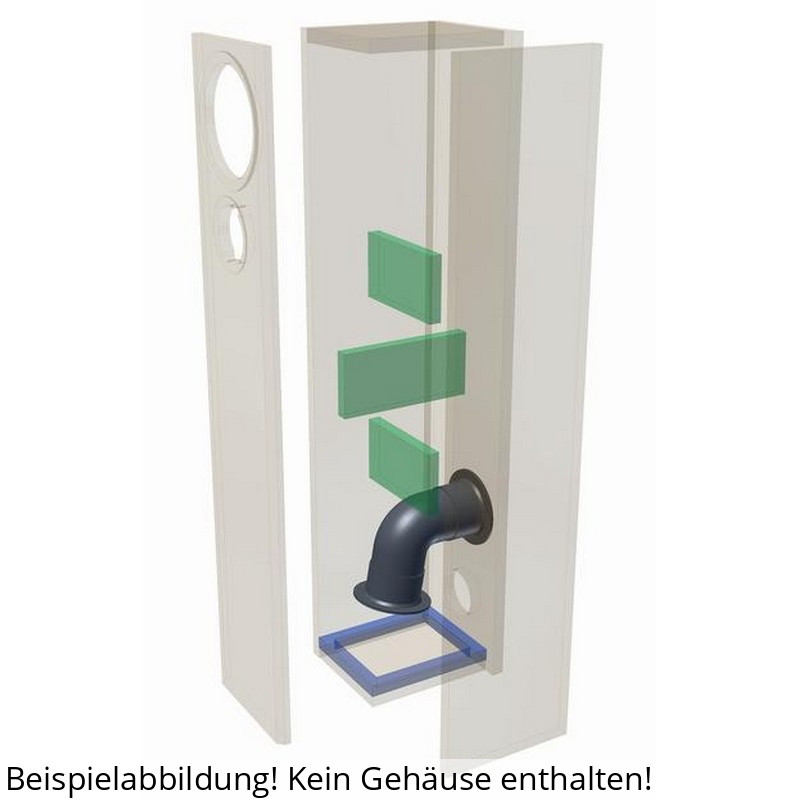

For optical reasons, the low-flow bass reflex tube BR 25.50 is located on the rear side of the housing, but can be moved forward without any problems in the case of installation near the wall (approximately 10 cm).

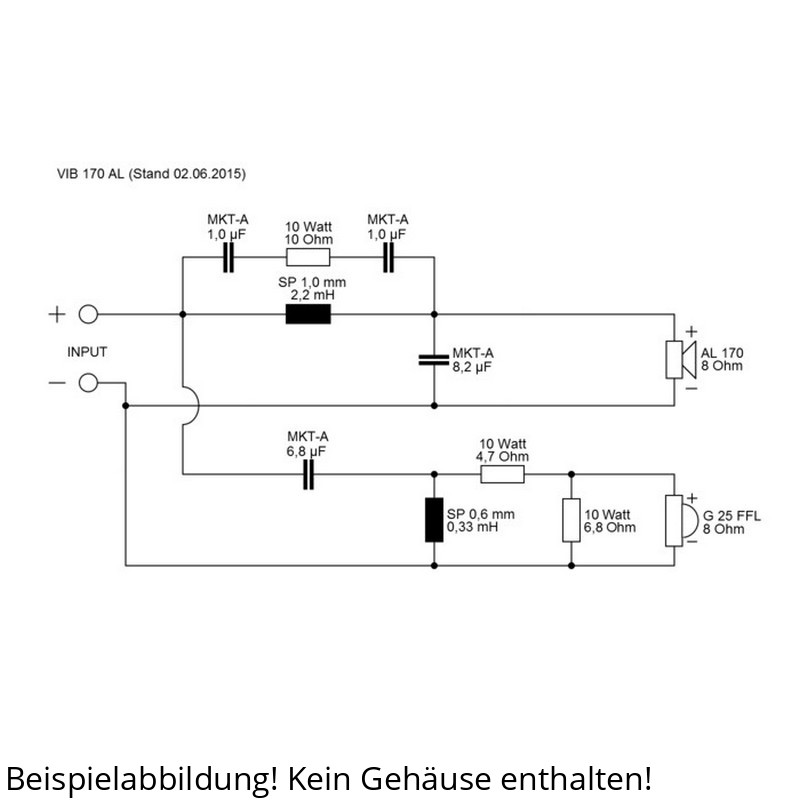

In conjunction with the 2.2 mH coil, the two 1 μF capacitors form a blocking circuit which effectively suppresses material-typical resonances of the aluminum membrane.
The VIB 170 AL is a slim box with a very balanced sound and precise bass and impulse playback, which has an exceptional dynamic for the box size.

Technical data

Rated load capacity 70 W
Music loading 100 W
Nominal impedance Z 8 Ohm
Transmission range (-10 dB) 30000 Hz
Medium sound pressure level 84 dB (1 W/1 m)
Frequency 2000 Hz
Housing principle Bass reflex
Net volume 34 l

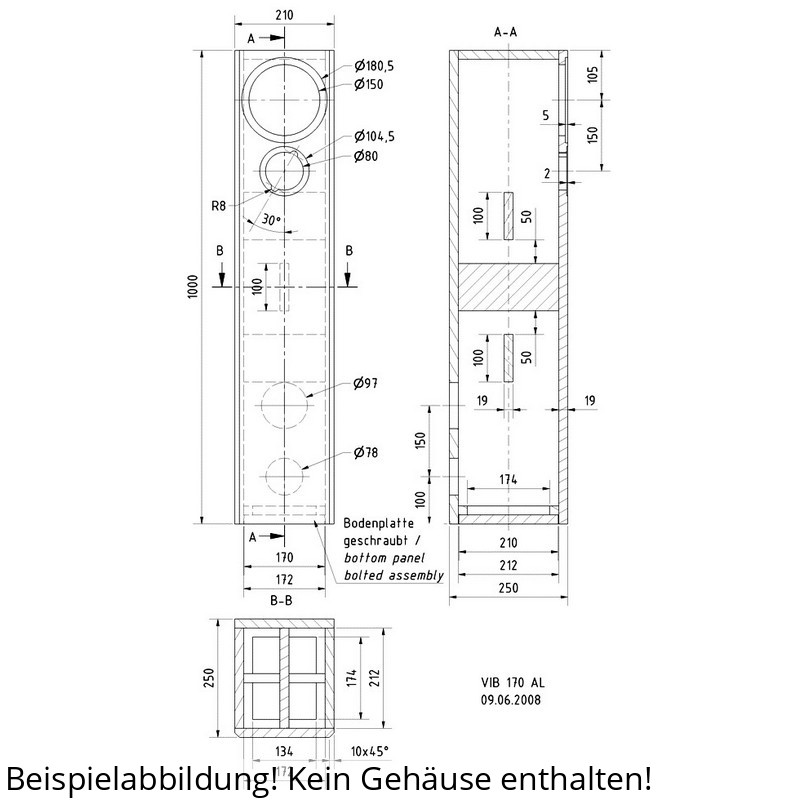

Exterior height 1000 mm
External dimension width 210 mm
Exterior depth 250 mm

Scope

The kit contains all components listed in this list of fittings, but no housing.
Housing kits or CNC-freed sound walls are also available here in the shop.

Tweeters G 25 FFL - 8 Ohm 2 pcs.
Low-tone AL 170 - 8 Ohm 2 pcs.
Connection terminal ST 77 2 pcs.
Bass reflex tube BR 25.50 (full length) 2 pcs.
Damping material Polyester wool 5 Btl.
Frequency switch Soft VIB 170 AL 2 pcs.
Lower head screws 3,5 x 25 mm 16 pcs.
Wooden screws 4 x 20 mm 16 pcs.
Cable 2 x 1,5 mm2 4 m
