Visaton SUB T-20.39 Speaker kit Visaton SUB T-20.39 Speaker kit Visaton SUB T-20.39 Speaker kit
Visaton SUB T-20.39 Speaker kit
Visaton SUB T-20.39 Speaker kit
Visaton SUB T-20.39 Speaker kit

Visaton SUB T-20.39 Speaker kit Subwoofer 1 piece

Price!

(quantity 1 = 1 piece, quantity 2 = 1 pair)

€209.92
Our previous price €299.88
Save 30%

€209.92 pro Stück

Tax included Shipping excluded
Visaton
3-0079
Quantity
Wishlist
Compare
available at manufacturer
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

Features and sound

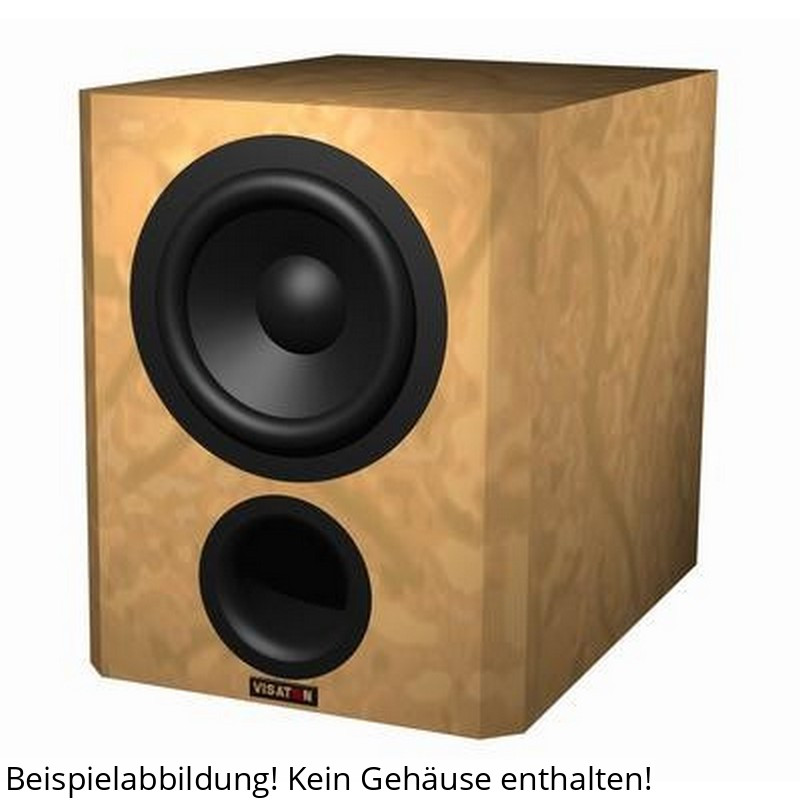

The compact subwoofer SUB T-20.39 uses the same housing as the SUB W-20.39. However, the more powerful high-end tweeter TIW 200 XS - 8 Ohm is used here. With the TIW 200 XS - 8 Ohm designed consistently as long-stroke chassis, an even lower limit frequency and an increase in level strength are achieved. The bass playback is extremely precise.

The SUB T-20.39 is therefore suitable for supplementing high-quality loudspeaker boxes of small and medium size (z.B. ARIA, ARIA 2, COUPLET), both in stereo and multichannel systems. It is powerful enough to reproduce strong bass attacks in normal rooms and still has compact external dimensions.

Technical data

Rated load capacity 120 W
Music loading 180 W
Nominal impedance Z 8 Ohm
Transmission range (-10 dB) 25–x Hz
Medium sound pressure level 83 dB (1 W/1 m)

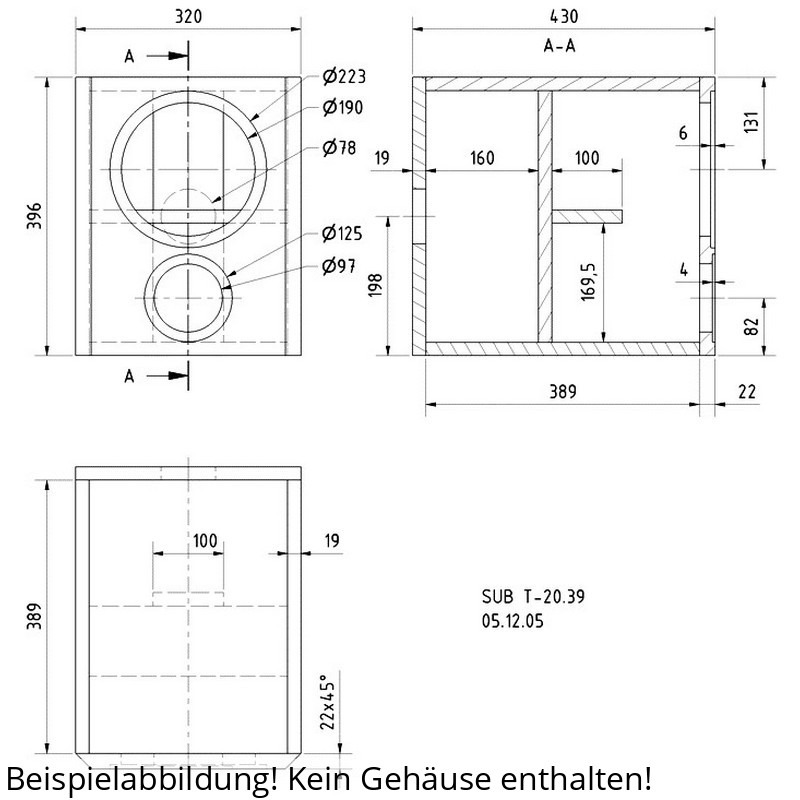

Housing principle Bass reflex
Net volume 39 l
Exterior height 396 mm
External dimension width 320 mm
Exterior depth 430 mm


Scope

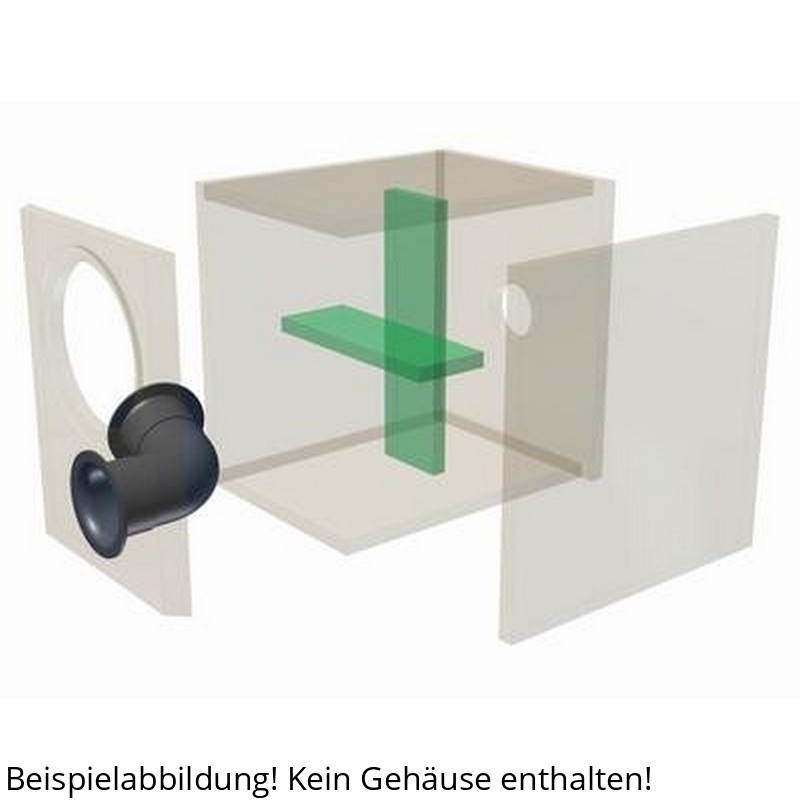

The kit contains all components listed in this list of fittings, but no housing.

Housing kits or CNC-freed sound walls are also available here in the shop.

Low-tone TIW 200 XS - 8 Ohm 1 pc.
Bass reflex tube BR 25.50 (full length) 1 pc.
Connection terminal ST 77 1 pc.
Damping material Polyester wool 2 btl.
Wooden screws 4 x 20 mm 10 pcs.
Cable 2 x 2,5 mm2 0,5 m
