Visaton EXPERIENCE V 20 Speaker Kit Visaton EXPERIENCE V 20 Speaker Kit Visaton EXPERIENCE V 20 Speaker Kit Visaton EXPERIENCE V 20 Speaker Kit
Visaton EXPERIENCE V 20 Speaker Kit
Visaton EXPERIENCE V 20 Speaker Kit
Visaton EXPERIENCE V 20 Speaker Kit
Visaton EXPERIENCE V 20 Speaker Kit

Visaton EXPERIENCE V 20 speaker kit pair

Couple price!

(quantity 1 = 2 pieces)

€849.66
Our previous price €1,213.80
Save 30%

€424.83 pro Stück

Tax included Shipping excluded
Visaton
3-0053
Quantity
Wishlist
Compare
available at manufacturer
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

Features and sound

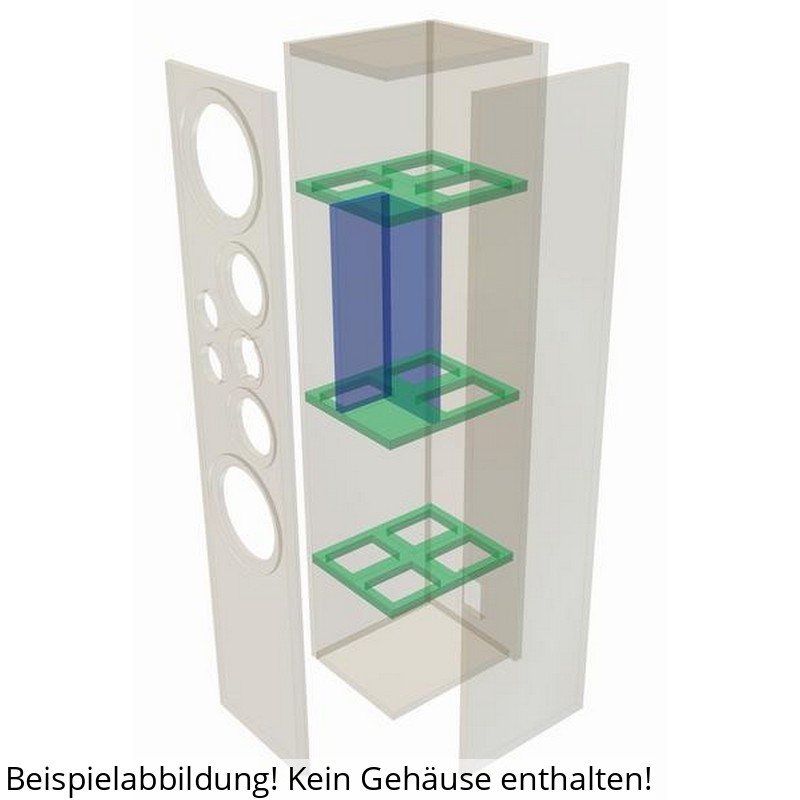

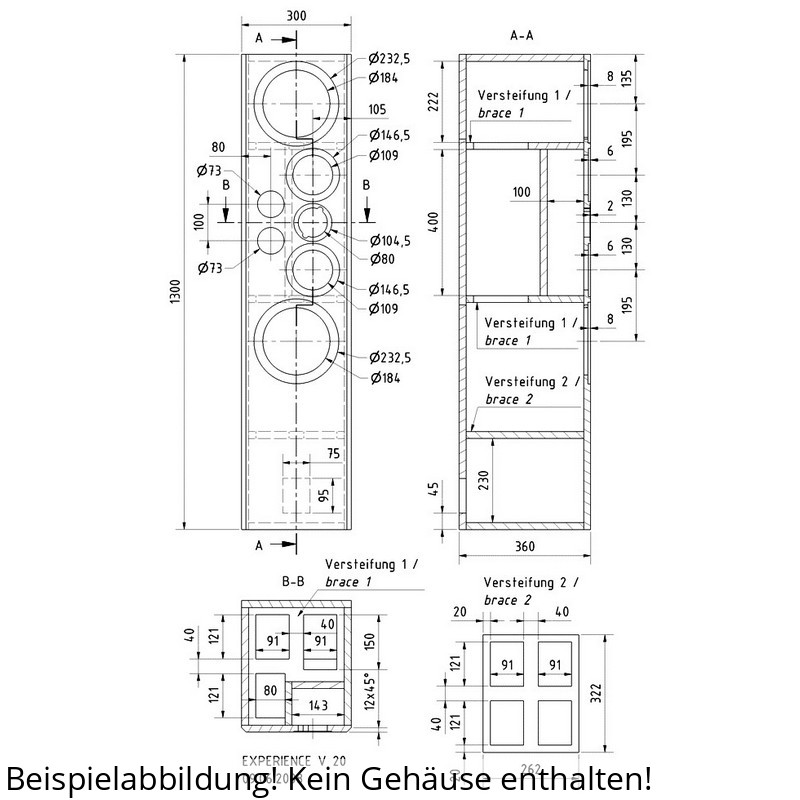

The EXPERIENCE V 20 is constructed as a 96-litre bass reflex housing and has a division arranged symmetrically around the tweeter in the sound wall layout, similar to the known D'Appolito principle.
In order to exclude disturbing influences of the sound wall on the radiating behavior as far as possible, the entire middle-high-tone unit is not positioned centrally but is displaced toward the inner side.

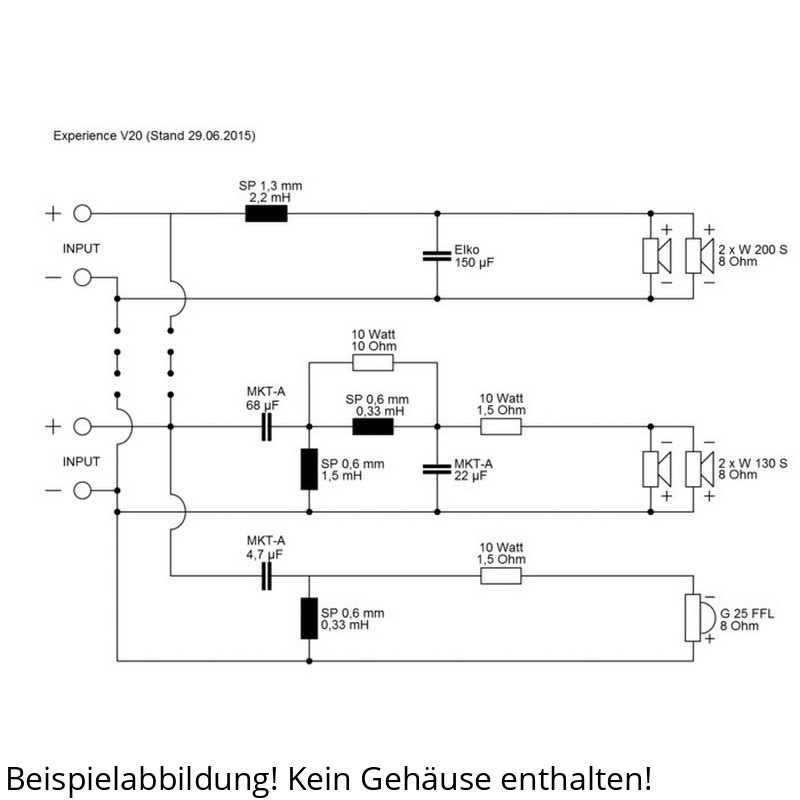

In the EXPERIENCE V 20, two parallel-connected W 200 S - 8 ohms operate as low-tone drivers up to approx. 450 Hz.
This is where the bass sounders take over.
The W 130 S - 8 ohms also connected in parallel cover the mean frequency band up to approx. 3000 Hz and are separated in the high tone area by the G 25 FFL - 8 ohm fabric cup.
The frequency switch is provided for the bi-wiring technique.

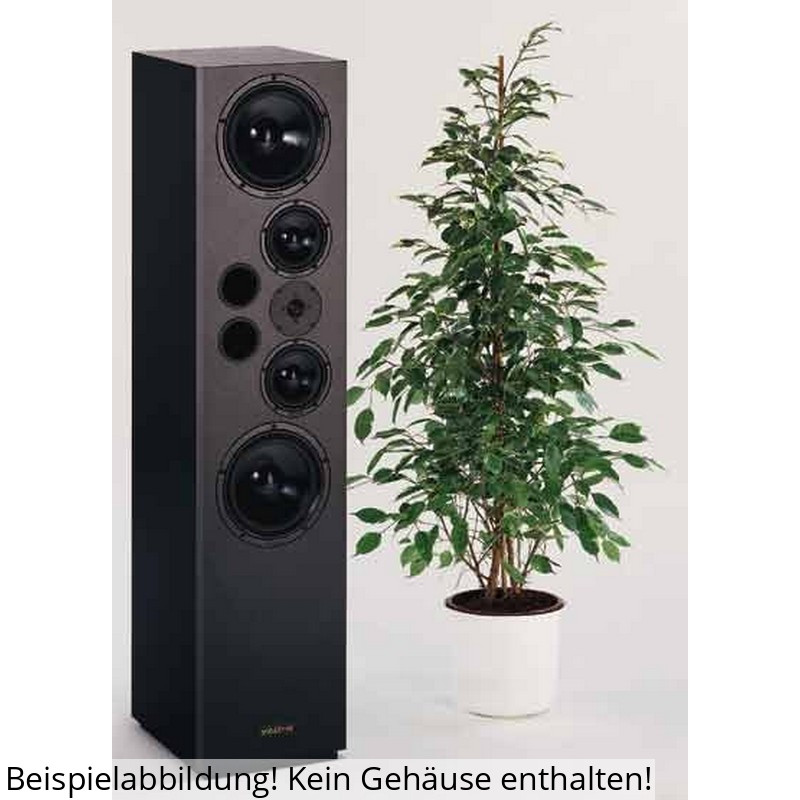

The first sound impression of the EXPERIENCE V 20 conveys the unobtrusive joy of playing this box.
In the lower octaves, the two 20 cm lowton chassis produce precise bass with a very dynamic punch for this box size.
The basic tone range (100 - 300 Hz) is "warm" tuned, and the middle tone range sounds absolutely linear and discolor-free and shines with a very plastic sound image that is perfectly detached from the box.
The crystal-clear and airy high-tone reproduction of the 25 mm fabric calotte completes the sound image of the box in the upper frequency band.

Technical data

Rated load capacity 180 W
Music loading 300 W
Nominal impedance Z 4 Ohms
Transmission range (-10 dB) 29 - 30000 Hz
Medium sound pressure level 88 dB (1 W/1 m)
Frequency 450 / 3000 Hz
Housing principle Bass reflex
Net volume 96 l + 5.5 l
Exterior height 1300 mm
External dimension width 300 mm
Exterior depth 360 mm

Scope

The kit contains all components listed in this list of fittings, but no housing.
Housing kits or CNC-freed sound walls are also available here in the shop.

Tweeters G 25 FFL - 8 Ohm 2 pcs.
Medium tones W 130 S - 8 Ohm 4 hours.
Low-tone W 200 S - 8 Ohm 4 hours.
Frequency switch Soft Experience V 20 2 pcs.
Bass reflex tube BR 15.34 (full length) 4 hours.
Connection terminal BT 95 % 2 pcs.
Damping material Polyester wool 12 btl.
Wooden screws 3,5 x 19 mm 56 p.
Cable 2 x 1,5 mm2 6 m
Cable 2 x 2,5 mm2 5 m
