Visaton VIB 2000 GF speaker kit pair

Couple price!

(quantity 1 = 2 pieces)

€653.91
Our previous price €934.15
Save 30%

€326.66 pro Stück

Tax included Shipping excluded
Visaton
3-0045
Quantity
Wishlist
Compare
available at manufacturer
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

Features and sound

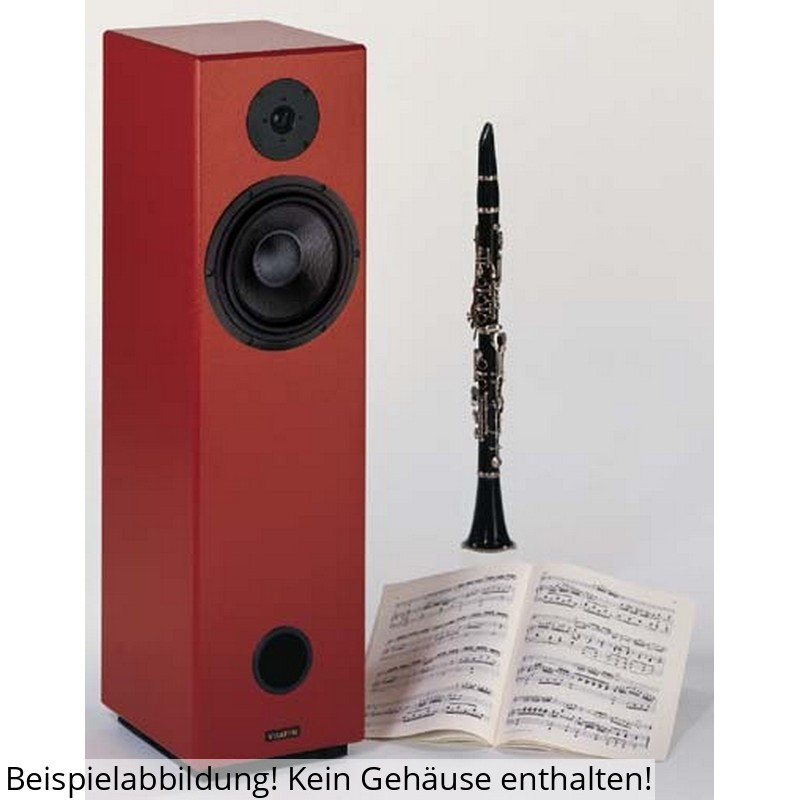

The VIB 2000 GF is the further development of one of the most famous standboxes in the self-construction sector - the VISATON VIB.

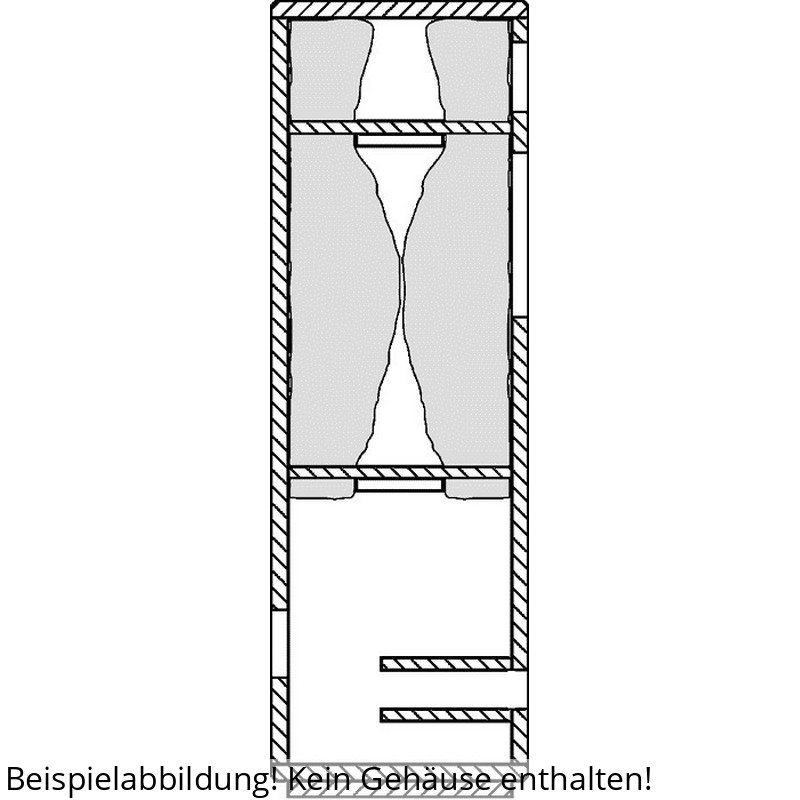

The concept of the 2-way standbox in the 45 liter bass reflex housing has been maintained, but the fitting is new, and the frequency switch has been revised accordingly.
The GF 200 - works in the low and medium tone range- 2 x 4 Ohm, whose glass fiber membrane can execute a large stroke and thus provides strong bass even at high levels.

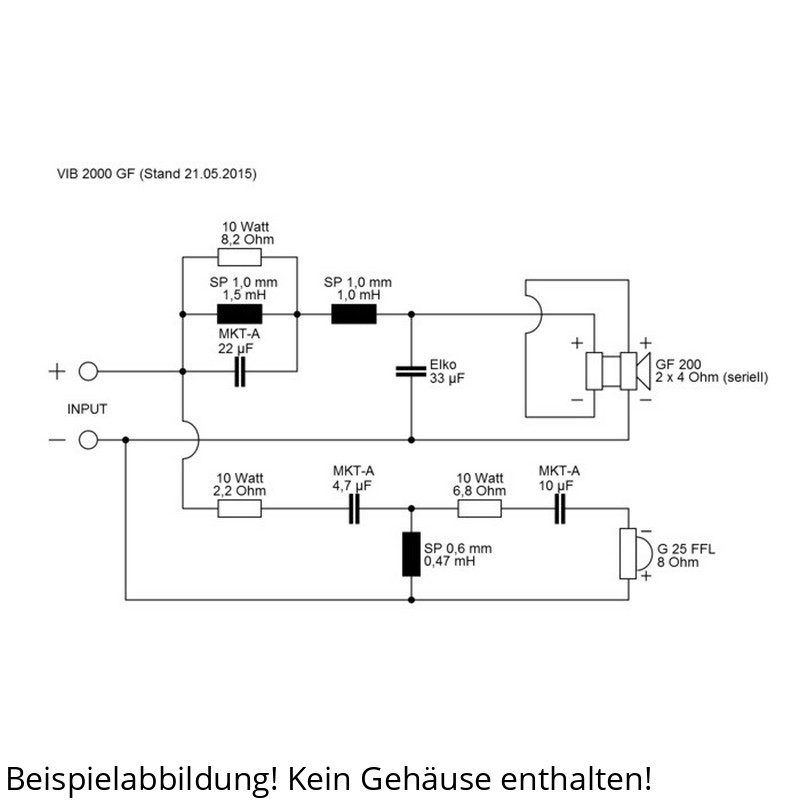

The parallel resonant circuit in front of the low-pass compensates for the mean-tone increase of the cone driver and guarantees a linear and discolor-free frequency response up to the takeover of the tweeter at approx. 2.5 kHz.
With an 18 dB high pass, the 25 mm fabric cup G 25 FFL - 8 Ohm is coupled cleanly.

The VIB 2000 GF shines through a dazzling but precise bass foundation with the deepest tones, a linear mid-tone band that is cleanly detached from the box and a soft and fine-drawing high-tone range.

Technical data

Rated load capacity 80 W
Music loading 110 W
Nominal impedance Z 8 Ohm
Transmission range (-10 dB) 35 - 30000 Hz
Medium sound pressure level 86 dB (1 W/1 m)
Frequency 2500 Hz
Housing principle Bass reflex
Net volume 45 l

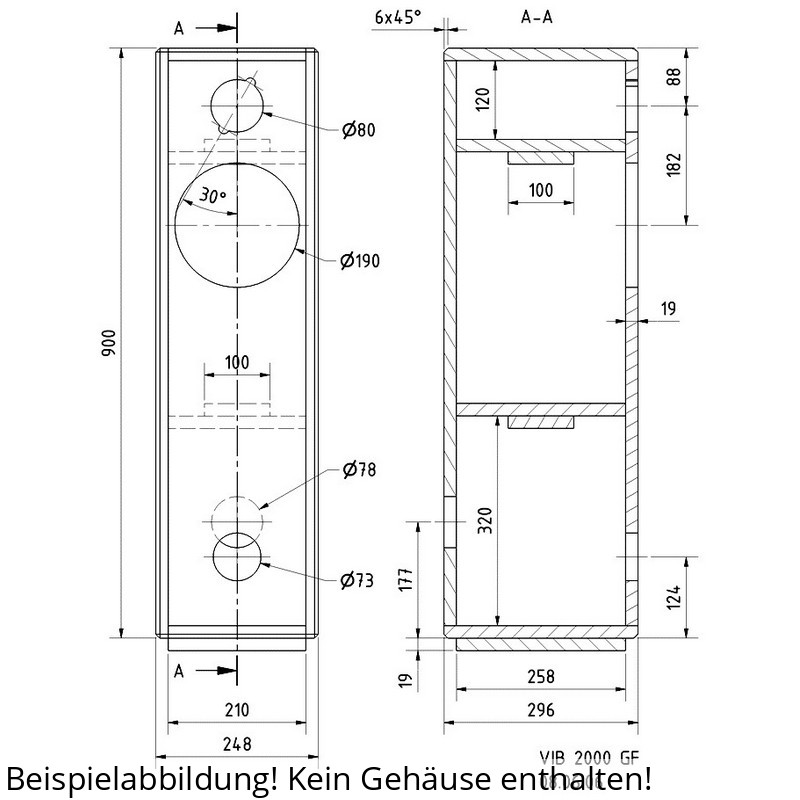

Exterior height 919 mm
External dimension width 248 mm
Exterior depth 296 mm

Scope

The kit contains all components listed in this list of fittings, but no housing.

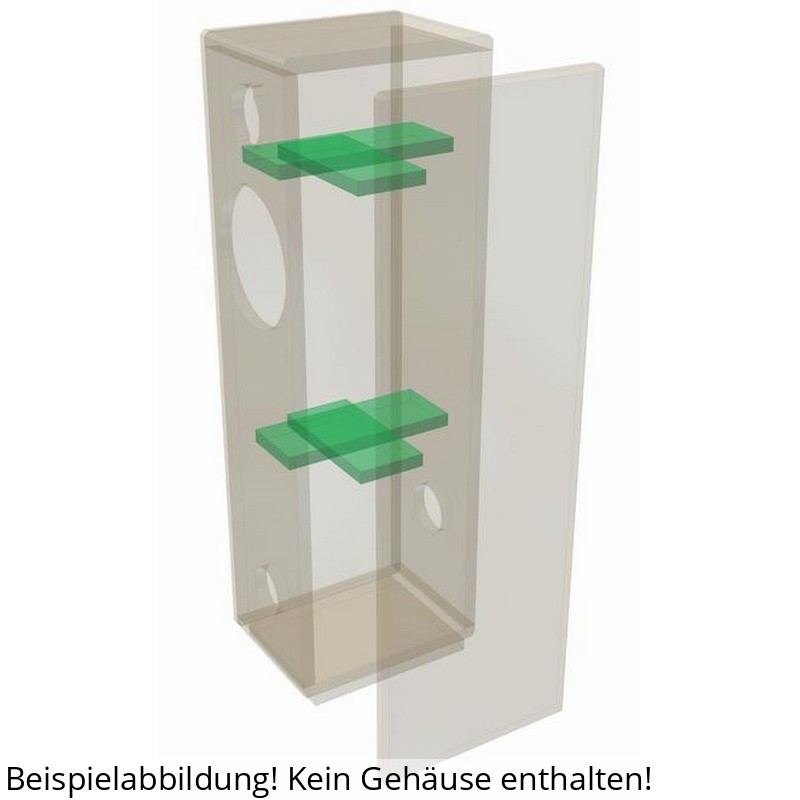

Housing kits or CNC-freed sound walls are also available here in the shop.

Tweeters G 25 FFL - 8 Ohm 2 pcs.
Low-medium tones GF 200 - 2 x 4 Oh 2 pcs.
Frequency switch Soft VIB 2000 GF 2 pcs.
Bass reflex tube BR 15.34 (full length) 2 pcs.
Connection terminal ST 77 2 pcs.
Damping material Polyester wool 4 Btl.
Lower head screws 3,5 x 25 mm 16 pcs.
Wooden screws 4 x 20 mm 12 pcs.
Cable 2 x 1,5 mm2 4 m
3-0045
New
Be the first to write your review!

Manufacturer information

Registered Trade Name: VISATON GmbH & Co. KG
Registered Trade mark: Visaton
Ohligser Str. 29-31
42781 Haan
Germany
Email: visaton@visaton.com
Phone: +49 (0) 2129 552-0
Responsible Person:

Geschäftsführer Ralph Schukat
