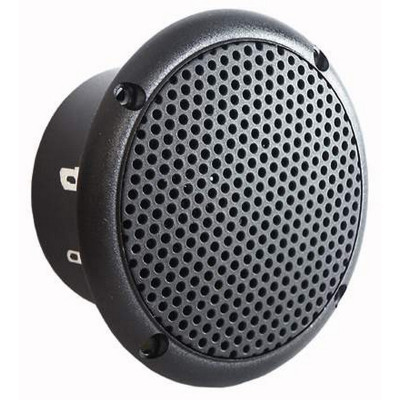

Visaton FR 10 WP - 4 Ohm (black) broadband speakers
Seawater resistant 10 cm (4") broadband speakers
Visaton FR 10 WP - 4 Ohm (black) broadband speakers
Seawater resistant 10 cm (4") broadband speakers
€20.03
Our previous price
€28.61
Save 30%
Tax included
Shipping excluded
4-0015
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
Seawater resistant 10 cm (4") broadband speakers with injection molded plastic membrane as well as plastic basket and grid.
Absolutely corrosion- and water-resistant by magnetic cladding and silicone coating of the feed line.
Clear high-tone reproduction. Color: Black.
*) IP protection class for front side when installed in a sealed housing
Applications
- External sound systems
- Speakers for solar panels and wet rooms
- Boats, ships and open vehicles
Characteristics
- suitable for outdoor applications
- seawater festival
- Functional at low temperatures according to EN 60068-2-1 (-40 °C; 96 h)
- meets the requirements of Germanischer Lloyd (requirements for electrical equipment/colds)
- Plastic: ASA (UL 94:HB; UV/weather resistant)
- ball throw-proof
Technical data
| Rated load capacity | 20 W |
|---|---|
| Music loading | 30 W |
| Nominal impedance Z | 4 Ohms |
| Transmission range (-10 dB) | 80–16000 Hz |
| Medium sound pressure level | 85 dB (1 W/1 m) |
| Beam angle (-6 dB) | 76°/4000 Hz |
| Border deflection | +/-2 mm |
| Reaction frequency fs | 120 Hz |
| Magnetic induction | 0,85 |
| Magnetic flux | 260 μWb |
| Upper pole plate height | 4 mm |
| Oscillating coil diameter | 20 mm |
| Winding height | 5 mm |
| Sound wall opening | 101 mm |
| Weight net | 0,275 kg |
| DC resistance Rdc | 3.8 Ohm |
| Mechanical Q-factor Qms | 3,13 |
| Electric Q-factor Qes | 2,14 |
| Total Q factor Qts | 1,27 |
| Equivalent air yield volume Vas | 2.1 l |
| Effective membrane surface Sd | 50 cm2 |
| Dynamic moving mass Mms | 5 g |
| Drive factor Bxl | 2,75 tm |
| Vibration coil inductance L | 0,3 mH |
| Connections | 4.8 x 0.8 mm (+) 2.8 x 0.8 mm (-) |
| Protection class | IP 66 *) |
| Temperature range | −40 – 80 °C |
| Colour | black / black |
