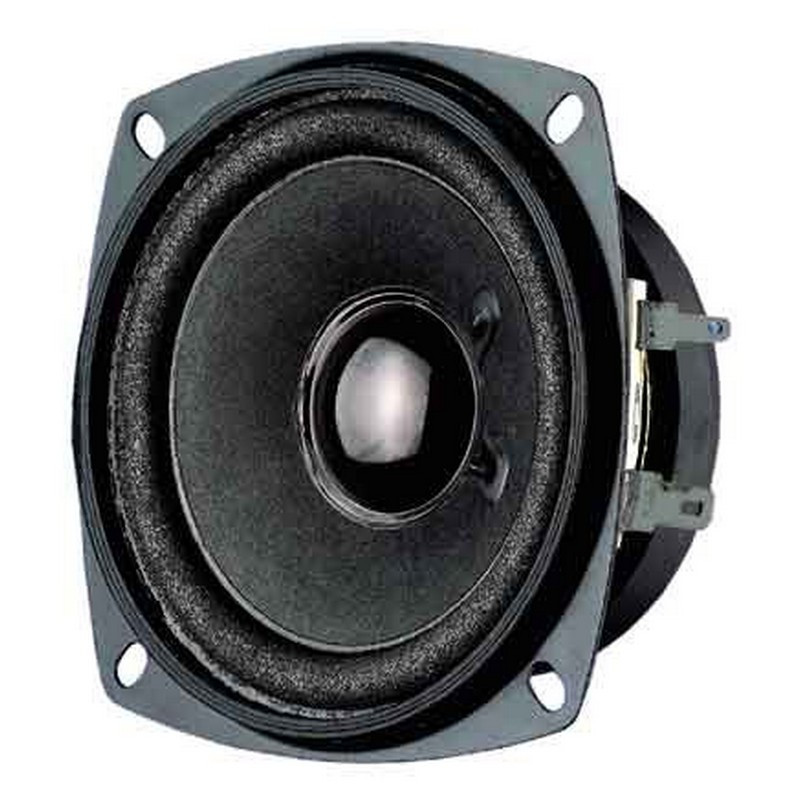

Visaton FR 8 - 8 Ohm broadband speakers
8 cm (3,3") broadband loudspeaker
Visaton FR 8 - 8 Ohm broadband speakers
8 cm (3,3") broadband loudspeaker
€10.24
Our previous price
€14.63
Save 30%
Tax included
Shipping excluded
4-0032
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
8 cm (3,3") broadband loudspeaker with good low-tone properties, balanced frequency response and high efficiency.
Particularly suitable as a built-in loudspeaker for music playback and for equipping powerful ELA lines.
Applications
- Narrow ELA lines
- Control automatic feeder for electronic devices
- Ceiling loudspeakers in rail vehicles and buses
- Electronic musical instruments
Â
Characteristics
- Moisture-impregnated membrane
- Metal design
Â
Technical data
| Rated load capacity | 10 W |
|---|---|
| Music loading | 15 W |
| Nominal impedance Z | 8 Ohm |

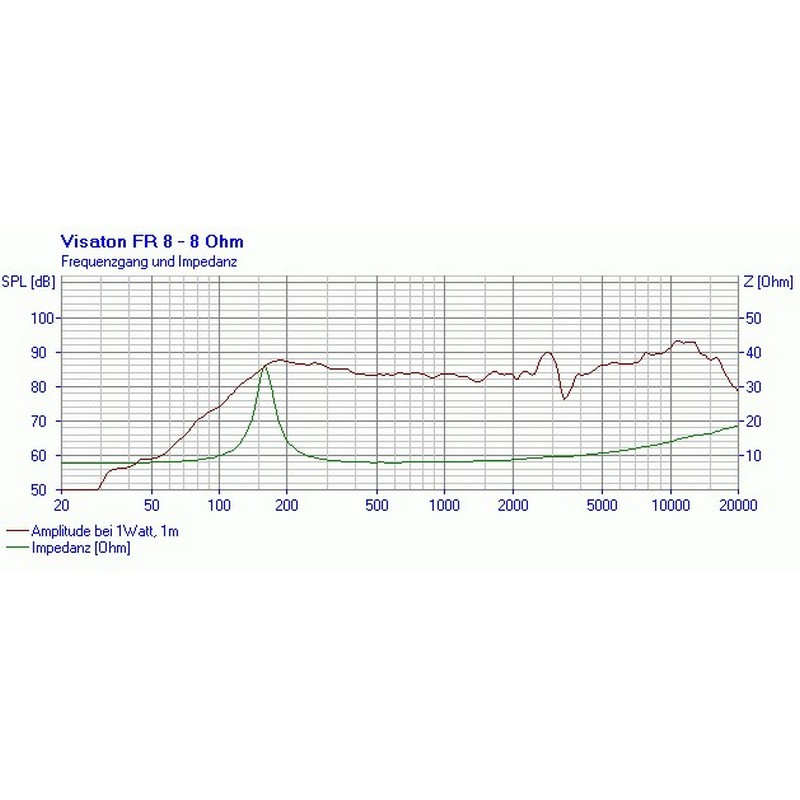

| Transmission range (-10 dB) | 130–20000 Hz |
| Medium sound pressure level | 86 dB (1 W/1 m) |

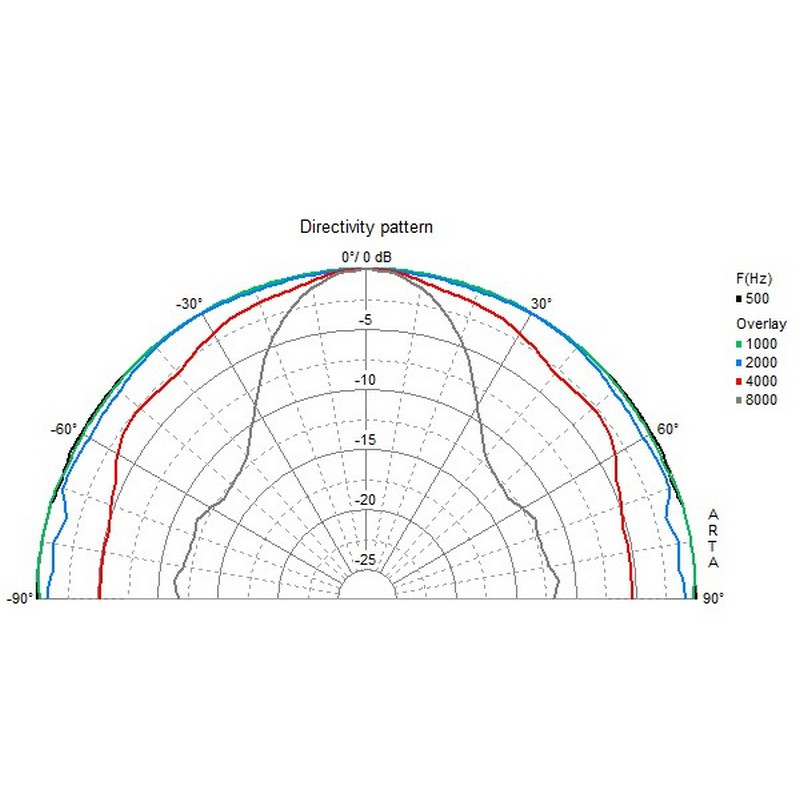

| Beam angle (-6 dB) | 180°/4000 Hz |
| Border deflection | +/-2 mm |
| Reaction frequency fs | 150 Hz |
| Magnetic induction | 1.4 T |
| Magnetic flux | 200 μWb |
| Upper pole plate height | 3 mm |
| Oscillating coil diameter | 15 mm |
| Winding height | 5 mm |

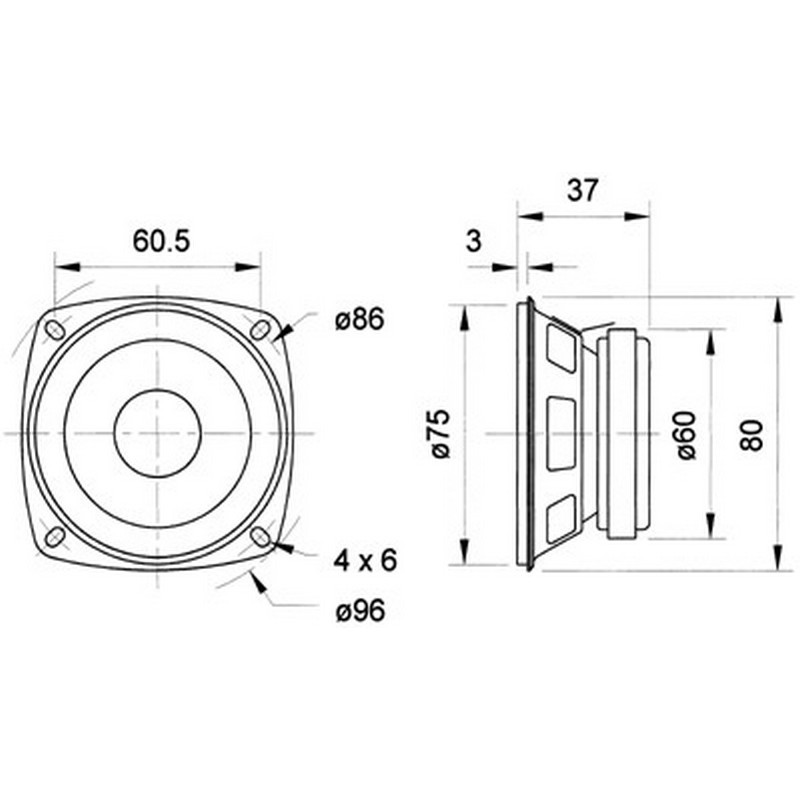

| Sound wall opening | 75 mm |
| Weight net | 0,24 |
| DC resistance Rdc | 7.4 Ohm |
| Mechanical Q-factor Qms | 5,3 |
| Electric Q-factor Qes | 1,38 |
| Total Q factor Qts | 1,09 |
| Equivalent air yield volume Vas | 0,7 l |
| Effective membrane surface Sd | 30 cm2 |
| Dynamic moving mass Mms | 1.7 g |
| Drive factor Bxl | 2.5 Tm |
| Vibration coil inductance L | 0,6 m |
| Connections | 4.8 x 0.8 mm (+) 2.8 x 0.8 mm (-) |
| Temperature range | −25 ... 70 °C |
