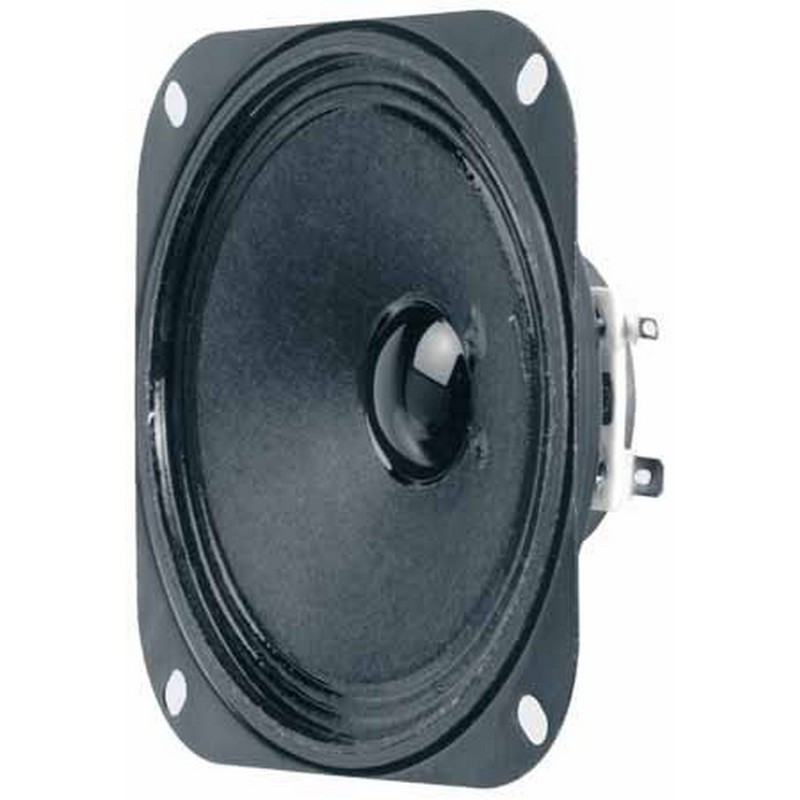

Visaton R 10 S - 4 Ohm broadband speakers
10 cm (4") full-range speaker
Delivery by DHL in a well-padded shipping box
14-day right of return
10 cm (4") broadband loudspeaker with high efficiency and balanced frequency response with high tone increase.
This makes very good speech comprehensibility. Particularly suitable as a built-in loudspeaker for electronic devices and sound systems.
Applications
- Control loudspeaker for electronic devices
- Ceiling loudspeakers in rail vehicles and buses
- Model construction
Â
Technical data
Rated load capacity | 20 W |
---|---|
Music loading | 30 W |
Nominal impedance Z | 4 Ohms |

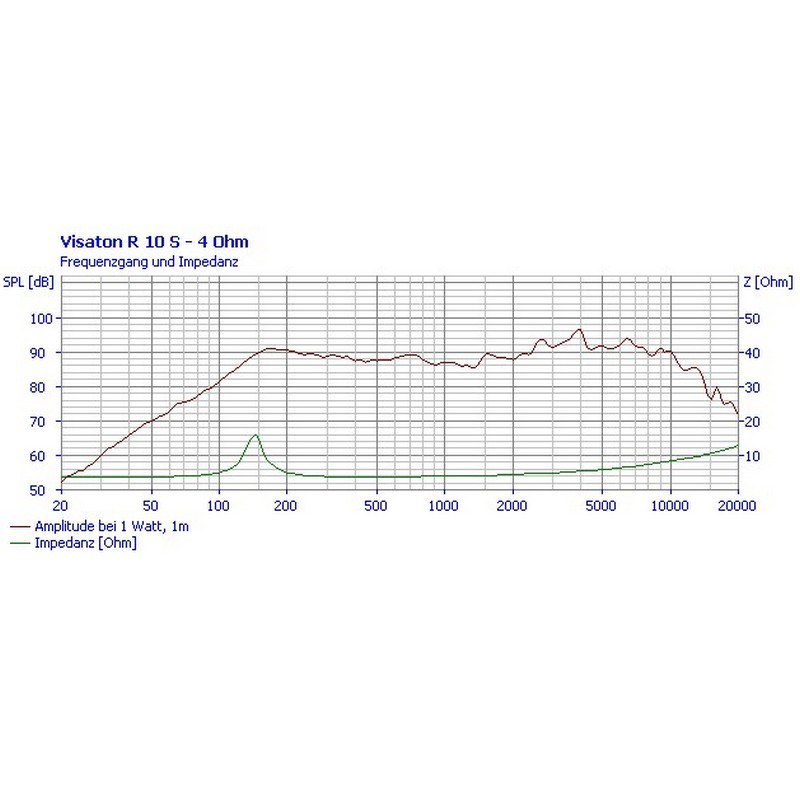

Transmission range (-10 dB) | 100–13000 Hz |
Medium sound pressure level | 90 dB (1 W/1 m) |

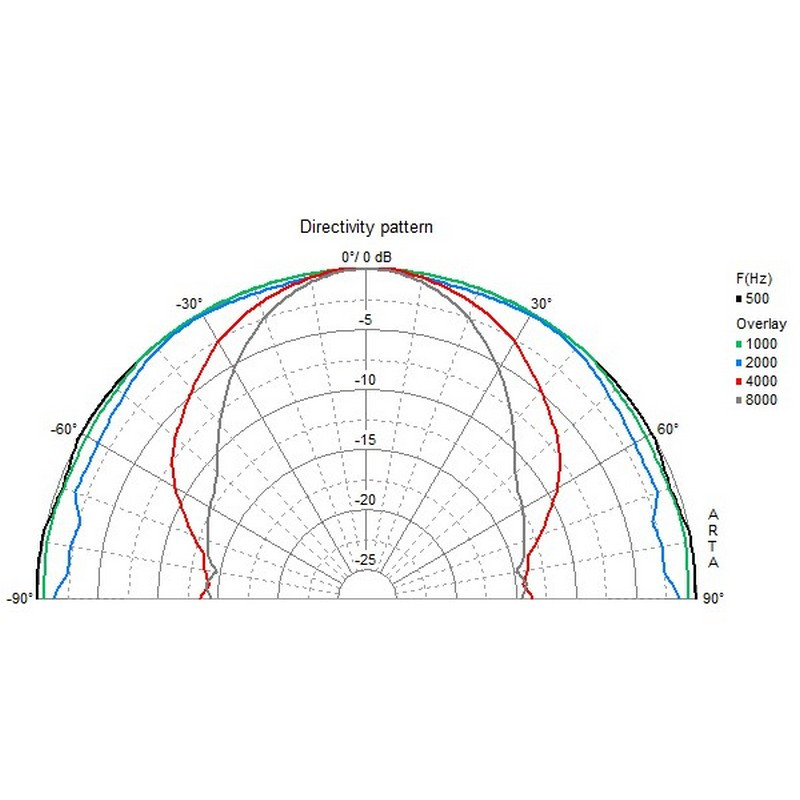

Beam angle (-6 dB) | 92°/4000 Hz |
Border deflection | +/-1.5 mm |
Reaction frequency fs | 160 Hz |
Magnetic induction | 0,95 |
Magnetic flux | 135 μWb |
Upper pole plate height | 3 mm |
Oscillating coil diameter | 15 mm |
Winding height | 4 mm |

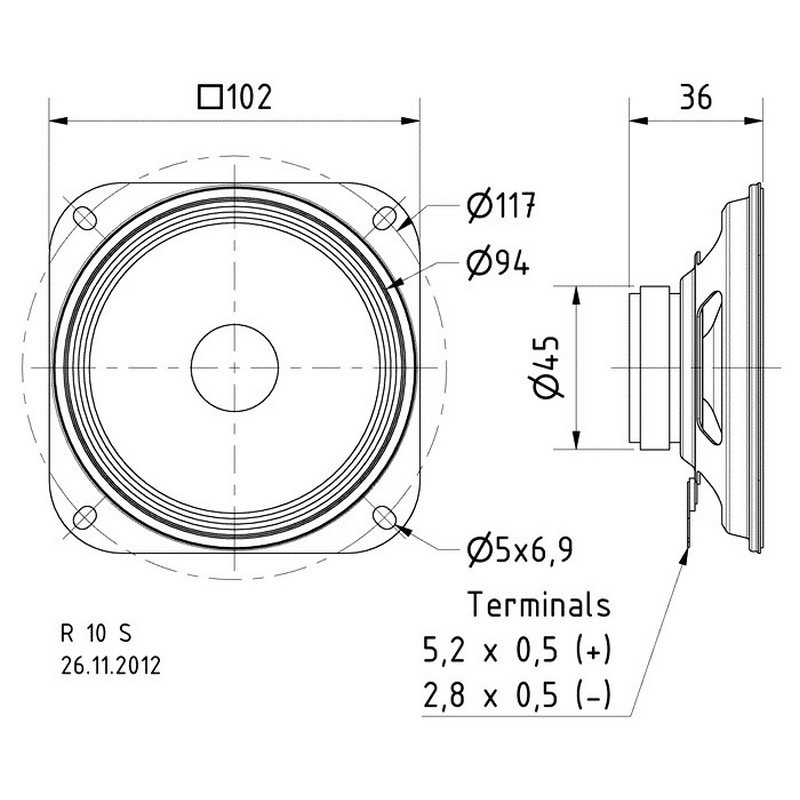

Sound wall opening | 93 mm |
Weight net | 0,16 kg |
DC resistance Rdc | 3,4 Ohm |
Mechanical Q-factor Qms | 5,53 |
Electric Q-factor Qes | 1,96 |
Total Q factor Qts | 1,45 |
Equivalent air yield volume Vas | 1.9 l |
Effective membrane surface Sd | 56 cm2 |
Dynamic moving mass Mms | 1.9 g |
Drive factor Bxl | 1.9 T m |
Vibration coil inductance L | 0,2 m |
Connections | 5.2 x 0.5 mm (+) 2.8 x 0.5 mm (−) |
Temperature range | −40 – 70 °C |
