Visaton FR 13 - 4 Ohm broadband speakers

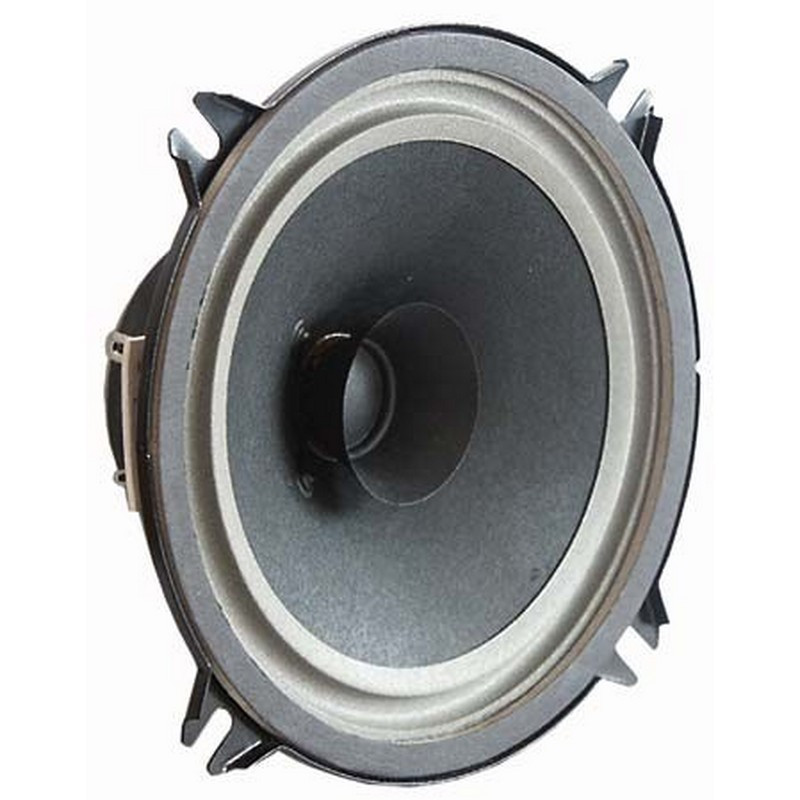

13 cm (5") broadband loudspeaker

€15.21
Our previous price €21.73
Save 30%
Tax included Shipping excluded
Breeding bands
4-0019
Quantity
Wishlist
Compare
available at manufacturer
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

13 cm (5") broadband loudspeaker with inverse bead.

Uniform frequency response and strong low-tone reproduction.

Easy mounting z.B. in vehicles with installation locations for 13 cm loudspeakers.

Applications

- Built-in loudspeakers in motor vehicles, buses or rail vehicles

- electronic musical instruments

- Control loudspeakers in electronic devices



Technical data

Rated load capacity 30 W
Music loading 50 W
Nominal impedance Z 4 Ohms

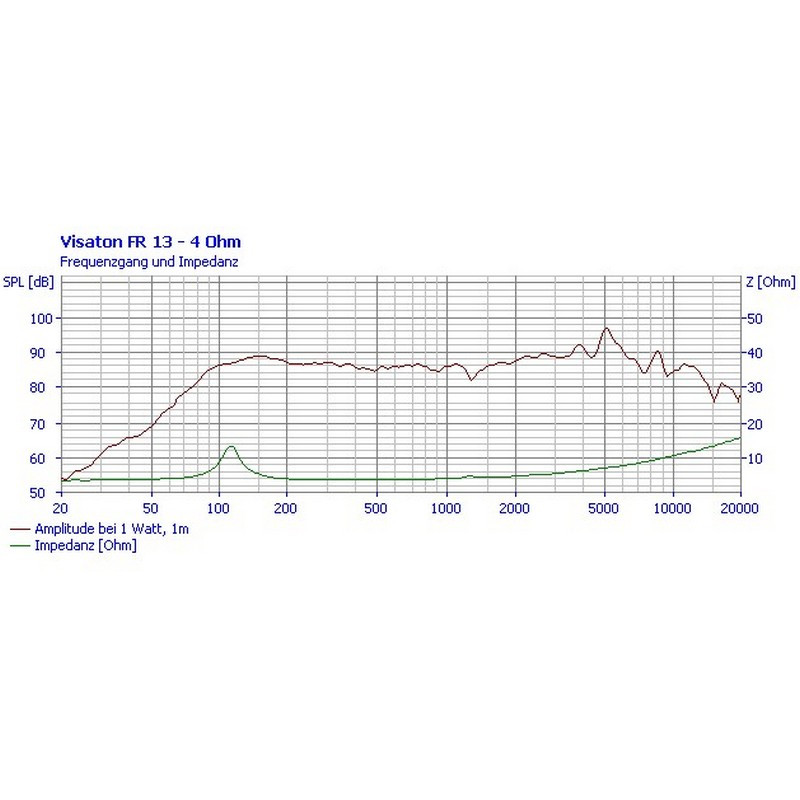

Transmission range (-10 dB) 65–20000 Hz
Medium sound pressure level 88 dB (1 W/1 m)

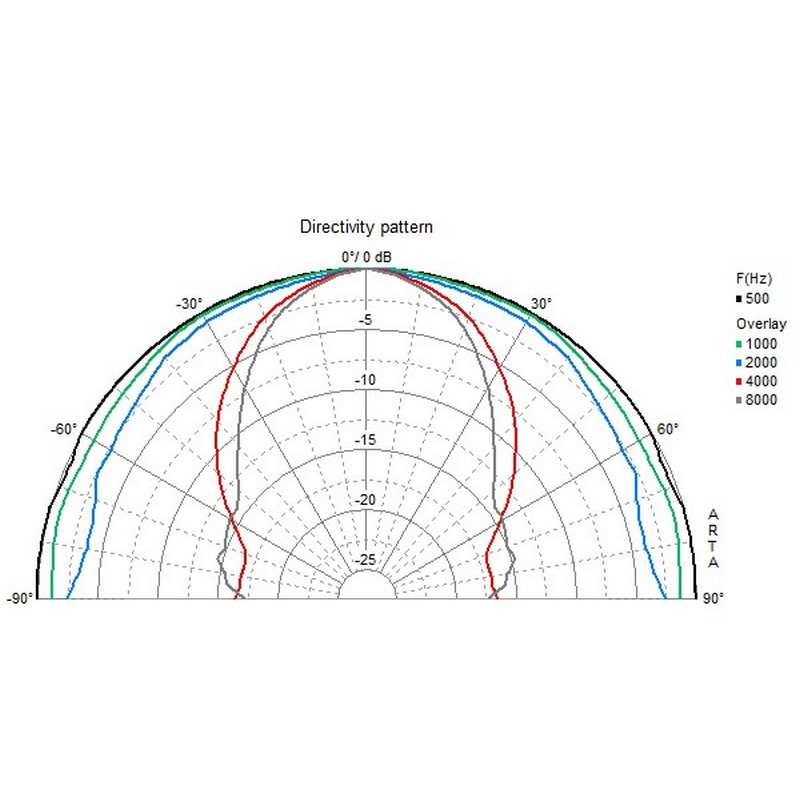

Beam angle (-6 dB) 65°/4000 Hz
Border deflection +/-2.5 mm
Reaction frequency fs 100 Hz
Magnetic induction 0,85
Magnetic flux 160 μWb
Upper pole plate height 3 mm
Oscillating coil diameter 20 mm
Winding height 6 mm

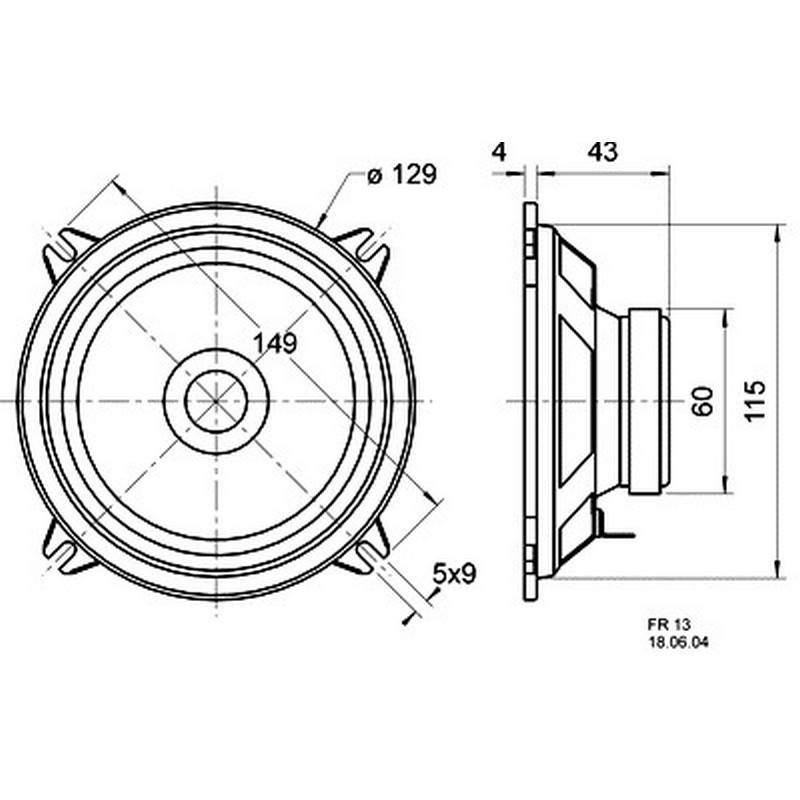

Sound wall opening 116 mm
Weight net 0,2 %
DC resistance Rdc 3,4 Ohm
Mechanical Q-factor Qms 5,17
Electric Q-factor Qes 1,64
Total Q factor Qts 1,25
Equivalent air yield volume Vas 6.1 l
Effective membrane surface Sd 87 cm2
Dynamic moving mass Mms 4.5 g
Drive factor Bxl 2.3 Tm
Vibration coil inductance L 0,2 m
Connections 4.8 x 0.8 mm (+)
2.8 x 0.8 mm (-)
Temperature range −25 – 100 °C
