Visaton SC 5.9 ND - 4 Ohm broadband speakers
Magnetically shielded 5 x 9 cm (2" x 3.5") Broadband speakers
Visaton SC 5.9 ND - 4 Ohm broadband speakers
Magnetically shielded 5 x 9 cm (2" x 3.5") Broadband speakers
€9.41
Our previous price
€13.44
Save 30%
Tax included
Shipping excluded
4-0081
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
Magnetically shielded 5 x 9 cm (2" x 3.5") Broadband speakers with good efficiency and balanced frequency response with clear high-tone reproduction.
Minimum installation dimensions by using a neodymium magnet system.
The application areas include installation solutions in the smallest space in televisions and in PCs.
Applications
- Video monitors
- TV sets
- Control loudspeaker for electronic devices
Characteristics
- Moisture-impregnated membrane
- Metal design
- Magnetic shielding
Technical data
| Rated load capacity | 3 W |
|---|---|
| Music loading | 4 W |
| Nominal impedance Z | 4 Ohms |

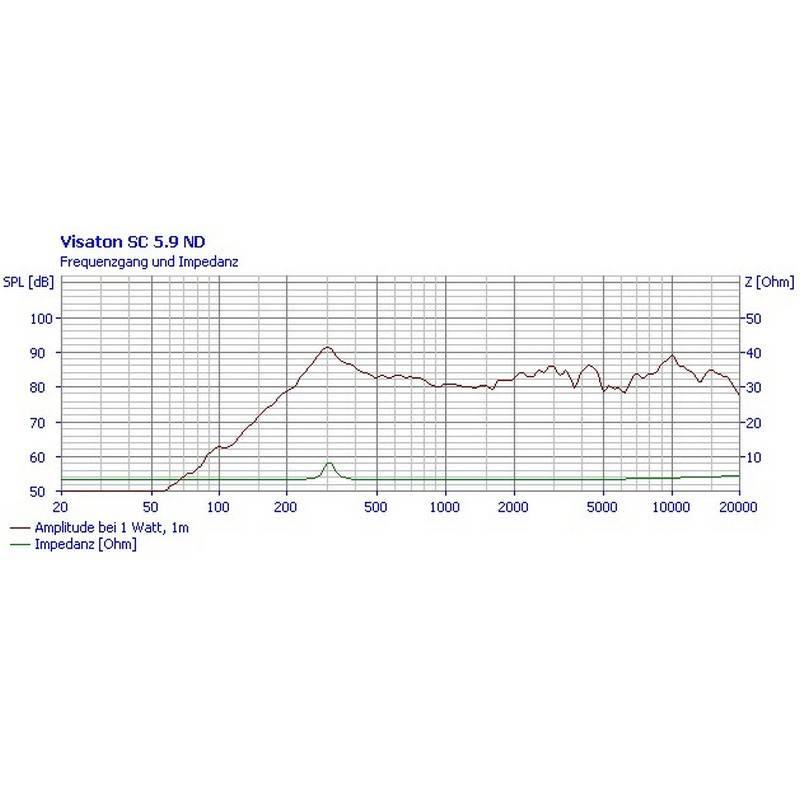

| Transmission range (-10 dB) | 150–17000 Hz |
| Medium sound pressure level | 82 dB (1 W/1 m) |

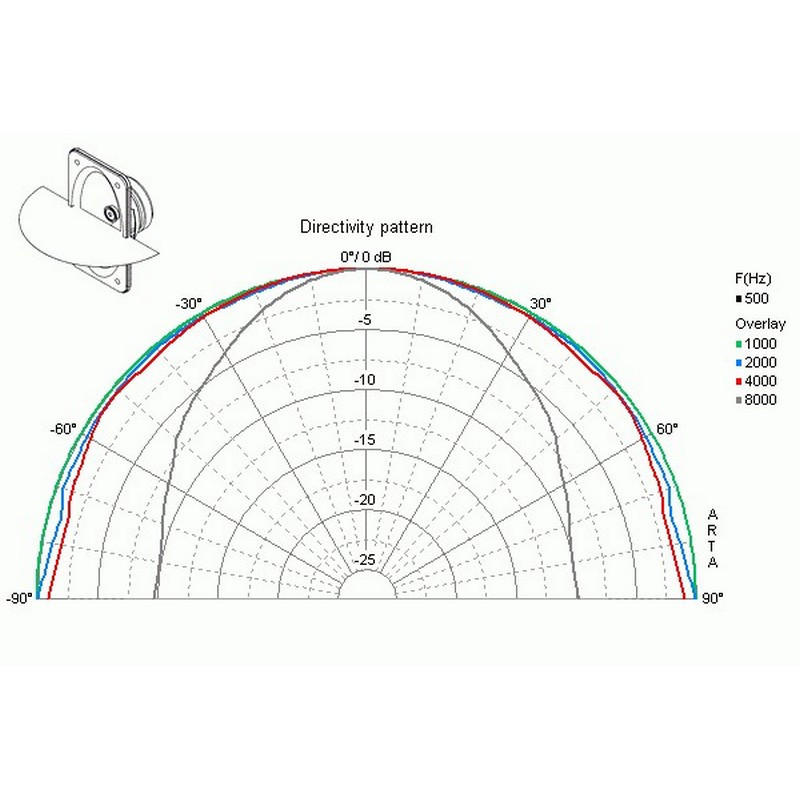

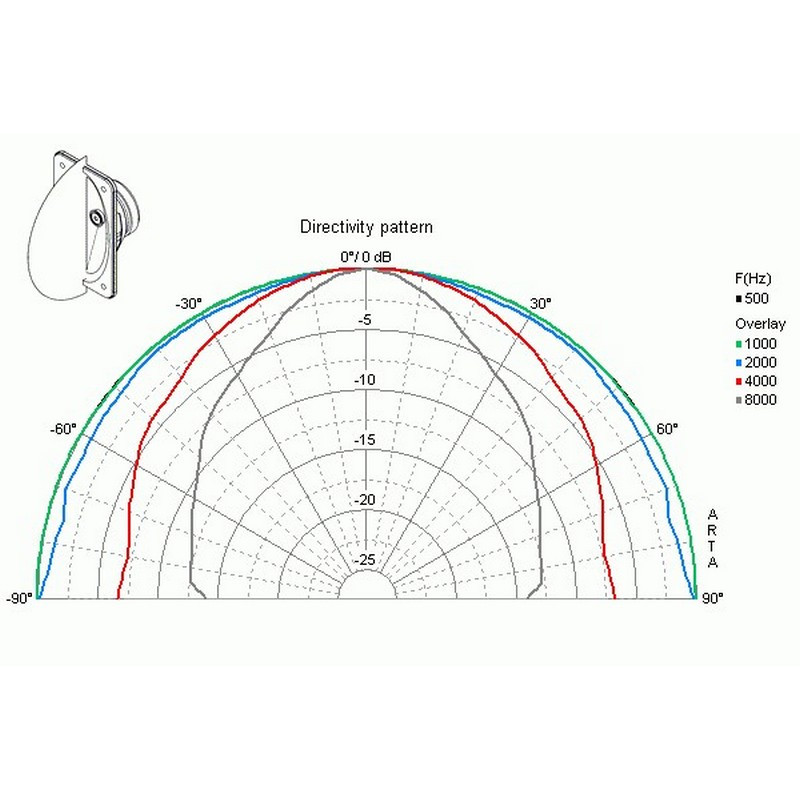

| Beam angle (-6 dB) | 180°/4000 Hz. 131°/4000 Hz. |
| Border deflection | +/-1 mm |
| Reaction frequency fs | 280 Hz |
| Magnetic induction | 0,75 TONNES |
| Magnetic flux | 100 μWb |
| Upper pole plate height | 3 mm |
| Oscillating coil diameter | 14 mm |
| Winding height | 4 mm |

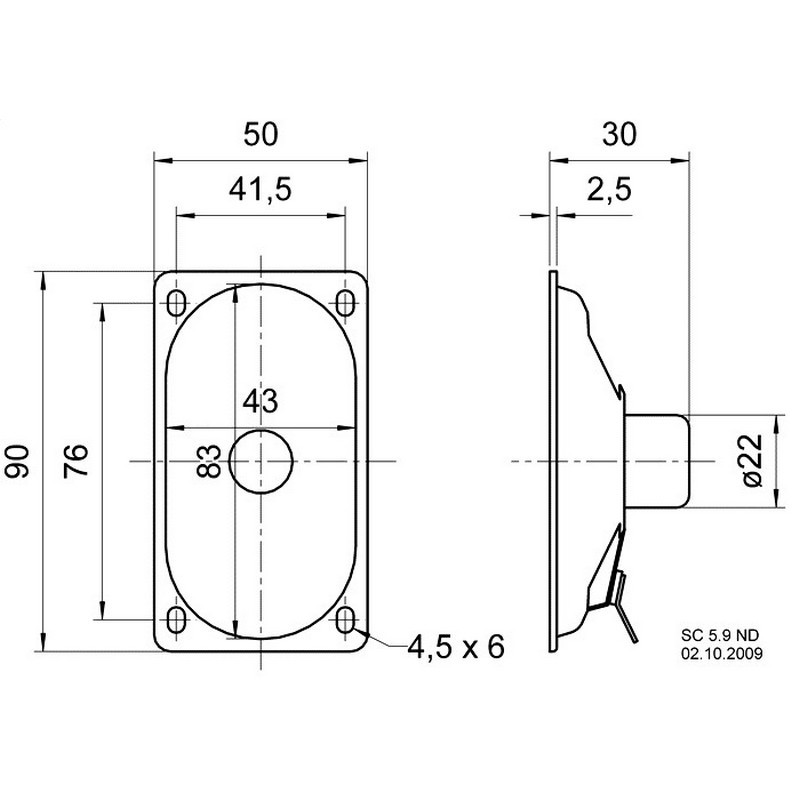

| Sound wall opening | 43 x 82 mm (oval) |
| Weight net | 0,06 kg |
| DC resistance Rdc | 3.8 Ohm |
| Mechanical Q-factor Qms | 9,23 |
| Electric Q-factor Qes | 8,03 |
| Total Q factor Qts | 4,3 |
| Equivalent air yield volume Vas | 0,3 l |
| Effective membrane surface Sd | 26,5 cm2 |
| Dynamic moving mass Mms | 1.3 g |
| Drive factor Bxl | 1.0 mm |
| Vibration coil inductance L | 0,2 m |

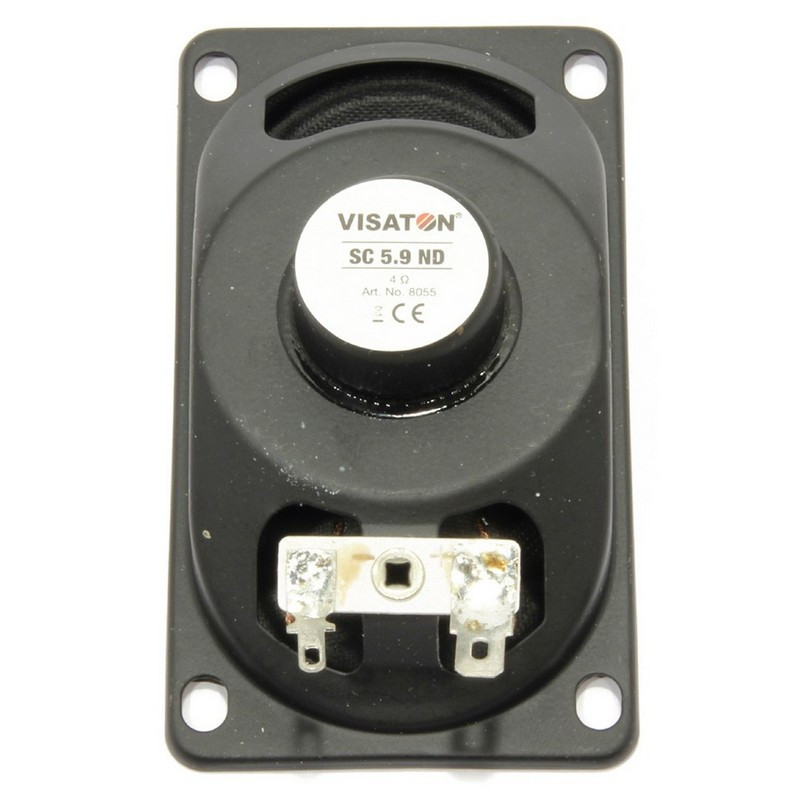

| Connections | 4.8 x 0.5 mm (+) 2.8 x 0.5 mm (−) |
| Temperature range | −25 ... 70 °C |
