Visaton FR 12 - 8 Ohm broadband speakers

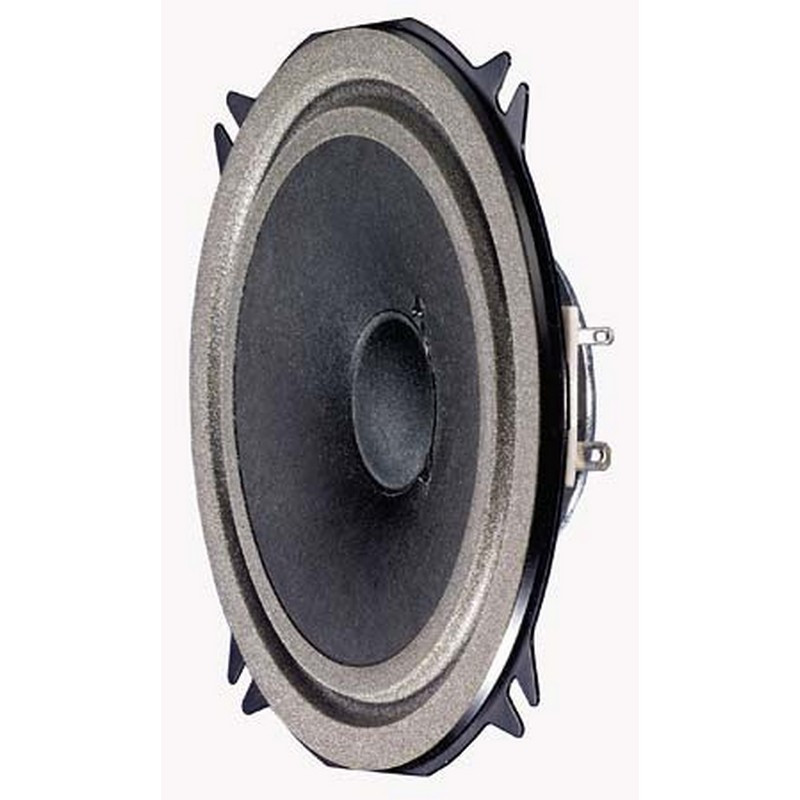

13 cm (5") broadband loudspeaker with inverse bead
Visaton FR 12 - 8 Ohm broadband speakers
13 cm (5") broadband loudspeaker with inverse bead
€15.21
Our previous price
€21.73
Save 30%
Tax included
Shipping excluded
4-0018
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
13 cm (5") broadband loudspeaker with inverse bead.
Particularly flat design, therefore usable wherever there is little space available.
Applications
- Built-in loudspeakers in motor vehicles, buses or rail vehicles
- electronic musical instruments
- Control loudspeakers in electronic devices
Â
Technical data
| Rated load capacity | 15 W |
|---|---|
| Music loading | 40 W |
| Nominal impedance Z | 8 Ohm |

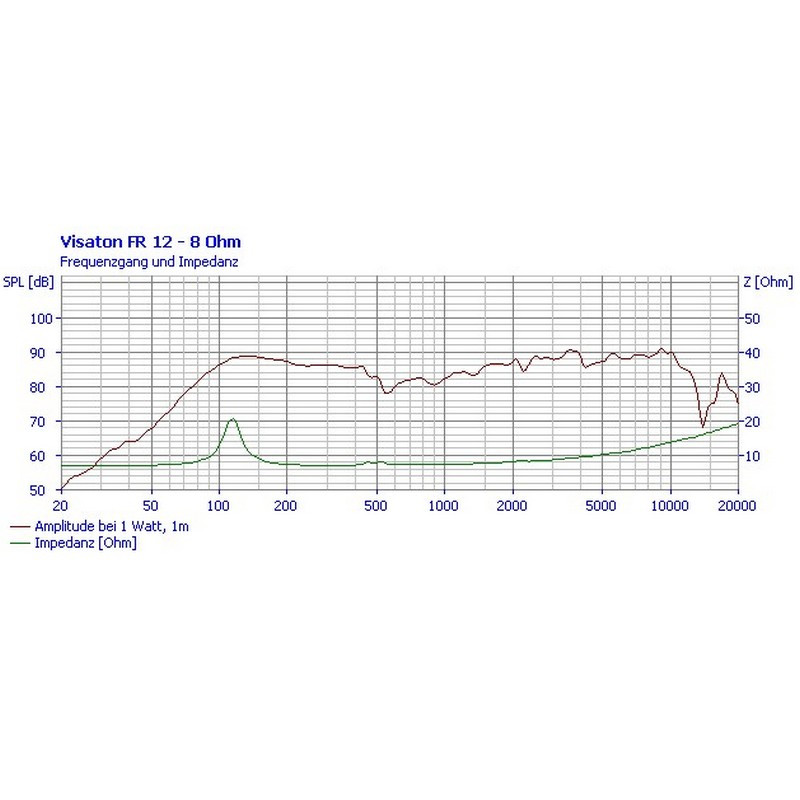

| Transmission range (-10 dB) | 70–18000 Hz |
| Medium sound pressure level | 85 dB (1 W/1 m) |

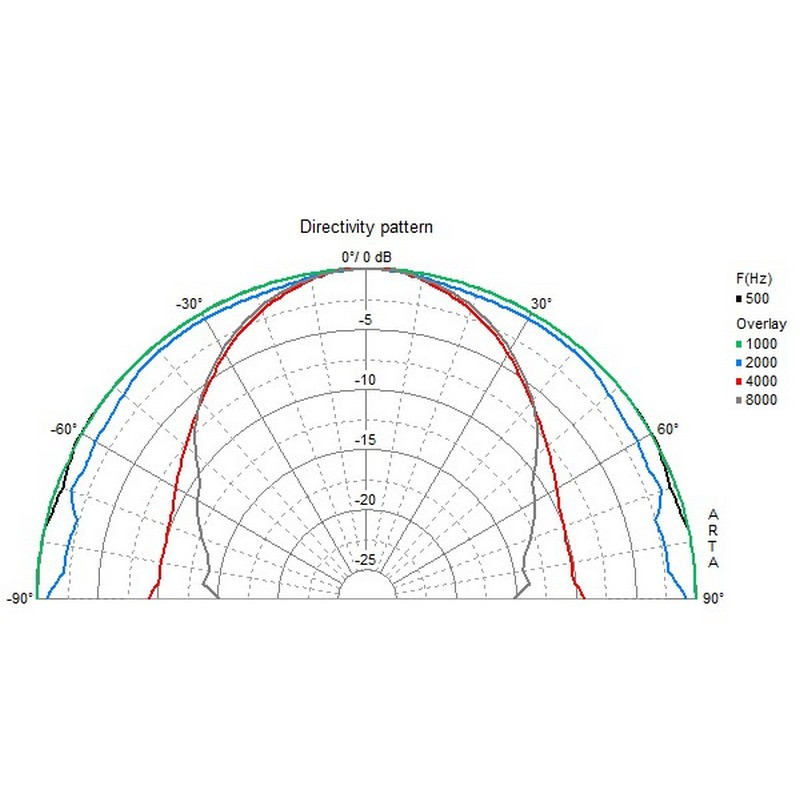

| Beam angle (-6 dB) | 79°/4000 Hz |
| Border deflection | +/-2.5 mm |
| Reaction frequency fs | 110 Hz |
| Magnetic induction | 0,8 T |
| Magnetic flux | 150 μWb |
| Upper pole plate height | 3 mm |
| Oscillating coil diameter | 20 mm |
| Winding height | 4.5 mm |

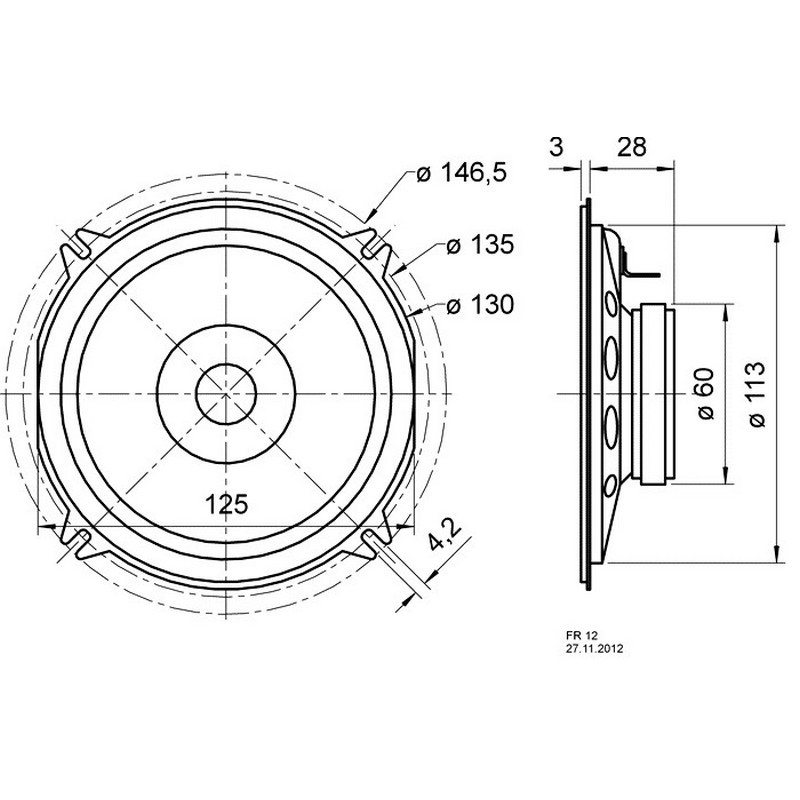

| Sound wall opening | 114 mm |
| Weight net | 0,284 kg |
| DC resistance Rdc | 6.8 Ohm |
| Mechanical Q-factor Qms | 5,61 |
| Electric Q-factor Qes | 2,8 |
| Total Q factor Qts | 1,87 |
| Equivalent air yield volume Vas | 8,7 l |
| Effective membrane surface Sd | 87 cm2 |
| Dynamic moving mass Mms | 3.8 g |
| Drive factor Bxl | 1,7 T m |
| Vibration coil inductance L | 0.22 mH |
| Connections | 4.8 x 0.8 mm (+) 2.8 x 0.8 mm (-) |
| Temperature range | −25 ... 70 °C |
