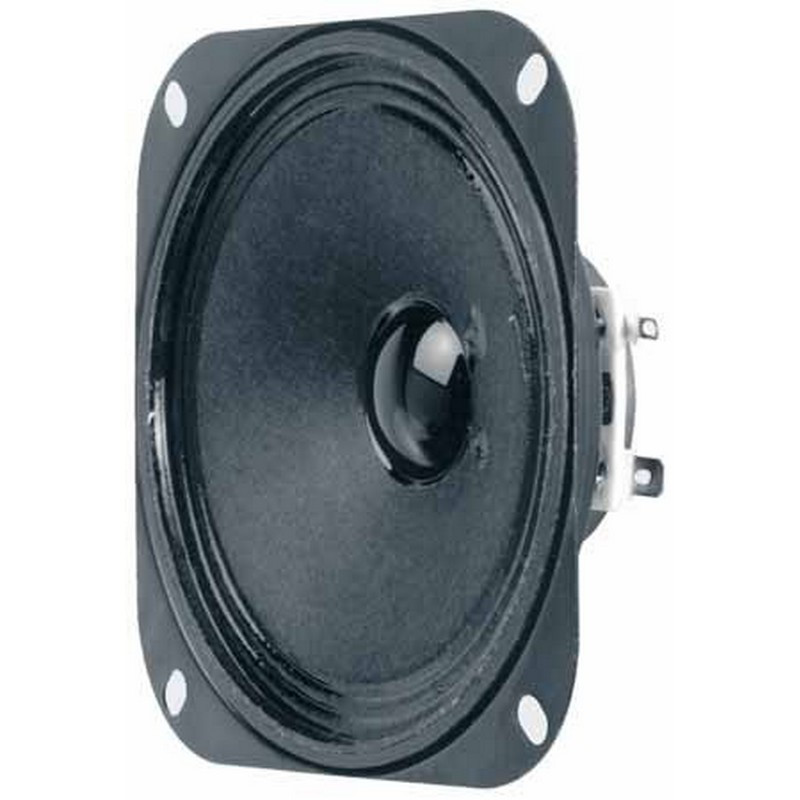

Visaton R 10 S TE - 8 Ohm broadband speakers
10 cm (4") broadband loudspeaker
Visaton R 10 S TE - 8 Ohm broadband speakers
10 cm (4") broadband loudspeaker
€9.62
Our previous price
€13.74
Save 30%
Tax included
Shipping excluded
4-0075
2 Items
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
10 cm (4") broadband loudspeaker with high efficiency and balanced frequency response with high tone increase.
This makes very good speech comprehensibility.
Particularly suitable as a built-in loudspeaker for electronic devices and sound systems.
It corresponds to the model R 10 S - 8 Ohm, but with connecting lugs 4.8 x 0.8 mm (+) and 2.8 x 0.8 mm (-).
Applications
- Control loudspeaker for electronic devices
- Ceiling loudspeakers in rail vehicles and buses
- Model construction
Technical data
| Rated load capacity | 20 W |
|---|---|
| Music loading | 30 W |
| Nominal impedance Z | 8 Ohm |

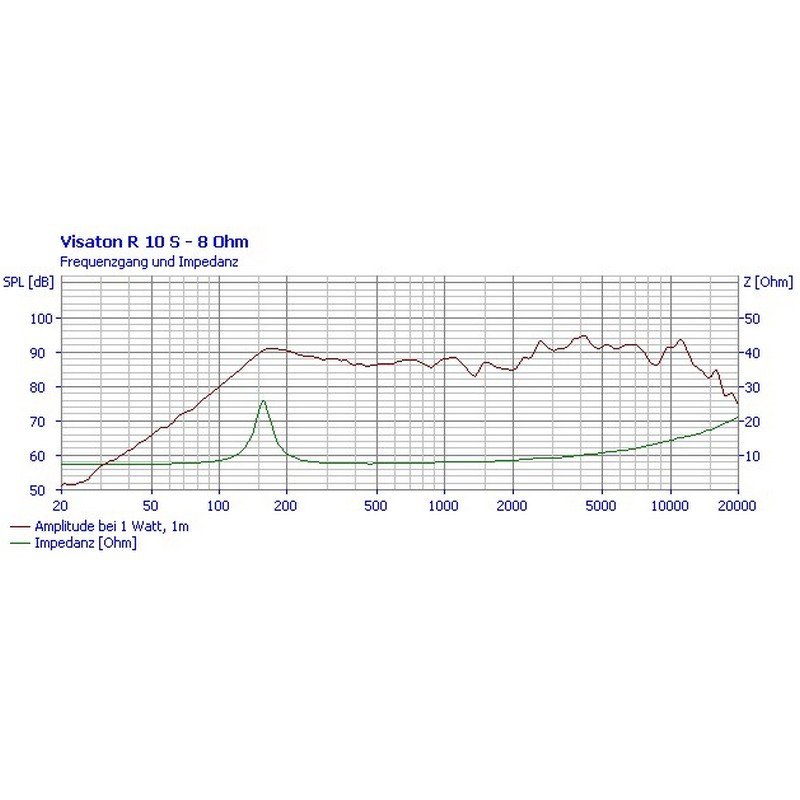

| Transmission range (-10 dB) | 100–13000 Hz |
| Medium sound pressure level | 90 dB (1 W/1 m) |

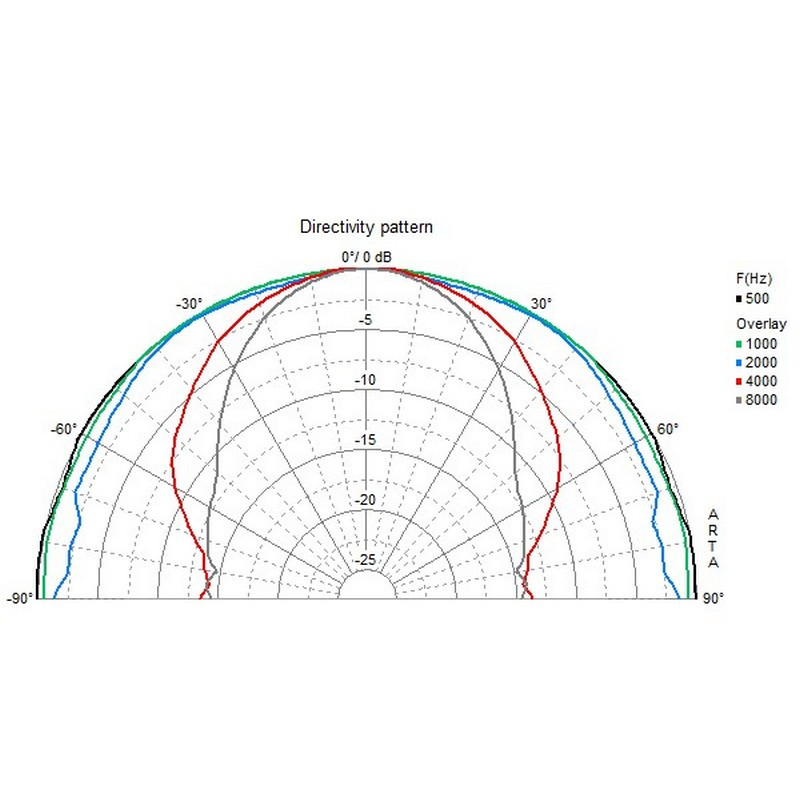

| Beam angle (-6 dB) | 92°/4000 Hz |
| Border deflection | +/-1.5 mm |
| Reaction frequency fs | 160 Hz |
| Magnetic induction | 0,95 |
| Magnetic flux | 135 μWb |
| Upper pole plate height | 3 mm |
| Oscillating coil diameter | 15 mm |
| Winding height | 4 mm |
| Sound wall opening | 93 mm |
| Weight net | 0,16 kg |
| DC resistance Rdc | 7.2 Ohm |
| Mechanical Q-factor Qms | 6,27 |
| Electric Q-factor Qes | 2,92 |
| Total Q factor Qts | 1,99 |
| Equivalent air yield volume Vas | 1.7 l |
| Effective membrane surface Sd | 56 cm2 |
| Dynamic moving mass Mms | 2 g |
| Drive factor Bxl | 2.0 t m |
| Vibration coil inductance L | 0,5 mH |

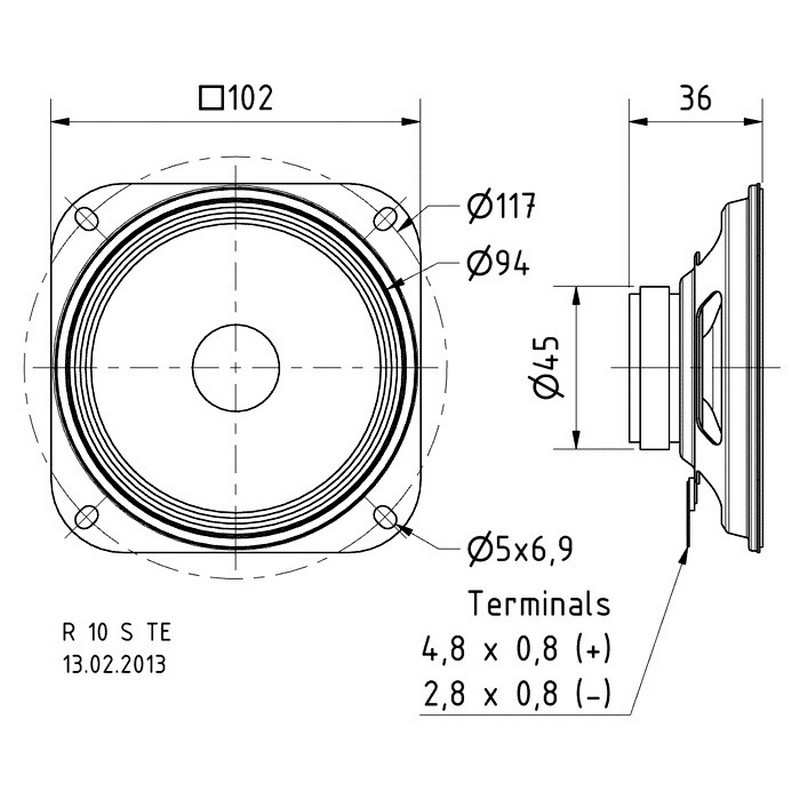

| Connections | 4.8 x 0.8 mm (+) 2.8 x 0.8 mm (-) |
| Temperature range | −25 ... 70 °C |
