Visaton FR 10 HM - 8 Ohm broadband speakers

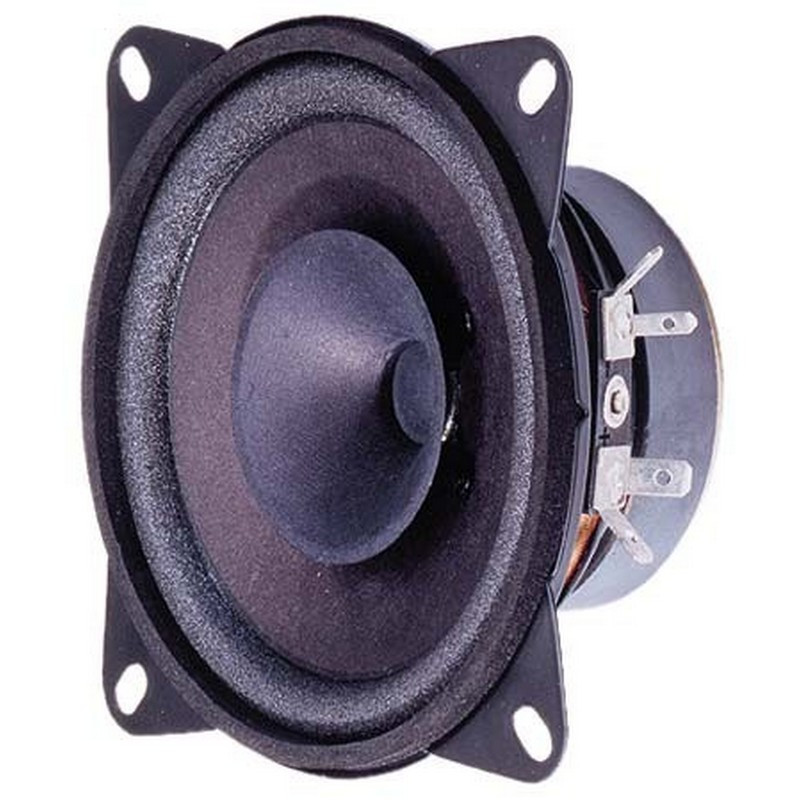

10 cm (4") broadband loudspeaker with high-tone cone
Visaton FR 10 HM - 8 Ohm broadband speakers
10 cm (4") broadband loudspeaker with high-tone cone
€7.41
Our previous price
€10.59
Save 30%
Tax included
Shipping excluded
4-0013
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
10 cm (4") broadband loudspeaker with high-tone cone and Euro standard basket.
Easy installation in vehicles with installation locations for 10-cm speakers.
Applications
- Vehicles
- motorhome
Â
Characteristics
- Moisture-impregnated membrane
- Metal basket
Â
Technical data
| Rated load capacity | 20 W |
|---|---|
| Music loading | 30 W |
| Nominal impedance Z | 8 Ohm |

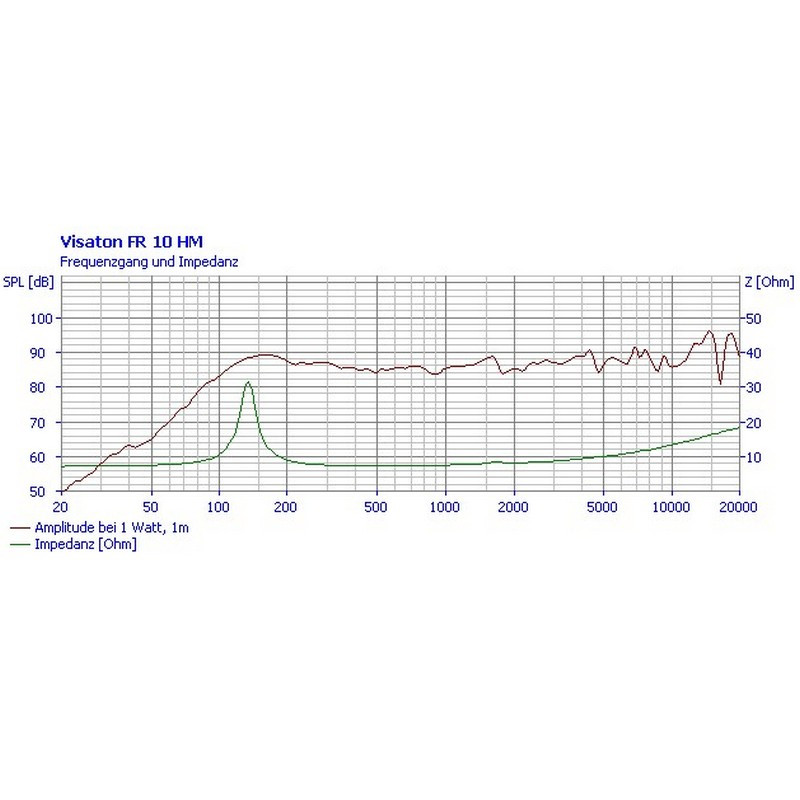

| Transmission range (-10 dB) | 95–22000 Hz |
| Medium sound pressure level | 86 dB (1 W/1 m) |

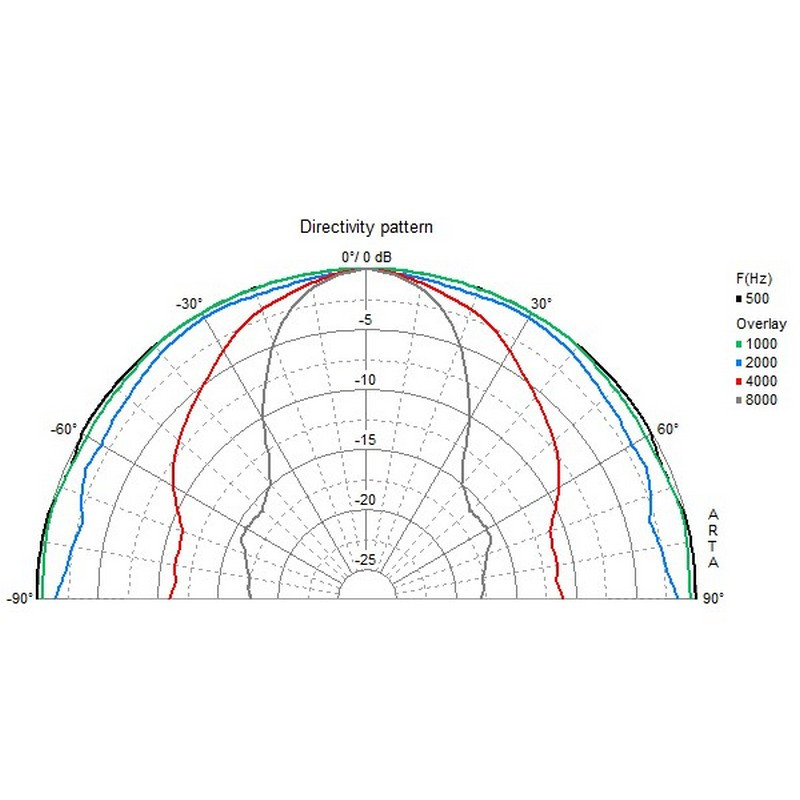

| Beam angle (-6 dB) | 86°/4000 Hz |
| Border deflection | +/-2 mm |
| Reaction frequency fs | 120 Hz |
| Magnetic induction | 1,1 T |
| Magnetic flux | 100 μWb |
| Upper pole plate height | 2 mm |
| Oscillating coil diameter | 14 mm |
| Winding height | 5 mm |

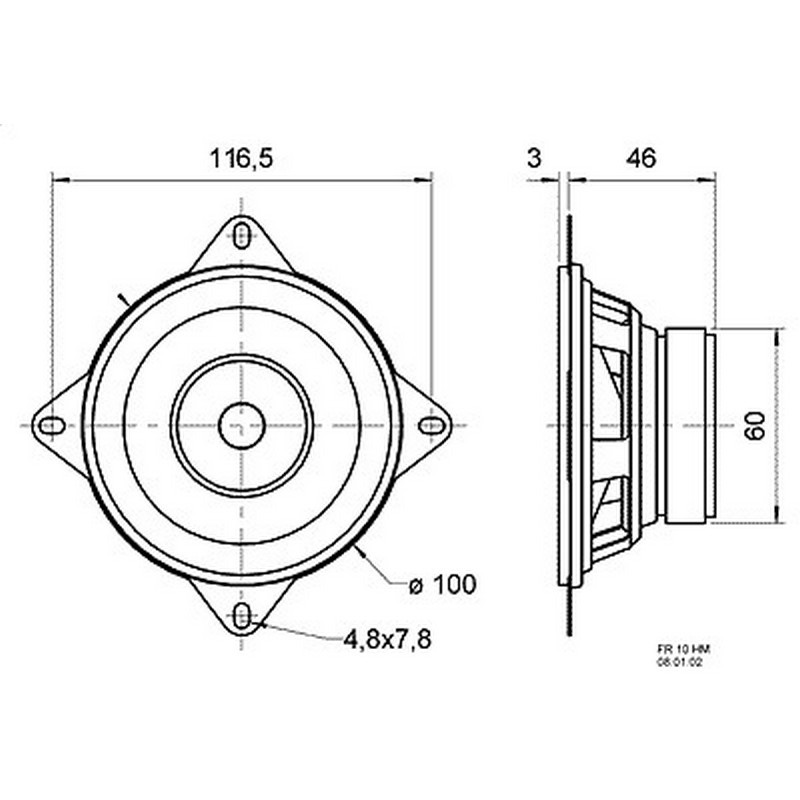

| Sound wall opening | 94 mm |
| Weight net | 0,34 kg |
| DC resistance Rdc | 7.2 Ohm |
| Mechanical Q-factor Qms | 5,89 |
| Electric Q-factor Qes | 1,91 |
| Total Q factor Qts | 1,44 |
| Equivalent air yield volume Vas | 2 l |
| Effective membrane surface Sd | 50 cm2 |
| Dynamic moving mass Mms | 2.8 g |
| Drive factor Bxl | 2,9 Tm |
| Vibration coil inductance L | 0,2 m |
| Connections | 4.8 x 0.8 mm (+) 2.8 x 0.8 mm (-) |
| Temperature range | −25 ... 70 °C |
