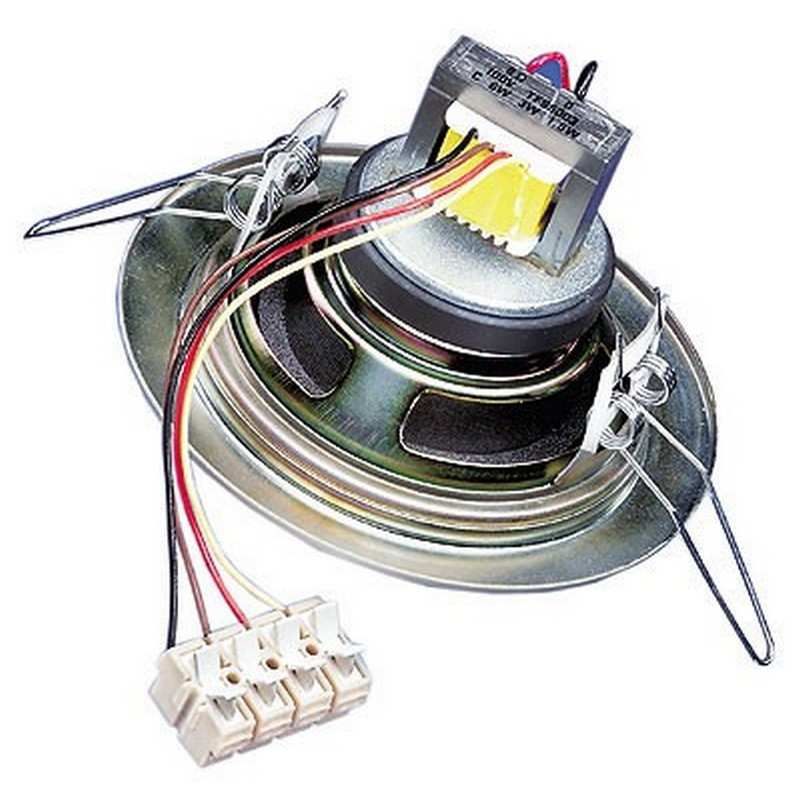

Visaton DL 10 - 100 V ceiling speakers

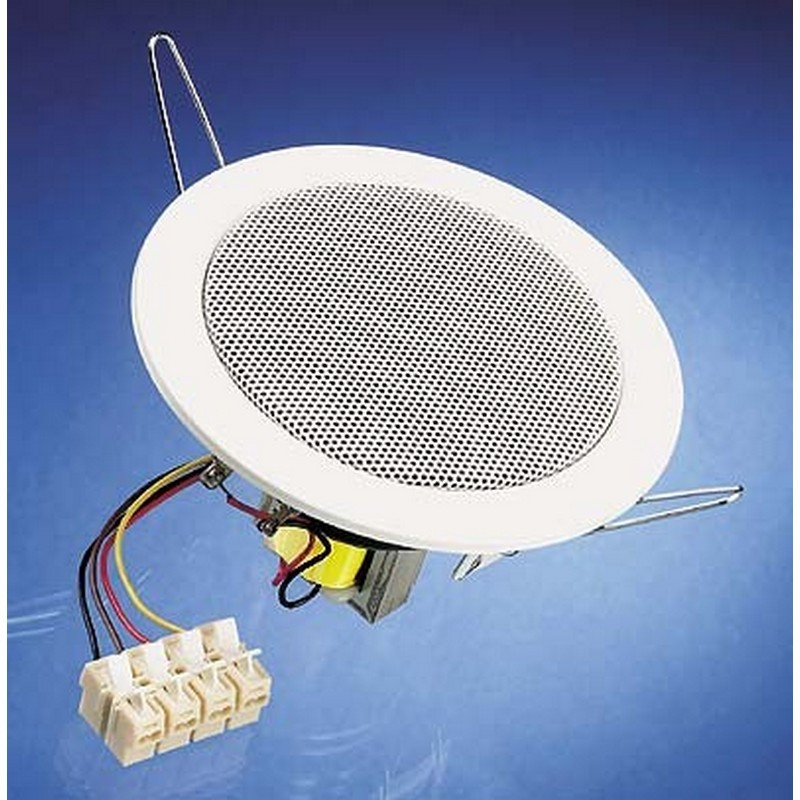

10 cm (4") ceiling speakers with white lacquered metal cover (RAL 9010).

Suitable for installation in covers of all materials.

Rational mounting in circular hole with spring clips.

The connection to the 100 V network as well as the possibly necessary level adaptation is effected by a compression spring clamp which is easy to handle.

Space-saving and sounding solution for the professional and the home area.

The DL 10 is also available in other RAL colours on request.

Speaker housing systems for concrete ceilings to this speaker are supplied by KAISER, 58579 Schalksmühle. For our ceiling speakers we recommend the housings of the KompaX series, which are available in three different versions. Depending on requirements, additional front parts (front rings, mineral fiber boards etc.) are required. More detailed information can be found in the homepage of KAISER (built-in housing for luminaires and loudspeakers). By clicking the "Technical Information" of the respective product, you will receive further details for installation. Fire protection pots (F30) are available under the name FlamoX.

*) IP protection class for front side when installed in a sealed housing
