Visaton DL 18/2 - 100 V HiFi ceiling speakers

17 cm (6.5") HiFi ceiling speaker

€75.78
Our previous price €108.25
Save 30%
Tax included Shipping excluded
Ceiling speakers
4-0188
Quantity
Wishlist
Compare
available at manufacturer
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

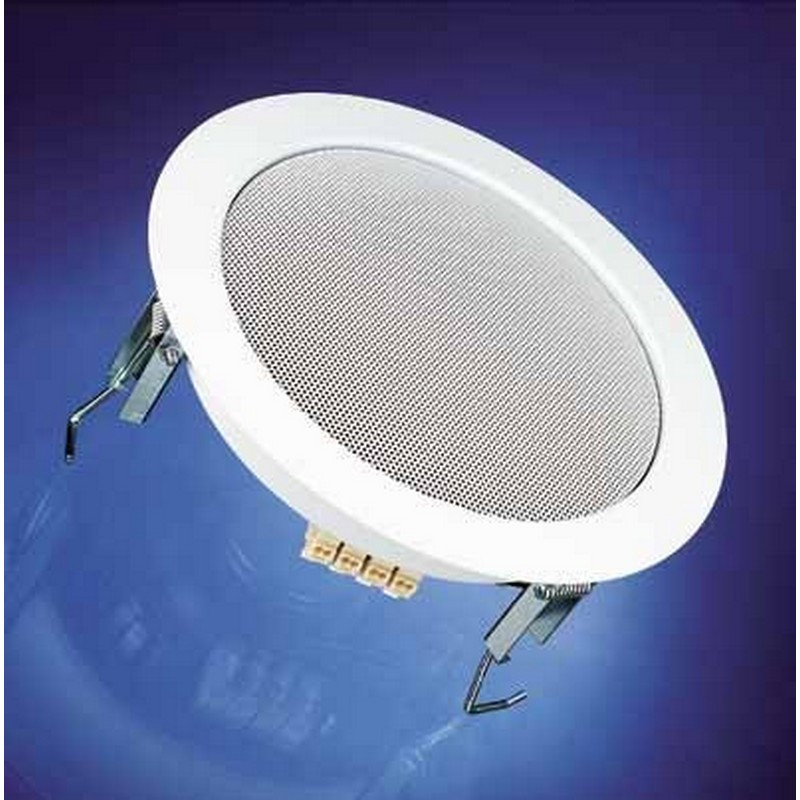

17 cm (6.5") HiFi ceiling speakers with corrosion-resistant cover grid, suitable for installation in covers of all materials.

Fitted with a 2-way coaxial loudspeaker.

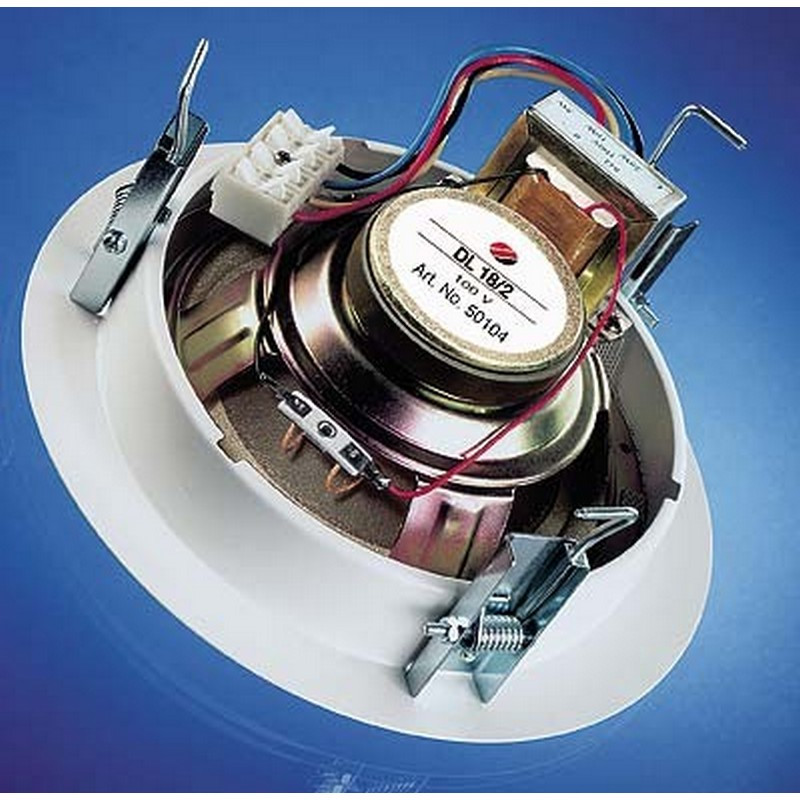

Quick mounting through a circular undercover section, in which the speaker with transformer and mounting ring is used in snap-in technology.

The connection to the 100 V network as well as the possibly necessary level adaptation is effected by a compression spring clamp which is easy to handle.

The beautiful cover grid is fastened quickly and practically with a bayonet connection.

The DL 18/2 is also available in other RAL colours on request.



Applications

- Installation in suspended ceilings for voice and music sounding in shops, living rooms, hotels etc.

Characteristics

- Moisture-impregnated membrane

- UV-resistant

- Metal design, corrosion-proof

- Functional at low temperatures according to EN 60068-2-1 (-40 °C; 96 h)

- meets the requirements of Germanischer Lloyd (requirements for electrical equipment/colds)

Technical data

Trafo matching 20; 10, 5 W

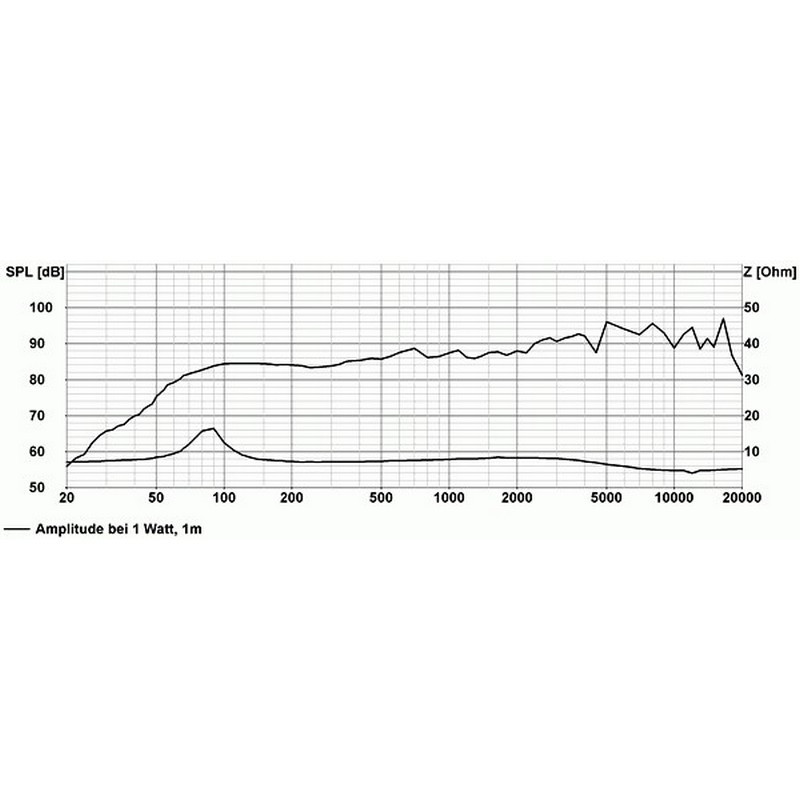

Sound pressure level 94 dB (1 W/1 m) @ 4954 Hz
Transmission range (-10 dB) 50–20000 Hz
Medium sound pressure level 90 dB (1 W/1 m)
Maximum sound pressure level 103 dB (20 W/1 m)

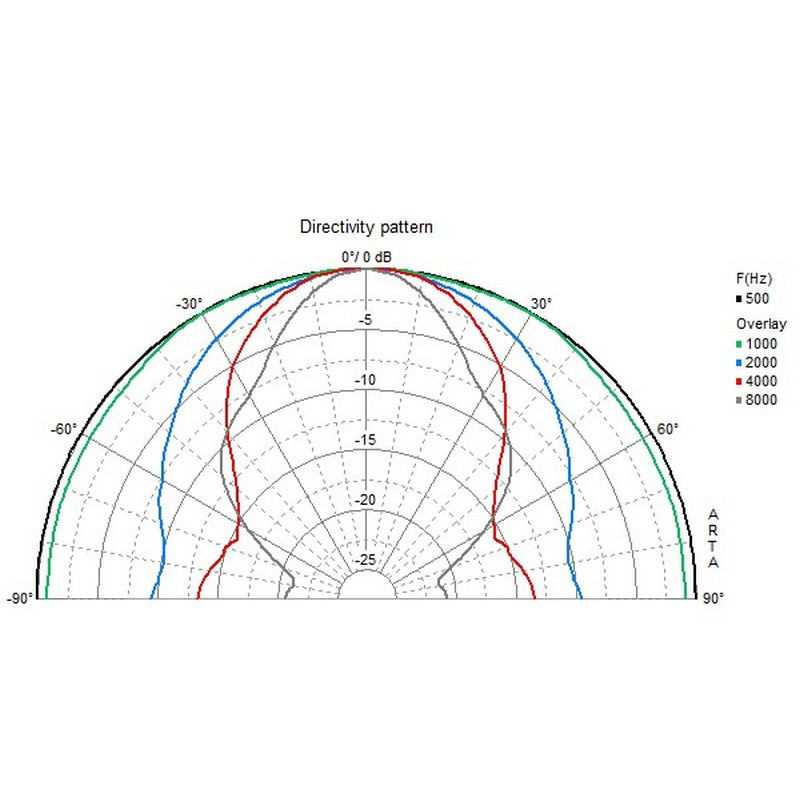

Beam angle (-6 dB) 64°/4000 Hz
Reaction frequency fs 90 Hz
Magnetic induction 0,95
Magnetic flux 310 μWb
Upper pole plate height 3 mm
Oscillating coil diameter 25 mm
Winding height 6 mm

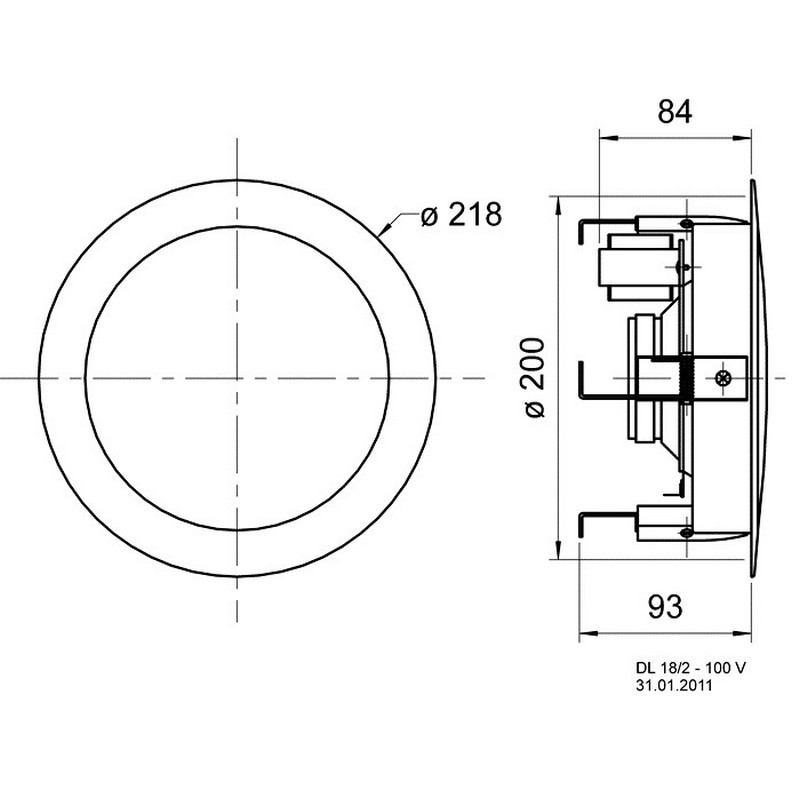

Sound wall opening 200 mm
Weight net 1,5 %
Protection class IP X3
Temperature range −40 – 80 °C
Colour RAL 9010
4-0188
