Visaton DL 8 - 100 V ceiling speakers
8 cm (3,3") ceiling speakers
Visaton DL 8 - 100 V ceiling speakers
8 cm (3,3") ceiling speakers
€39.22
Our previous price
€56.03
Save 30%
Tax included
Shipping excluded
4-0192
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return

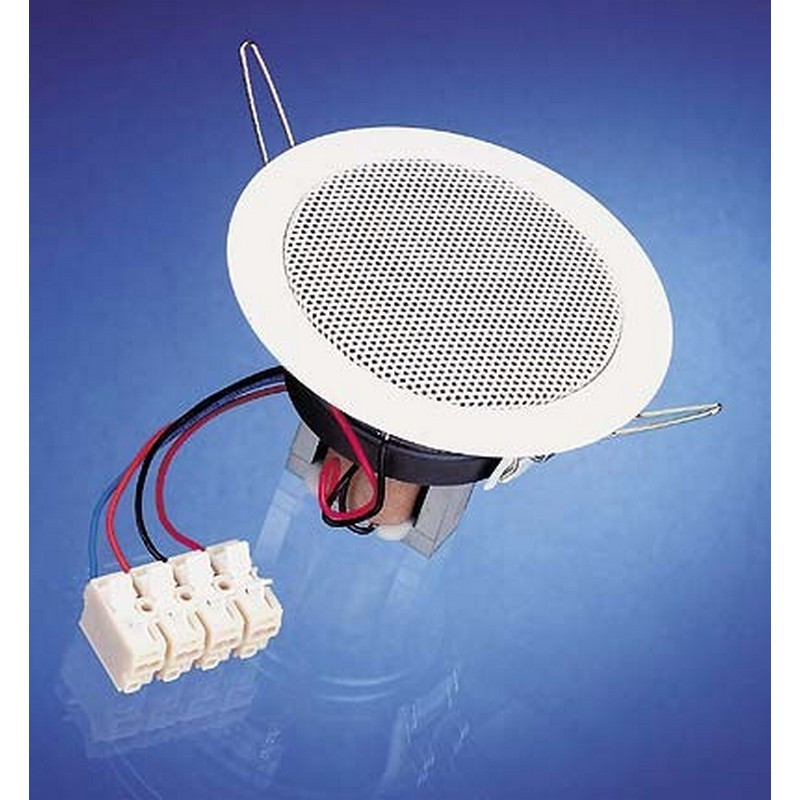

8 cm (3,3") ceiling speakers with white lacquered metal cover (RAL 9010).
Suitable for installation in covers of all materials.
Rational mounting in circular hole with spring clips, electrical connection with compression spring clamp.
Space-saving and sounding solution for the professional and the home area.
With smaller coil of higher sound pressure level.
The DL 8 is also available in other RAL colours on request.
*) IP protection class for front side when installed in a sealed housing
Applications
- Installation in suspended ceilings for voice and music sounding in shops, living rooms, hotels etc.
Characteristics
- Moisture-impregnated membrane
- UV-resistant
- Metal design, corrosion-proof
- Functional at low temperatures according to EN 60068-2-1 (-40 °C; 96 h)
- meets the requirements of Germanischer Lloyd (requirements for electrical equipment / refrigeration)
- ball throw-proof

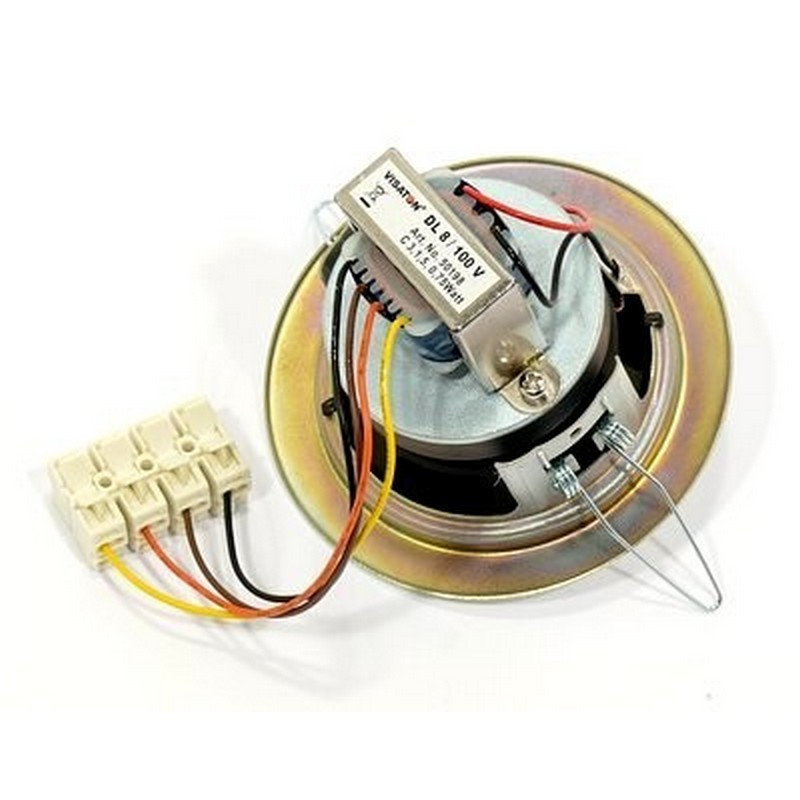

- 100-V transformer
Technical data
| Trafo matching | 3; 1.5; 0,75 W |
|---|---|
| Sound pressure level | 90 dB (1 W/1 m) @ 3600 Hz |

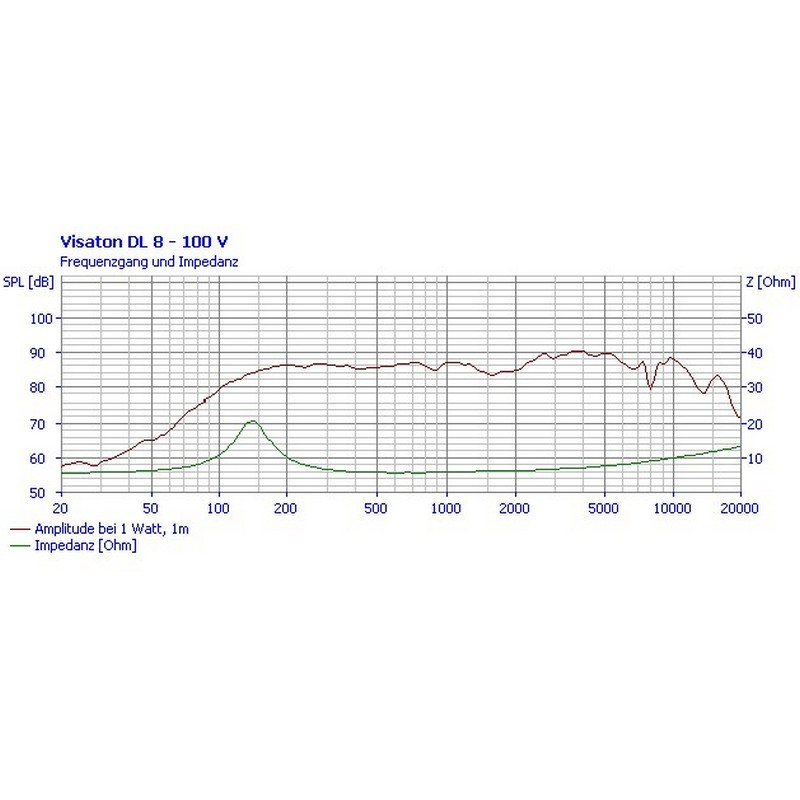

| Transmission range (-10 dB) | 90–18000 Hz |
| Medium sound pressure level | 87 dB (1 W/1 m) |
| Maximum sound pressure level | 91 dB (3 W/1 m) |

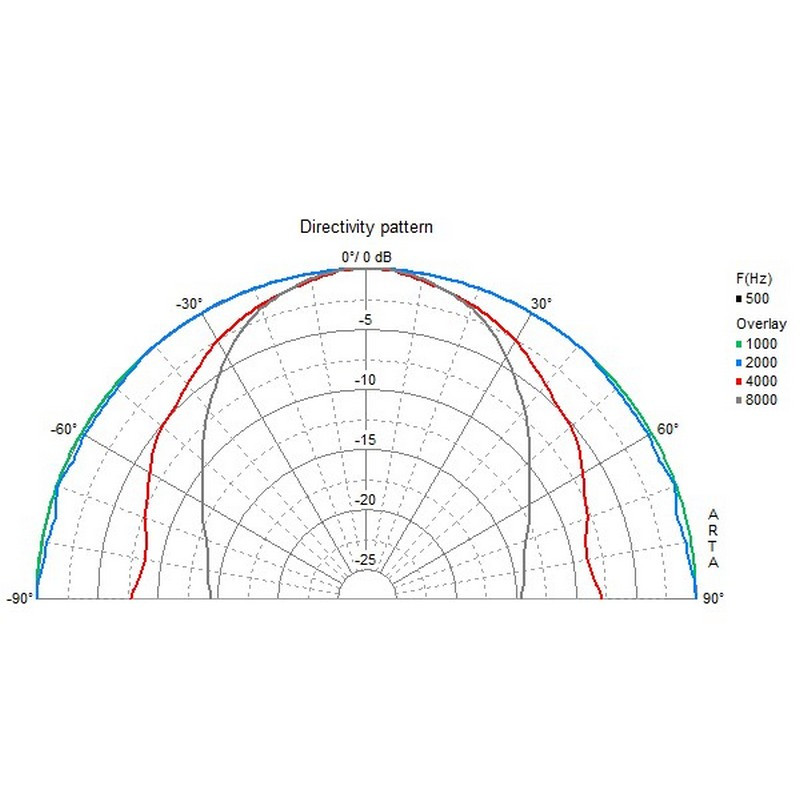

| Beam angle (-6 dB) | 112°/4000 Hz |
| Upper pole plate height | 3 mm |
| Oscillating coil diameter | 14 mm |

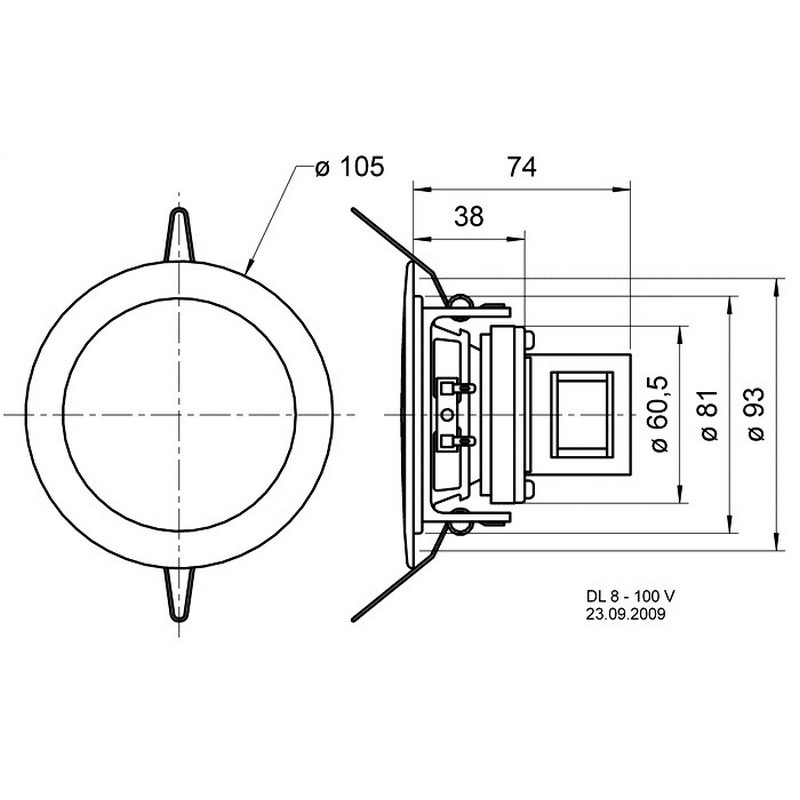

| Sound wall opening | 93 mm |
| Weight net | 0,515 kg |
| Length of connection cable | 0,15 m |
| Protection class | IP 54 *) |
| Temperature range | −40 – 110 °C |
| Colour | RAL 9010 |
4-0192
