Visaton DK 10 MW - 100 V/70 V/8 Ohm Pressure Chamberhorn Speaker

Pressure chamber horn loudspeaker

€157.96
Our previous price €225.65
Save 30%
Tax included Shipping excluded
Pressure chamber horns
4-0198
Quantity
Wishlist
Compare
available at manufacturer
  Secure delivery

Delivery by DHL in a well-padded shipping box

  Return policy

14-day right of return

Pressure chamber horn loudspeaker with very high mean sound pressure level and wide, balanced transmission range.

This ensures excellent speech comprehensibility.

Performance adjustment in 100-V/70-V or. 8-ohm operation takes place via rotary switches which are protected against accidental switching or switching off.

UV-resistant, light grey plastic housing (ABS UL 94: HB).

Swivelable stainless steel bracket (V2A/AISI 304) for mounting on ceilings, walls, columns, etc.

Technical data

Rated load capacity 30 W
Music loading 60 W
Trafo matching 100 V: 30 W/15 W/7,5 W/ 3,75 W/Off/8 Ohm
70 V: 15 W/7,5 W/3,75 W/ 1.87 W/Off/8 Ohm

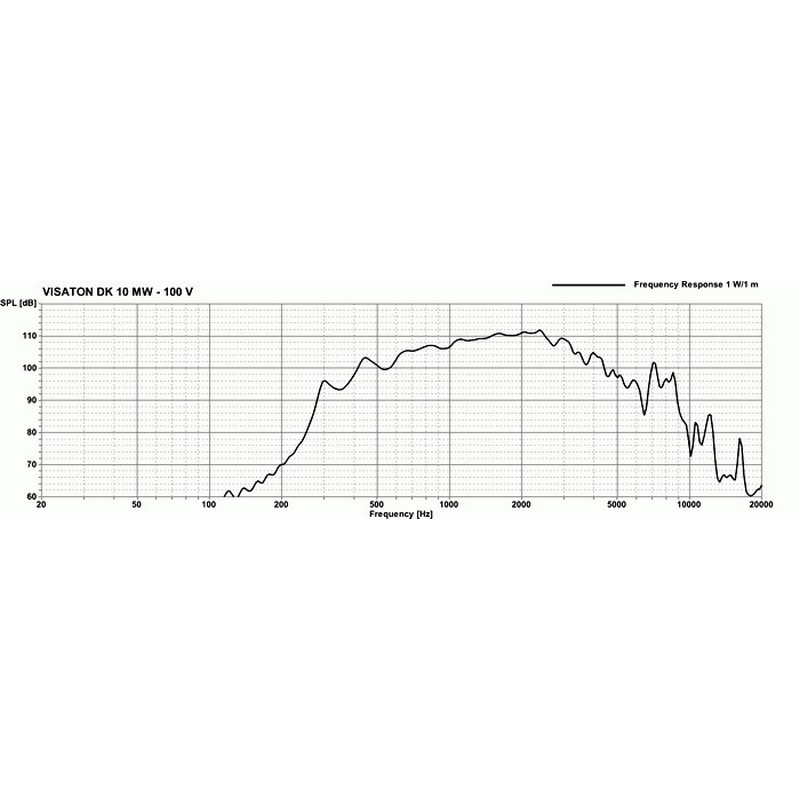

Transmission range (-10 dB) 400–5000 Hz
Medium sound pressure level 110 dB (1 W/1 m)
Maximum sound pressure level 125 dB (30 W/1 m)
Weight net 2,11 kg
Protection class IP 66
Temperature range 30... 90 °C
4-0198
