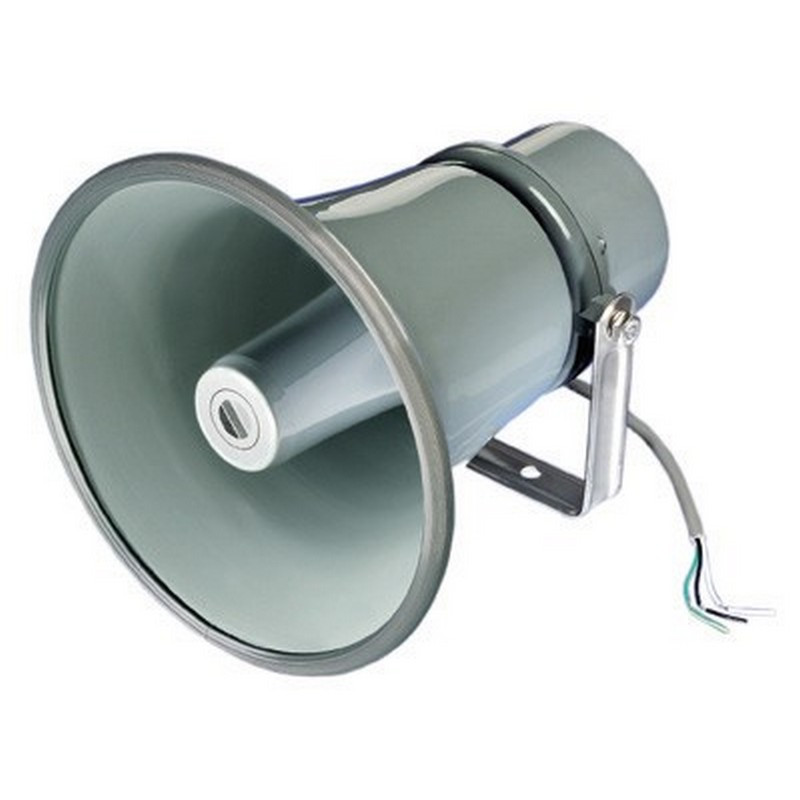

Visaton DK 8 - 100 V/20 Ohm pressure chamber horn loudspeaker
Pressure chamber horn loudspeaker
Visaton DK 8 - 100 V/20 Ohm pressure chamber horn loudspeaker
Pressure chamber horn loudspeaker
€117.71
Our previous price
€168.15
Save 30%
Tax included
Shipping excluded
4-0206
Secure delivery
Delivery by DHL in a well-padded shipping box
Return policy
14-day right of return
Pressure chamber horn loudspeaker with 100 V transmitter.
Power adjustment of the 100-V model in five stages by means of rotary switches, additionally 20-ohm adjustment possible.
High sound pressure and broad transmission range, thereby excellent speech comprehensibility.
Swivelable metal hanger for fastening to ceilings, walls, columns etc.
Applications
- sounding of factory halls, railway stations, etc.
- External sound
Characteristics
- Functional at low temperatures according to EN 60068-2-1 (-25 °C; 96 h)
- meets the requirements of Germanischer Lloyd (requirements for electrical equipment/colds)
- 100-V transformer
- UV-resistant
Technical data
| Trafo matching | 15; 10; 5; 3; 1 W; 20 Ohm |
|---|---|
| Sound pressure level | 107 dB (1 W/1 m) @ 1144 Hz |

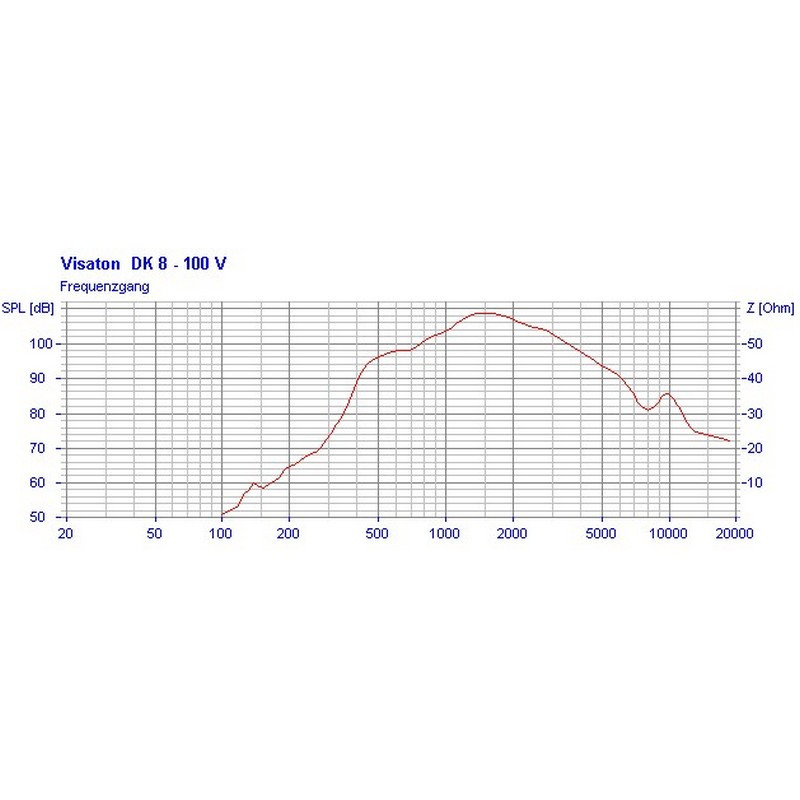

| Transmission range (-10 dB) | 400–5000 Hz |
| Medium sound pressure level | 105 dB (1 W/1 m) |
| Maximum sound pressure level | 117 dB (15 W/1 m) |

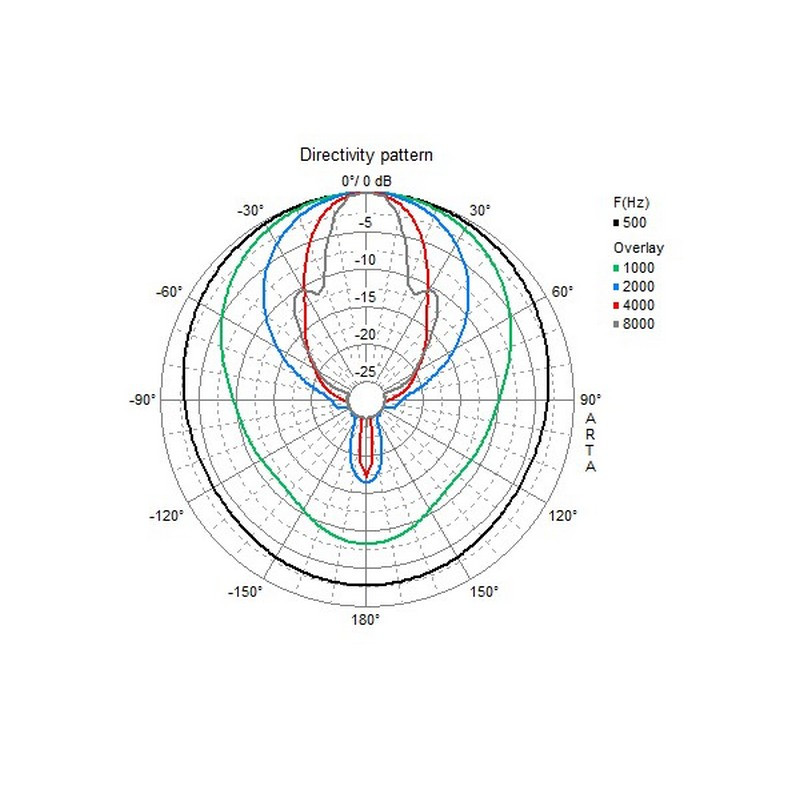

| Beam angle (-6 dB) | 42°/4000 Hz |
| Weight net | 1.4 kg |
| Length of connection cable | 0,6 m |
| Protection class | IP 66 |
| Temperature range | −25 ... 70 °C |
| Colour | RAL 7012 |
4-0206
